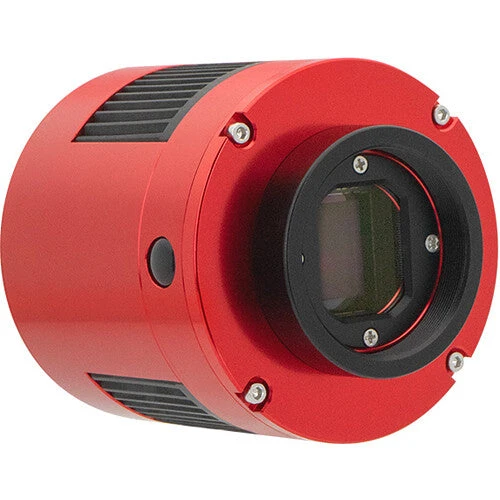

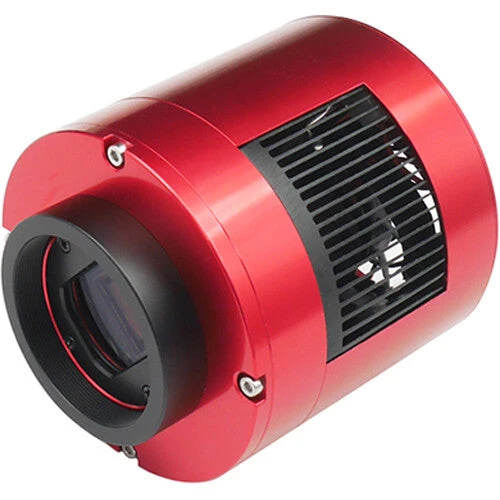

ZWO ASI294MM USB 3.0 Monochrome Astronomy Camera(Zwo Asi294mm Usb 3 0 Monochrome Astronomy Camera)

ZWO ASI294MM USB 3.0 Monochrome Astronomy Camera(Zwo Asi294mm Usb 3 0 Monochrome Astronomy Camera) - Image 2

ZWO ASI294MM USB 3.0 Monochrome Astronomy Camera(Zwo Asi294mm Usb 3 0 Monochrome Astronomy Camera) - Image 3

ZWO ASI294MM USB 3.0 Monochrome Astronomy Camera(Zwo Asi294mm Usb 3 0 Monochrome Astronomy Camera) - Image 4

ZWO ASI294MM USB 3.0 Monochrome Astronomy Camera(Zwo Asi294mm Usb 3 0 Monochrome Astronomy Camera) - Image 5

ZWO ASI294MM USB 3.0 Monochrome Astronomy Camera(Zwo Asi294mm Usb 3 0 Monochrome Astronomy Camera) - Image 6

ZWO ASI294MM USB 3.0 Monochrome Astronomy Camera(Zwo Asi294mm Usb 3 0 Monochrome Astronomy Camera)

Original price was: $305.00.Current price is: $98.99.

SKU: DGFUB 7132753690709 Categories: Optics, Optics & Surveillance, Telescopes Tags: Astro Imaging Cameras, Astrophotography, Optics, ZWO ASI294MM

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

ZWO ASI294MM Overview

Eyepiece Imagers: Capture the Universe and Share, Tweet, or Whatever It

Capture stunning, high-resolution planetary images with the ASI294MM USB 3.0 Monochrome Astronomy Camera from ZWO. Equipped with a Sony IMX294 CMOS sensor, the camera achieves 11.7MP resolution with low read noise. It features USB 2.0 and 3.0 connection to your computer and an ST4 port to the autoguider on your mount.

11.7MP Sensor

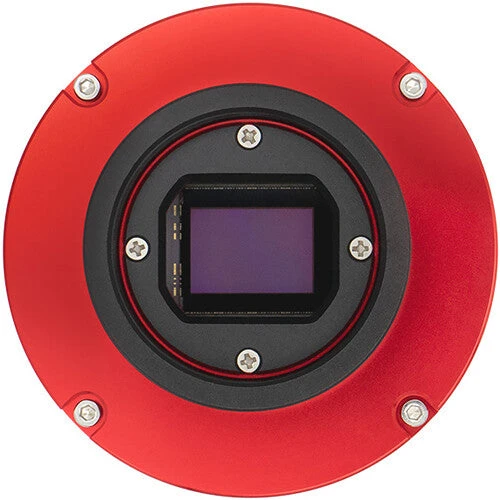

The ASI294MM features a 19.2 x 13mm Sony sensor with a resolution of 4144 x 2822 at 12-bit ADC in Bin 2 mode. The 4.63µ pixel accommodates a full well capacity of 66.4e. The sensor boasts a quantum efficiency of 90%.

High Conversion Gain Mode

HCG mode comes on automatically when gain is set to 120 and keeps readout noise as low as 1.2e, while maintaining a nearly 14-bit dynamic range.

Analog-to-Digital Converter

The ASI294 camera can record in 14-bit and 12-bit ADC. You can image at a faster frame rate if you choose to use 12-bit (high speed mode). This camera also supports ROI (region of interest) shooting, and smaller ROI range support faster fps.

Protective Window

A 2mm thick antireflective-coated protective window improves the camera’s performance in UV and near-IR wavelengths.

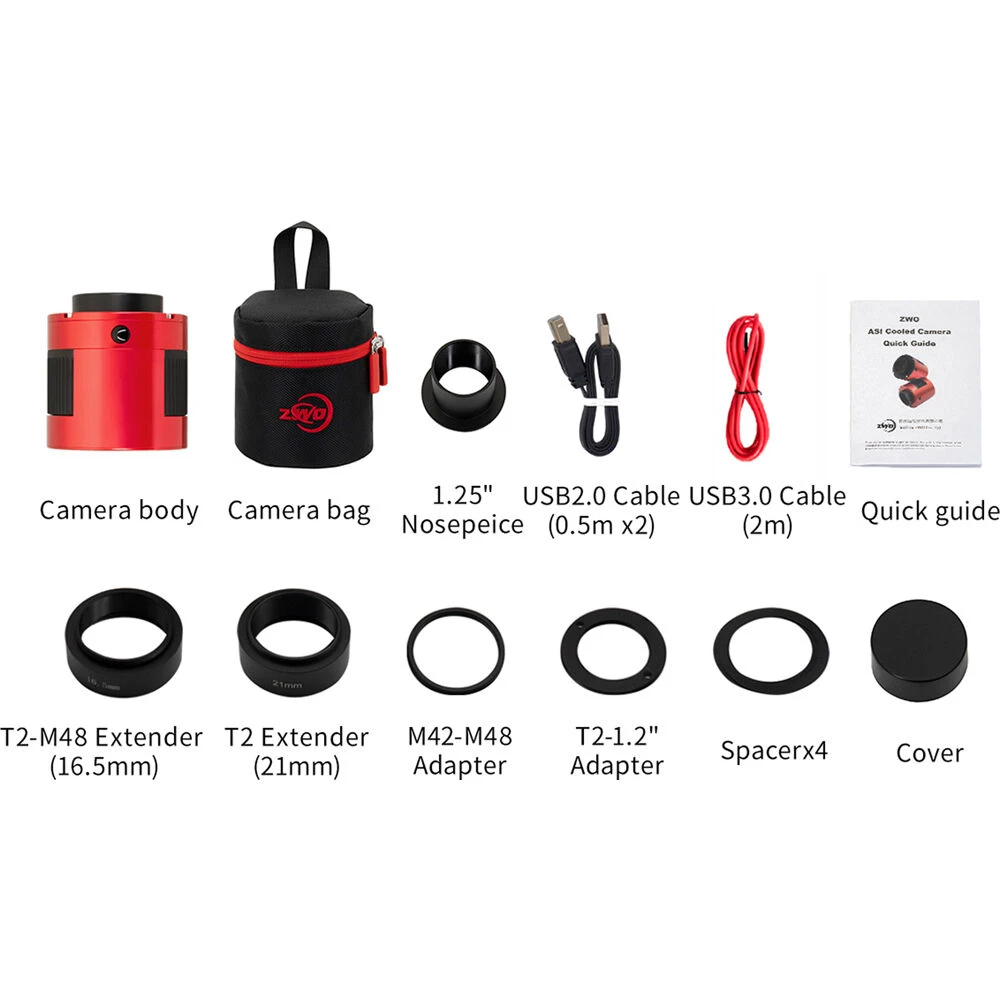

Items Included

ZWO ASI294MM USB 3.0 Monochrome Astronomy Camera
USB 3.0 Cable (6.6′)
ST4 Cable
T2 to 1.25″ Adapter
1.25″ Nosepiece
1.25″ Cover
2″ Cover
Limited 2-Year Manufacturer Warranty

Additional Resources

No additional resources available

ZWO ASI294MM Specs

General

Image Sensor	11.7 MP 19.2 x 13mm IMX492
Ports	1 x USB 2.0/3.0 1 x ST4
Frame Rate	19 fps
Pixel Pitch	4.63µ
Sensor Resolution	4144 x 2822
Readout Noise	1.2-8 e
Shutter Type	Rolling

Inputs/Outputs

USB I/O

1 x USB-C Female Input/Output

Power

Power Source

USB

Physical

Mounting	1x M42 x 0.75 1x 1/4″-20
Color	Red
Material of Construction	Aluminum
Operating Conditions	Up to 104°F / 40°C at 20 to 80% Humidity
Storage Conditions	14 to 140°F / -10 to 60°C at 20 to 95% Humidity

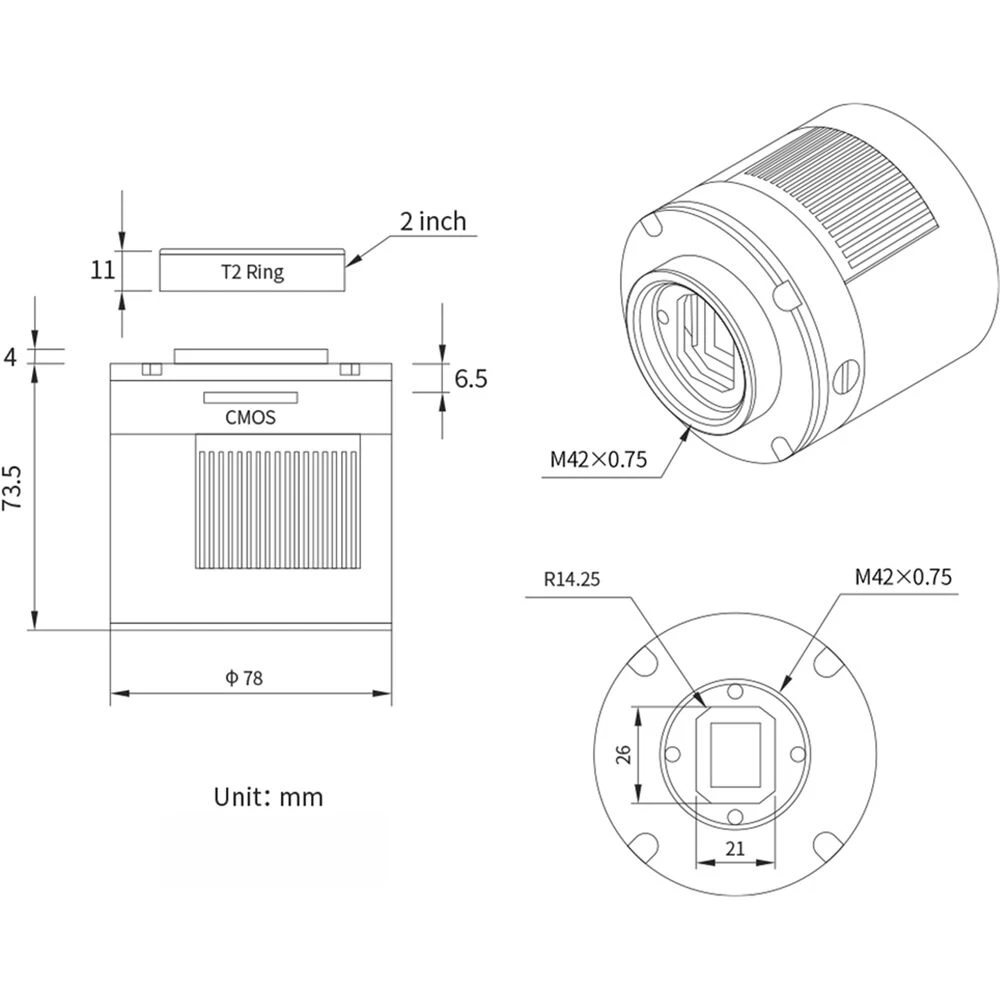

Dimensions	2.4″ / 62 mm (Diameter)
