Sale!

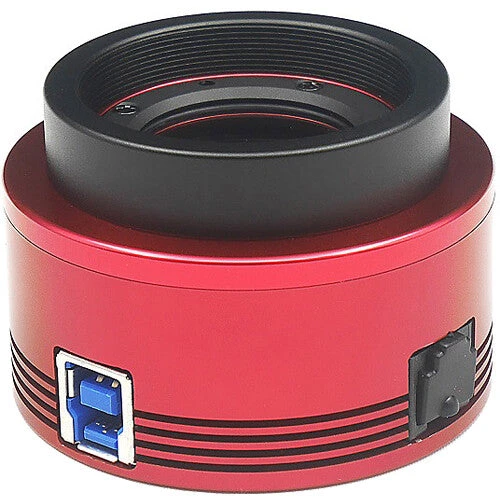

ZWO ASI183MC USB 3.0 Astronomy Camera (Color)(Zwo Asi183mc Usb 3 0 Astronomy Camera Color)

ZWO ASI183MC USB 3.0 Astronomy Camera (Color)(Zwo Asi183mc Usb 3 0 Astronomy Camera Color) - Image 2

ZWO ASI183MC USB 3.0 Astronomy Camera (Color)(Zwo Asi183mc Usb 3 0 Astronomy Camera Color) - Image 3

ZWO ASI183MC USB 3.0 Astronomy Camera (Color)(Zwo Asi183mc Usb 3 0 Astronomy Camera Color) - Image 4

ZWO ASI183MC USB 3.0 Astronomy Camera (Color)(Zwo Asi183mc Usb 3 0 Astronomy Camera Color)

Original price was: $338.00.Current price is: $98.99.

SKU: DGFUB 7132928770133 Categories: Optics, Optics & Surveillance, Telescopes Tags: Astro Imaging Cameras, Optics, Telescopes, ZWO ASI183MC

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

ZWO ASI183MC Overview

Eyepiece Imagers: Capture the Universe and Share, Tweet, or Whatever It

Capture stunning high-resolution planetary and deep-sky images with the color ASI183MC USB 3.0 Astronomy Camera from ZWO. Equipped with a Sony IMX183 Exmor CMOS sensor, the camera achieves 20.2MP resolution with low read noise. The camera’s 15ke full well capacity allows for long exposures and helps avoid overexposure issues.

20.2MP Color Sensor

The ASI183MC features a 13.2 x 8.8mm back-illuminated Sony Exmor CMOS sensor with a resolution of 5496 x 3672. The 2.4µ pixels accommodate a full well capacity of 15ke.

High Quantum Efficiency

Sony’s back-illuminated Exmor R technology allows for 84% peak quantum efficiency and over 60% in the hydrogen-alpha bandwidth. Having a high QE means more of the light that enters your telescope and reaches the sensor is actually used. With 84% peak QE and no less than 50% within the visible spectrum, the ASI183 will utilize a high percentage of the light that reaches it, improving your signal quality.

Fast Data Transfer

The frame rate of up to 19 fps at 20.2MP and faster at lower resolutions are suited to solar and lunar imaging, as well as for live viewing/electronic-assisted astronomy with real-time focusing. The high-speed readout is also helpful for true lucky imaging of double stars and other small objects.

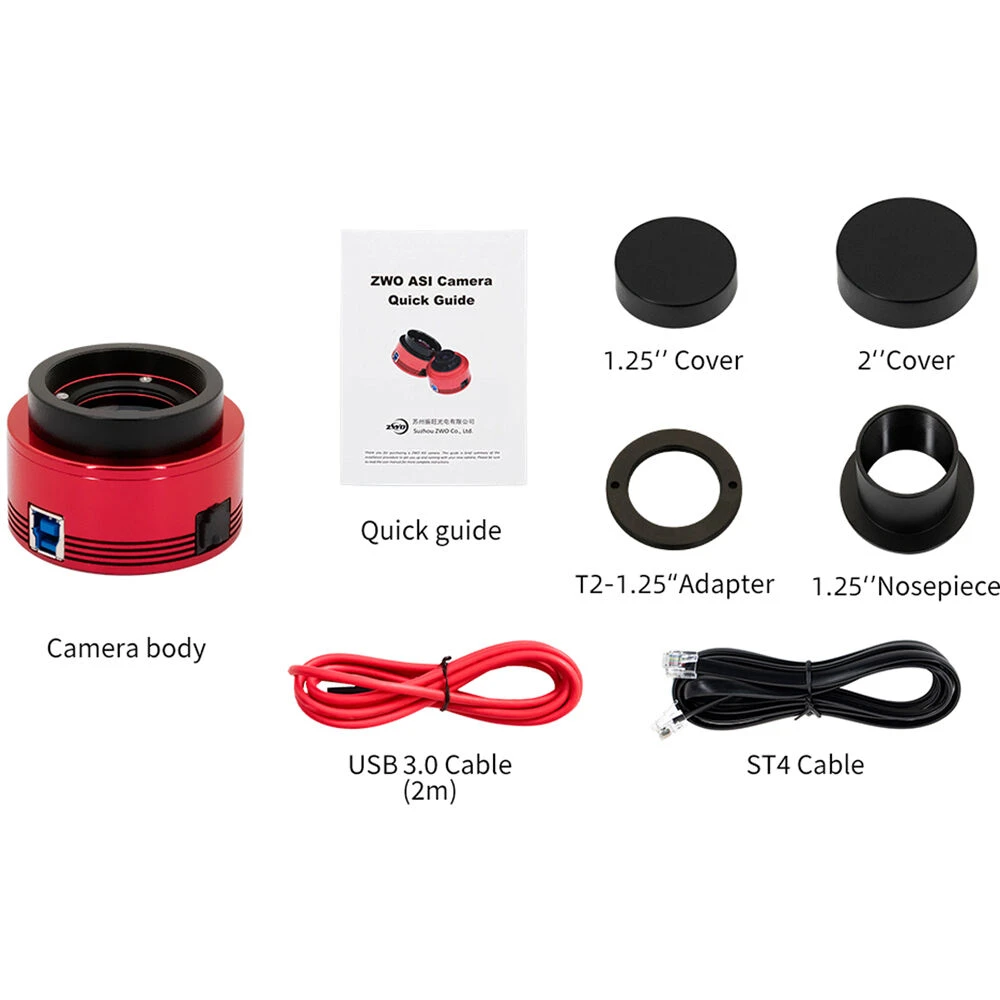

Items Included

ZWO ASI183MC USB 3.0 Astronomy Camera (Color)
USB 3.0 Cable (6.6′)
ST4 Cable
Nosepiece (1.25″)
Cover (1.25″)
Cover (2″)
Limited 2-Year Manufacturer Warranty

Additional Resources

User Manual

1.7 MB

ZWO ASI183MC Specs

General

Image Sensor	Sony IMX183 Exmor 13.2 x 8.8mm
Frame Rate	19 fps
Pixel Pitch	2.4µ
Sensor Resolution	5496 x 3672 Maximum
Readout Noise	1.6 e @ 30DB Gain
Shutter Type	Rolling

Inputs/Outputs

Ports

1 x USB 3.0
1 x ST4

Power

Power Source

USB

Physical

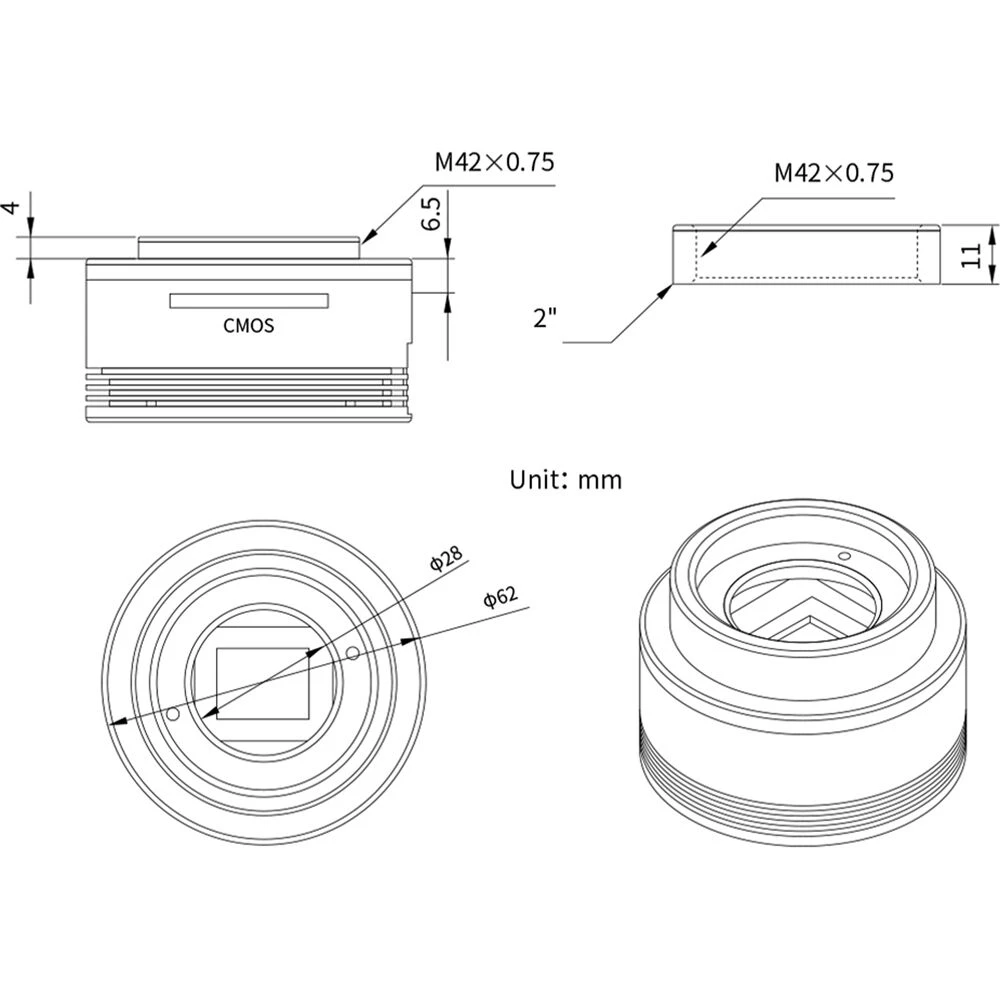

Mounting	1x M42 x 0.75 1x 1/4″-20
Color	Red
Environmental Resistance	No
Operating Conditions	23 to 113°F / -5 to 45°C at 20 to 80% Humidity
Storage Conditions	-4 to 140°F / -20 to 60°C at 20 to 95% Humidity
Dimensions	2.4″ / 62 mm (Diameter)
Weight	4.9 oz / 140 g

Packaging Info

Package Weight	0.86 lb
Box Dimensions (LxWxH)	6.2 x 6 x 2.7″

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
