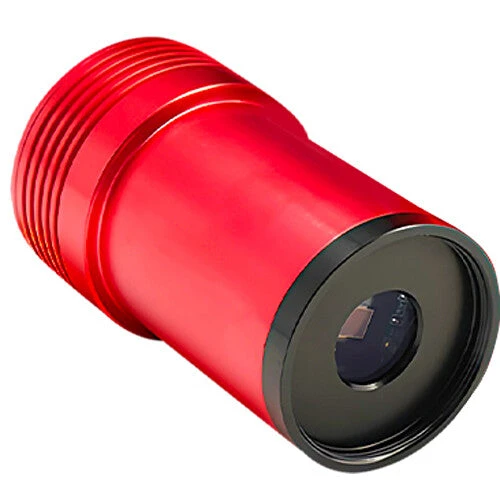

ZWO ASI120MINI Overview
The ASI120 Mini Mono Guide Camera from ZWO is used during astrophotography sessions to help your computer keep your mount tracking a subject with a high degree of accuracy during a long night of imaging. It is also a capable camera in its own right for planetary imaging. The camera is outfitted with a 1280 x 960 1/3″ sensor and tethers to your computer via USB cable or to your mount via ST4 cable. The ASI120 Mini drops in just like a 1.25″ eyepiece and focuses at the same point; it also works in a guide scope or an off-axis guider.
Items Included
- ZWO ASI120 Mini Mono Guide Camera
- USB-C 2.0 Cable (6.6′)
- USB-C 2.0 Cable (19.7″)
- ST4 Cable
- Extender (1.25″)
- M28.5-CS Adapter
- Cover (1.25″)
- Limited 2-Year Manufacturer Warranty
Additional Resources
User Manual
0.8 MB
ZWO ASI120MINI Specs

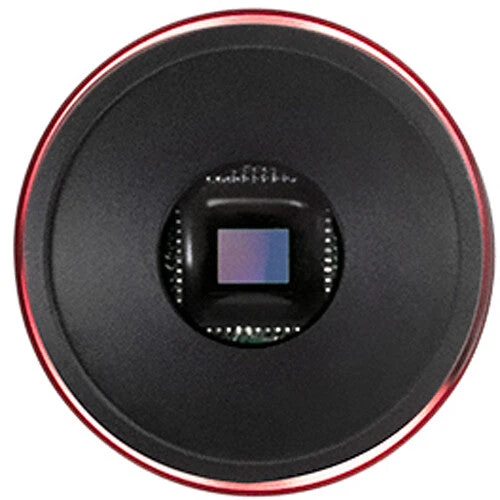

| Image Sensor |
AR0130CS 4.8 x 3.6mm Monochrome CMOS |
| Frame Rate |
35 fps |
| Pixel Pitch |
3.75µ |
| Sensor Resolution |
1280 x 960 |
| Analog-Digital Conversion |
12 Bit |
| Readout Noise |
4.0 e |
| Well Depth |
80% |

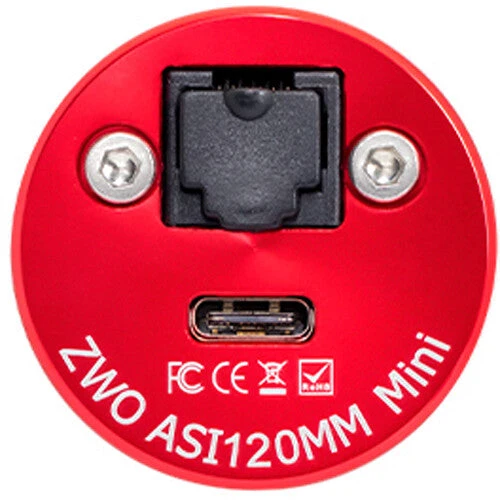

| USB I/O |
1 x USB-C Female Input/Output |
| Power Source |
USB |
| Mounting |
1x 1.25″ Focuser |
| Color |
Red |
| Material of Construction |
Aluminum |

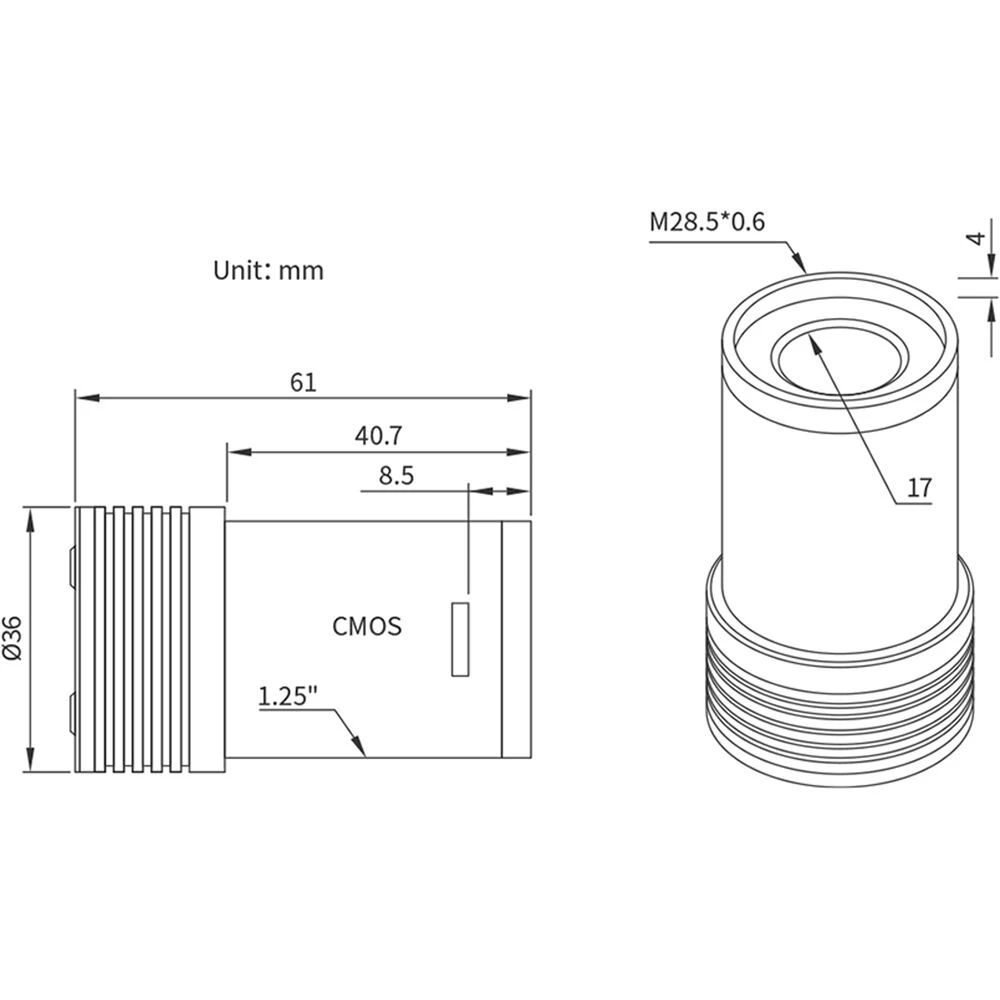

| Dimensions |
2.4 x 1.4″ / 61 x 36 mm |
| Weight |
Not Specified by Manufacturer |
| Package Weight |
0.755 lb |
| Box Dimensions (LxWxH) |
6.2 x 4.8 x 2.3″ |
