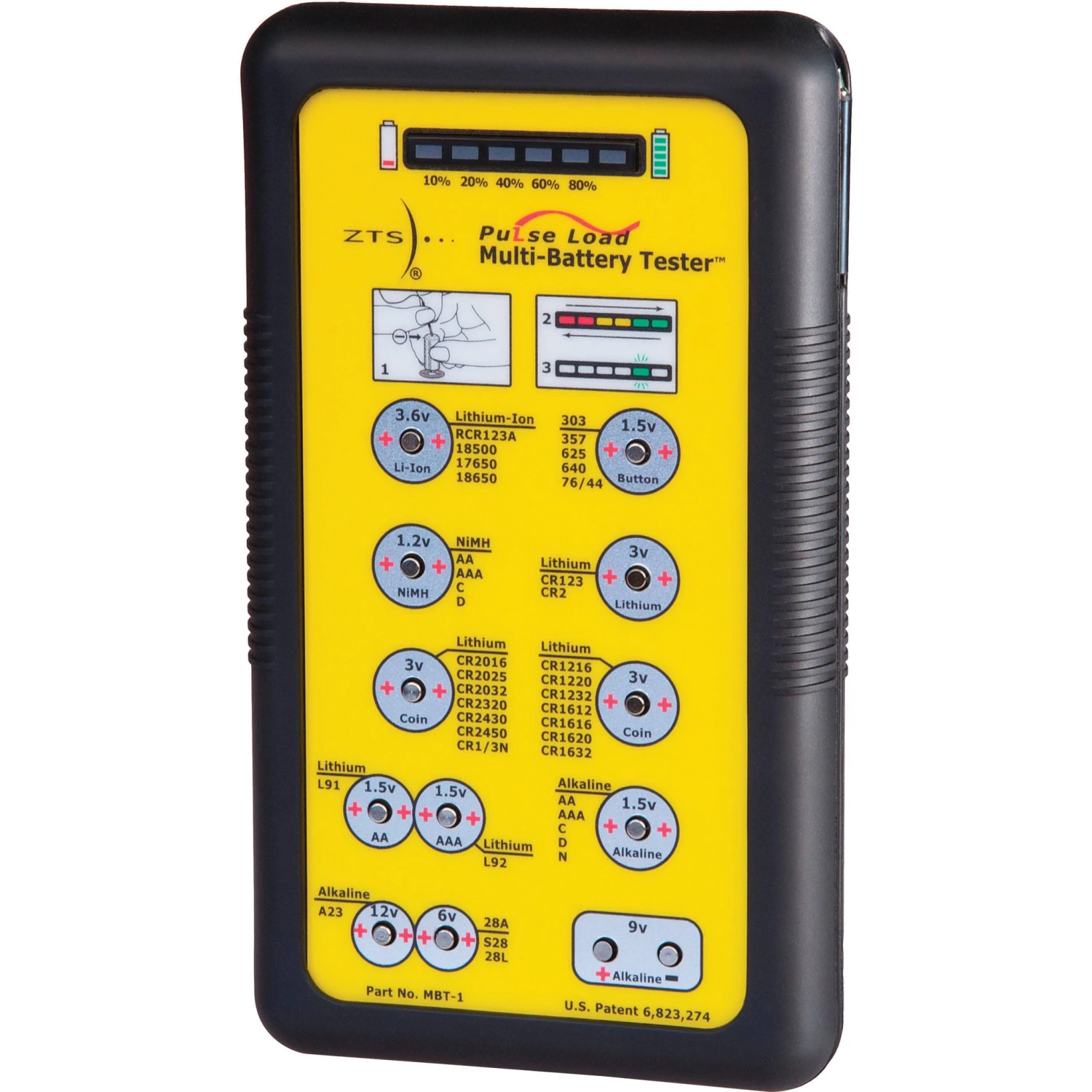

ZTS MBT-1 Multi Battery Tester(Zts Mbt 1 Multi Battery Tester)

The MBT-1 Multi Battery Tester from ZTS provides you with a quick and efficient way to test over 40 types of batteries including NiMH, Li-Ion, alkaline, lithium, coin cell, summary type and more. Without having to throw switches or push summarys, you simply place your battery on the appropriate space on the tester.  Then, by touching the battery with the included probe, the machine’s microprocessor shows you the percentage of remaining capacity on the LED display bar.

The battery contacts are labeled so you always know where to place your battery.  When not in use, the tester’s probe stores in the side seam of the tester. The unit is surrounded by a rubber sleeve that is easy to grip and also protects it from incidental contact. The tester runs on four “AA” batteries (sold separately).

Testing Capability	3.6 V Li-Ion rechargeable (RCR123A, 18500, 17650, 18650) 1.5 V summary cell (S76, A76, A625, A640, LR44, 357, 303) 1.2 V NiMH/NiCd rechargeable (AA, AAA, C, D) 1.5 V lithium (AA L91, AAA L92) 3 V lithium coin (CR1216, CR1220, CR1232, CR1612, CR1616, CR1620, CR1632, CR2016, CR2025, 58L, 1/3N, CR2032, CR2320, CR2430, CR2450) 6 V ’28’ series (28A, S28, 28L, 544, 4LR44) 3 V lithium cylindrical (CR123, CR2) 1.5 V alkaline (AA, AAA, C, D, N) 12 V alkaline (A23) 9 V alkaline and carbon zinc
Power	Four “AA” batteries (sold separately)
Display	Six LEDs Colors: Green, yellow, red
Pulse Load	Magnitude varies according to battery type
Operation	Microprocessor-controlled test cycle
Test Duration	2-3 seconds, varies according to battery type
Test Lead	Flexible, high strand-count 18AWG (American Wire Gauge) plastic coated, kinkless lead wire
Contact Terminals	Solid brass, nickel-plated
Dimensions	8.0 x 4.5 x 1.3″ (20.3 x 11.4 x 3.3 cm)
Weight	14.5 oz /411.0 g (without batteries)

Packaging Info
Package Weight	1.15 lb
Box Dimensions (LxWxH)	11.5 x 5.2 x 1.1″

ZTS MBT-1 Multi Battery Tester
