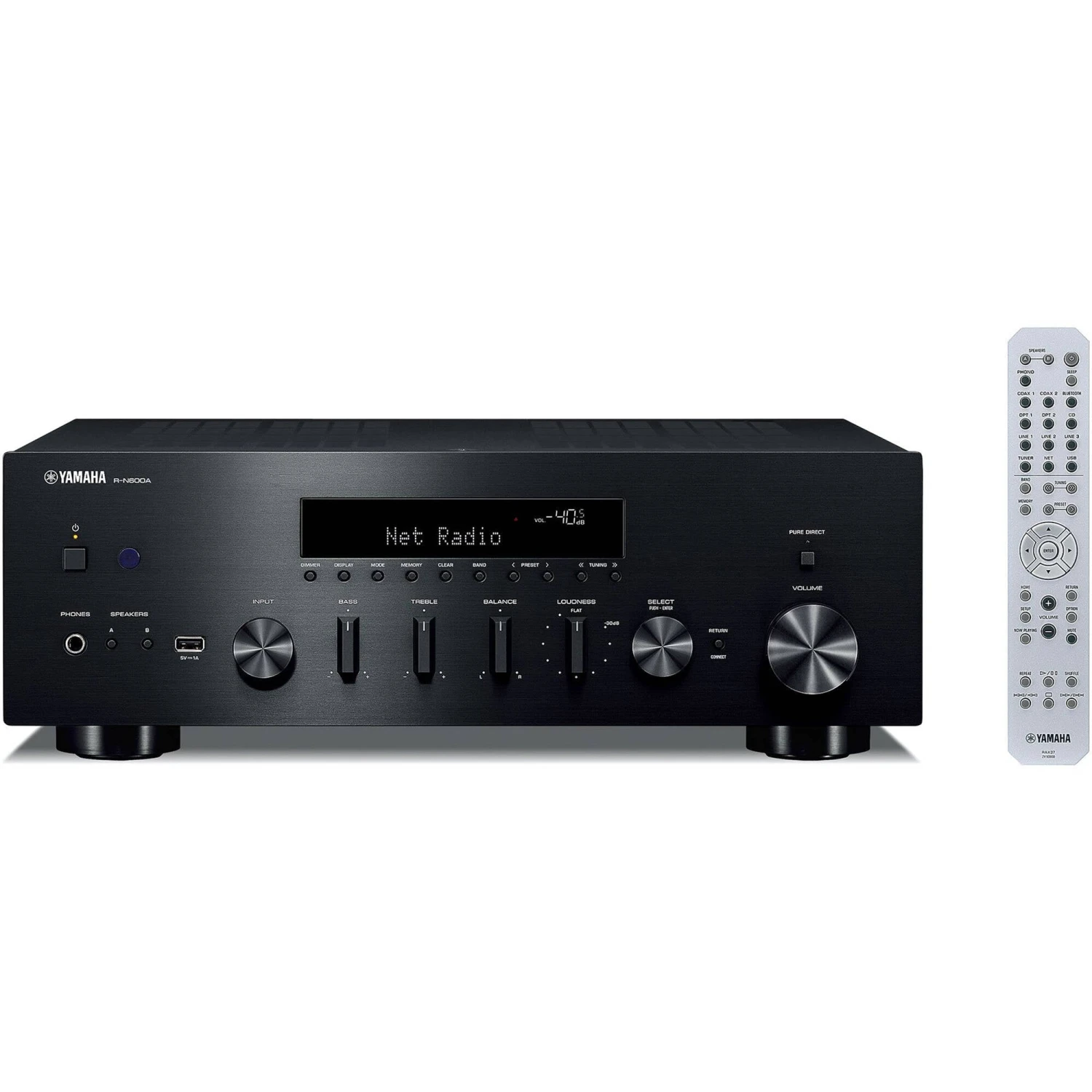

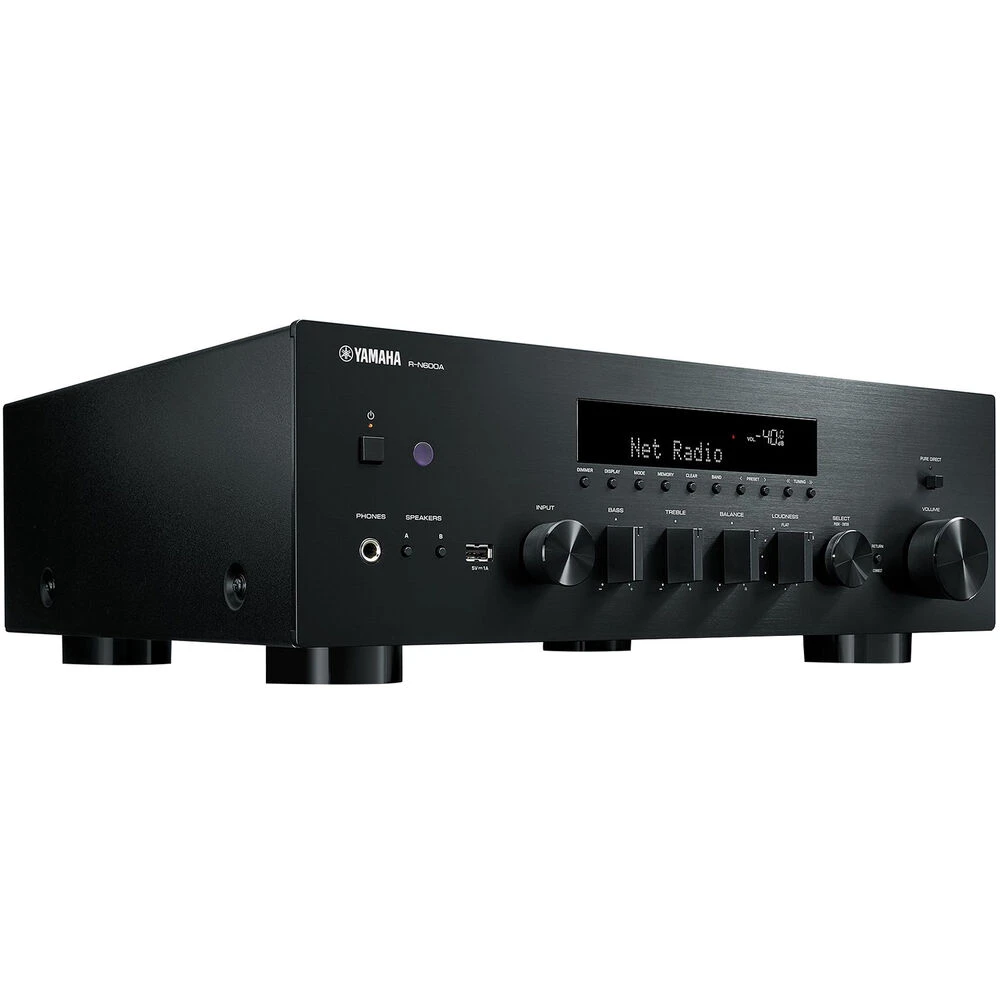

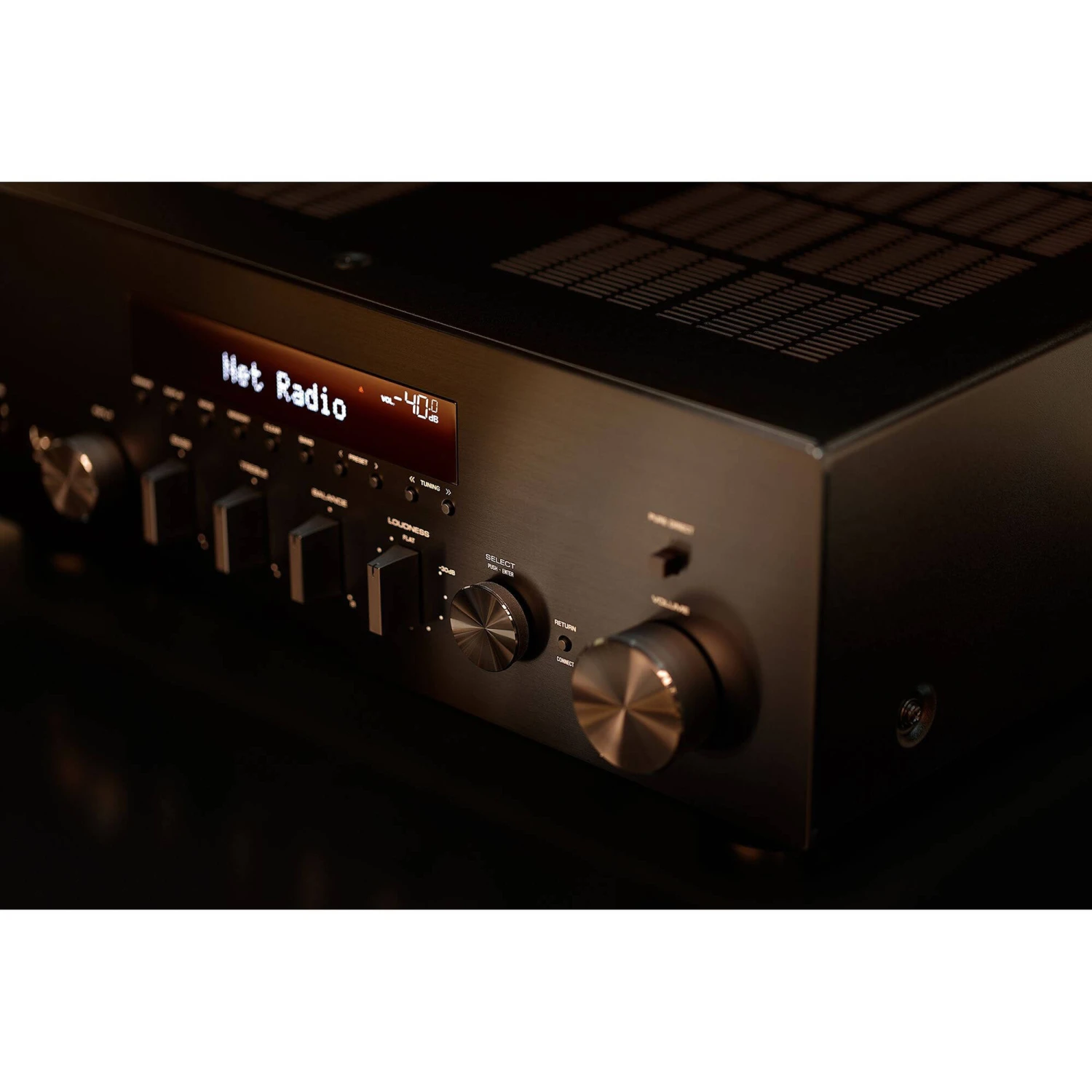

Yamaha R-N800A 2.1-Channel Network A/V Receiver (Black)(Yamaha R N800a 2 1 Channel Network A V Receiver Black)
Original price was: $307.00.$95.99Current price is: $95.99.
- Elevate Your Shopping Experience
- Product guarantee 100% satisfaction
- The quality solution for all your needs.
- Streamlined service, designed for your convenience.
Yamaha R-N800A Overview
- 1Description
- 2ToP-ART Design
- 3YPAO R.S.C.
- 4Pure Direct Mode
- 5Wireless Streaming
- 6Additional Features
Listen to accurate high-resolution sound that’s optimized for your specific space when using the black R-N800A 2.1-Channel Network A/V Receiver from Yamaha. For high-end S/N performance and sonic clarity, the R-N800A incorporates an ESS SABRE ES9080Q 384 kHz 32-bit DAC, which works alongside other features to reduce resonance and signal degradation. Yamaha’s YPAO R.S.C. technology ensures the audio is properly calibrated to your room. Output audio to A/B-switched speakers with an optional subwoofer, and source your audio from a wide array of sources. Connect a TV and components to multiple analog and digital inputs, hook up a turntable via the dedicated Phono input, stream via MusicCast, AirPlay, or LAN, and playback directly via USB.
ToP-ART Design
Total Purity Audio Reproduction Technology, or ToP-ART, is Yamaha’s design concept that combines both internal circuitry and physical features to maintain audio integrity and give you the clearest, high-resolution entertainment possible. Circuitry, such as the ESS SABRE ES9080Q 384 kHz 32-bit DAC and the dedicated crystal clock, for an accurate USB DAC with DSD 11.2 MHz native and PCM 384 kHz playback. Physical attributes include a resin Art Base chassis and anti-resonance feet for vibration absorption.
YPAO R.S.C.
Yamaha’s YPAO R.S.C. (Reflected Sound Control) is a sound field correction technology that uses precision 192 kHz, 64-bit EQ adjustments to automatically optimize sound based on the material of your room’s walls and the placement of your speakers. The result is lifelike and accurate music with proper placement of the artist and instruments, making you feel as if you’re in the room with them.
Pure Direct Mode
This mode is designed to virtually eliminate signal degradation by having music signals bypass the buffer amp, and tone / loudness / balance controls, taking the shortest route possible to your speakers.
Wireless Streaming
MusicCast can use either the Wi-Fi or wired Ethernet connection to conveniently stream audio from popular online services, such as Spotify, Amazon Music, Pandora, TIDAL, SiriusXM, and more. It also gives you direct access to your local network’s library of digital music files. Additionally, you can stream directly from an Android or iOS mobile device with Bluetooth and AirPlay support.
Additional Features
- 100W per channel output at 8 ohms
- Thick ground wires with screw helps eliminate energy loss and signal degradation
- Rear USB-B port for playback from a laptop or external storage device
- Stream audio to other MusicCast devices for whole-home audio
- Front headphone port
- Built-in AM/FM radio
- Pure brass speaker terminals
UPC: 027108961361
In the Box
- Yamaha R-N800A 2.1-Channel Network A/V Receiver (Black)
- Power Cord
- YPAO Microphone
- AM Antenna
- FM Antenna
- Remote Control with Batteries
- Limited 2-Year Manufacturer Warranty
User Manual
5.2 MB
Table of Contents
- Description
- ToP-ART Design
- YPAO R.S.C.
- Pure Direct Mode
- Wireless Streaming
- Additional Features
Yamaha R-N800A Specs
Key Specs
| Channels |
2.1 |
| Power Output per Channel |
100 W at 8 Ohms / 20 Hz to 20 kHz / 0.07% THD 120 W at 6 Ohms / 20 Hz to 20 kHz / 0.07% THD |
| Rear A/V Inputs |
3x Stereo RCA 1x Stereo RCA (Phono) with Ground Screw 2x Optical TOSLINK 2x Digital Coaxial 1x USB-B |
| Front I/O |
1x 1/4″ / 6.35 mm Headphone Output 1x 1/8″ / 3.5 mm Microphone Input |
| Wi-Fi |
Yes |
| Bluetooth |
Yes |
Amplifier
| Channels |
2.1 |
| Power Output per Channel |
100 W at 8 Ohms / 20 Hz to 20 kHz / 0.07% THD 120 W at 6 Ohms / 20 Hz to 20 kHz / 0.07% THD |
| Dynamic Power per Channel |
140 W at 8 Ohms 170 W at 6 Ohms 220 W at 4 Ohms 290 W at 2 Ohms |
| Frequency Response |
10 Hz to 100 kHz ±1 dB 20 Hz to 20 kHz ±0.5 dB (Pure Direct Mode) |
Audio Processing
| Supported File Formats |
11.2 MHz DSD, AAC, AIFF, DSD, FLAC, MP3, PCM, WAV, WMA |
| DAC |
384 kHz / 32-Bit (ESS SABRE ES9080Q) |
Connectivity

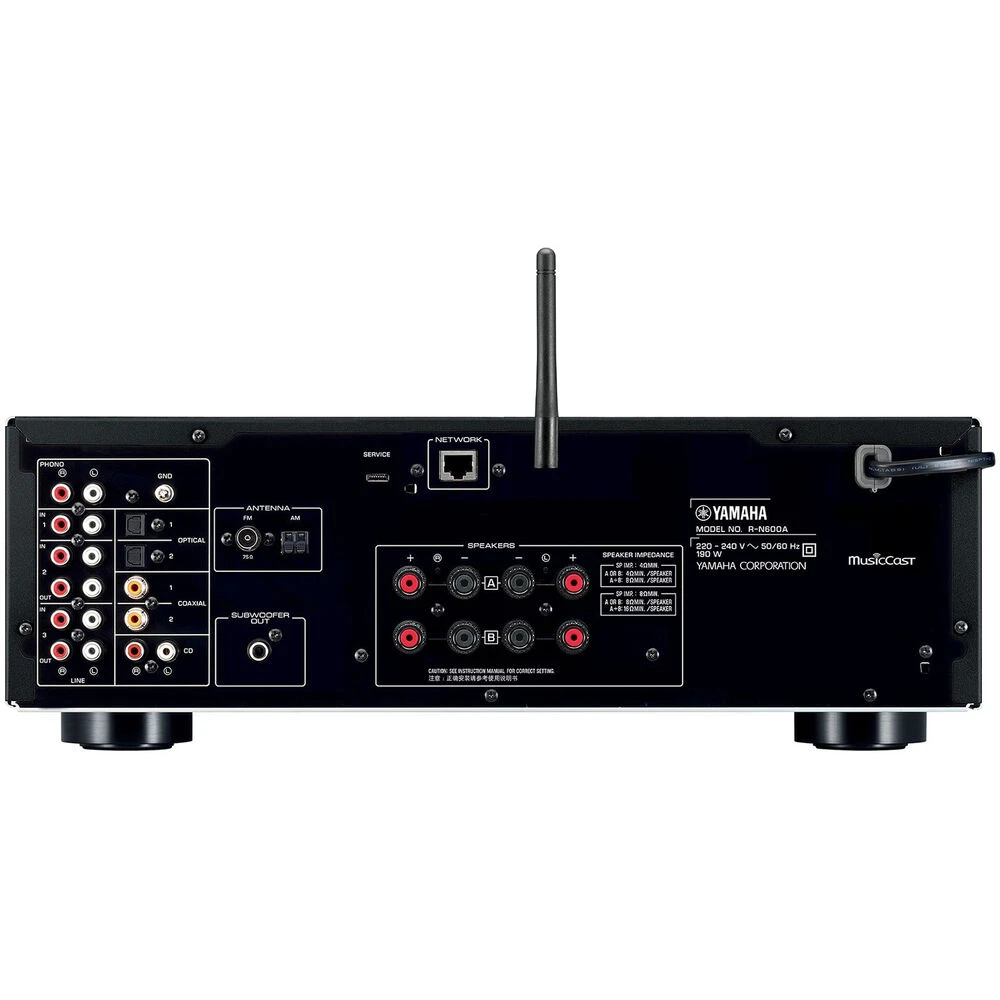

| Rear A/V Inputs |
3x Stereo RCA 1x Stereo RCA (Phono) with Ground Screw 2x Optical TOSLINK 2x Digital Coaxial 1x USB-B |
| Rear A/V Outputs |
1x RCA Subwoofer 1x Stereo RCA Pre-Out |
| Front I/O |
1x 1/4″ / 6.35 mm Headphone Output 1x 1/8″ / 3.5 mm Microphone Input |
| Other Rear I/O |
1x AM Block Input 1x FM Coaxial F-Type Input 1x RJ45 (Ethernet) Input/Output 1x 1/8″ / 3.5 mm (12 V Trigger) Output 1x Micro-USB (Service) Input/Output |
| Speaker I/O |
4x Binding Post Pairs |
| A/B Speaker Selection |
Yes |
| Signal to Noise Ratio |
RCA: 100 dB |
Wireless Connectivity
| Wi-Fi |
Yes |
| Bluetooth |
Yes |
| Supported Audio Codecs |
AAC, SBC |
| Wireless Audio Protocols |
AirPlay 2, MusicCast |
Control
| Mobile App Compatible |
No |
Tuner Section
| Tuner Type |
AM, FM |
| Sensitivity |
FM Mono at 50 dB: 3 µV / 20.8 dBf |
| Signal to Noise Ratio |
FM: 69 dB (Mono) 68 dB (Stereo) |
Power
| Power Consumption |
Network Standby: 0.1 W |
Physical
| Dimensions (W x H x D) |
17.1 x 6.0 x 15.5″ / 43.4 x 15.2 x 39.4 cm |
| Weight |
25.2 lb / 11.4 kg |
Packaging Info
| Package Weight |
29.91 lb |
| Box Dimensions (LxWxH) |
21.1 x 17.7 x 8.6″ |
