Sale!

Yamaha R-N1000A 2.1-Channel Network A/V Receiver (Black)(Yamaha R N1000a 2 1 Channel Network A V Receiver Black)

Yamaha R-N1000A 2.1-Channel Network A/V Receiver (Black)(Yamaha R N1000a 2 1 Channel Network A V Receiver Black) - Image 2

Yamaha R-N1000A 2.1-Channel Network A/V Receiver (Black)(Yamaha R N1000a 2 1 Channel Network A V Receiver Black) - Image 3

Yamaha R-N1000A 2.1-Channel Network A/V Receiver (Black)(Yamaha R N1000a 2 1 Channel Network A V Receiver Black) - Image 4

Yamaha R-N1000A 2.1-Channel Network A/V Receiver (Black)(Yamaha R N1000a 2 1 Channel Network A V Receiver Black) - Image 5

Yamaha R-N1000A 2.1-Channel Network A/V Receiver (Black)(Yamaha R N1000a 2 1 Channel Network A V Receiver Black) - Image 6

Yamaha R-N1000A 2.1-Channel Network A/V Receiver (Black)(Yamaha R N1000a 2 1 Channel Network A V Receiver Black) - Image 7

Yamaha R-N1000A 2.1-Channel Network A/V Receiver (Black)(Yamaha R N1000a 2 1 Channel Network A V Receiver Black)

Original price was: $321.00.Current price is: $99.99.

SKU: DGFUB 6994867454037 Categories: Receivers & Amplifiers, TV & Entertainment, TV & Mobile Tags: Receivers, Receivers & Amplifiers, TVs & Entertainment, Yamaha R-N1000A

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Yamaha R-N1000A Overview

1Description
2ToP-ART Design
3YPAO R.S.C.
4Pure Direct Mode
5Wireless Streaming
6Additional Features

Listen to accurate high-resolution sound that’s optimized for your specific space when using the black R-N1000A 2.1-Channel Network A/V Receiver from Yamaha. For high-end S/N performance and sonic clarity, the R-N1000A incorporates an ESS SABRE ES9080Q 384 kHz 32-bit DAC, which works alongside other features to reduce resonance and signal degradation. Yamaha’s YPAO R.S.C. technology ensures the audio is properly calibrated to your room. Output audio to A/B-switched speakers with an optional subwoofer, and source your audio from a wide array of sources. Connect a TV to the HDMI ARC port, and a turntable with various components to multiple analog and digital inputs; or stream via MusicCast, AirPlay, and LAN.

ToP-ART Design

Total Purity Audio Reproduction Technology, or ToP-ART, is Yamaha’s design concept that combines both internal circuitry and physical features to maintain audio integrity and give you the clearest, high-resolution entertainment possible. Circuitry, such as the ESS SABRE ES9080Q 384 kHz 32-bit DAC and the dedicated crystal clock, for an accurate USB DAC with DSD 11.2 MHz native and PCM 384 kHz playback. Physical attributes include a resin Art Base double-bottom chassis with a 0.04″ iron damping plate and anti-resonance feet to virtually eliminate vibration.

YPAO R.S.C.

Yamaha’s YPAO R.S.C. (Reflected Sound Control) is a sound field correction technology that uses precision 192 kHz, 64-bit EQ adjustments to automatically optimize sound based on the material of your room’s walls and the placement of your speakers. The result is lifelike and accurate music with proper placement of the artist and instruments, making you feel as if you’re in the room with them.

Pure Direct Mode

This mode is designed to virtually eliminate signal degradation by having music signals bypass the buffer amp, and tone / loudness / balance controls, taking the shortest route possible to your speakers.

Wireless Streaming

MusicCast can use either the Wi-Fi or wired Ethernet connection to conveniently stream audio from popular online services, such as Spotify, Amazon Music, Pandora, TIDAL, SiriusXM, and more. It also gives you direct access to your local network’s library of digital music files. Additionally, you can stream directly from an Android or iOS mobile device with Bluetooth and AirPlay support.

Additional Features

100W per channel output at 8 ohms
Thick ground wires with screw helps eliminate energy loss and signal degradation
Rear USB-B port for playback from a laptop or external storage device
Stream audio to other MusicCast devices for whole-home audio
Front headphone port
Built-in AM/FM radio
Gold-plated speaker terminals

UPC: 027108961286

In the Box

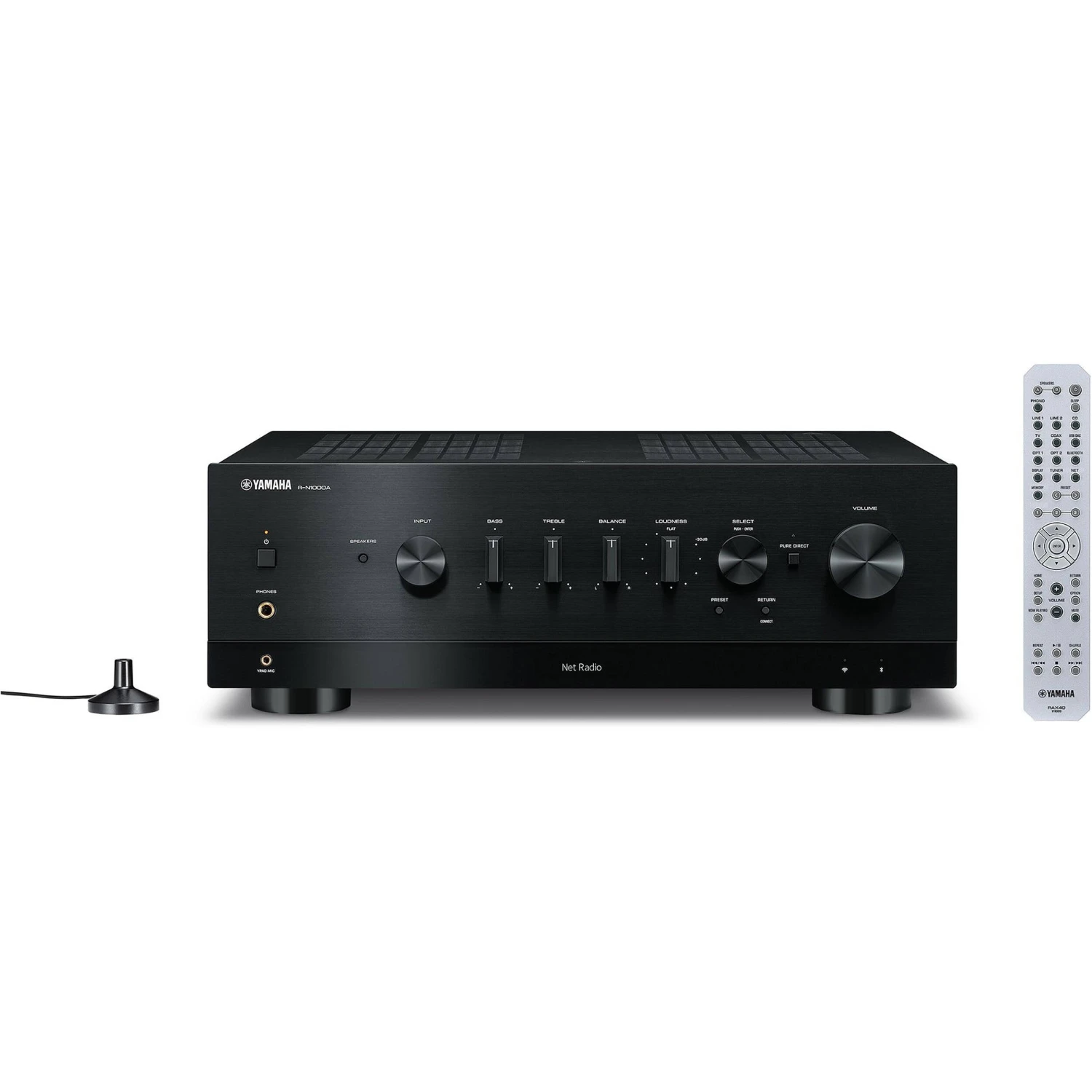

Yamaha R-N1000A 2.1-Channel Network A/V Receiver (Black)
Power Cord
YPAO Microphone
AM Antenna
FM Antenna

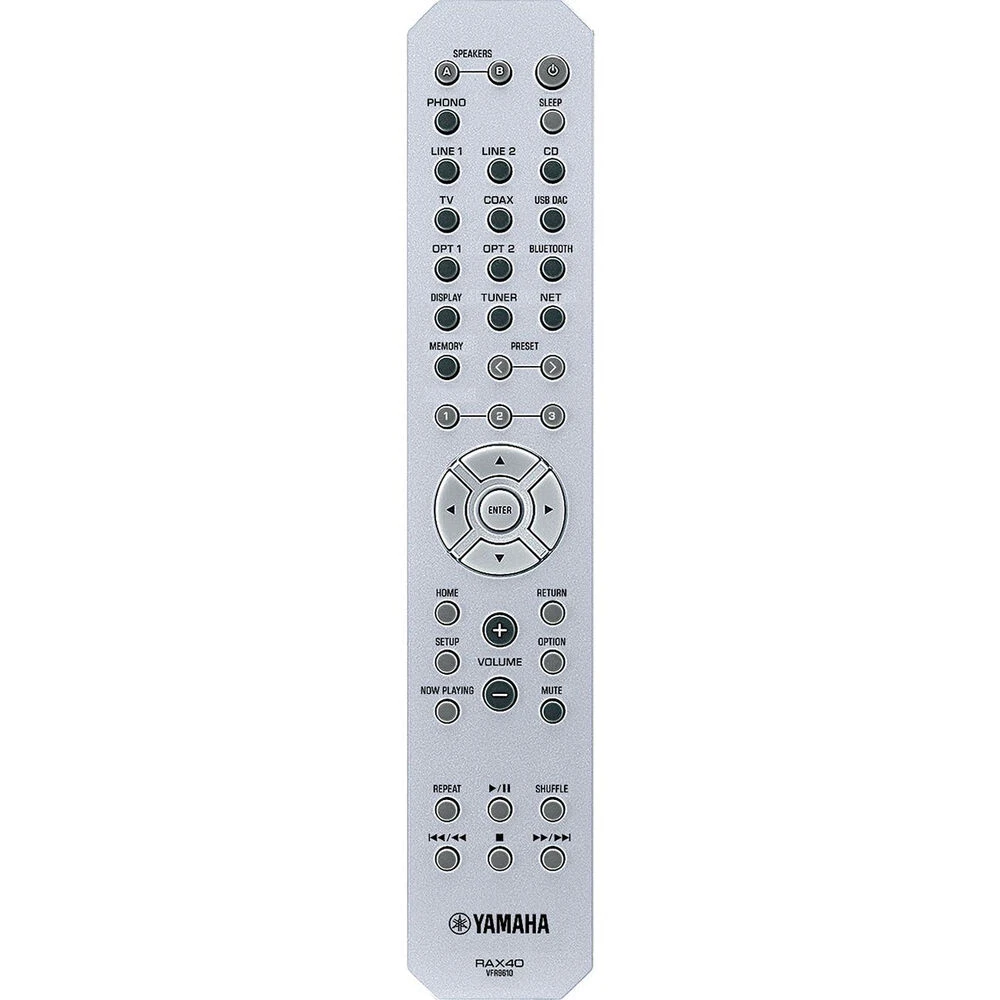

Remote Control with Batteries
Limited 2-Year Manufacturer Warranty

User Manual

5.3 MB

Table of Contents

Description
ToP-ART Design
YPAO R.S.C.
Pure Direct Mode
Wireless Streaming
Additional Features

Yamaha R-N1000A Specs

Key Specs

Channels	2.1
Power Output per Channel	100 W at 8 Ohms / 20 Hz to 20 kHz / 0.07% THD 120 W at 6 Ohms / 20 Hz to 20 kHz / 0.07% THD
Rear A/V Inputs	3x Stereo RCA 1x Stereo RCA (Phono) with Ground Screw 2x Optical TOSLINK 1x Digital Coaxial 1x USB-B 1x HDMI
Front I/O	1x 1/4″ / 6.35 mm Headphone Output 1x 1/8″ / 3.5 mm Microphone Input
Wi-Fi	Yes
Bluetooth	Yes

Amplifier

Channels	2.1
Power Output per Channel	100 W at 8 Ohms / 20 Hz to 20 kHz / 0.07% THD 120 W at 6 Ohms / 20 Hz to 20 kHz / 0.07% THD
Dynamic Power per Channel	140 W at 8 Ohms 170 W at 6 Ohms 220 W at 4 Ohms 290 W at 2 Ohms
Frequency Response	10 Hz to 100 kHz ±1 dB 20 Hz to 20 kHz ±0.5 dB (Pure Direct Mode)

Audio Processing

Supported File Formats	11.2 MHz DSD, AAC, AIFF, DSD, FLAC, MP3, PCM, WAV, WMA
DAC	384 kHz / 32-Bit (ESS SABRE ES9080Q)

Connectivity

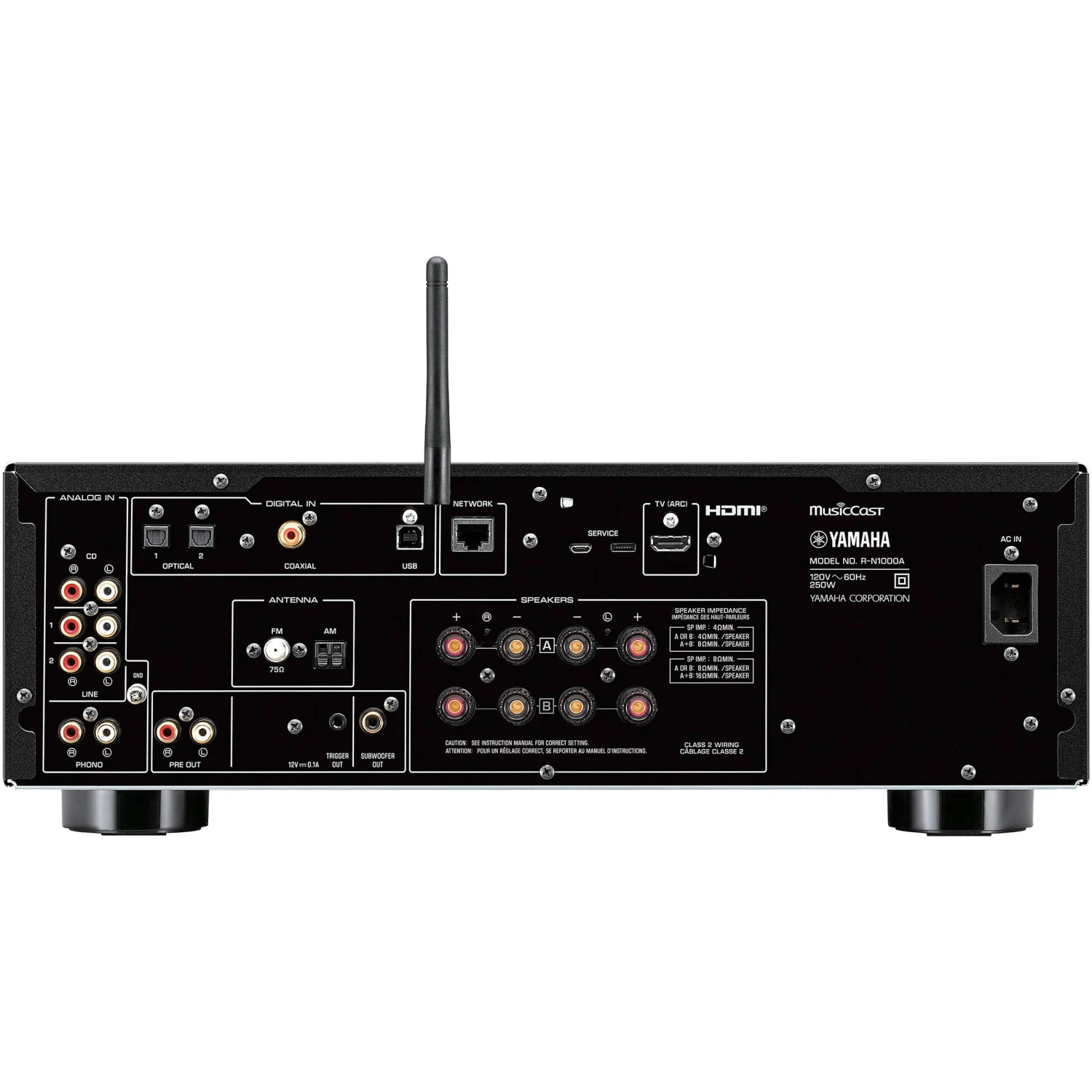

Rear A/V Inputs	3x Stereo RCA 1x Stereo RCA (Phono) with Ground Screw 2x Optical TOSLINK 1x Digital Coaxial 1x USB-B 1x HDMI
Rear A/V Outputs	1x RCA Subwoofer 1x Stereo RCA Pre-Out
Front I/O	1x 1/4″ / 6.35 mm Headphone Output 1x 1/8″ / 3.5 mm Microphone Input
Other Rear I/O	1x AM Block Input 1x FM Coaxial F-Type Input 1x RJ45 (Ethernet) Input/Output 1x 1/8″ / 3.5 mm (12 V Trigger) Output 1x Micro-USB (Service) Input/Output
Speaker I/O	4x Binding Post Pairs
A/B Speaker Selection	Yes
Signal to Noise Ratio	RCA: 100 dB

Wireless Connectivity

Wi-Fi	Yes
Bluetooth	Yes
Supported Audio Codecs	AAC, SBC
Wireless Audio Protocols	AirPlay 2, MusicCast

Control

Mobile App Compatible

Tuner Section

Tuner Type	AM, FM
Sensitivity	FM Mono at 50 dB: 3 µV / 20.8 dBf
Signal to Noise Ratio	FM: 69 dB (Mono) 68 dB (Stereo)

Power

Power Consumption

Network Standby: 0.1 W

Physical

Dimensions (W x H x D)	17.1 x 6.0 x 15.5″ / 43.4 x 15.2 x 39.4 cm
Weight	27.1 lb / 12.3 kg

Packaging Info

Package Weight	31.7 lb
Box Dimensions (LxWxH)	20.8 x 18.1 x 9″
