Yamaha A-S701 Integrated Amplifier (Silver)(Yamaha A S701 Integrated Amplifier Silver)

Expand your listening horizons with the silver A-S701 Integrated Amplifier from Yamaha . Featuring up to 120W per channel of RMS power at 6 ohms, this amp is equipped with digital inputs for connecting devices like televisions and Blu-ray/DVD players. It offers dual stereo outputs, giving you the ability to power two sets of speakers in different rooms and switch between them, or have them both playing at the same time. To increase the bass output of your sound system, there’s also a terminal for connecting a subwoofer.

To reduce distortion and degradation and produce the cleanest possible sound, the A-S701 employs Pure Direct mode and CD Direct mode. Activated via summarys on the front of the unit, these modes cause input signals to bypass unused circuits and cuts off those circuits’ power supply. To further ensure quality sound, the amplifier’s continuously variable loudness control allows you to balance low and high frequency sounds so you can hear a full tonal range at any volume.

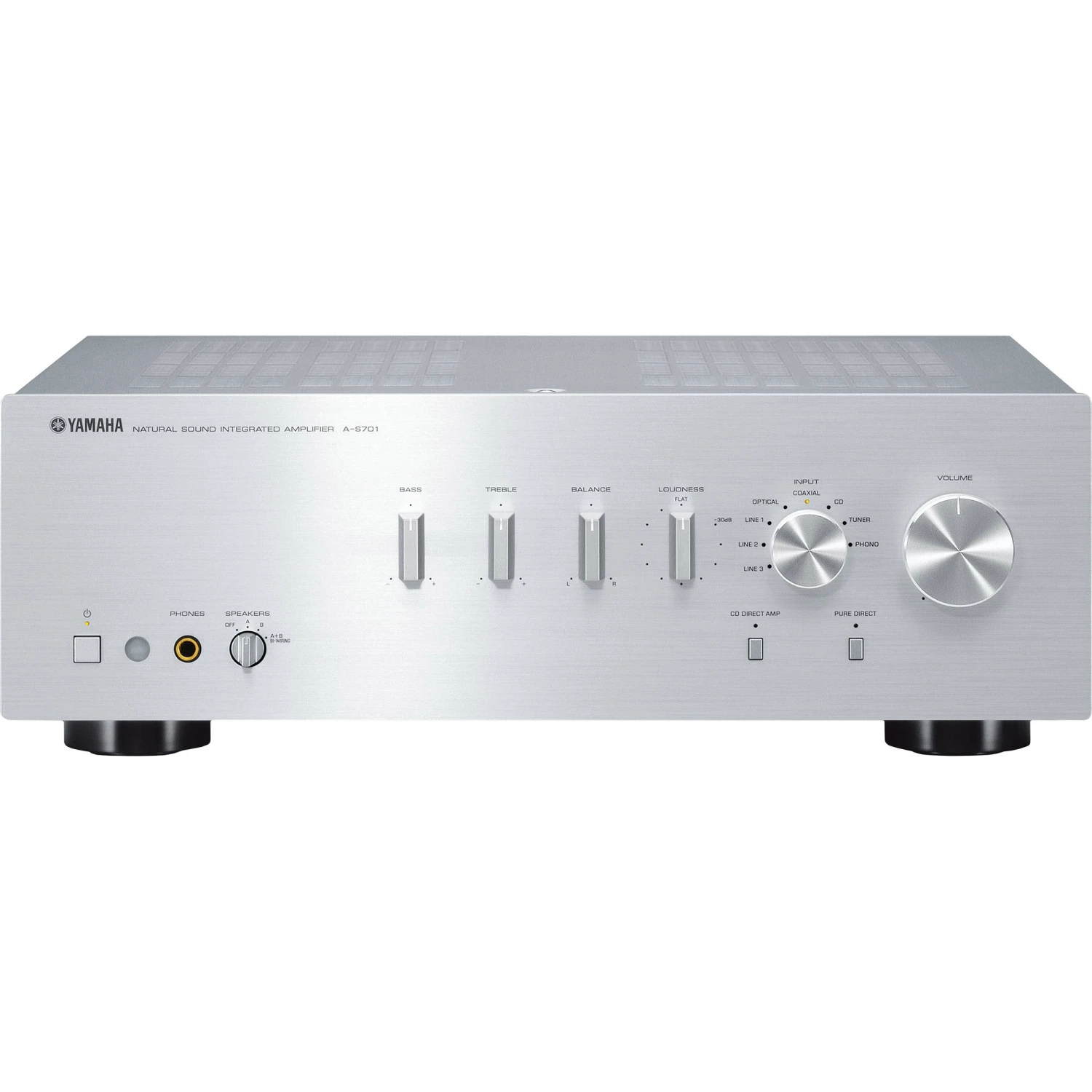

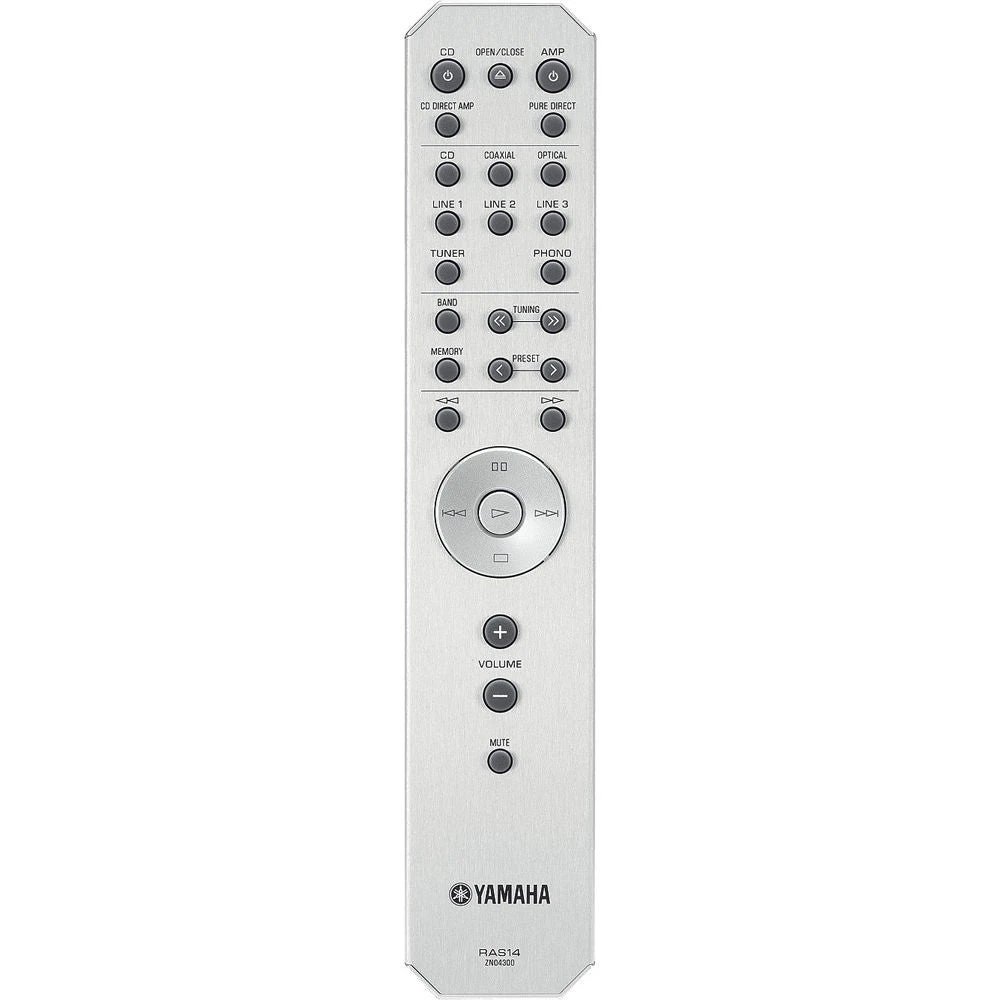

Built to be energy efficient, the amp uses a power management system to switch itself to idle mode when not in use. The A-S701’s internal circuitry mirrors itself symmetrically to produce higher signal purity and lower degradation. The chassis is reinforced with a solid center bar to reduce vibration and features a brushed aluminum front panel and knobs. The system comes with a remote control for easy operation.

Yamaha A-S701 Integrated Amplifier (Silver)

System
RMS Output Power	6 Ohms, 20 Hz to 20 kHz, 0.038% THD: 120 W + 120 W 8 Ohms, 20 Hz to 20 kHz, 0.019% THD: 100 W + 100 W
Dynamic Power per Channel	8 Ohms: 140 W 6 Ohms: 170 W 4 Ohms: 220 W 2 Ohms: 290 W
Power Bandwidth	0.04% THD, 50 W, 8 Ohms: 10 Hz to 50 kHz
Damping Factor	1 kHz, 8 Ohms: ?240
Input Sensitivity/Impedance	Phono (MM): 3.0 mV / 47 kOhms CD, etc.: 200 mV / 47 kOhms
Maximum Input Voltage	Phono (MM) (1 kHz, 0.03% THD): ?45 mV CD etc. (1 kHz, 0.5% THD): ?2.2 V
Output Level and Impedance	Rec Out: ?200 mV / 1.0 kOhms Subwoofer Out (Cut-Off Frequency: 100 Hz): 3.5 V / 1.2 kOhms
Headphone Output Impedance	CD, etc. (Input 1 kHz, 200 mV, 8 Ohms): 470 mV / 470 ohms
Frequency Response	With Pure Direct: 20 Hz to 20 kHz, 0�0.5 dB Without Pure Direct: 10 Hz to 100 kHz, 0�1.0 dB
RIAA Equalization Deviation	�0.5 dB
Total Harmonic Distortion (THD)	Phono (MM) to Rec Out (20 Hz to 20 kHz, 2.5 V) ?0.03% CD, etc. to Speakers (20 Hz to 20 kHz, 50 W, 8 Ohms): 0.019%
Signal-to-Noise Ratio	Phono (MM) (5 mV Input Shorted): ?82 dB CD, etc., with Pure Direct On (200 mV Input Shorted): ?99 dB CD Direct Amp On: ?104 dB
Residual Noise	40 ?V (IHF-A Network)
Channel Separation	CD, etc. (5.1 kOhms Input Shorted, 1 kHz): 65 dB or more CD, etc. (5.1 kOhms Input Shorted, 10 kHz): 50 dB or more
Tone Control	Bass Boost/Cut (20 Hz): � 10 dB Turnover Frequency: 400 Hz Treble Boost/Cut (20 kHz): � 10 dB Turnover Frequency: 3.5 kHz
Loudness Control	Attenuation (1 kHz, Continuous): -30 dB
Digital Audio Format	PCM (2-channel), 192/176.4/96/88.2/48/44.1/32 kHz
PCM Word Depth	24-bit / 16-bit

Connectors

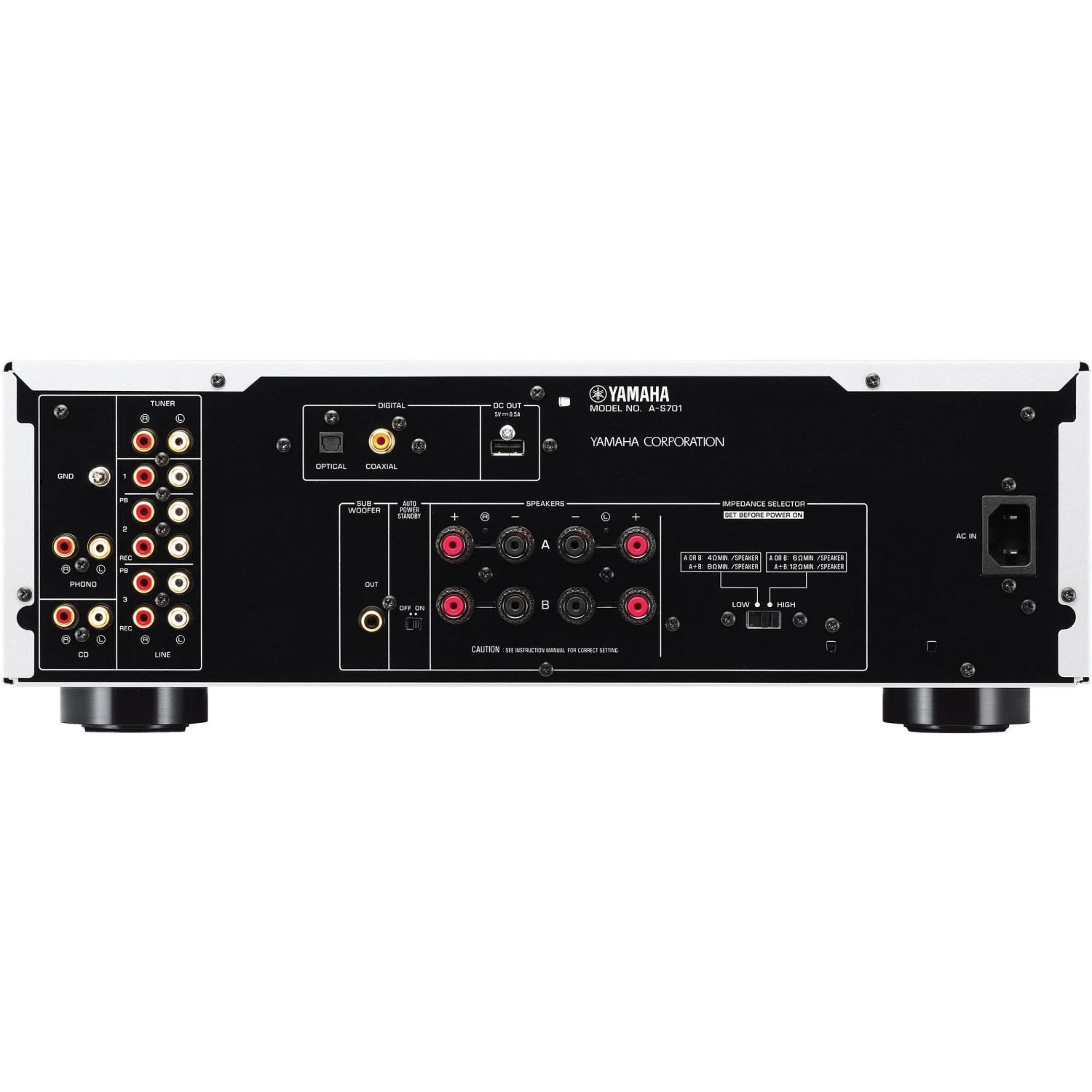

Input	5 x RCA 1 x Phono for turntable 1 x Optical 1 x Coaxial
Output	2 x RCA 4 x Speaker terminal 1 x Subwoofer 1 x Headphone 1 x DC (accessory power)
Terminals	Gold-plated RCA (CD, phono, coaxial) and speaker terminals
Other Connectors	1 x AC power

General
Cabinet (Chassis)	Design: Reinforced with solid center bar Finish: Brushed aluminum
Power Supply	120 VAC, 60 Hz
Power Consumption	In Use: 270 W Maximum: 580 W Standby: 0.5 W
Capacitors	12,000 ?F block capacitors
Dimensions (W x H x D)	17.1 x 5.9 x 15.2″ (43.5 x 15.1 x 38.7 cm)
Weight	24.7 lb (11.2 kg)

Packaging Info
Package Weight	29.2 lb
Box Dimensions (LxWxH)	21.6 x 17.3 x 9.0″
