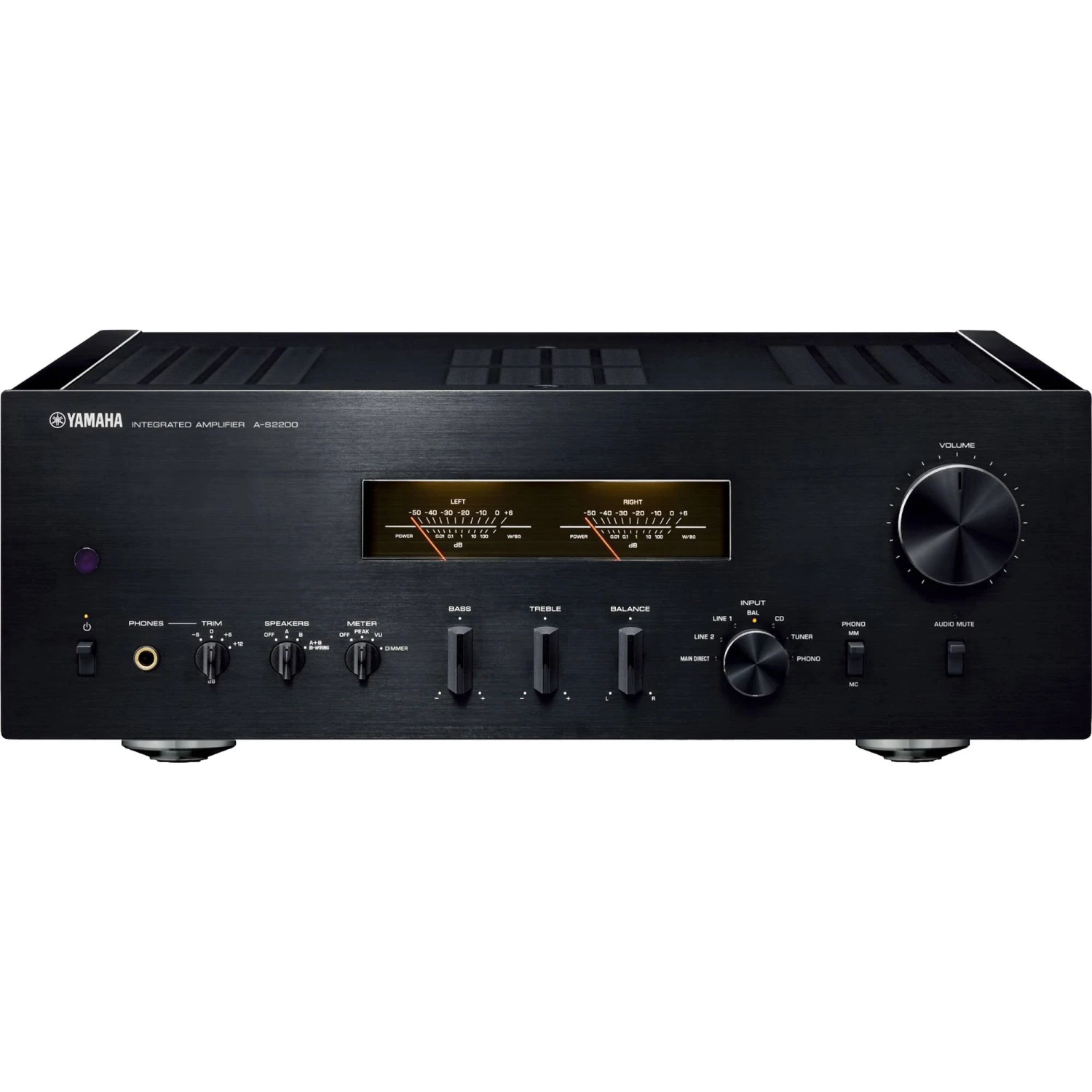

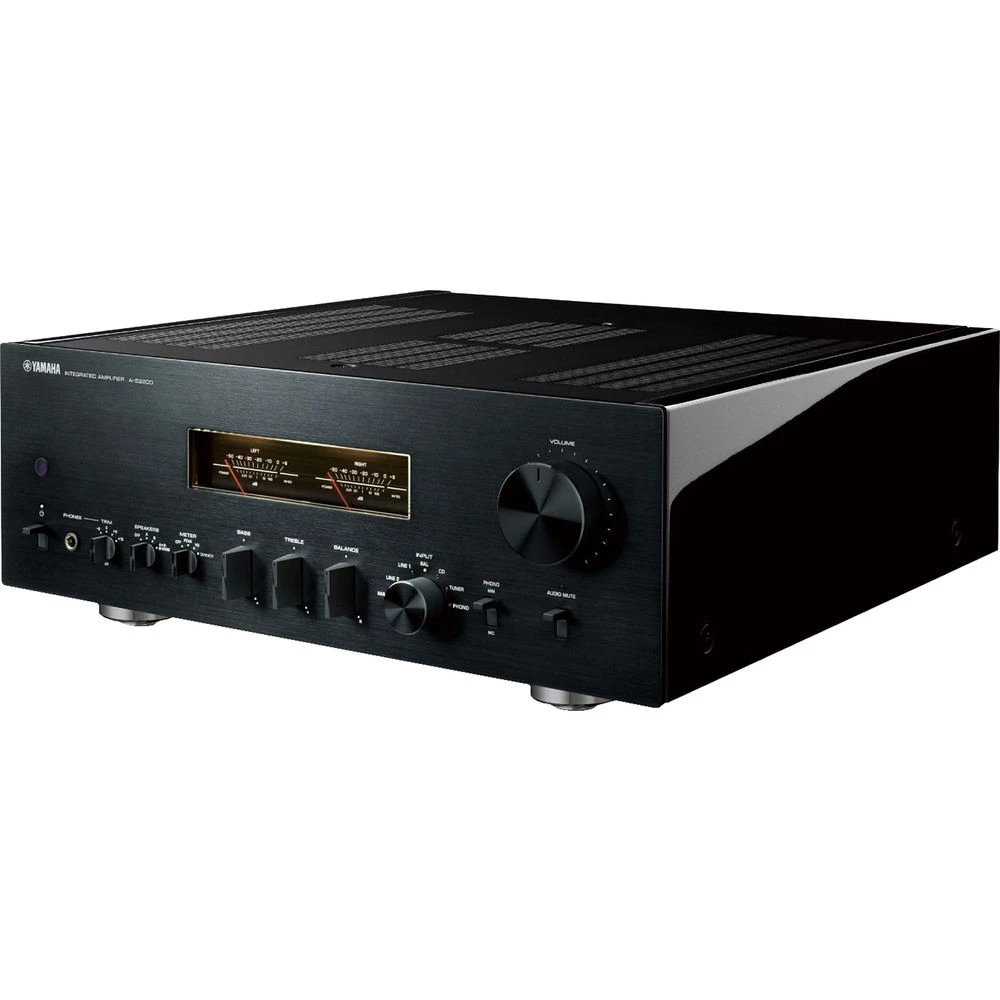

Yamaha A-S2200 Stereo 180W Integrated Amplifier (Black)(Yamaha A S2200 Stereo 180w Integrated Amplifier Black)

2-Channel Amplifier Configuration90W per Channel Power Output @ 8 OhmsMechanical Ground Concept Chassis DesignBrass Speaker Terminals

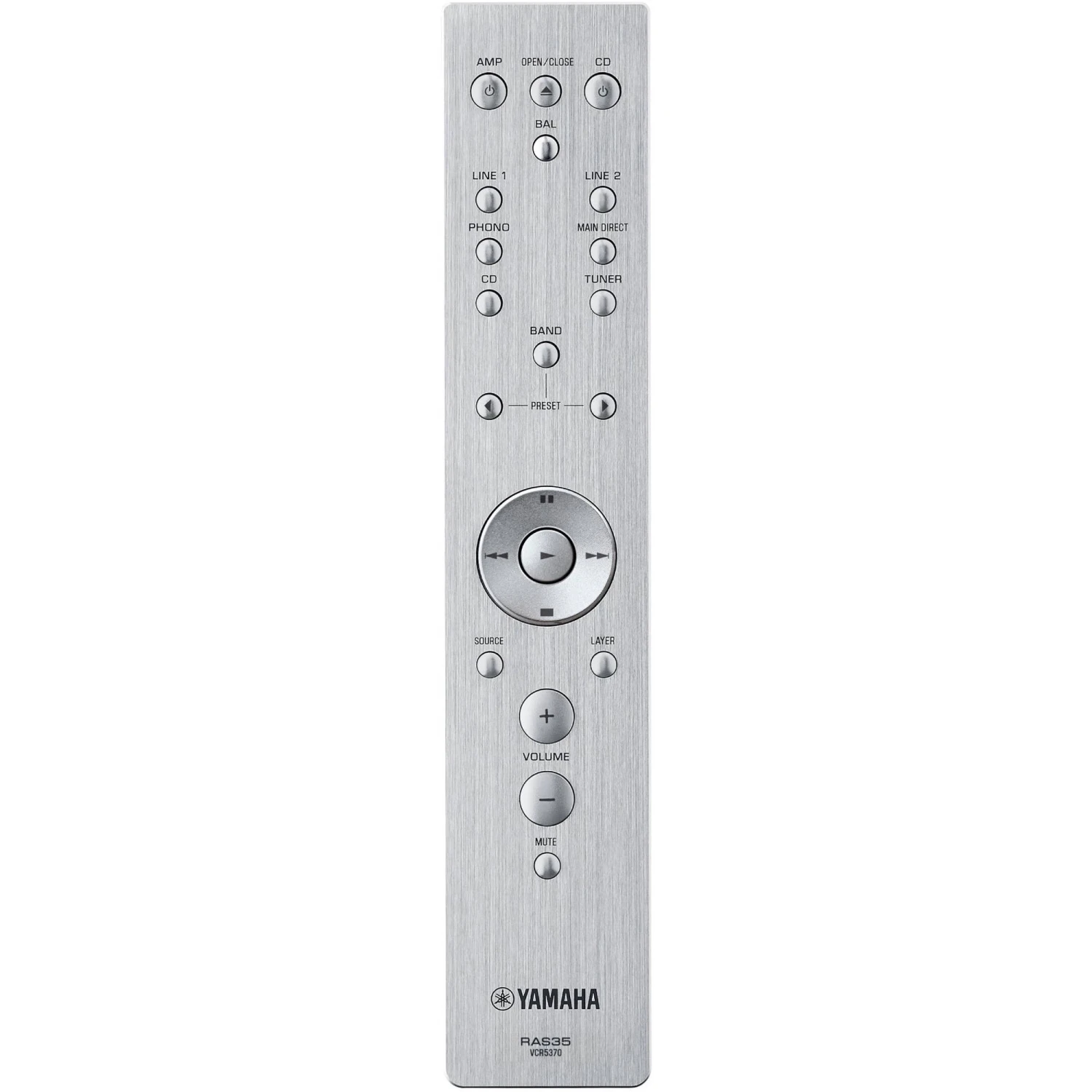

Enjoy enhanced stereo sound with your favorite pair of speakers and the black Yamaha A-S2200 Stereo 180W Integrated Amplifier . It outputs up to 90W per channel at 8 ohms and features an MM/MC phono input and a balanced XLR stereo pair in addition to its five stereo RCA inputs. A 1/4″ headphone jack with discrete amplification enables private listening. The A-S2200 includes a remote control as an added convenience.

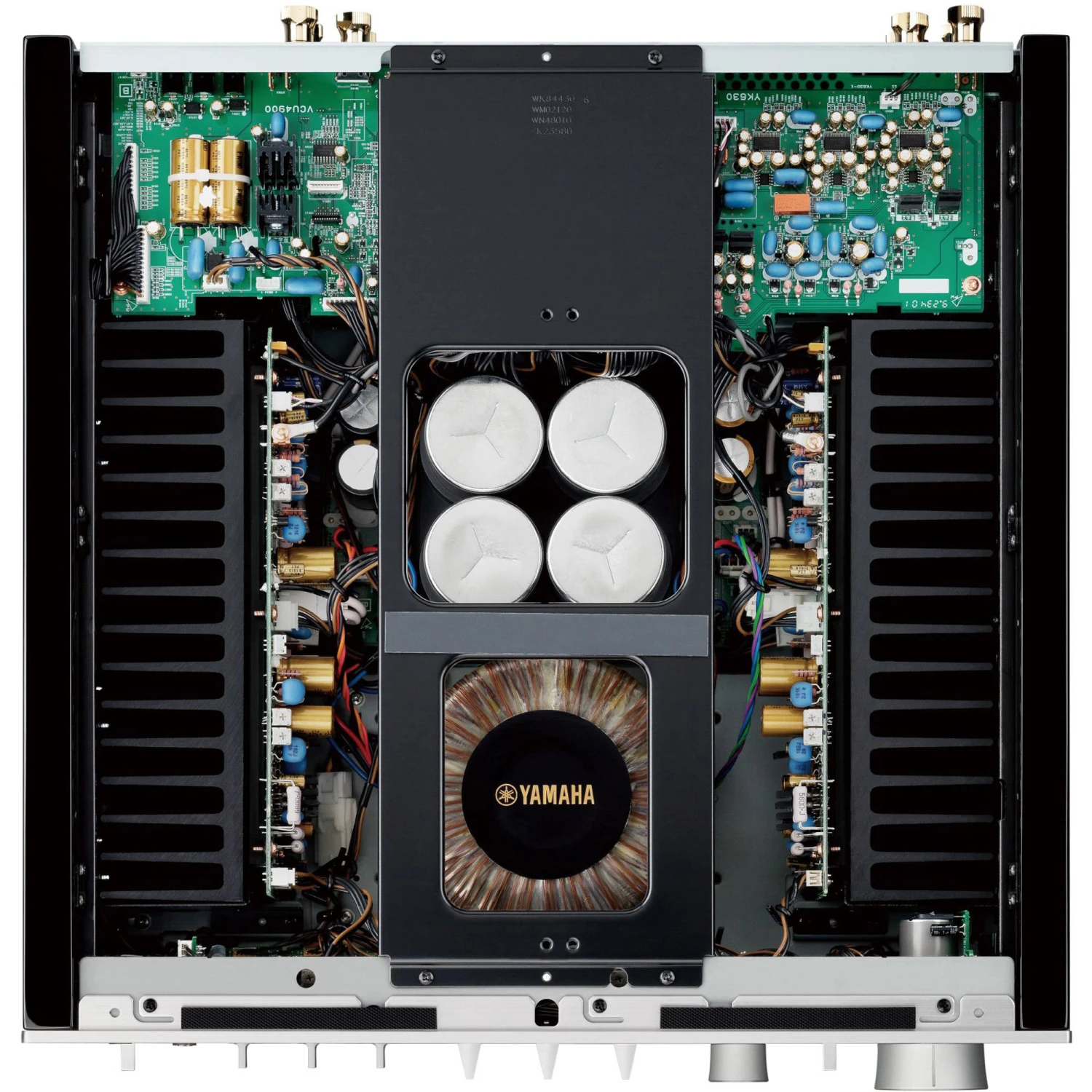

Toroidal Transformer The toroidal transformer in the A-S2200 is designed to provide technical proficiency and musicality. Combined with an array of audiophile-grade hi-fi features and components, this transformer helps ensure you get the musical emotion you expect. Level Meters The level meters are both a nod to the nostalgic era of hi-fi and demonstrate the return of pure hi-fi for today’s enthusiasts. Visually presenting the dynamics and pulse of the music, the level meters are designed to provide a warm feeling through their softly illuminated LEDs. Open Sound Stage The open sound stage is engineered to provide a musical experience similar to being at a live performance. Thick Ground Connection Wires The amplifier’s low impedance design, aided by the thick ground wires, helps present an open, natural soundstage. Pure Brass Speaker Terminals Cut directly from pure brass, the speaker terminals are designed to comfortably fit in your hand for simple tightening to provide a secure connection. Mechanical Ground Concept The A-S2200 adopts a Mechanical Ground Concept, with the bolts of the feet welded directly to the main chassis, and the large heat sink, power transformer, and block capacitors bolted directly to the chassis. This design helps maximize rigidity and avoid unwanted vibration to achieve expressive and rhythmic bass, presenting you with the groove of the music. Chrome-Plated Brass Feet The chrome-plated brass feet help complete the rigid design of the amplifier. Additional Features

• Floating balanced circuit for power amplifier
• Fully balanced transmission from input to output
• Tone control circuit with a parallel volume system
• Large power supply with four separate circuits
• Left/right symmetrical design
• Fully discrete phono amp
• Low impedance, high performance headphone amp

UPC: 027108958637

Configuration	Stereo
Power Output per Channel	Up to 90 W @ 8 Ohms, 20 Hz to 20 kHz, 0.07% THD Up to 150 W @ 4 Ohms Headphone Output: Up to 50 mW @ 32 Ohms, 1 kHz, 0.2% THD
Dynamic Power per Channel	105 W @ 8 Ohms 135 W @ 6 Ohms 190 W @ 4 Ohms 220 W @ 2 Ohms
Effective Output Level	Maximum, JEITA, 1 kHz, 10% THD, 8 Ohms: 2 x 120 W Maximum, JEITA, 1 kHz, 10% THD, 4 Ohms: 2 x 190 W
Total Harmonic Distortion	MC Phono to Line 2 Out: 0.02% (1.2 VRMS) Phono to Line 2 Out: 0.005% (1.2 VRMS) All Other Inputs to Speaker Out: 0.035% (50 W / 8 Ohms)
Frequency Response	5 Hz to 100 kHz (+0, -3 dB) 20 Hz to 20 kHz (-0, -0.3 dB)
Damping Factor	≥250 (1 kHz, 8 Ohms)
Power Bandwidth	8 Ohms, 0.1% THD, 45 W, 2 Channels Driven: 10 Hz to 50 kHz
Tone Control	Bass Boost/Cut: 50 Hz, ±9 dB Bass Turnover Frequency: 350 Hz Treble Boost/Cut: 20 kHz, ±9 dB Treble Turnover Frequency: 3.5 kHz

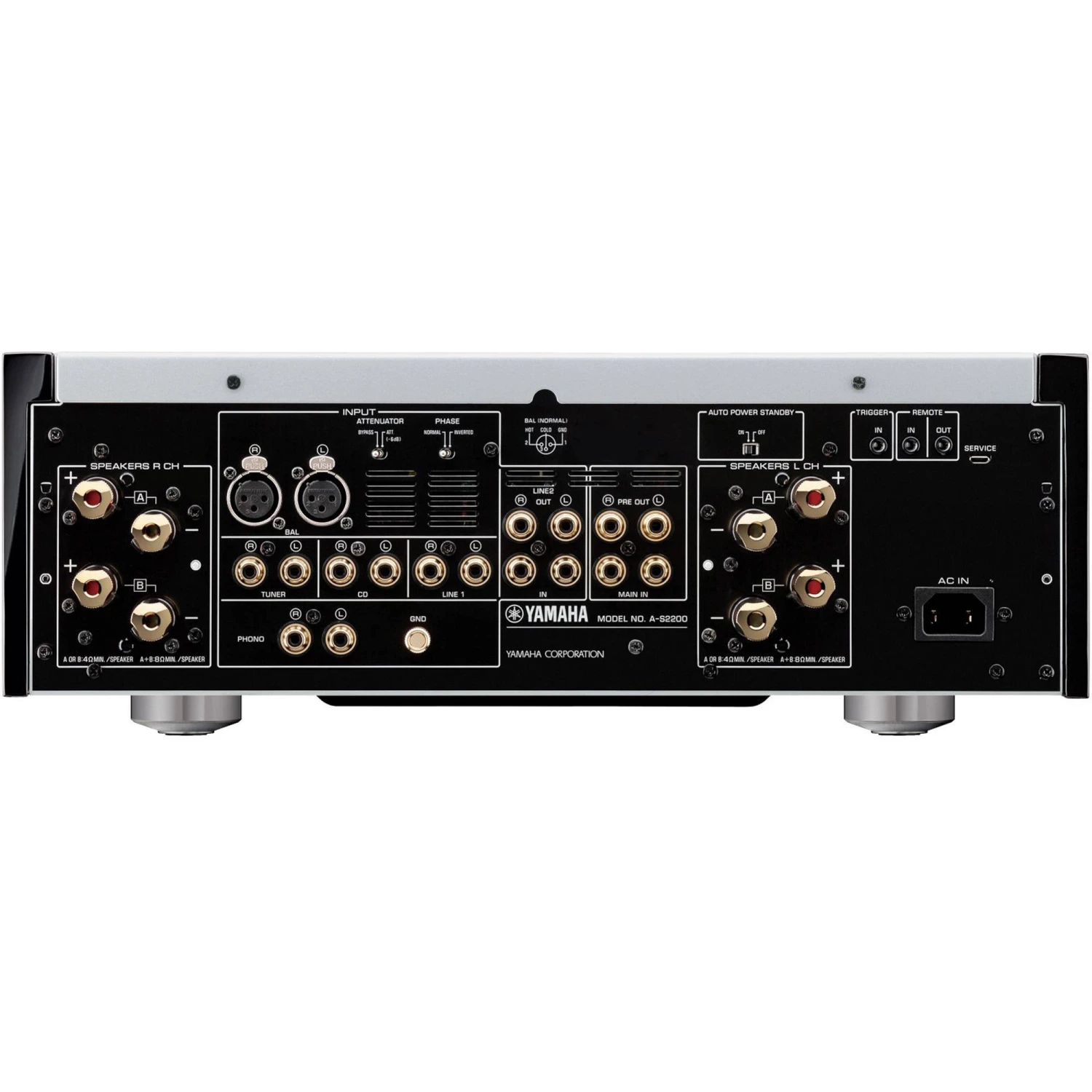

Inputs	6 x Stereo RCA Pairs (1 Phono with Ground Screw) 1 x Stereo Balanced XLR Pair
Output	1 x Stereo RCA Pair 1 x Stereo RCA Pre-Out Pair 1 x 1/4″ / 6.35 mm Headphone (Front)
Speaker Connectors	4 x Binding Post Pairs (A/B)
Other Connectors	1 x 1/8″ / 3.5 mm 12 V Trigger In 1 x 1/8″ / 3.5 mm Remote In 1 x 1/8″ / 3.5 mm Remote Out 1 x Micro-USB Service In
Input Sensitivity	Phono MC Input: 150 ?VRMS / 50 Ohms Phono MM Input: 3.5 mVRMS / 47 Kilohms Main Input: 1 VRMS, 47 Kilohms XLR Input: 200 mVRMS, 100 Kilohms Other Inputs: 200 mVRMS, 47 Kilohms
Output Voltage	Line 2 Out: 200 mVRMS / 1.5 Kilohms Pre Out: 1 VRMS / 1.5 Kilohms
RIAA Equalization Deviation	Phono MM/MC: ±0.5 dB
Signal to Noise Ratio	Phono MC: 90 dB (JEITA, IHF-A Network) Phono MM: 96 dB (JEITA, IHF-A Network) XLR: 114 dB (JEITA, IHF-A Network) Other Inputs: 110 dB (JEITA, IHF-A Network)
Residual Noise	IHF-A Network: 33 ?VRMS
Maximum Input Voltage	Phono MC, 1 kHz, 0.5% THD: 2 mVRMS Phono MM, 1 kHz, 0.5% THD: 50 mVRMS XLR, Bypass, 1 kHz, 0.5% THD: 2.8 VRMS XLR, Att. (-6 dB), 1 kHz, 0.5% THD: 5.6 VRMS Other Inputs, 1 kHz, 0.5% THD: 2.8 VRMS
Channel Separation	Phono MC, JEITA, 1 kHz/10 kHz: ±66/77 dB Phono MM, JEITA, 1 kHz/10 kHz: ±90/77 dB Other Inputs, JEITA, 1 kHz/10 kHz: ±74/54 dB

Transformer	625 VA (Toroidal)
Power Requirements	120 VAC, 60 Hz
Operating Power Consumption	350 W
Standby Power Consumption	Standby Mode: 0.2 W Off Mode: 0.1 W
Dimensions (W x H x D)	17.13 x 6.18 x 18.23″ / 435 x 157 x 463 mm
Weight	50 lb / 22.7 kg

Package Weight	61.8 lb
Box Dimensions (LxWxH)	24 x 23.63 x 10.5″
