Yamaha A-S1200 Stereo 180W Integrated Amplifier (Silver)(Yamaha A S1200 Stereo 180w Integrated Amplifier Silver)
Original price was: $369.00.$96.99Current price is: $96.99.
- Elevate Your Shopping Experience
- Product guarantee 100% satisfaction
- The quality solution for all your needs.
- Streamlined service, designed for your convenience.

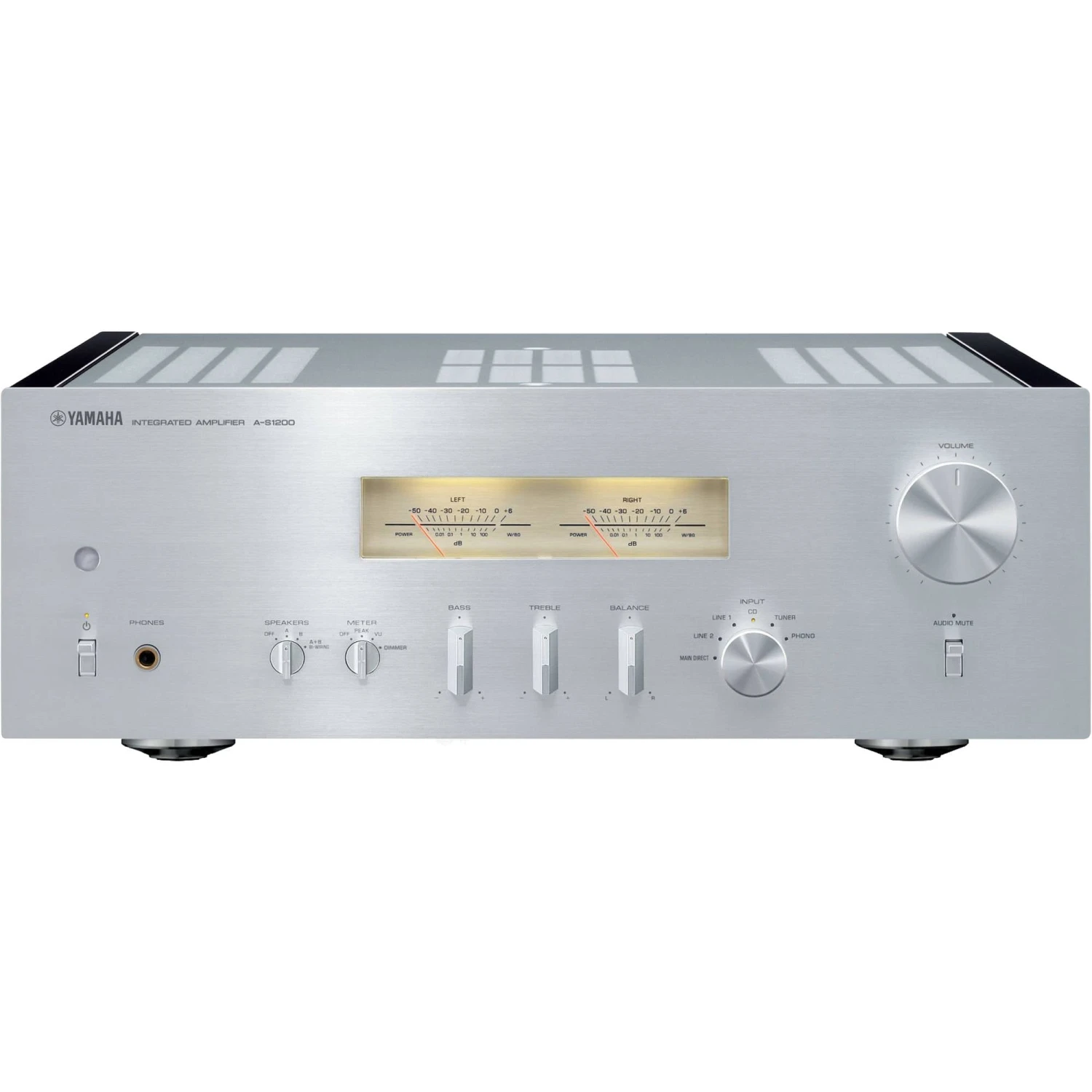

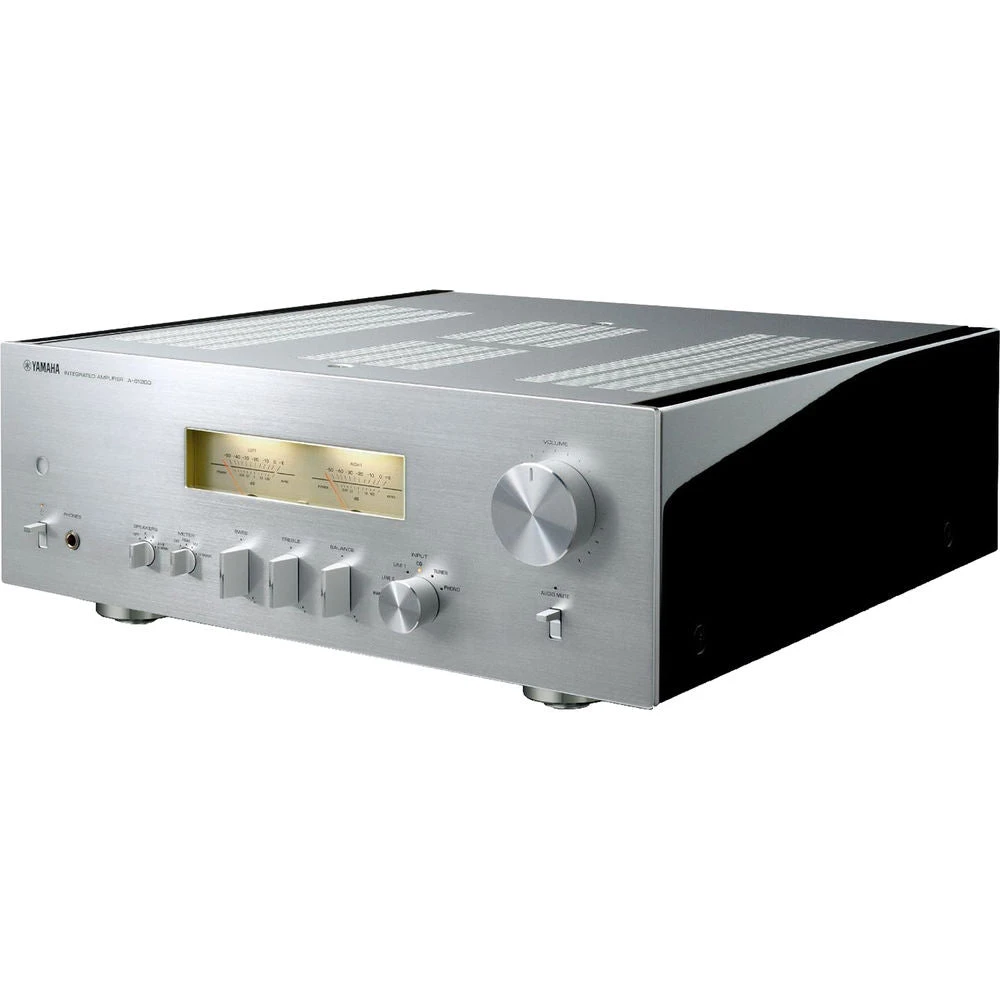

Yamaha A-S1200 Overview
- 1Description
- 2Toroidal Transformer
- 3Level Meters
- 4Open Sound Stage
- 5Thick Ground Connection Wires
- 6Pure Brass Speaker Terminals
- 7Mechanical Ground Concept
- 8Chrome-Plated Iron Feet
Enjoy enhanced stereo sound with your favorite pair of speakers and the silver Yamaha A-S1200 Stereo 180W Integrated Amplifier. It outputs up to 90W per channel at 8 ohms and features a switchable MM/MC phono input in addition to its five stereo RCA inputs. A 1/4″ headphone jack with discrete amplification enables private listening. The A-S1200 includes a remote control as an added convenience.
Toroidal Transformer
The toroidal transformer in the A-S1200 is designed to provide technical proficiency and musicality. Combined with an array of audiophile-grade hi-fi features and components, this transformer helps ensure you get the musical emotion you expect.
Level Meters
The level meters are both a nod to the nostalgic era of hi-fi and demonstrate the return of pure hi-fi for today’s enthusiasts. Visually presenting the dynamics and pulse of the music, the level meters are designed to provide a warm feeling through their softly illuminated LEDs.
Open Sound Stage
The open sound stage is engineered to provide a musical experience similar to being at a live performance.
Thick Ground Connection Wires
The amplifier’s low impedance design, aided by the thick ground wires, helps present an open, natural soundstage.
Pure Brass Speaker Terminals
Cut directly from pure brass, the speaker terminals are designed to comfortably fit in your hand for simple tightening to provide a secure connection.
Mechanical Ground Concept
The A-S1200 adopts a Mechanical Ground Concept, with the bolts of the feet welded directly to the main chassis, and the large heat sink, power transformer, and block capacitors bolted directly to the chassis. This design helps avoid unwanted vibration to achieve expressive and rhythmic bass, presenting you with the groove of the music.
Chrome-Plated Iron Feet
The chrome-plated iron feet help complete the rigid design of the amplifier.
UPC: 027108958651
In the Box
- Yamaha A-S1200 Stereo 180W Integrated Amplifier (Silver)
- Remote Control
- 2 x AAA Batteries
- Power Cable
- Limited 2-Year Warranty
User Manual
1.1 MB
Table of Contents
- Description
- Toroidal Transformer
- Level Meters
- Open Sound Stage
- Thick Ground Connection Wires
- Pure Brass Speaker Terminals
- Mechanical Ground Concept
- Chrome-Plated Iron Feet
Yamaha A-S1200 Specs
Amplifier
| Amplifier Type | Integrated Amplifier (Preamp/Power Amp Combo) |
| Channels | 2.0 |
| Power Output per Channel | 120 W at 8 Ohms / 1 Hz / 10% THD (Peak) 190 W at 4 Ohms / 1 Hz / 10% THD (Peak) 90 W at 8 Ohms / 20 Hz to 20 kHz / 0.07% THD 150 W at 4 Ohms |
| Dynamic Power per Channel | 105 W at 8 Ohms 135 W at 6 Ohms 190 W at 4 Ohms 220 W at 2 Ohms |
| Frequency Response | 5 Hz to 100 kHz +0/-3 dB 20 Hz to 20 kHz +0/-0.3 dB |
| Residual Output Noise | 50 µV (IHF-A) |
| Tone Control | Bass (50 Hz): ±9.0 dB Treble (20 kHz): ±9.0 dB |
| Damping Factor | � 250 (8 Ohms, 1 kHz) |
Connectivity

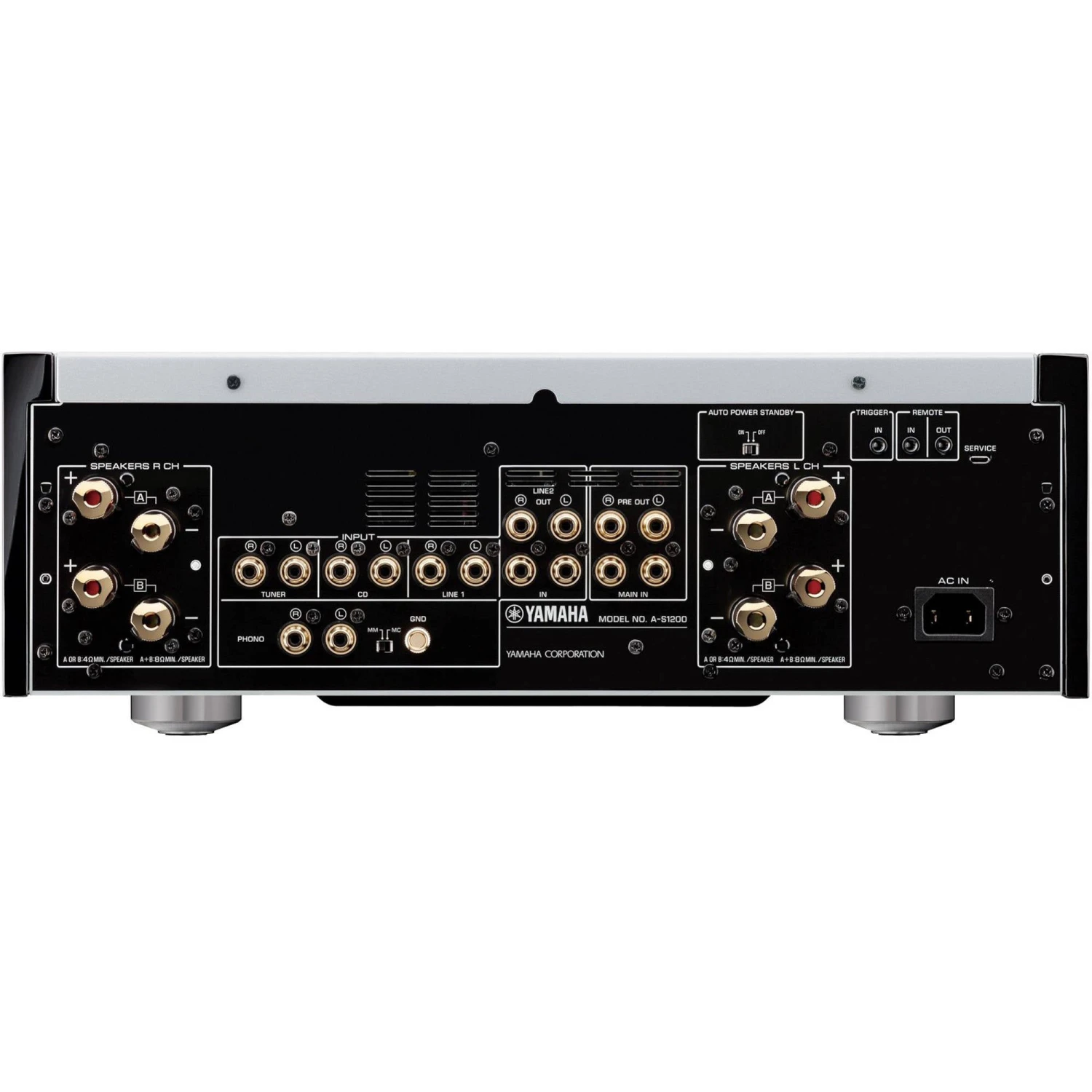

| Rear A/V Inputs | 5 x Stereo RCA 1 x Stereo RCA (Phono) with Ground Screw |
| Rear A/V Outputs | 1 x Stereo RCA 1 x Stereo RCA Pre-Out |
| Front I/O | 1 x 1/4″ / 6.35 mm Headphone Output |
| Headphone Output Power | 25 mW per Channel into 32 Ohms (1 kHz, 0.2% THD) |
| Other Rear I/O | 1 x 1/8″ / 3.5 mm (12 V Trigger) Input 1 x 1/8″ / 3.5 mm (Remote) Input 1 x 1/8″ / 3.5 mm (Remote) Output 1 x Micro-USB (Service) |
| Speaker Connectors | 4 x Binding Post Pair |
| Input Impedance | Phono (MC): 50 Ohms Phono (MM): 47 Kilohms Line: 47 Kilohms |
| Input Sensitivity | Phono (MC): 150 µVrms Phono (MM): 3.5 mVrms RCA: 1 Vrms Line: 200 mVrms |
| Max Input Level | Phono (MC): 2 mVrms (1 kHz / 0.5% THD) Phono (MM): 50 mVrms (1 kHz / 0.5% THD) Line: 2.8 Vrms (1 kHz / 0.5% THD) |
| Phono RIAA EQ Deviation | ±0.5 dB |
| Rated Output / Impedance | Line: 200 mVrms / 1.5 Kilohms Pre-Out: 1 Vrms / 1.5 Kilohms |
| Signal to Noise Ratio | Phono (MC): 90 dB Phono (MM): 96 dB Line: 110 dB |
| Total Harmonic Distortion (THD) | Phono (MC) to Line Out: 0.02% (1.2 V Input) Phono to Line Out: 0.005% (1.2 V Input) Line to Speaker Out: 0.035% (50 W Output, 8 Ohms) |
| Channel Separation | Phono (MC): ± 66 dB (1 kHz / JEITA) ± 77 dB (10 kHz / JEITA) Phono (MM): ± 90 dB (1 kHz / JEITA) ± 77 dB (10 kHz / JEITA) XLR, RCA, Tuner, Line: ± 74 dB (1 kHz / JEITA) ± 54 dB (10 kHz / JEITA) |
Wireless Connectivity
| Wi-Fi | None |
| Bluetooth | None |
Power
| AC Input Power | 120 VAC, 60 Hz |
| Power Consumption | Active: 350 W Standby: 0.2 W |
Physical
| Dimensions (W x H x D) | 17.1 x 6.2 x 18.2″ / 435.0 x 157.0 x 463.0 mm |
| Weight | 48.5 lb / 22 kg |
Packaging Info
| Package Weight | 59.8 lb |
| Box Dimensions (LxWxH) | 23.75 x 23.63 x 10.5″ |
