Xcellon U3-1VPDE Overview
William Min

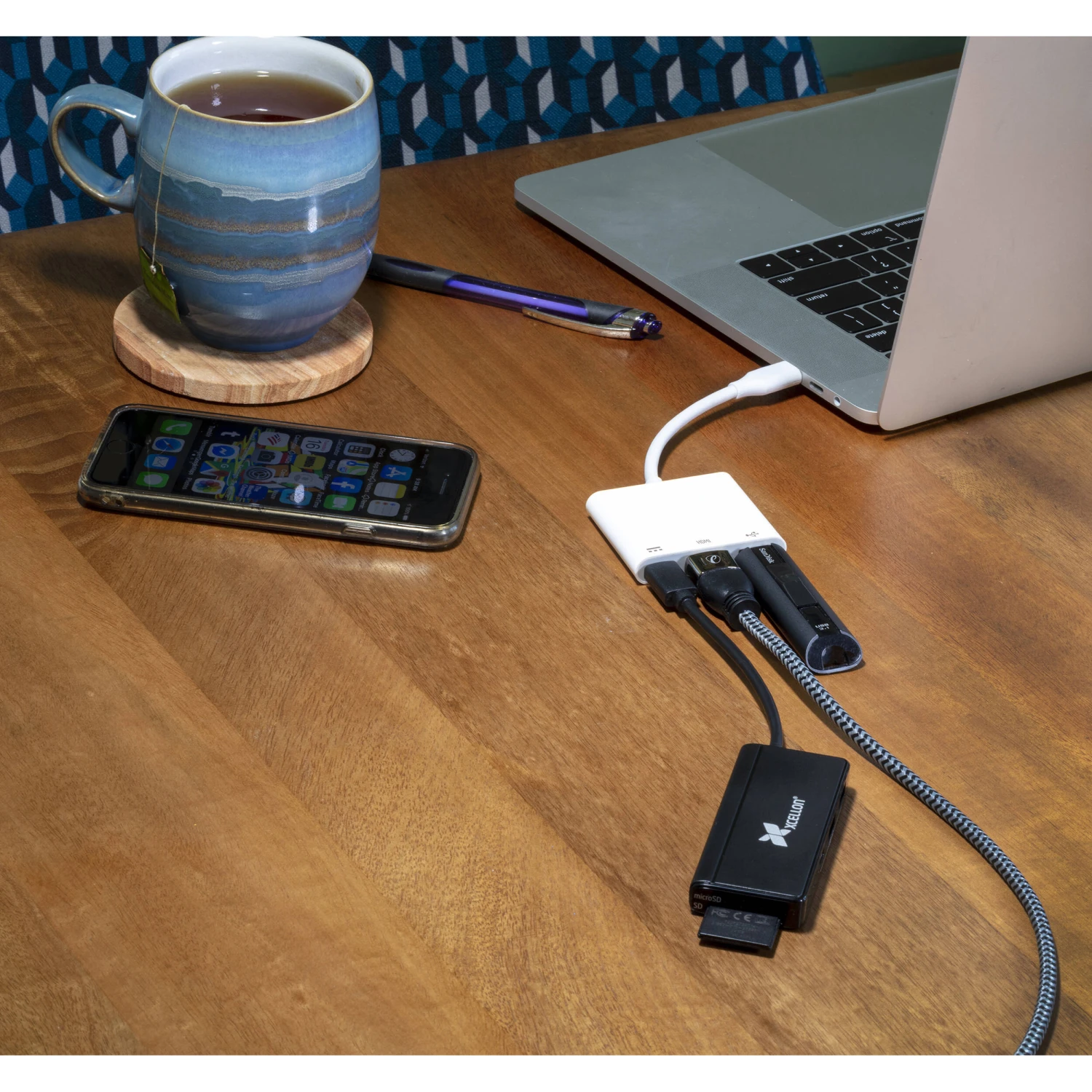

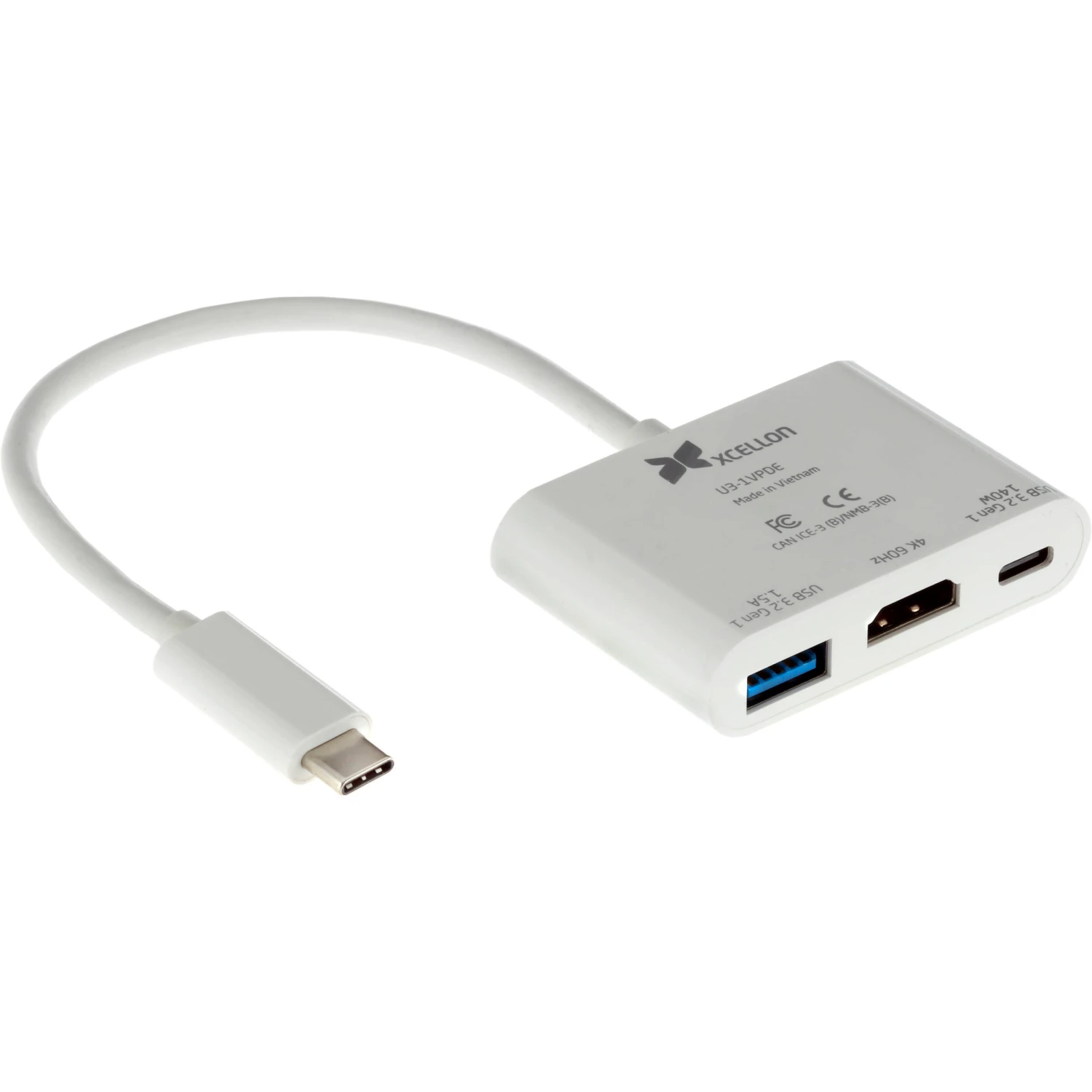

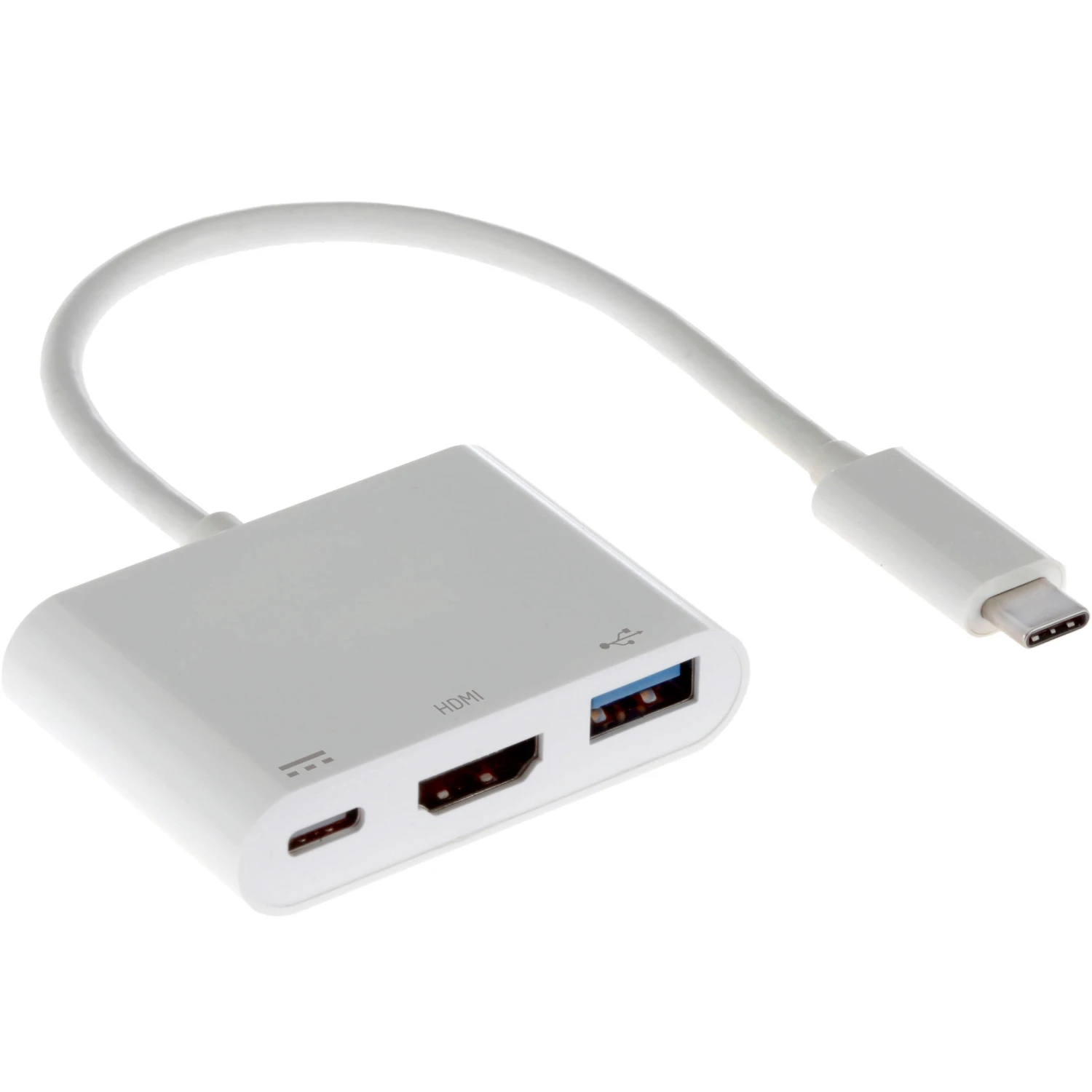

Add connectivity to your device with the Xcellon USB-C 3-in-1 Multiport Adapter. The adapter connects to a USB-C port on your Windows, macOS, iPadOS, or Android device and provides a HDMI port, a USB-C port, and a USB-A port. The HDMI port supports resolutions up to 4K at 60 Hz, provided the device’s USB-C port supports DP-alt mode. The USB-C port supports both 5 Gb/s data transfer and 140W pass-through charging. You can also use the USB-A port to connect legacy devices, such as an external hard drive, a keyboard, or a mouse. The adapter is lightweight and compact, making it easy to take with you while on the go. It is also plug and play, so there’s no need for additional software or drivers.
Please note that this adapter does not support Apple SuperDrive.
Items Included
- Xcellon USB-C 3-in-1 Multiport Adapter
- Limited 1-Year Manufacturer Warranty
Additional Resources
User Manual
0.8 MB
Xcellon U3-1VPDE Specs
| USB I/O |
1x USB-C 3.0 / 3.1/3.2 Gen 1 / Supports 140 W Power Delivery 1x USB-A 3.0 / 3.1/3.2 Gen 1 / Supports 1.5 A Output |
| Video I/O |
1x HDMI 2.0 (Female) |
| Max Resolution |
1 Display Supported: 3840 x 2160 at 60 Hz (Single) |
| Audio I/O |
No |
| Network I/O |
No |
| Host Connection |
USB-C 3.0 / 3.1/3.2 Gen 1 via Integrated Cable |
| Video I/O |
1x HDMI 2.0 (Female) |
| Max Resolution |
1 Display Supported: 3840 x 2160 at 60 Hz (Single) |
| Audio I/O |
No |
| Network I/O |
No |
| Host Connection |
USB-C 3.0 / 3.1/3.2 Gen 1 via Integrated Cable |
| Power Source |
Bus Powered |
| OS Compatibility |
Windows macOS iPadOS |
| Operating Conditions |
32 to 113°F / 0 to 45°C at 10 to 85% Humidity |
| Storage Conditions |
14 to 158°F / -10 to 70°C at 5 to 90% Humidity |
| Enclosure Material |
Plastic |
| Lock Slot |
No |
| Certifications |
CE, FCC, CAN ICE-3(B)/NMB-3(B) |
| Cable Length |
7.5″ / 19 cm |
| Dimensions |
2.3 x 1.6 x 0.6″ / 59 x 40 x 14 mm |
| Weight |
1.1 oz / 32 g |
| Package Weight |
0.14 lb |
| Box Dimensions (LxWxH) |
6.3 x 4.75 x 1″ |
