Williams Sound WaveCAST Overview
The WaveCAST C Single-Channel Wi-Fi Audio Streaming System from Williams Sound is a hardware-based DSP audio system that can stream real-time audio over Wi-Fi for professional audio applications that require high-quality sound. Audio for assistive listening or other purposes may be streamed to a free mobile app that is compatible with iOS and Android, or to personal devices with Wi-Fi receivers. The WaveCAST C can be easily integrated with third-party room systems and controlled with Telnet commands via Ethernet.

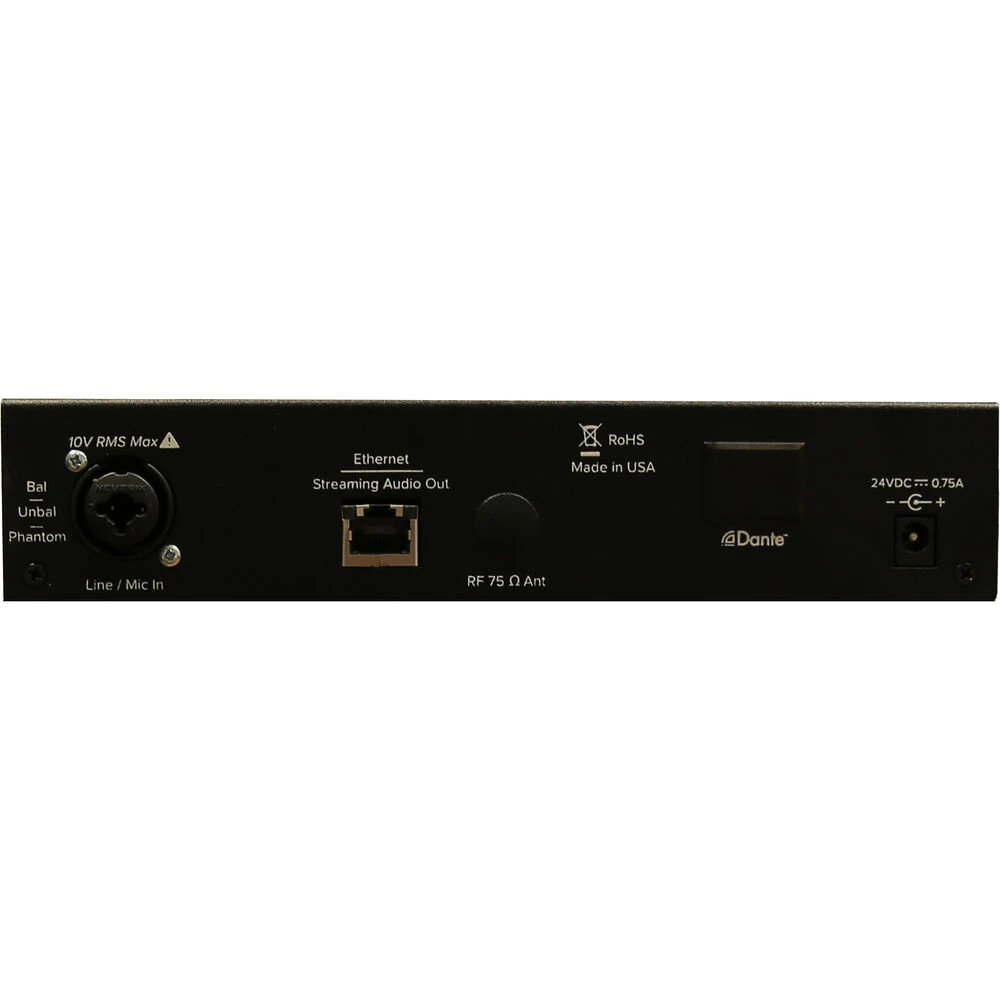

The device features a 3-pin XLR-1/4″ TRS combo connector with selectable phantom power and a line level output jack. DSP features include AGC, custom audio presets, high- and low-pass filters, limiters, and compressor gain control. WaveCAST C offers unicast and multicast network configurations. And it can have most of its settings controlled via front-panel integrated OLED display or hosted web interface. You can select channel and volume levels when you’re connected to the Wi-Fi network using a personal device.
In the Box
- Williams Sound WaveCAST C Single-Channel Wi-Fi Audio Streaming System
- Power Supply
- Limited 2-Year Manufacturer Warranty
User Manual
1.6 MB
Williams Sound WaveCAST Specs
| Audio |
Audio Inputs: 1 x Combination 3-pin XLR, 1/4″ (TRS) Jack for Balanced or Unbalanced Line Level, or Balanced or Unbalanced Microphone with Selectable Phantom Power Audio Processor Functions: Frequency Response: Signal-to-Noise Ratio: Total Harmonic Distortion: Common Mode Rejection: Audio Input Gain Adjust: Phantom Power: Audio Level Display: Headphone Output: |
| Interfaces |
3.12″ High Resolution OLED Display, Hosted Web Page, Telnet Commands over Ethernet |
| Ethernet |
RJ-45 with Support for Cat 5e up to 328′ / 100 m |
| Operating Temperature |
32 to 122° F / 0 to 50°C |
| Storage Temperature |
-4 to 158°F / -20 to 70°C |
| Power Supply |
Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz, IEC Line Cord; Output: 24 VDC, 750 mA, 18W. 2.5mm ID Center Positive Barrel Connector |
| Color |
Black |
| Dimensions (W x D x H) |
8.45 x 8.25 x 1.72″ / 21.5 x 21 x 4.4 cm |
| Weight |
3.2 lb / 1.45 kg |
