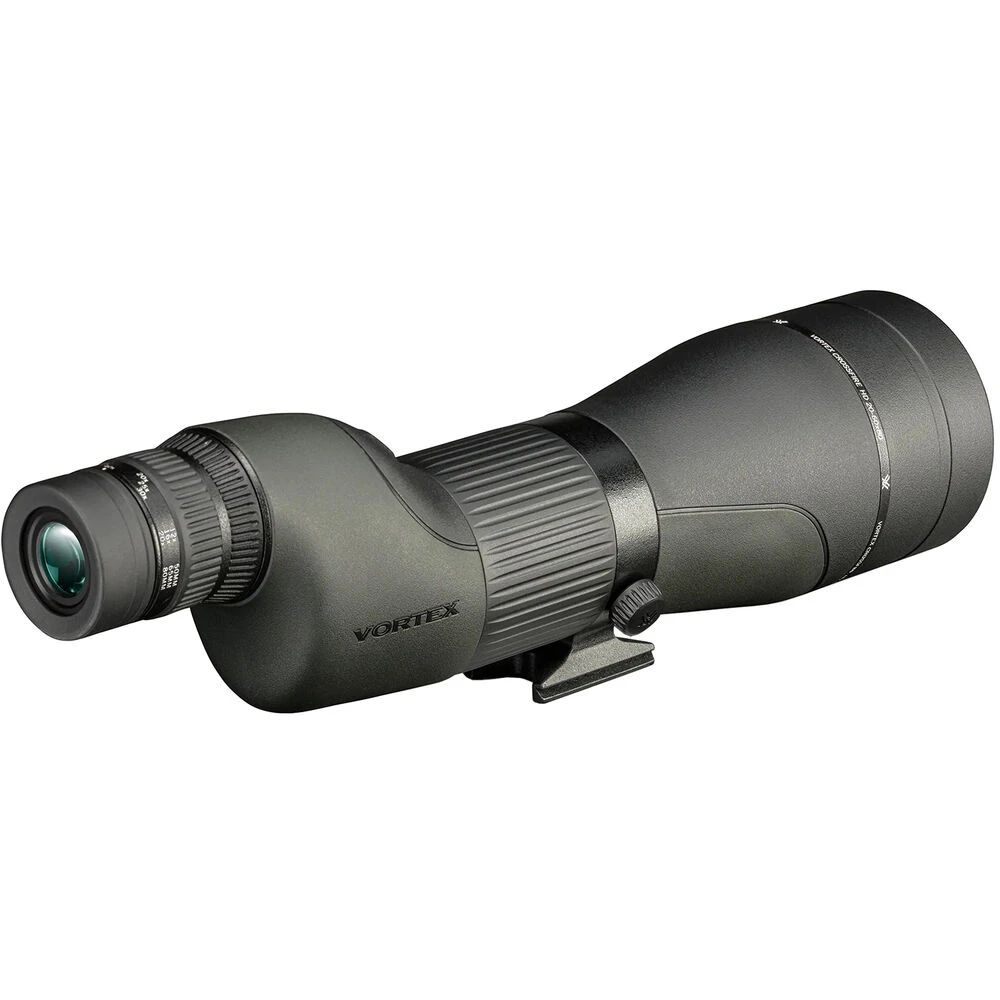

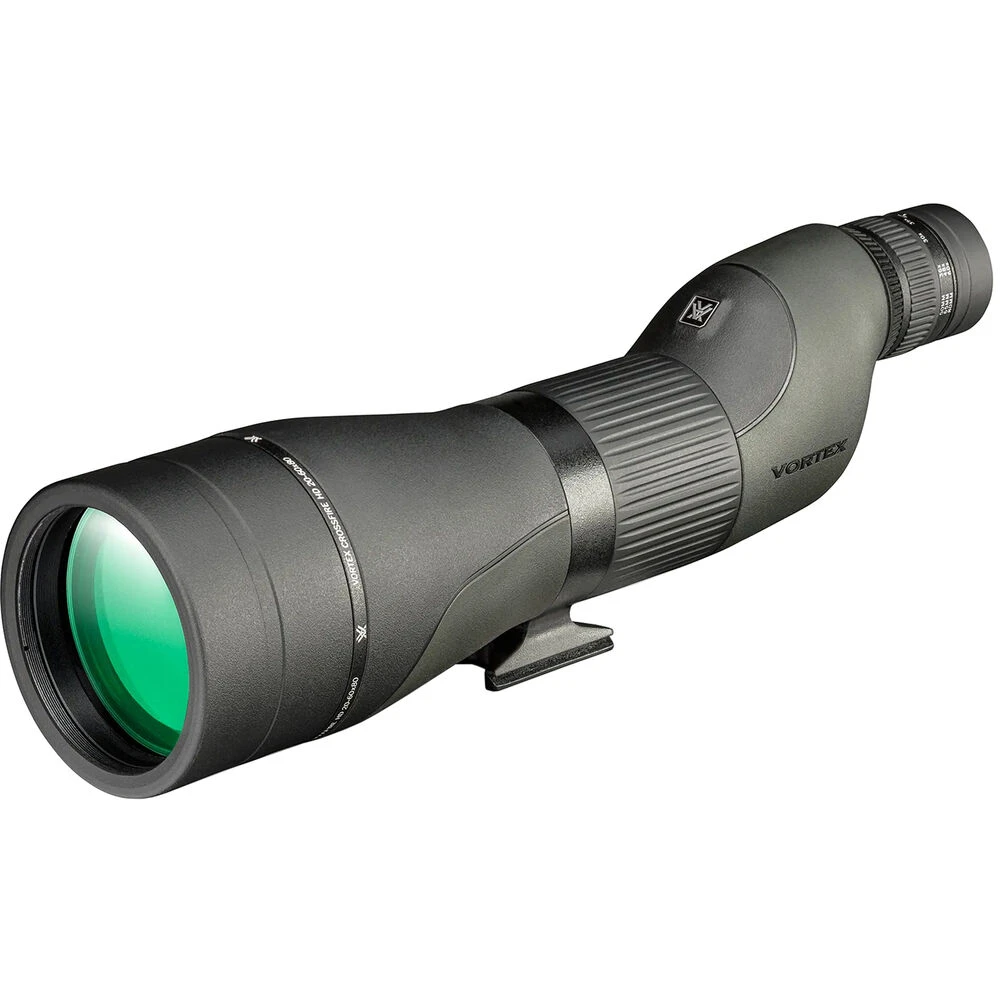

Vortex Crossfire HD 20-60×80 Overview
A Guide to Birding with Spotting Scopes
Powerful magnification and a bright objective leans combine for clear views of distant targets with the 20-60×80 Crossfire HD Spotting Scope from Vortex. This straight-viewing spotter will serve you in the field or at the range with fully multicoated HD glass that delivers a sharp, true-color image with minimal chromatic aberration. All air-to-glass surfaces are fully antireflective and multicoated to minimize light loss. The body is nitrogen-filled to be waterproof and resist internal fogging. The scope comes with an Arca-style tripod-mounting shoe, so it’s ready for your tripod right out of the box.
- Optimized with select glass elements to deliver high contrast, cut chromatic aberration, provide color fidelity, and edge-to-edge sharpness
- Antireflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and good low-light performance
- Rubber armor allows a secure, nonslip grip and durable external protection
- Nitrogen-purged for fog and waterproof performance
Items Included
- Vortex 20-60×80 Crossfire HD Spotting Scope (Straight Viewing)
- Neoprene Case
- 2 x Lens Cover
- Lens Cloth
- Limited Lifetime Warranty
Additional Resources
User Manual
2.9 MB
Vortex Crossfire HD 20-60×80 Specs
| Viewing Angle |
Straight |
| Magnification |
20 to 60x |
| Objective Lens Diameter |
80 mm |
| Field of View |
20x: 105.0′ @ 1000 yd / 34.9 m @ 1000 m 60x: 53.0′ @ 1000 yd / 17.6 m @ 1000 m |
| Minimum Focus Distance |
26.0′ / 7.9 m |
| Exit Pupil Diameter |
20x: 4 mm 60x: 1.3 mm |
| Eye Relief |
18.0 mm |
| Battery / Runtime |
No |
| Viewing Angle |
Straight |
| Prism Type |
Roof |
| Magnification |
20 to 60x |
| Objective Lens Diameter |
80 mm |
| Angle of View |
20x: 2° (Actual) 60x: 1° (Actual) |
| Field of View |
20x: 105.0′ @ 1000 yd / 34.9 m @ 1000 m 60x: 53.0′ @ 1000 yd / 17.6 m @ 1000 m |
| Minimum Focus Distance |
26.0′ / 7.9 m |
| Exit Pupil Diameter |
20x: 4 mm 60x: 1.3 mm |
| Eye Relief |
18.0 mm |
| Fogproof |
Yes, Nitrogen Filled |
| Environmental Resistance |
Water-Resistant (Unrated) |
| Battery / Runtime |
No |
| Filter Thread |
No |
| Tripod Mounting Thread |
No |
| Dimensions |
L: 15.1″ / L: 38.4 cm |
| Weight |
53.0 oz / 1503.0 g |
| Package Weight |
5.705 lb |
| Box Dimensions (LxWxH) |
18.1 x 8.6 x 5.7″ |
