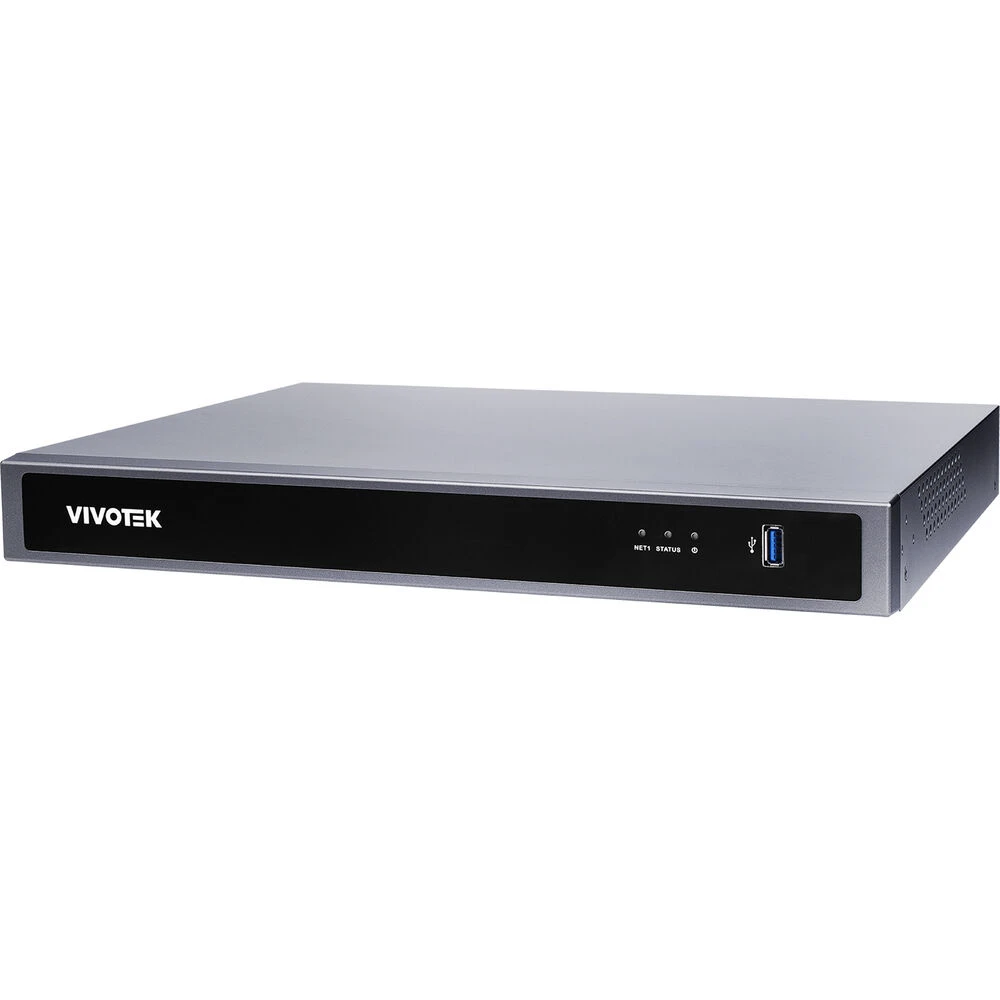

Vivotek ND9326P 8-Channel 4K UHD NVR (No HDD)(Vivotek Nd9326p 8 Channel 4k Uhd Nvr No Hdd)

Original price was: $395.00.Current price is: $95.99.

SKU: DGFUB 6995959054421 Categories: Optics & Surveillance, Surveillance Video, Surviellance Tags: Network Video Recorders (NVRs), Surveillance Video, Video Recorders & Hard Drives, Vivotek ND9326P

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Vivotek ND9326P Overview

Record from and manage up to 8 cameras at resolutions up to 3840 x 2160 with the ND9326P 8-Channel 4K UHD NVR (No HDD) from Vivotek. This NVR is equipped with two SATA ports that each support an HDD up to 8TB, for a maximum capacity of 16TB (HDDs available separately). H.265, H.264, and MJPEG compressions keep file sizes manageable while maintaining the best quality possible.

This NVR features HDMI and VGA ports, along with an audio input and output. Remote management is possible thanks to the iViewer app for iOS and Android. Compliance with ONVIF profile S enables interoperability with ONVIF cameras.

Embedded Linux OS

Recording modes include: continuous, schedule, manual, and event

8 x PoE ports

4K UHD video output via HDMI

Watermark support

Fisheye dewarping

PTZ operation includes: direction control, home, iris, preset, patrol (group), and PiP control

Compatible with Internet Explorer 10 or later, Chrome 68.0.3 or later, iViewer, VIVOCloud, Shepherd, and VAST 2

HDD S.M.A.R.T disk management

Watchdog hardware and software

Power restoration restarts the system automatically after power recovery

In the Box

Vivotek ND9326P 8-Channel 4K UHD NVR (No HDD)
Power Cord
Mouse
Screws
Limited 36-Month Manufacturer Warranty

User Manual

15.5 MB

Vivotek ND9326P Specs

Key Specs

Number of Channels	8
Playback Resolution	HDMI: 3840 x 2160 VGA: 1920 x 1080
Recording Resolution	3840 x 2160
PTZ Support	Yes
Throughput	64 Mb/s (Recording) 88 Mb/s (Networking)
A/V I/O	1x HDMI 1x VGA 1x 1/8″ (3.5 mm) Audio Input 1x 1/8″ (3.5 mm) Audio Output
Communication I/O	8x RJ45 PoE+ 1x RJ45 Gigabit Ethernet 1x USB-A 3.0 / 3.1/3.2 Gen 1 1x USB-A 2.0
Wi-Fi	No
Bluetooth	No
Installed Drive	No
Mobile App Compatible	Yes: Android & iOS App Name: iViewer, VIVOCloud
PoE Power Budget	120 W

General

Number of Channels	8
Playback Resolution	HDMI: 3840 x 2160 VGA: 1920 x 1080
Recording Resolution	3840 x 2160
PTZ Support	Yes
Throughput	64 Mb/s (Recording) 88 Mb/s (Networking)
IP Camera Support	8
Decoding Resolution	1 Channel: 3840 x 2160 at 30 fps 4 Channels: 1920 x 1080 at 120 fps 8 Channels: 1280 x 720 at 240 fps
2-Way Audio	Yes

Connectivity

A/V I/O	1x HDMI 1x VGA 1x 1/8″ (3.5 mm) Audio Input 1x 1/8″ (3.5 mm) Audio Output
Communication I/O	8x RJ45 PoE+ 1x RJ45 Gigabit Ethernet 1x USB-A 3.0 / 3.1/3.2 Gen 1 1x USB-A 2.0
Audio I/O	1x Input 1x Output
System Connection	2x SATA
Wi-Fi	No
Bluetooth	No
Network Protocols	DDNS, DHCP, DNS, FTP, HTTP, HTTPS, IP Filter, IPv4, IPv6, NTP, RTCP, RTP, RTSP, SMTP, TCP/IP, UPnP

Compatibility

Supported Video Codecs	H.264, H.265, MJPEG
Supported Audio Codecs	G.711, G.726
Backup Method	USB Drive
Supported IEEE Standards	802.3af (PoE 15.4 W), 802.3at (PoE+ 30 W)
Supported Languages	Arabic Czech English French German Italian Japanese Korean Polish Portuguese Russian Simplified Chinese Spanish Traditional Chinese

Computing

Installed Operating System	Embedded Linux
Optical Drive	No

System

Installed Drive	No
Max Capacity Supported	8 TB (Each Drive) 16 TB (Total)
Number of Bays	2x 3.5″ Internal
RAID	RAID 0/1

Software System Requirements

OS Compatibility	Windows Linux
Mobile App Compatible	Yes: Android & iOS App Name: iViewer, VIVOCloud
Web Browser Support	Chrome, Internet Explorer

Notifications

Alarm I/O	4x Input 1x Output
Event Trigger	Analytics, DI, DO, Disconnected, Disk Failure, Disk Full, Motion, PIR, PoE Exceeded, Tampering
Notification Type	Buzzer, Email

System Functions

Search Modes	Alarm, Calendar, Date/Time
Recording Modes	Continuous, Event, Manual, Schedule
Recording Intervals	5 Seconds to 10 Seconds (Pre-Record) 20 Seconds to 300 Seconds (Post-Record)
Fisheye Dewarping	1O, 1O3R, 1O8R, 1P, 1R

Electrical

Power Consumption	175 W
Power Supply Type	External
PoE Power Budget	120 W
AC Input Power	100 to 240 VAC, 50 / 60 Hz

Environmental

Operating Temperature	32 to 104°F / 0 to 40°C
Operating Humidity	0 to 95%

Physical

Built-In Display	No
Certifications	CE, FCC, VCCI, C-Tick, UL, CB, BSMI, BIS
LED Indicators	Yes
Dimensions (W x D x H)	14.4 x 12.6 x 1.8″ / 366.0 x 320.3 x 46.0 mm
Weight	5.5 lb / 2.5 kg

Packaging Info

Package Weight	8.75 lb
Box Dimensions (LxWxH)	21 x 15.5 x 5.7″
