Verkada Wireless Relay(Verkada Wireless Relay)

Original price was: $238.88.Current price is: $96.99.

SKU: DGFUB 7075808215125 Categories: Alarm Systems, Optics & Surveillance, Surviellance Tags: Alarm Accessories, Camera Accessories, Verkada BX21-HW, Video Surveillance

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Verkada BX21-HW Overview

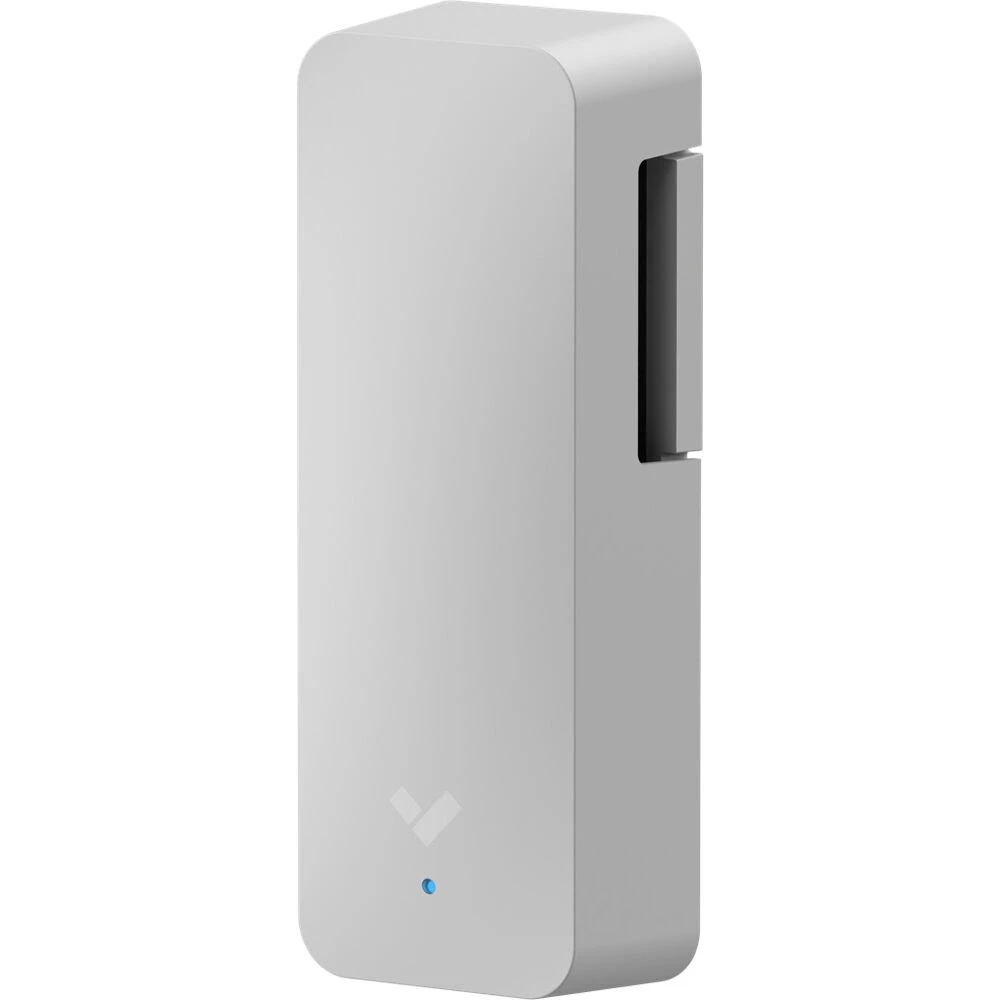

Configure components of your security system with the Verkada Wireless Relay. This relay accepts third-party sirens, strobes, and other wired alarm signals. Configure the device to build auto-trigger alarm outputs for an all-in-one flexibly deployed unit. Take advantage of easy setup and manage the relay in Verkada Cloud Command, available separately. The unit includes mounting hardware.

Automatically Trigger Alarm Outputs

Wire 12 to 24 VDC sirens, strobes, or other signaling devices to the output of the relay for a fully customized intrusion response, supporting a maximum of 30W output power
Output automatically activates if an alarm is raised

Flexible Deployments

Integrates with third-party wired devices
Wireless connectivity for flexible deployments
Lightweight alternative to alarm panel for one-off inputs or outputs

Cloud-Managed for Easy Setup

Pairs automatically with the BC82 Alarm Console, BK21 Alarm Keypad, or BH61 Wireless Hub
Easily set up and manage settings in Command
Monitor device status and recent events, even on the go

Built to last

Covered by industry-leading 10-year warranty
Automatic firmware updates keep systems secure

Items Included

Verkada Wireless Relay
T10 Torx Wrench
Limited 10-Year Manufacturer Warranty

Additional Resources

Quick-Start Guide

2.2 MB

Verkada BX21-HW Specs

General

Compatibility

Verkada BC82 Alarm Console / BK21 Alarm Keypad / BH61 Wireless Hub

Inputs / Outputs

Inputs

Wired Signal Input (Optional)

Wireless

Wireless	Yes
Global Positioning (GPS, GLONASS, etc.)	Yes
Wireless	Proprietary 915 MHz (US & Canada) 868 MHz (UK & Europe) 916.8 MHz (ANZ)
Wireless Range	1000′ / 305 m Line-of-Sight 200′ / 61 m Typical Enviorment

Power

Power Source	DC Input
DC Input Power	12 to 24 VDC
Power Consumption	30 W

Environmental

Certifications	FCC, IC, CE, UKCA, RCM, NDAA, IC
Operating Temperature	32 to 122°F / 0 to 50°C
Operating Humidity	0 to 95%

Physical

Mounting	Back: 1x Adhesive Strip Back: 2x Wall Anchors & Screws
Cable Length	Not Specified by Manufacturer
Dimensions	4.7 x 1.7 x 1.19″ / 119.6 x 44 x 30.3 mm
Weight	0.5 lb / 226 g
