Verkada SV23 Environmental Sensor(Verkada Sv23 Environmental Sensor)

Original price was: $391.00.Current price is: $97.99.

SKU: DGFUB 7075844456533 Categories: Optics & Surveillance, Surveillance, Surviellance Tags: Recording Accessories, Surveillance, Video Recorders & Hard Drives, Video Surveillance

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

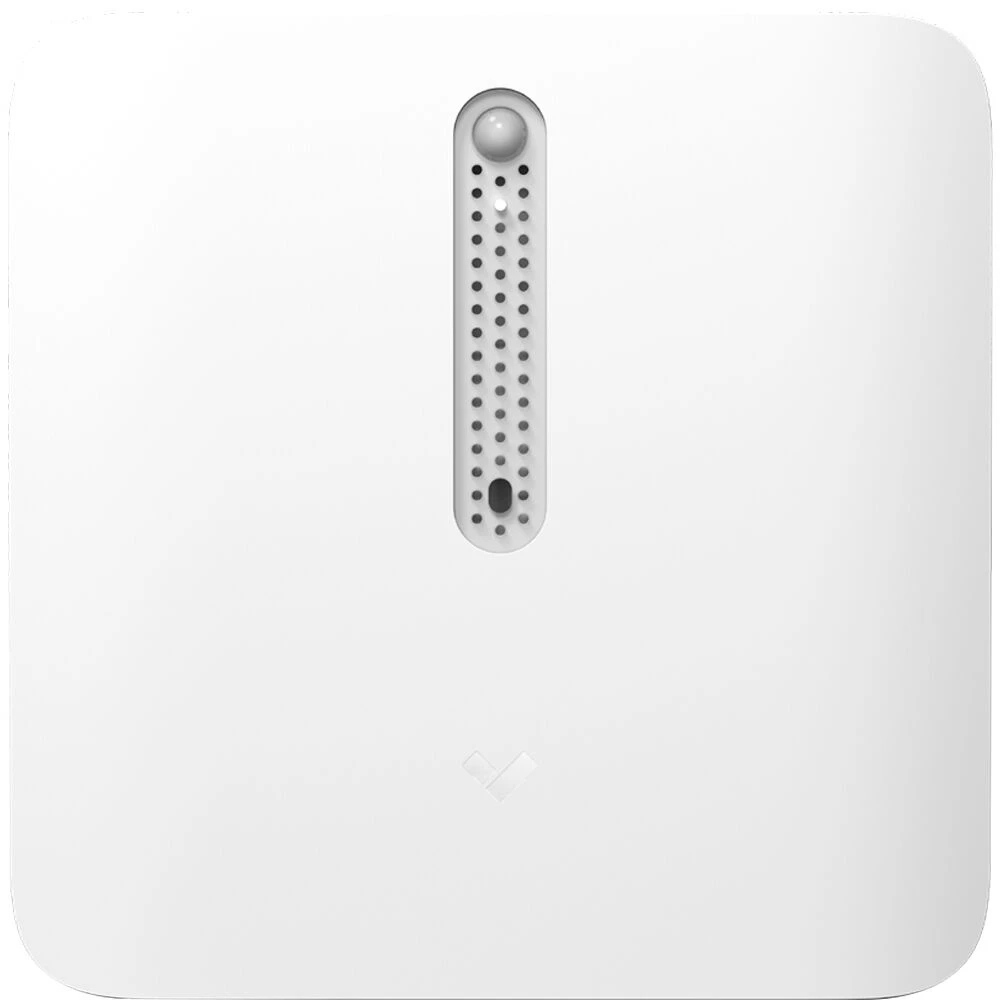

Verkada SV23-HW Overview

Monitor air conditions in your facility with the SV23 Environmental Sensor by Verkada. With ten onboard sensors, this device detects a variety of changes to the surrounding environment, including temperature, air quality index, PM 2.5, vape index, and more. Measurements are accurate within a fraction of a degree and programmable alerts for each measurement trigger in less than a second. Store up to 365 days of data on the device.

Popular Install Locations

Open office area on ceiling
bathroom and locker room on ceiling

Software Capabilities

Alerts

Device status, specific alerts for each sensor reading based on duration and reading level.

Sensor Events:

Configurable events for every on-device sensor reading.

Alert Notifications:

Configurable SMS and email notifications.

Sensor Zones:

Configurable alerts based on a group of sensors.

Carbon Dioxide

CO2 measurements capture the absolute level of CO2 in an environment. At levels of 800ppm or less, CO2 is harmless. Between 800 and 2000ppm, CO2 levels can be harmful to health, at levels above 2000ppm, CO2 can be extremely harmful to human health.

Relative Humidity

Relative humidity is the amount of moisture in the air compared to what the air can hold at that temperature.

Tamper Detection

Indicates if your device has been moved or tampered with.

Vape Index

Verkada’s Vape Index is a score derived from multiple sensors that is strongly correlated with vaping or smoking activity. Vape Index measurements outside of the green zone indicate suspected vaping and smoking activity, but could also reflect smoke or fumes from other sources. Smoke from cooking, burning fuel, or wildfires may register highly on the Vape Index.

TVOC

The total measure of Volatile Organic Compounds, which are chemicals that evaporate into the air and are emitted by cleaners, paints, varnishes, fragrances, and hundreds of other products. Examples include benzene, ethylene glycol, and formaldehyde. Measured as a TVOC index, VOCs are measured as a group because of their cumulative effects, with high TVOC values associated with negative health impacts.

Noise Level

A measure of total noise level at the sensor. OSHA regulations state that noise levels cannot exceed 90 dBA over an 8-hour period, or 95 dBA over a 4-hour period.

Air Quality Index

The U.S. AQI measures total air pollution and provides benchmarks for healthy values. When AQI exceeds 100, air quality is unhealthy for certain sensitive groups of people, then for everyone as AQI values get higher.

Particulate Matter 2.5

Particulate Matter 2.5 refers to tiny inhalable particles or droplets in the air that are less than 2.5 microns in width. PM 2.5 captures particulates from dust, vehicle exhaust, burning fuels, cooking, smoking, and vaping. These particles can have a negative health impact.

Motion

A measure of changes in infrared light absorption caused by the motion of warm bodies, as measured by a passive infrared sensor. Powered by the same technology as motion sensors for intrusion detection, a motion event indicates human/animal motion or other large changes in infrared activity.

Particulate Matter

Particulate Matter 4 refers to tiny inhalable particles or droplets in the air that are less than 4 microns in width. PM 4 captures fine dust, soot, and black carbon and soil erosion particles. These particles can have a negative health impact.

Particulate Matter 10

Particulate Matter 10 refers to tiny inhalable particles or droplets in the air that are less than 10 microns in width. PM 10 captures larger particulates from construction sites, landfills, wildfires, and pollen. These particles can have a negative health impact.

Items Included

Verkada SV23 Environmental Sensor
Mount Plate
T10 Security Torx Screwdriver
3 x M4 x 50mm Machine Screws
3 x Wing Nuts
3 x Washers
Limited 10-Year Manufacturer Warranty

Additional Resources

Quick-Start Guide

3.4 MB

Verkada SV23-HW Specs

General

Compatibility	Verkada Command
Connectivity	RJ45 Cable Connector for Network, PoE Connection
Sensor	Temperature Operating Range: 23 to 113°F / -5 to 45°C Typical Accuracy: ±0.9°F / ±0.5°C Max ± 1.8°F / ±1°C Humidity Operating Range: 0-95% (Non-Condensing) Typical Accuracy: ±3% @ 25°C CO₂ Sensor: Photoacoustic Range: 0-40,000 ppm Typical Accuracy: 400-1000 ppm ±75 ppm o1001-2000 ppm ±40 ppm + 5% of Reading
Sensor	PM 2.5 Sensor: Laser Scattering Optical Sensor Range: 0 – 1000 Microgram / m3 Typical Accuracy: 0 – 100 Micrograms / m3: ±25 Micrograms / m3 + 5% m.v PM 4 Sensor: Laser Scattering Optical Sensor Range: 0 – 1000 Micrograms / m3 Typical Accuracy: 0 – 100 Micrograms / m3: ±25 Micrograms / m3 100 – 1000 Micrograms / m3: ±25% m.v. TVOC Index Sensor MOX Range: 0 – 500 Motion Sensor: Passive Infrared Sensor FoV: 120° Air Quality Index Sensor: U.S. Air Quality Index Derived from Multiple Sensors Range: 0 – 500
Sensor	PM 10 Sensor: Laser Scattering Optical Sensor Range: 0 – 1000 Micrograms / m3 Typical Accuracy: 0 – 100 Microgram / m3: ±25 Micrograms / m3 100 – 1000 Micrograms / m3: ±25% m.v. Vape Index Sensor: Proprietary Formula Derived from Multiple Sensors Range: 0 – 100 Noise Sensor: MEMS Microphone range: 20 – 120 dB SPL (A-Weighted) Typical Accuracy: ±5 dB

Wireless

Yes

Power

Power Source	PoE
Power Consumption	4 W
Input Power	IEEE 802.3af PoE
Sampling Rate	5 Seconds
Data Storage	Device: Up to 365 Days Cloud: Up to 365 Days

Physical

Mounting	1x Wall 1x Single Gang Junction Box 1x European Junction Box 1x 3.5″ Round Junction Box
Certifications	FCC Part 15B Class B, ICES –003 Class B, NDAA
Operating Conditions	23 to 113°F / -5 to 45°C at 0 to 95% Humidity
Cable Length	Not Specified by Manufacturer
Dimensions	6.7 x 6.7 x 1.9″ / 170 x 169.5 x 48 mm
Weight	1.2 lb / 554 g
