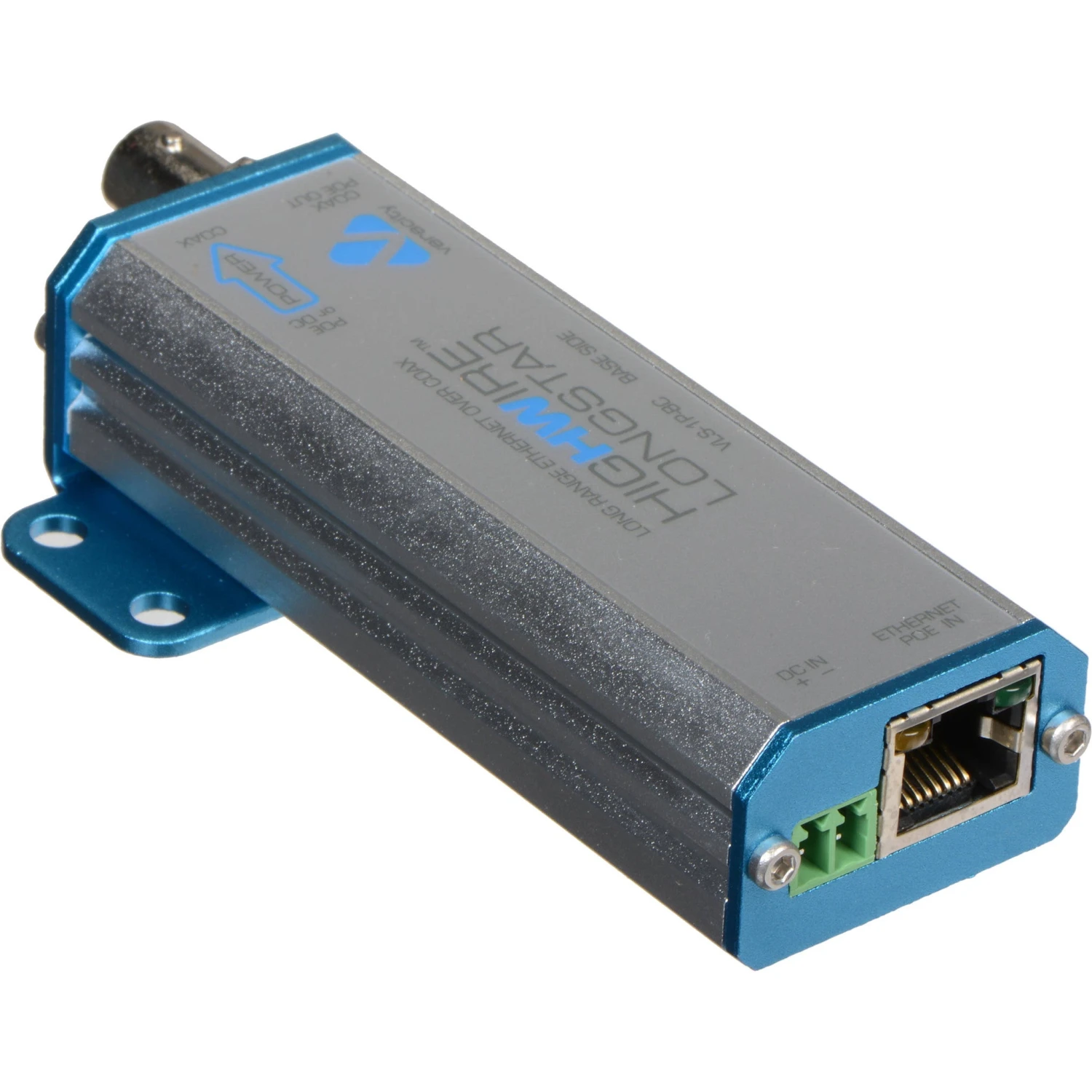

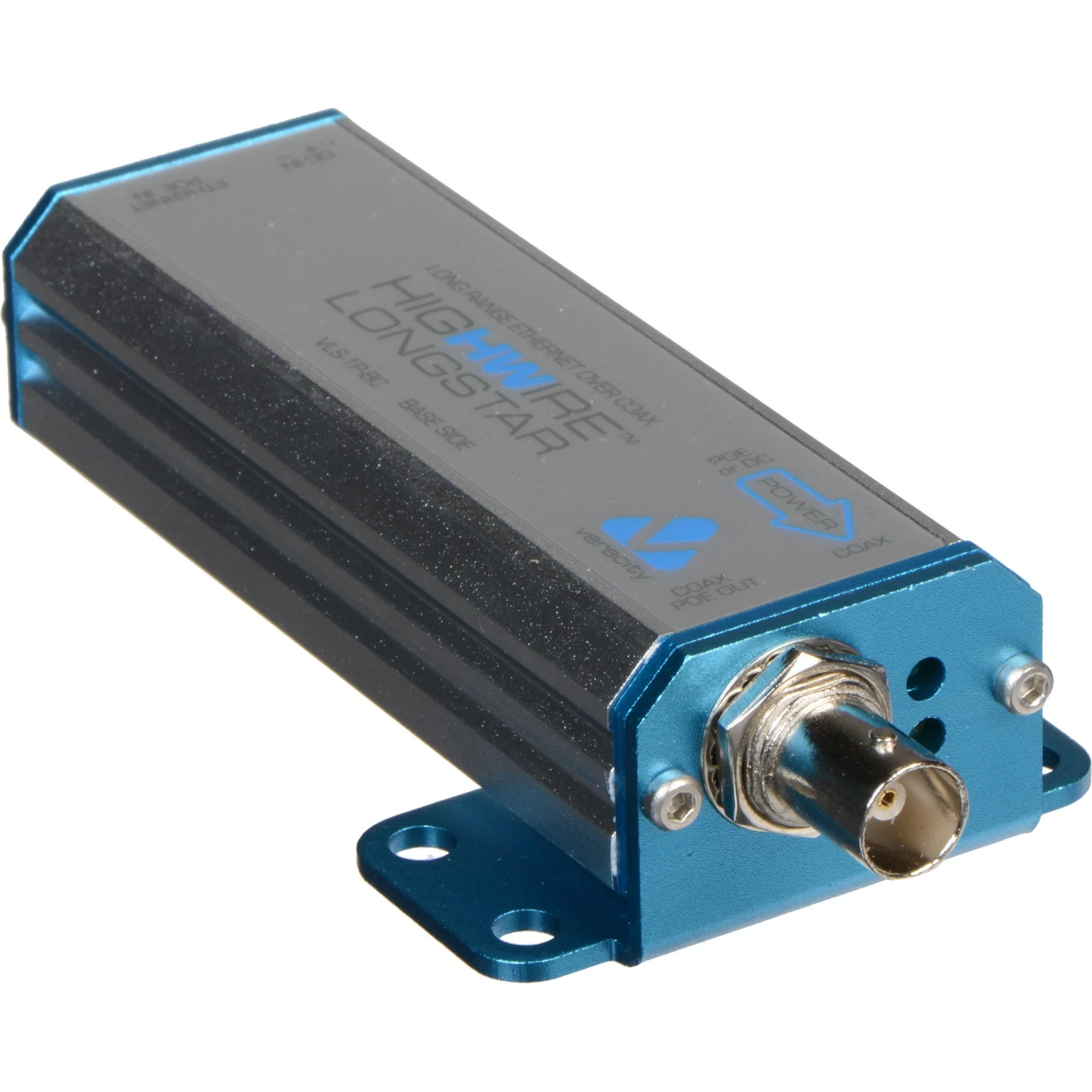

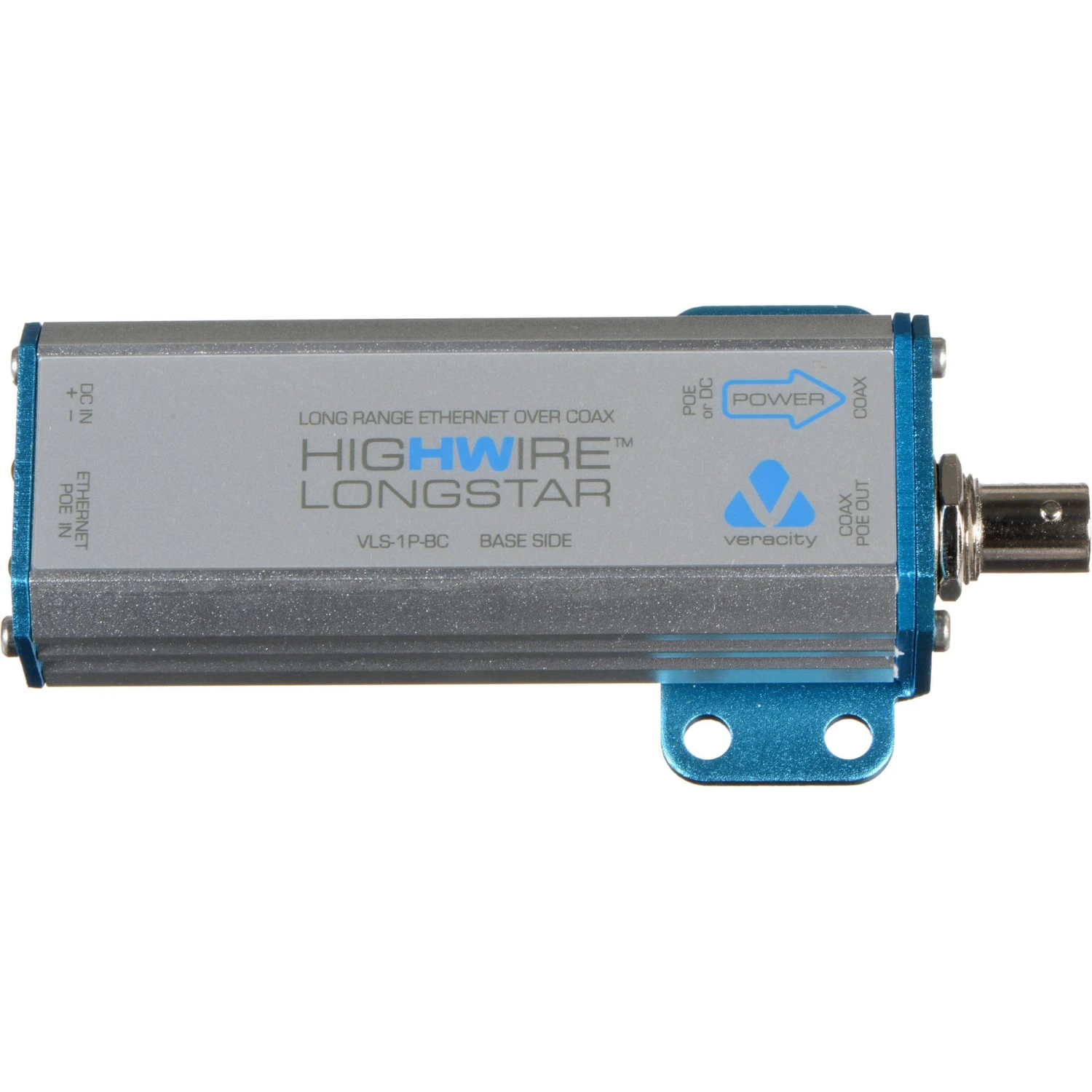

Veracity HIGHWIRE Longstar Long Range Ethernet Over Coax Adapter With PoE (Base Side)(Veracity Highwire Longstar Long Range Ethernet Over Coax Adapter With Poe Base Side)

The base side HIGHWIRE Longstar from Veracity provides power and high bandwidth over extended ranges up to 4593′, enabling a dependable connection to IP cameras and other remote network devices. This adapter is designed to be used with coax cable and IP cameras, eliminating the need for new cable runs. The HIGHWIRE Longstar is designed to allow you to run IP cameras up to 4593′ using 100Base-TX speeds and up to 13,780′ using 10Base-TX speeds and RG11 cable. This adapter provides up to 25W of power via RJ45 Ethernet with PoE technology.

Connectors	RJ45 Ethernet with PoE, BNC coax with PoE, DC in
Ethernet Interface	10/100Base-TX
Bandwidth	RG59: 100Base-TX: Up to 2263.8′ (690 m) 10Base-TX: Up to 6791.3′ (2070 m) RG11: 100Base-TX: Up to 4593.2′ (1400 m) 10Base-TX: Up to 13,779.5′ (4200 m)
LED Indicators	Coax: Green: On: 100 Mbps, Flash: activity Yellow: On: link, Flash: activity
Power	Up to 25 W
Dimensions (L x W x H)	4.5 x 2.2 x 1″ (11.4 x 5.5 x 2.5 cm)

Packaging Info
Package Weight	0.3 lb
Box Dimensions (LxWxH)	5.3 x 2.4 x 1.2″

Veracity HIGHWIRE Longstar Long Range Ethernet over Coax Adapter with PoE (Base Side)
