Vankyo VISTA UST 4K Overview

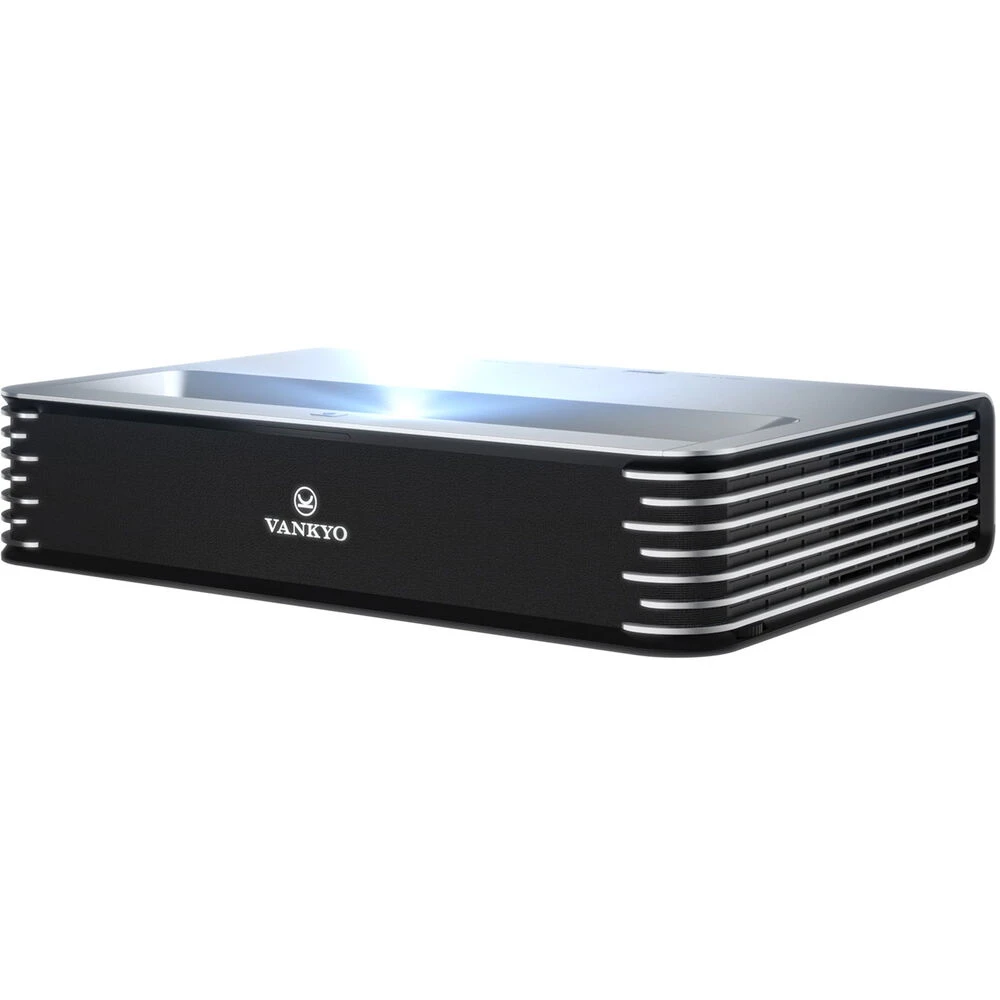

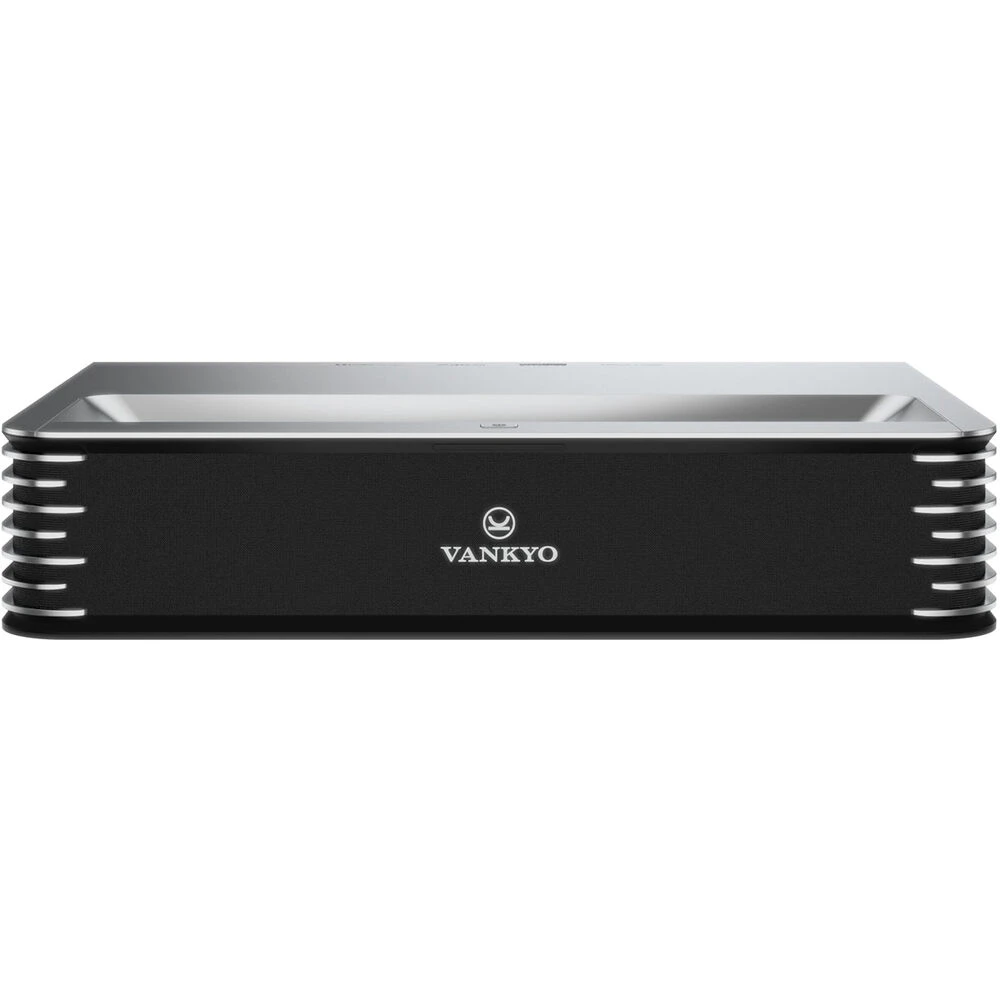

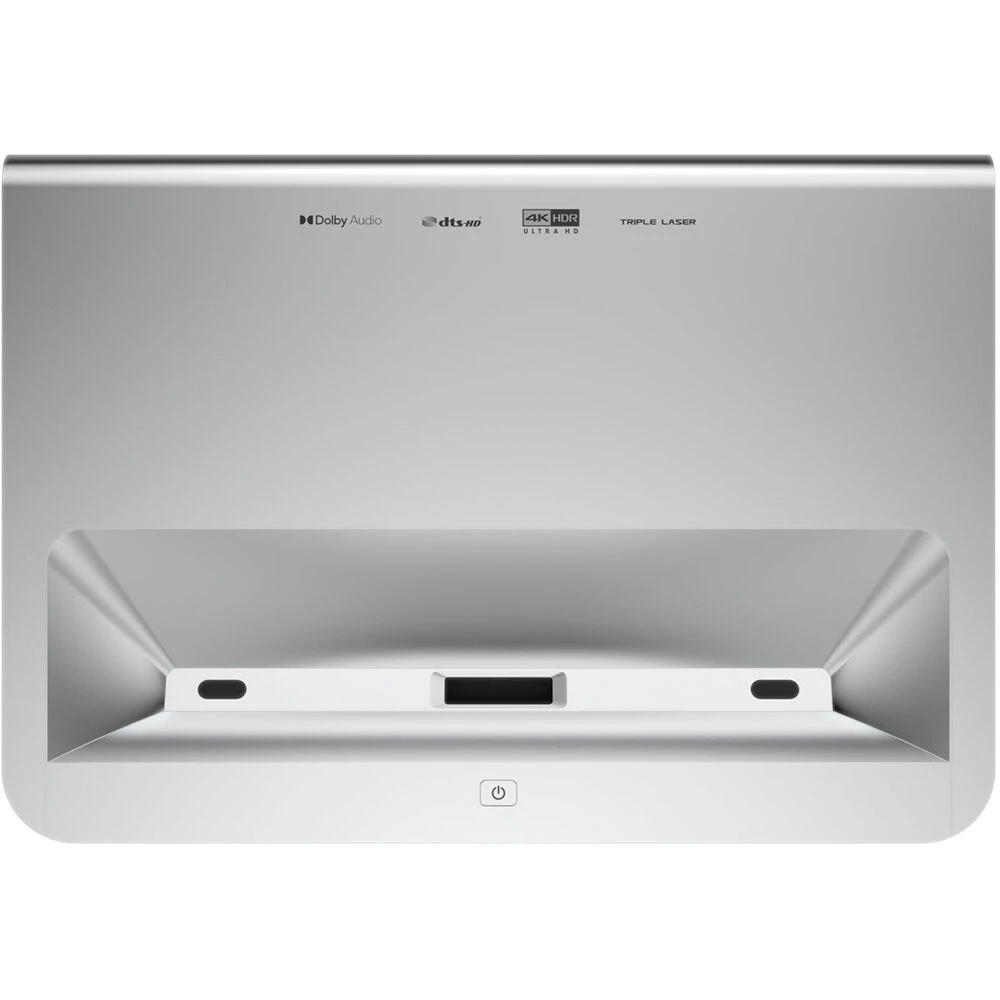

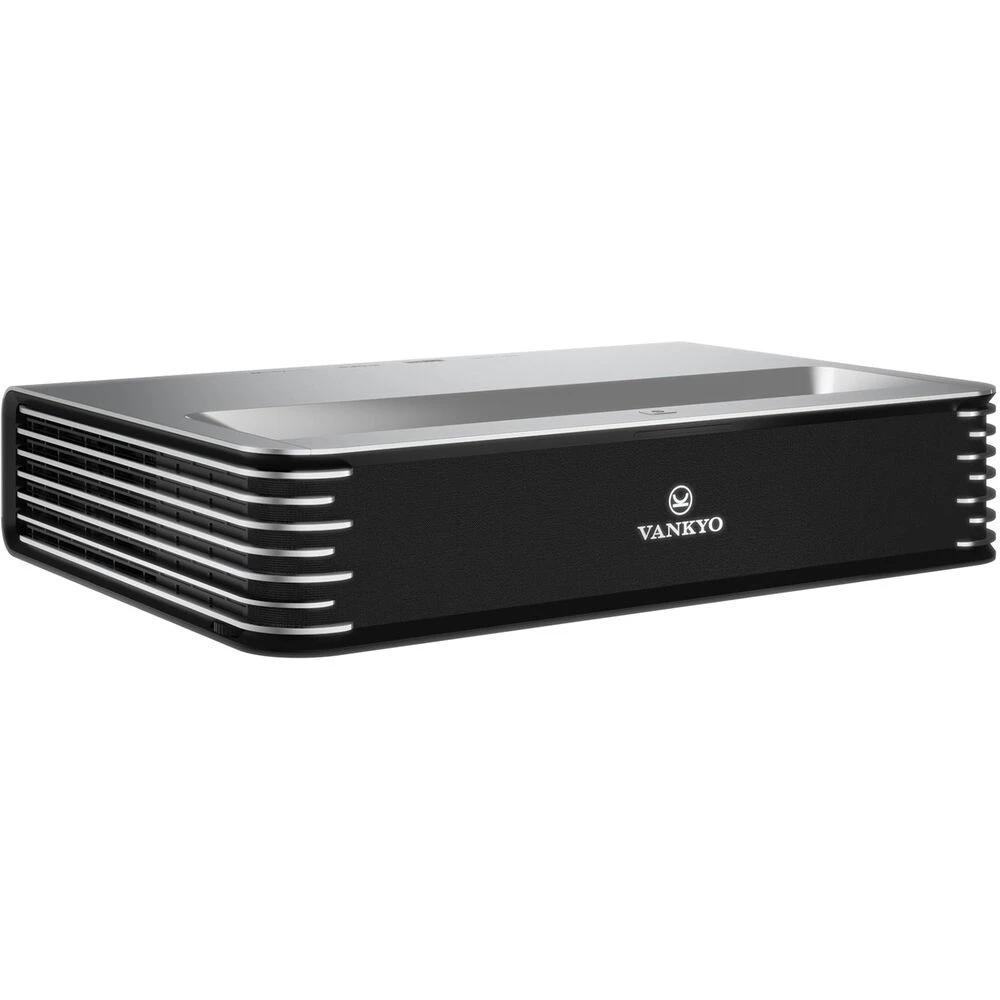

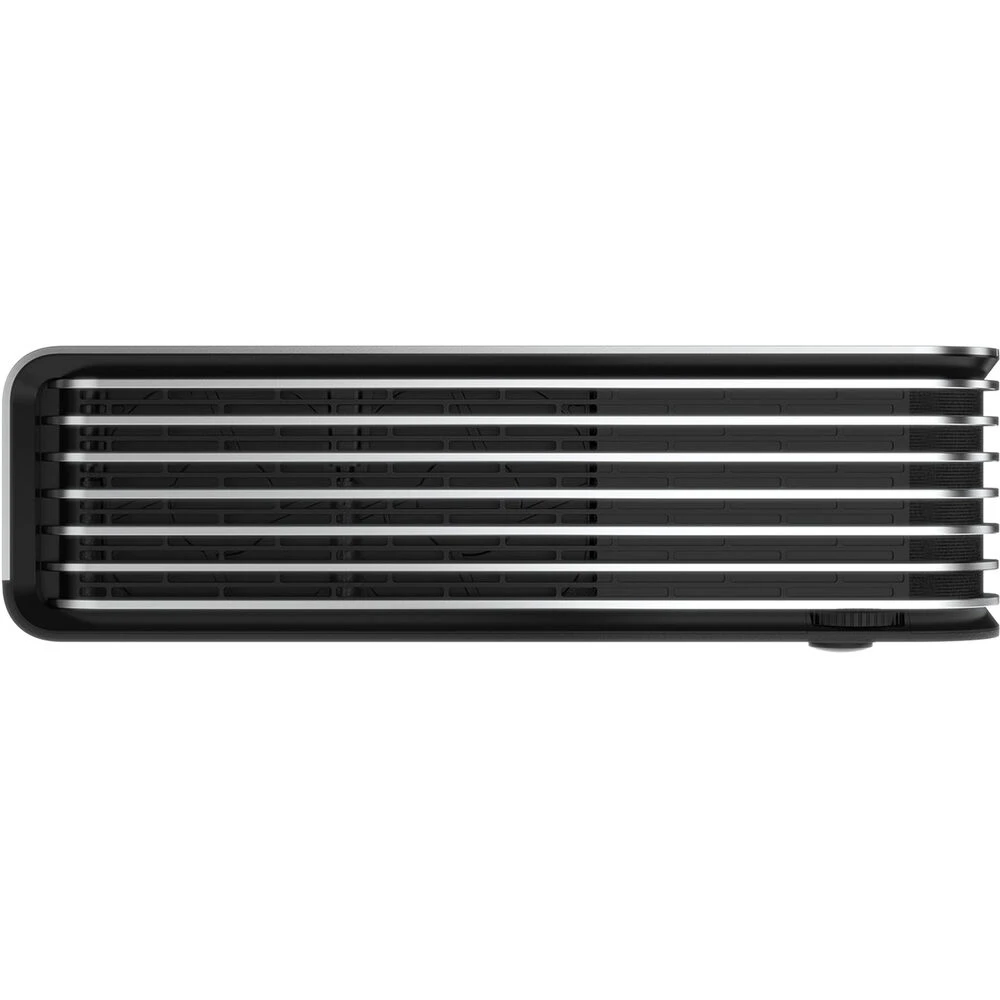

Project up to a 150″ image from just inches away from the wall with the Vankyo Vista T4 2100-Lumen XPR UHD 4K Ultra Short-Throw Laser Projector. Featuring an RGB triple-laser light source and Texas Instruments 4K XPR technology, the Vista T4 delivers clear, vibrant visuals, even with the lights on.
This ultra short-throw projector is designed to be placed on a tabletop right below your screen and can produce a 100″ diagonal image with less than 8″ between the front of the projector and the projection surface. It is equipped with HDMI and composite A/V inputs and comes with a 4K streaming media device to access your favorite content. Four built-in speakers provide up to 60W of sound, or you can easily connect to any sound system with HDMI ARC, Optical, 3.5mm, and wireless Bluetooth audio outputs available.
- HDR10 support
- Dolby and DTS audio decoding
- Built-in temperature protection
- 8-point keystone correction
- Electric focus
- USB-A power output for HDMI streaming stick
In the Box
- Vankyo Vista T4 2100-Lumen XPR UHD 4K Ultra Short-Throw Laser Projector (Silver)
- Power Cable
- Remote Control
- 2 x AAA Battery for Remote
- Streaming Media Player
- Cleaning Cloth
- Limited 3-Year Manufacturer Warranty
User Manual
6.7 MB
Vankyo VISTA UST 4K Specs
| Display System |
DLP |
| Native Chip Resolution |
1920 x 1080 (Full HD) |
| Maximum Brightness |
2100 Lumens (ANSI) |
| Throw Ratio |
0.233:1 (100″ Screen Size @ 7.2″ / 18.3 cm) |
| Projection Size |
80 to 150″ / 2.0 to 3.8 m |
| Supported HDR Input Formats |
HDR10, HDR10+ |

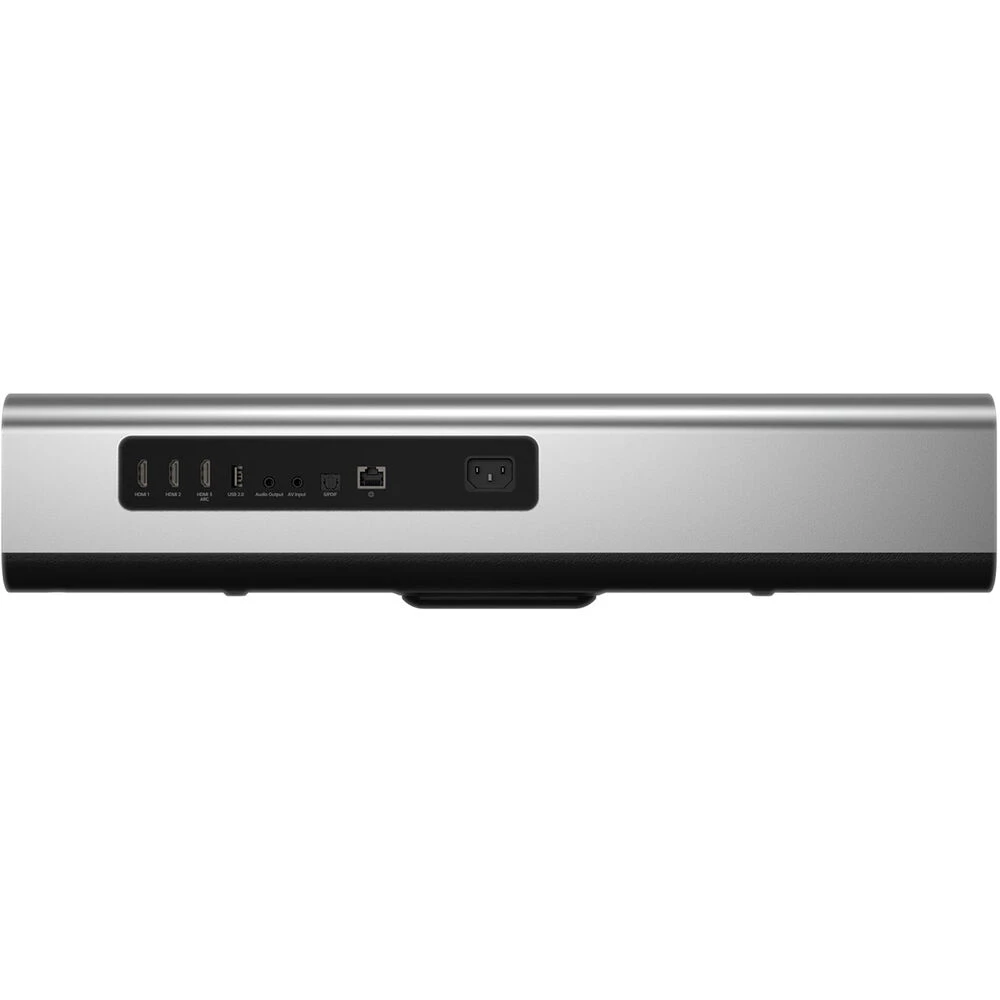

| Inputs/Outputs |
3x HDMI Audio, Video Input 1x 1/8″ / 3.5 mm Mini (Composite) Audio, Video Input 1x TOSLINK Audio Output 1x 1/8″ / 3.5 mm Mini Audio Output 1x RJ45 (Ethernet) Control, Data, LAN 1x USB-A Power Output |
| Light Source |
Laser Phosphor |
| Display System |
DLP |
| Native Chip Resolution |
1920 x 1080 (Full HD) |
| On-Screen Resolution |
Up to 4K UHD (3840 x 2160) via Pixel-Shift Technology |
| Supported Resolutions |
Maximum: 4K UHD |
| Maximum Brightness |
2100 Lumens (ANSI) |
| Uniformity |
>80% |
| Aspect Ratio |
Native: 16:9 |
| Color Wheel |
3-Segment (RGB) |
| Includes Lens |
Yes |
| Optical Zoom |
No |
| Throw Distance |
3.3 – 16.7″ / 8.4 – 42.4 cm |
| Throw Ratio |
0.233:1 (100″ Screen Size @ 7.2″ / 18.3 cm) |
| Projection Size |
80 to 150″ / 2.0 to 3.8 m |
| Keystone Correction |
Auto to Vertical: Auto to Horizontal: |
| Supported HDR Input Formats |
HDR10, HDR10+ |
| Multi-Input Support (PIP/PBP) |
Not Specified by Manufacturer |
| Built-In Speaker |
Yes |
| Speaker Power |
60 W |
| Inputs/Outputs |
3x HDMI Audio, Video Input 1x 1/8″ / 3.5 mm Mini (Composite) Audio, Video Input 1x TOSLINK Audio Output 1x 1/8″ / 3.5 mm Mini Audio Output 1x RJ45 (Ethernet) Control, Data, LAN 1x USB-A Power Output |
| HDCP Support |
Yes, Version 2.2 |
| Media/Memory Card Slot |
No |
| Operating System |
Android 9 |
| Mobile App Compatible |
Yes: Android & iOS |
| Internal Storage |
32 GB |
| Wireless LAN / Wi-Fi |
Yes, Built-in |
| Bluetooth |
5.0 |
| Light Source |
Laser Phosphor |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Power Consumption |
Medium Brightness: 360 W Standby Mode (Lamp Off): < 0.5 W |
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Storage Temperature |
-4 to 149°F / -20 to 65°C |
| Dimensions (W x H x D) |
21.3 x 4.3 x 14.9″ / 540.0 x 110.0 x 378.0 mm |
| Weight |
24.3 lb / 11 kg |
