Vanguard 15-45×60 VEO HD Angled-Viewing Spotting Scope With Tripod & Digiscoping Adapter(Vanguard 15 45×60 Veo Hd Angled Viewing Spotting Scope With Tripod Digiscoping Adapter)
Original price was: $379.00.$98.99Current price is: $98.99.
- Elevate Your Shopping Experience
- Product guarantee 100% satisfaction
- The quality solution for all your needs.
- Streamlined service, designed for your convenience.
Vanguard VEO HD 15-45×60 Overview
- 1Description
- 2Vanguard 15-45×60 VEO HD Spotting Scope (Angled Viewing)
- 3Vanguard VEO PA-65 Smartphone Digiscoping Adapter with Bluetooth Remote
- 4Vanguard VEO 3GO 235AP Aluminum Tripod with PH-25 Pan Head & QS-71P QR Plate
A Guide to Birding with Spotting Scopes
Spotting at the range, observing wildlife, or general glassing�the 15-45×60 VEO HD Angled-Viewing Spotting Scope with Tripod & Digiscoping Adapter from Vanguard lets you do it all, right out of the box. The scope offers powerful magnification and a large objective lens, and the 52.9″ tripod comes with a PH-25 Arca-compatible pan head and a large QS-71P quick release plate. The digiscoping adapter with Bluetooth control lets you take photos or video of the view.
From the forest to the mountains to the concrete jungle, Vanguard designed the 45° angled viewing 15-45×60 VEO HD Spotting Scope to provide power and performance to new and experienced users alike for hunting, birding, and general glassing in all environments. Utilizing a generous 60mm objective lens and their Advanced MultiGuard lens coating system boosts its performance in low and challenging conditions while ensuring the views remain bright and clear, even when the magnification is dialed all the way up. Its broad zoom range allows you to enjoy a spacious 141-foot field of view and more easily scan the landscape for targets at the low 15x with the ability to quickly dial up the power to 45x and make detailed observations of distant subjects.
The chassis is made of composite carbon fiber that is protected by black Mitsubishi rubber armor. Carbon fiber is corrosion resistant and lightweight; it is also resistant to thermal expansion, which can cause the optical components to move out of alignment over time. This ensures tack-sharp views for the life of the optic. The chassis is nitrogen filled and O-ring sealed to be waterproof and resistant to internal fogging even in extreme weather and temperature conditions. The angled-viewing configuration sets the eyepiece at a 45° angle to the scope’s body, which places your head in a more comfortable viewing position versus straight-through viewing models, and the whole body can be rotated relative to the tripod mount for perfect eyepiece placement. A 1/4″-20 mount makes it compatible with many tripods, quick release plates, and other popular support systems like window mounts.
- Broad 15-45x zoom eyepiece allows you to make observations at low power with the ability to zoom in for detailed views
- Large 60mm objective lens helps to ensure views remain bright and clear, even when viewing subjects at long range on maximum magnification and in challenging light conditions
- Proprietary Advanced MultiGuard anti-reflection multi-coatings improve light transmission, color rendition, resolution, clarity, and contrast
- 141-foot field of view at 1000 yards at 15x power, 68-foot at 45x
- The eyepiece is set at a 45° angle to the optical tube, placing the user’s head in a comfortable viewing position whether standing, sitting, or lying prone
- Large textured single-speed focusing collar ensures tack-sharp views, even while wearing gloves
- Twist-up rubber eyecup for comfortable use with or without eyewear
- Rotating tripod collar allows the user to adjust the orientation of the eyepiece relative to the tripod for optimum viewing comfort
- Standard 1/4″-20 mount is compatible with most quick release plates, heads, and photo/video/field tripods and other support systems
- Long eye relief at all powers allows the user to back off the eyepiece to reduce eye fatigue and increase viewing comfort during long glassing sessions�even on high magnification
- 4mm exit pupil at 15x magnification will completely cover most pupils as they open and dilate in low light
- Carbon fiber chassis is corrosion resistant and reduces the overall weight without affecting strength or stability
- Chassis material is resistant to thermal expansion that can cause the optical components to move out of alignment over time and prevent being able to achieve sharp focus
- Durable Mitsubishi rubber armor protects the optical tube from impacts and bumps while providing a sure grip during setup and breakdown�even in cold and wet conditions
- Optical tube is nitrogen filled and O-ring sealed to be waterproof and resistant to internal fogging in extreme conditions
- Extendable sun shade prevents flare when looking in the direction of the sun�improving contrast and clarity, especially when the sun is low on the horizon at dawn and dusk
- Weight: 40 ounces

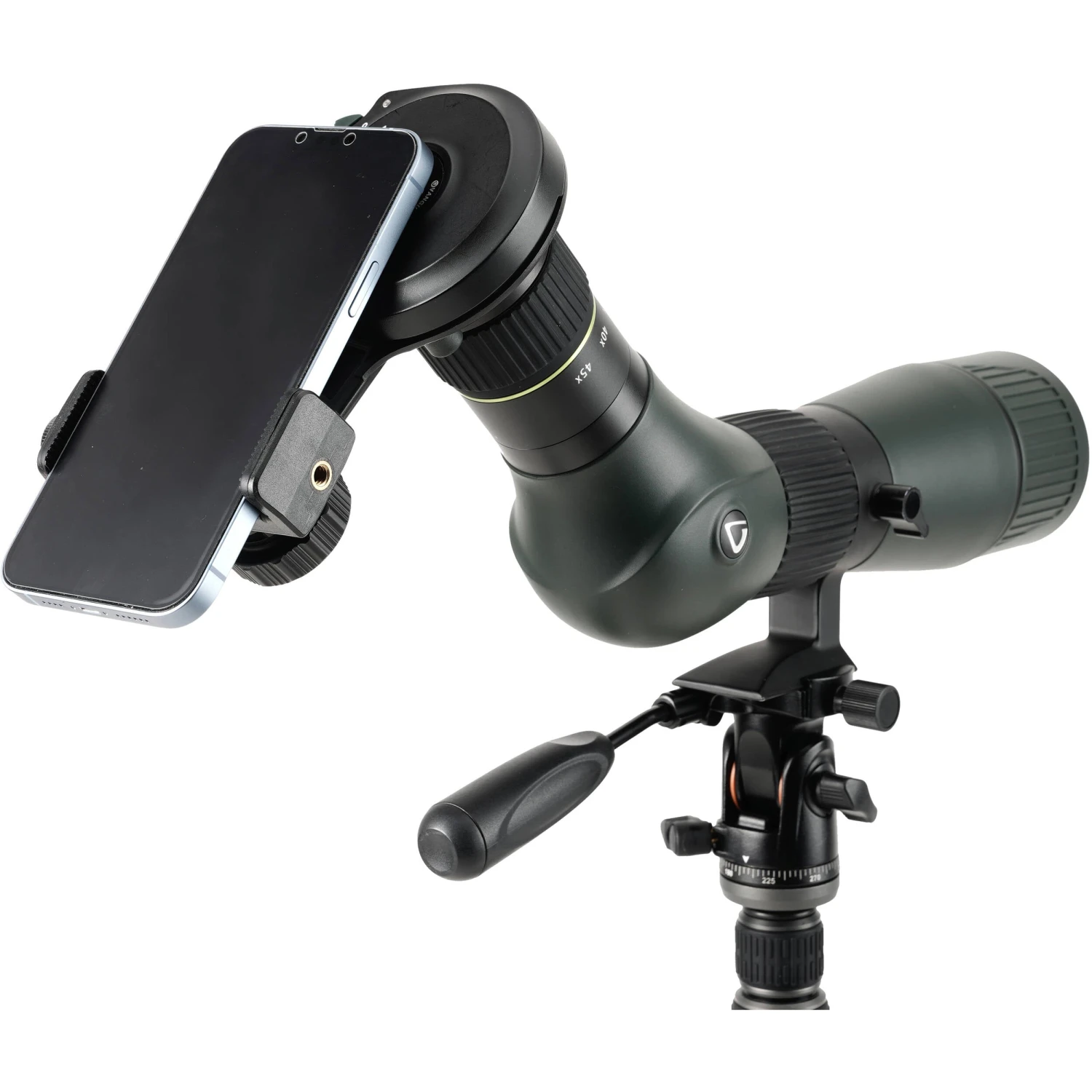

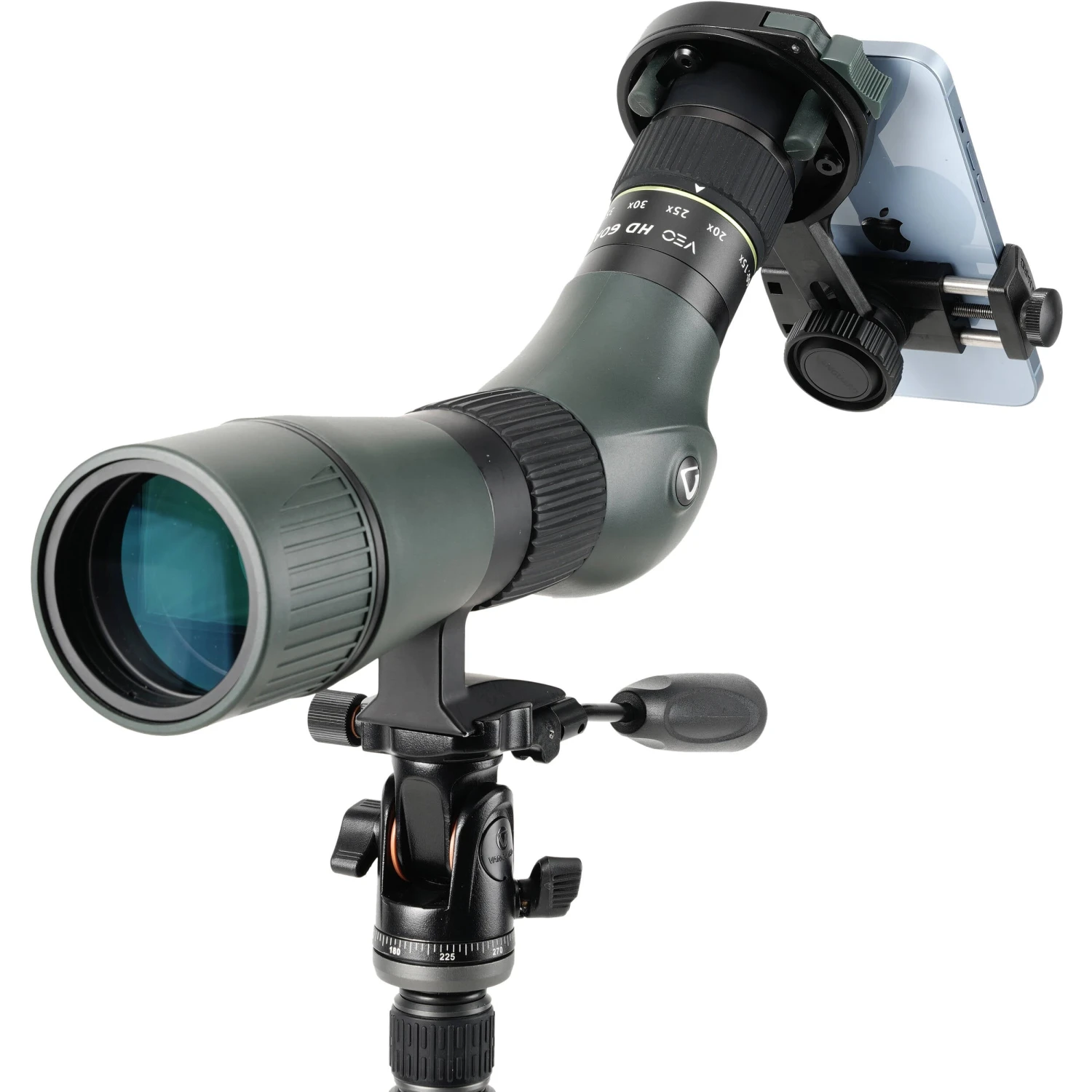

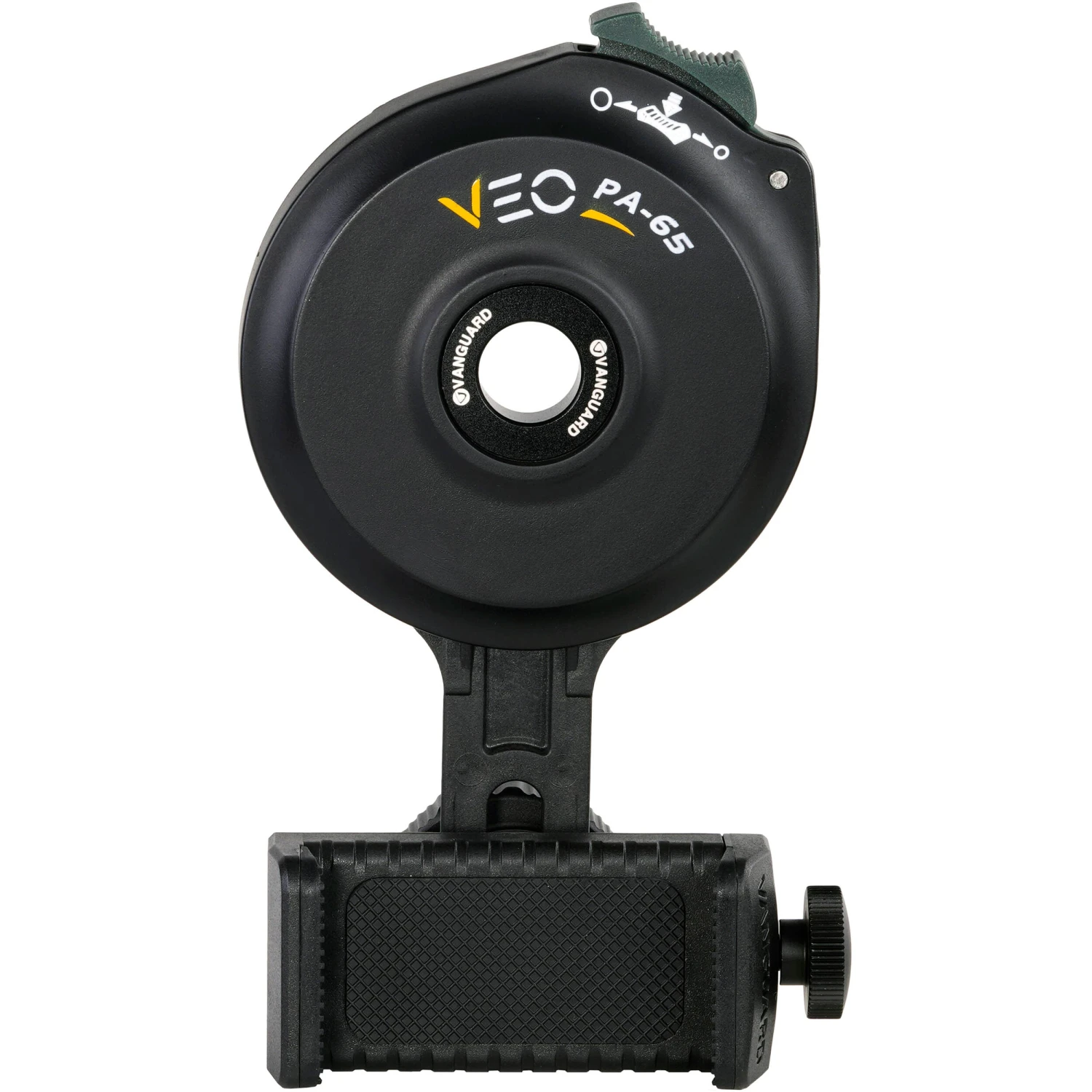

Capture still images and videos with virtually any smartphone through just about any optic with Vanguard‘s VEO PA-65 Smartphone Digiscoping Adapter �without ever touching your screen. The adapter design allows you to adjust it on two axes to ensure your phone’s camera lens is centered in the optical center of the eyepiece. Included with the kit is a remote shutter release that can be used on virtually any iOS or Android smartphone.
- Fits eyepieces with outside diameters from 34 to 54mm
- Ideal for binoculars, spotting scopes, monoculars, and micorscopes
- Two directional knobs on the X and Y axes enable you to align & center your phone’s camera with the eyepiece
- Set up in portrait or landscape orientation
- Fits phones up to 3.5″ wide (88.9mm)
- Works with regular phone cases, but “folio-style” cases will need to be removed
- Fast adjustments make sharing the adapter with people that have different model phones easy
- Rubber pads protect the phone from scratches
- Wireless Bluetooth shutter release remote
- Connects to most Bluetooth-enabled Android or iOS smartphone
- Capture your picture or video without having to touch your phone which can cause vibrations that ruin shots

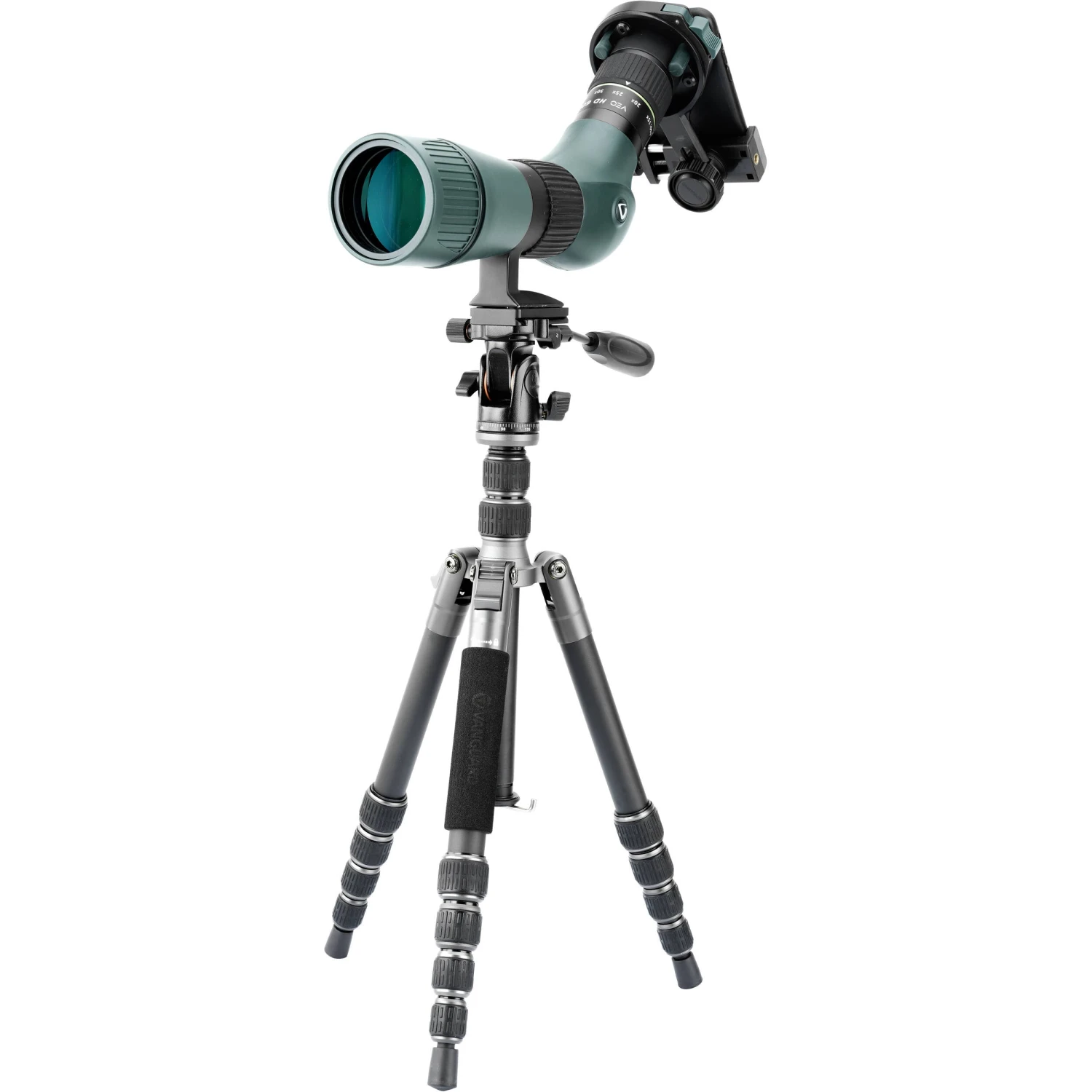

The VEO 3GO 235AP Aluminum Tripod from Vanguard is lightweight and easily portable, yet supports loads up to 7.7 pounds. Its Arca-compatible, two-way PH-25 Pan Head allows easy control of your spotting scope, binoculars, monocular, or camera, and the QS-71P quick release plate makes attaching and detaching a breeze. The aluminum legs have twist-locks for quick setup.
- Travel-friendly tripod weighs 2.8 pounds and folds to 12.9″
- Comes with VEO 2 PH-25 Arca-compatible pan head and large QS-71P quick release plate
- Easy-twist leg locks for quick deployment
- Three easy-set leg angles (20, 50, and 80°)
- Converts to a monopod quickly and easily
- Rubber and spiked feet included to match your terrain
- CNC-machined for precision and quality

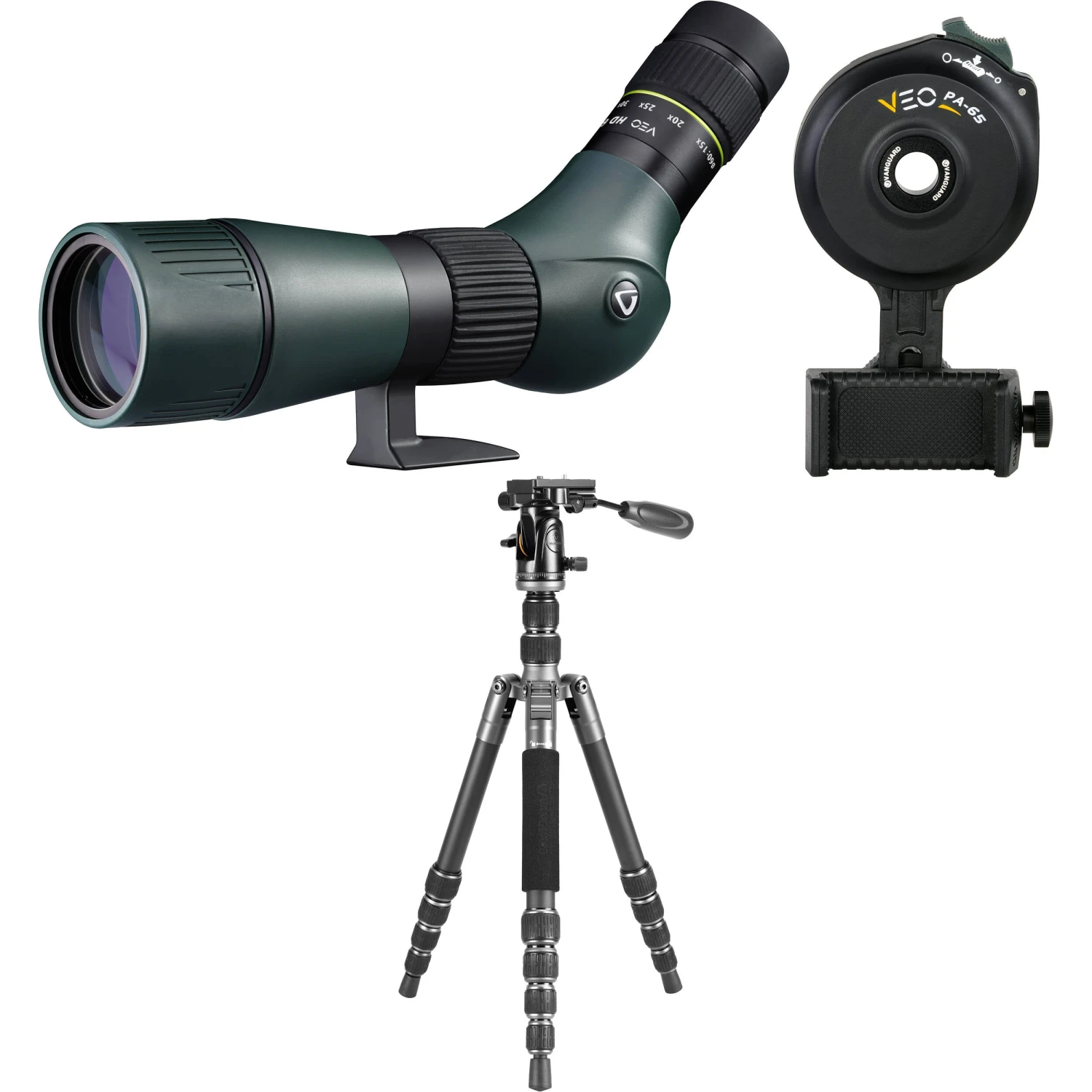

In the Box
- Vanguard 15-45×60 VEO HD Spotting Scope (Angled Viewing)
- Limited Lifetime Manufacturer Warranty
- Vanguard VEO PA-65 Smartphone Digiscoping Adapter with Bluetooth Remote
- Bluetooth Smartphone Remote
- Limited 1-Year Manufacturer Warranty
- Vanguard VEO 3GO 235AP Aluminum Tripod with PH-25 Pan Head & QS-71P QR Plate
- VEO 2 PH-25 Arca-Compatible Pan Head
- Vanguard QS-71P Quick Shoe
- Limited 5-Year Manufacturer Warranty
Registration Extension: 5-Year
- Description
- Vanguard 15-45×60 VEO HD Spotting Scope (Angled Viewing)
- Vanguard VEO PA-65 Smartphone Digiscoping Adapter with Bluetooth Remote
- Vanguard VEO 3GO 235AP Aluminum Tripod with PH-25 Pan Head & QS-71P QR Plate
Vanguard 15-45×60 VEO HD Spotting Scope (Angled Viewing) Specs
| Viewing Angle |
Angled |
| Magnification |
15 to 45x |
| Objective Lens Diameter |
60 mm |
| Field of View |
15x: 141.0′ @ 1000 yd / 46.8 m @ 1000 m 45x: 68.0′ @ 1000 yd / 22.6 m @ 1000 m |
| Minimum Focus Distance |
15x: 16.4′ / 5.0 m 45x: 19.7′ / 6.0 m |
| Exit Pupil Diameter |
15x: 4 mm 45x: 1.3 mm |
| Eye Relief |
19.0 to 20.0 mm |
| Viewing Angle |
Angled |
| Magnification |
15 to 45x |
| Objective Lens Diameter |
60 mm |
| Field of View |
15x: 141.0′ @ 1000 yd / 46.8 m @ 1000 m 45x: 68.0′ @ 1000 yd / 22.6 m @ 1000 m |
| Minimum Focus Distance |
15x: 16.4′ / 5.0 m 45x: 19.7′ / 6.0 m |
| Exit Pupil Diameter |
15x: 4 mm 45x: 1.3 mm |
| Eye Relief |
19.0 to 20.0 mm |
| Fogproof |
Yes, Nitrogen Filled |
| Water Resistance |
Waterproof |
| Environmental Protection |
Advertised as Water Resistant *Test Methodology Not Supplied |
| Tripod Mounting Thread |
1/4″-20 Female |
| Weight |
38.8 oz / 1100.0 g |
| Package Weight |
3.85 lb |
| Box Dimensions (LxWxH) |
14.8 x 8.1 x 4.9″ |
Vanguard VEO PA-65 Smartphone Digiscoping Adapter with Bluetooth Remote Specs
| Package Weight |
0.745 lb |
| Box Dimensions (LxWxH) |
10.4 x 9.7 x 3.55″ |
Vanguard VEO 3GO 235AP Aluminum Tripod with PH-25 Pan Head & QS-71P QR Plate Specs
| Head Type |
Pan & Tilt Head |
| Quick Release Plate Type |
Arca-Type |
| Load Capacity |
7.7 lb / 3.5 kg |
| Maximum Working Height |
52.9″ / 134.4 cm |
| Head Type |
Pan & Tilt Head |
| Quick Release Plate Type |
Arca-Type |
| Load Capacity |
7.7 lb / 3.5 kg |
| Maximum Working Height |
52.9″ / 134.4 cm |
