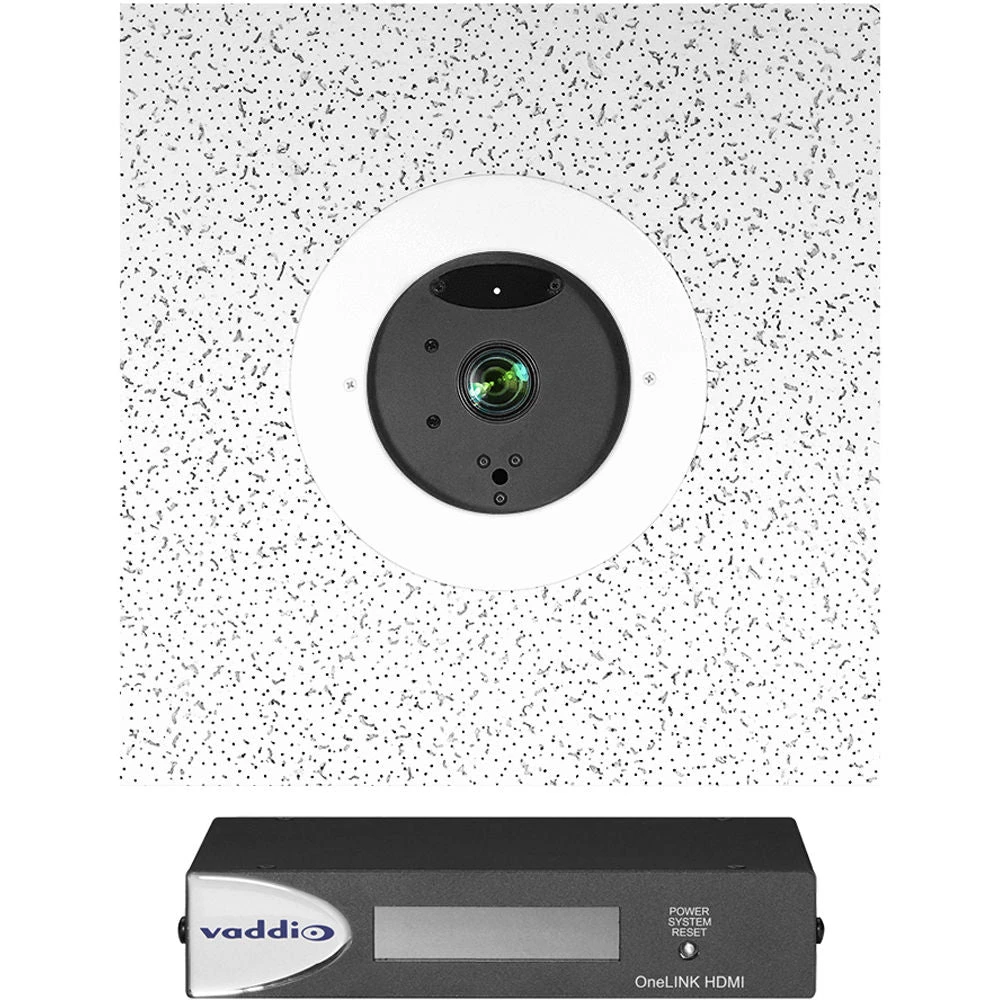

Vaddio DocCAM 20 HDBT OneLINK HDMI System(Vaddio Doccam 20 Hdbt Onelink Hdmi System)
Original price was: $317.00.$96.99Current price is: $96.99.
- Elevate Your Shopping Experience
- Product guarantee 100% satisfaction
- The quality solution for all your needs.
- Streamlined service, designed for your convenience.
Vaddio DocCAM 20 Overview
The DocCAM 20 HDBT OneLINK HDMI System from Vaddio combines the DocCAM 20 HDBT document camera and the OneLINK HDMI interface. It is suitable for use in distance learning and corporate environments. The system captures 1920 x 1080 video at 60p from a single 1/2.8″-type Exmor sensor and transmits it up to 328′ over CAT5e cable. The combination enables powering the camera, sending control signals, and transmitting video over a single Ethernet cable.

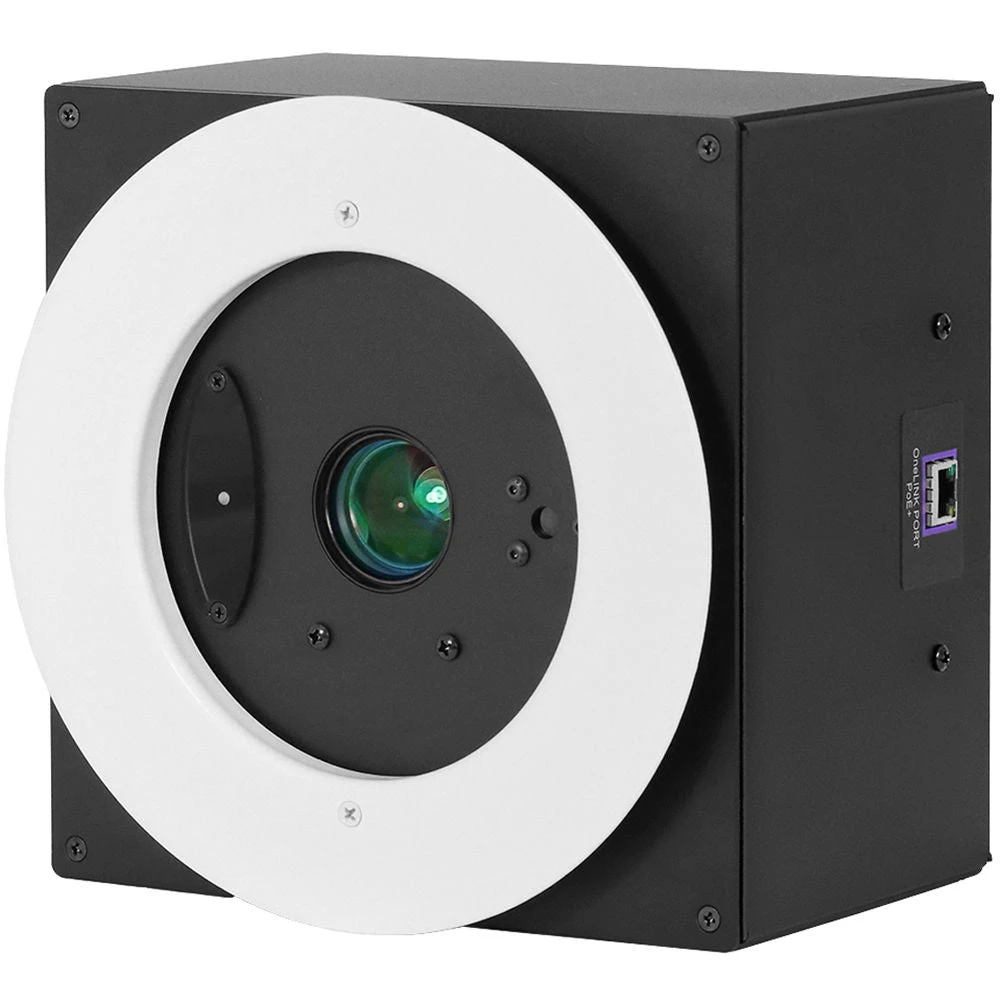

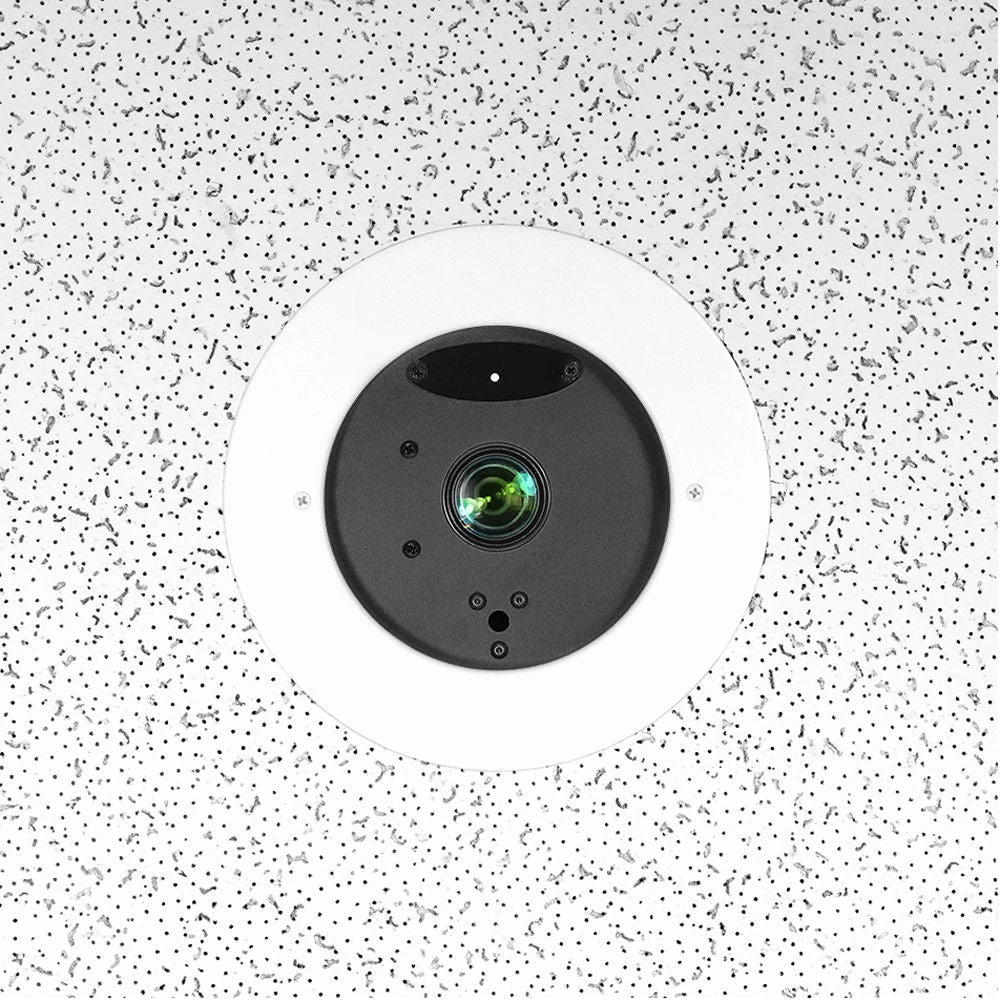

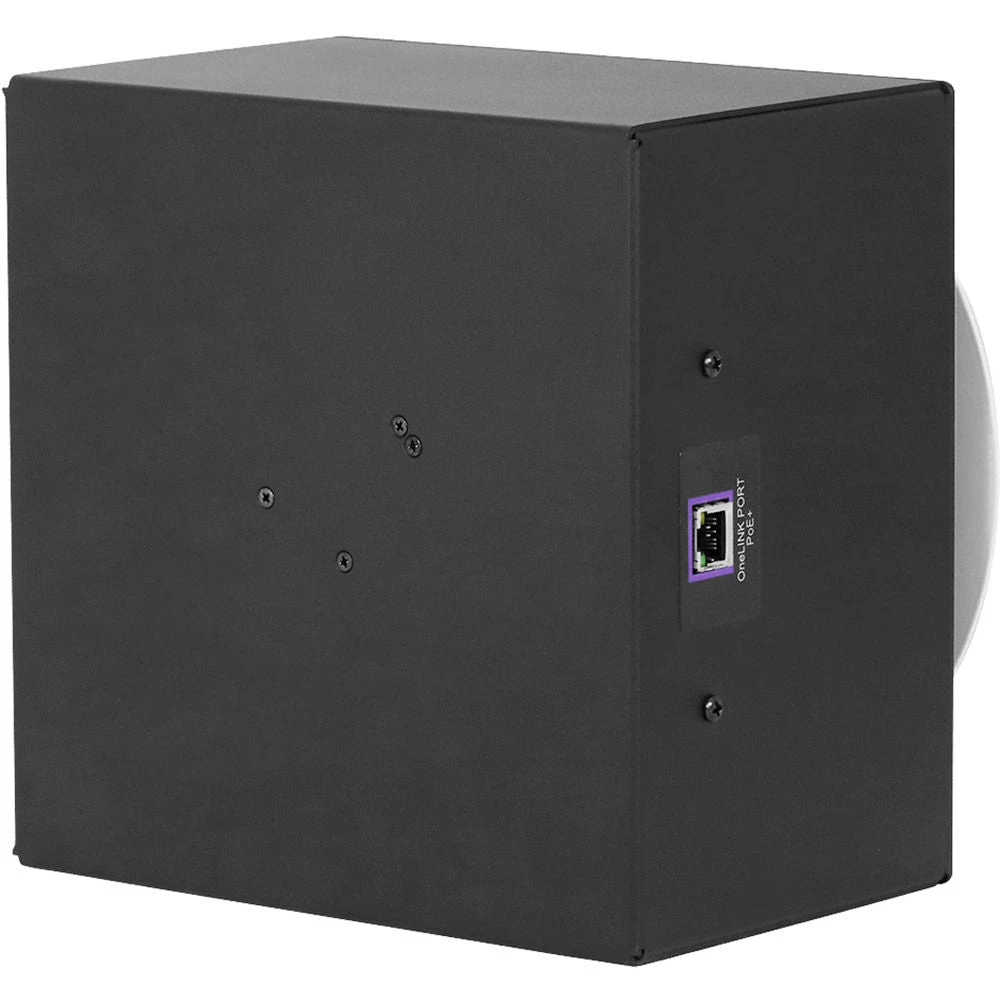

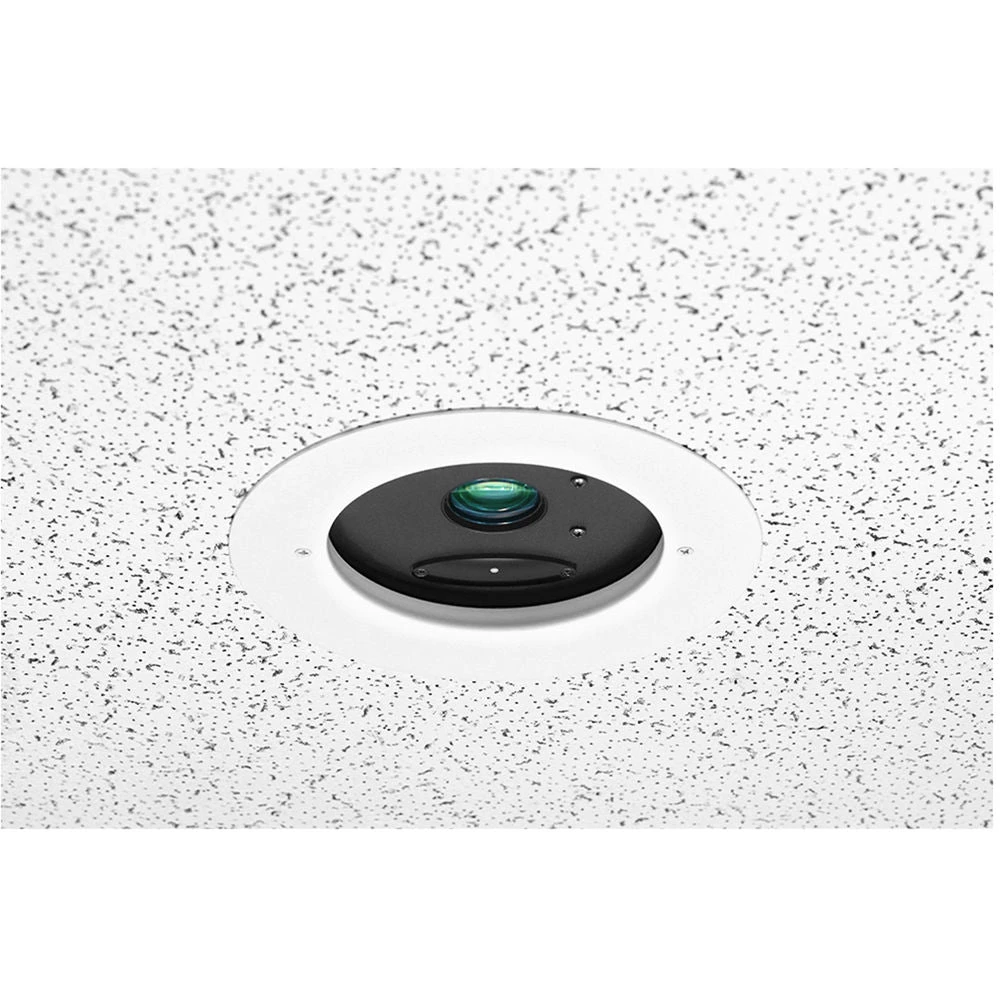

Vaddio DocCAM 20 HDBT Ceiling-Mounted Document Camera
The DocCAM 20 HDBT Ceiling-Mounted Camera from Vaddio is a high-definition, recessed in-ceiling document camera with a 1/2.8″ Exmor CMOS sensor, a 20x optical zoom, full HD 1080p/60 fps resolution, and a 59.5° horizontal field of view. The DocCAM 20 HDBT features OneLINK/HDBaseT PoE+ connector. The camera can be controlled via the included IR remote control and has no physical switches. Hardware configuration is done via the web interface. The DocCAM is suitable for video conference calls, training sessions, and online learning courses. It can also be used with the OneLink Bridge AV interface (sold separately) to provide camera power, control and video from the camera to other devices, or it can be powered by any PoE+ third-party devices.

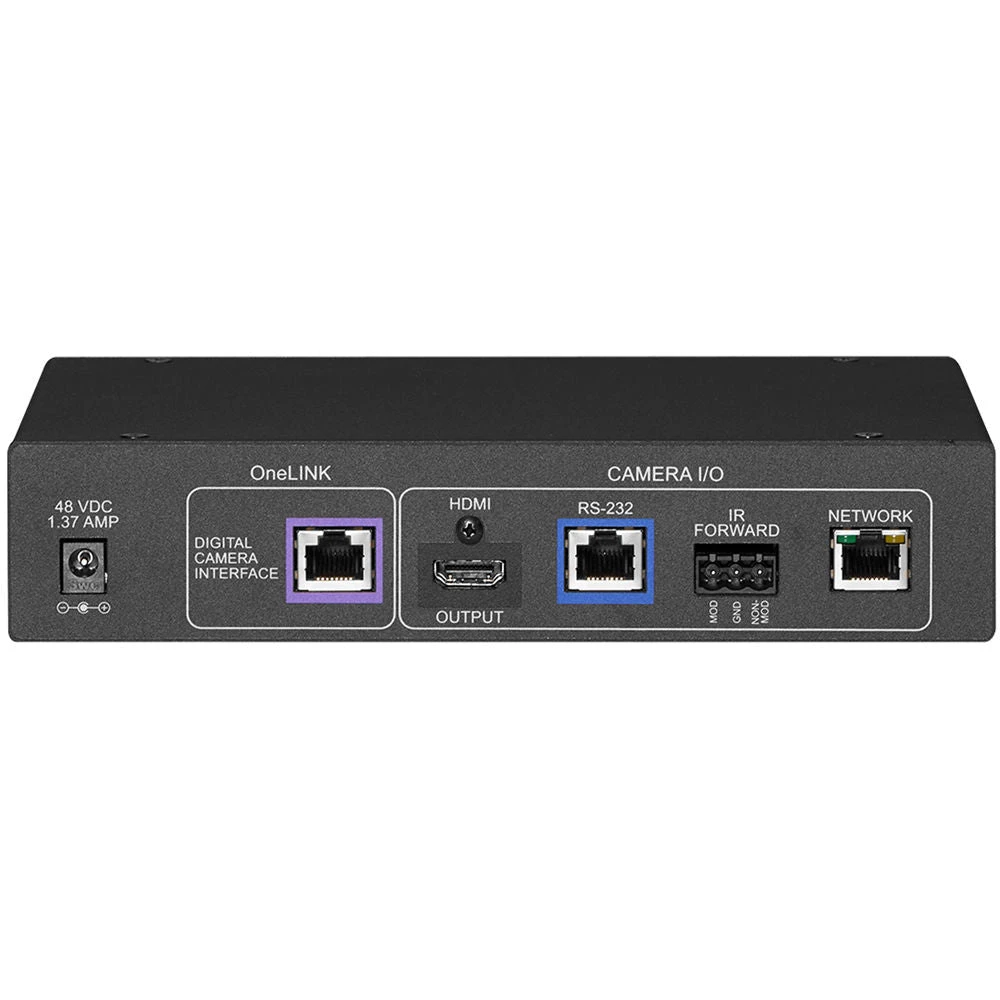

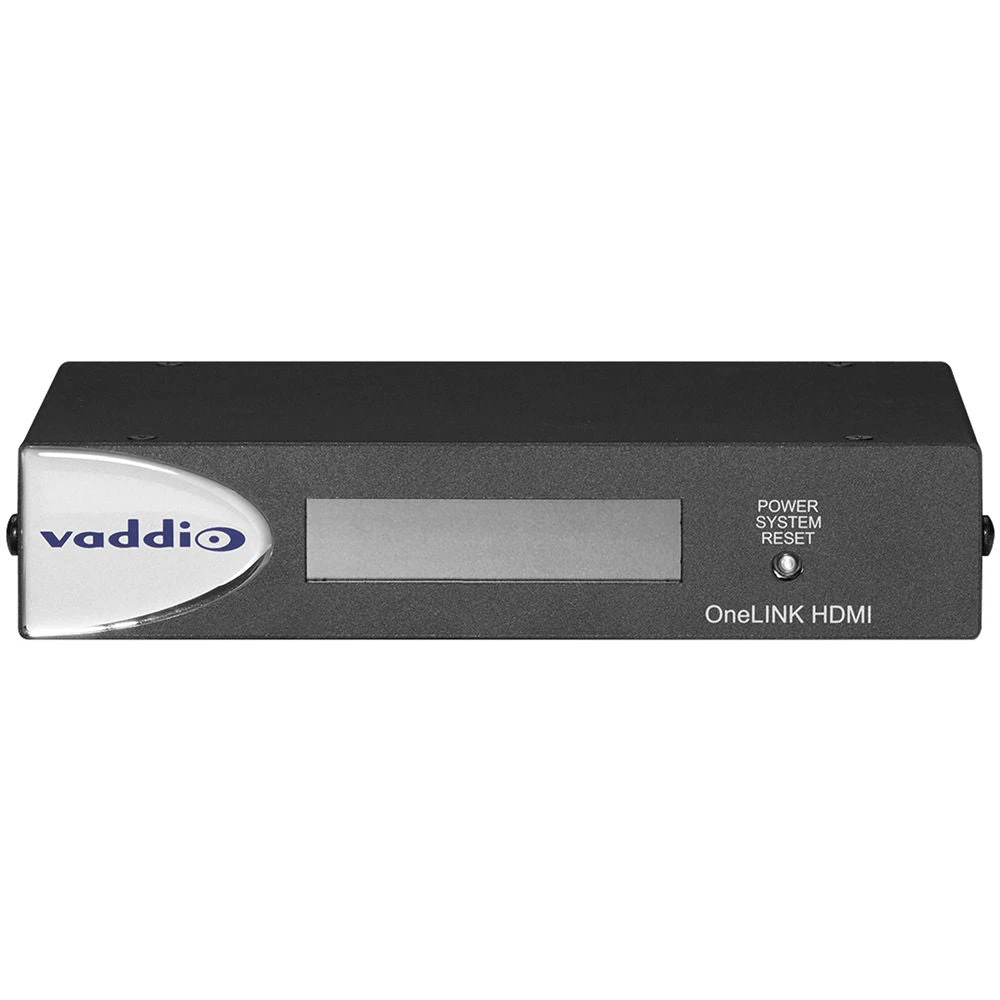

Vaddio OneLINK HDMI Extension System for HDBaseT Cameras
The Vaddio OneLINK HDMI Extension System for HDBaseT Cameras is an interface that allows you to power, receive HDMI video from, and control your compatible HDBT camera using a single Ethernet cable up to 328′ long. The interface connects to your network for control, or you can use an RS-232 controller (not included) instead. HDMI video, up to 1080p60, is transmitted from your HDBT compatible camera to the OneLINK interface, from where it is available over a standard HDMI port.
- Video, power, network, and control on a single Cat5e (or better) cable
- Supports cable runs up to 328′
- Works with RoboSHOT UHD HDBaseT cameras
- Bidirectional control via Ethernet and RS-232
- Transmits and receives HDMI video up to 1080p60
In the Box
- Vaddio DocCAM 20 HDBT Ceiling-Mounted Document Camera
- PoE+ Power Injector with AC Cord
- Mounting Hardware
- IR Remote
- Limited 2-Year Warranty
- Vaddio OneLINK HDMI Extension System for HDBaseT Cameras
- 48 VDC, 1.36A Switching Power Supply
- AC Cord Set
- EZCamera RS-232 Control Adapter
- Limited 2-Year Warranty
Vaddio DocCAM 20 HDBT Ceiling-Mounted Document Camera Specs
| Sensor | 1/2.8″ CMOS |
| Sensor Resolution | 2 MP |
| Zoom | 20x (Optical) |
| Aperture | f/1.6 to 3.5 |
| Frame Rate | 60 fps |
| Output Resolution | 1920 x 1080 |
| Minimum Focus Distance | 0.4″ / 10.0 mm |
| I/O Connections | 1 x RJ45 |
| I/O Connections | 1 x RJ45 |
| Minimum Illumination | 0.4 Lux |
| Signal-to-Noise Ratio | 50 dBA |
| Focal Length | 4.7 to 94 mm |
| Focus Modes | Auto, Manual |
| White Balance | ATW, Auto, Indoors, Manual, One Push, Outdoors |
| Power Source | PoE+ |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 20 to 80% |
| Dimensions | 4.3 x 8.0 x 8.0″ / 10.8 x 20.3 x 20.3 cm |
| Weight | 5 lb / 2.3 kg |
| Package Weight | 10.25 lb |
| Box Dimensions (LxWxH) | 24 x 14.5 x 10.2″ |
Vaddio OneLINK HDMI Extension System for HDBaseT Cameras Specs
| Cable Run | Max: 328′ / 100 m |
| Power | Input: 48 VDC, 1.36 A To Camera: 12 VDC, 3 A |
| Environmental | Operating/Storage Temperature: 32 to 104°F / 0 to 40°C Humidity: 20 to 80% RH (non-condensing) |
| Dimensions | 1.73 x 8.39 x 5.98″ / 44 x 213 x 152 mm |
| Weight | 1.55 lb / 0.7 kg |
| Package Weight | 3.35 lb |
| Box Dimensions (LxWxH) | 12.5 x 9 x 3.3″ |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
