Vaddio DocCAM 20 Overview

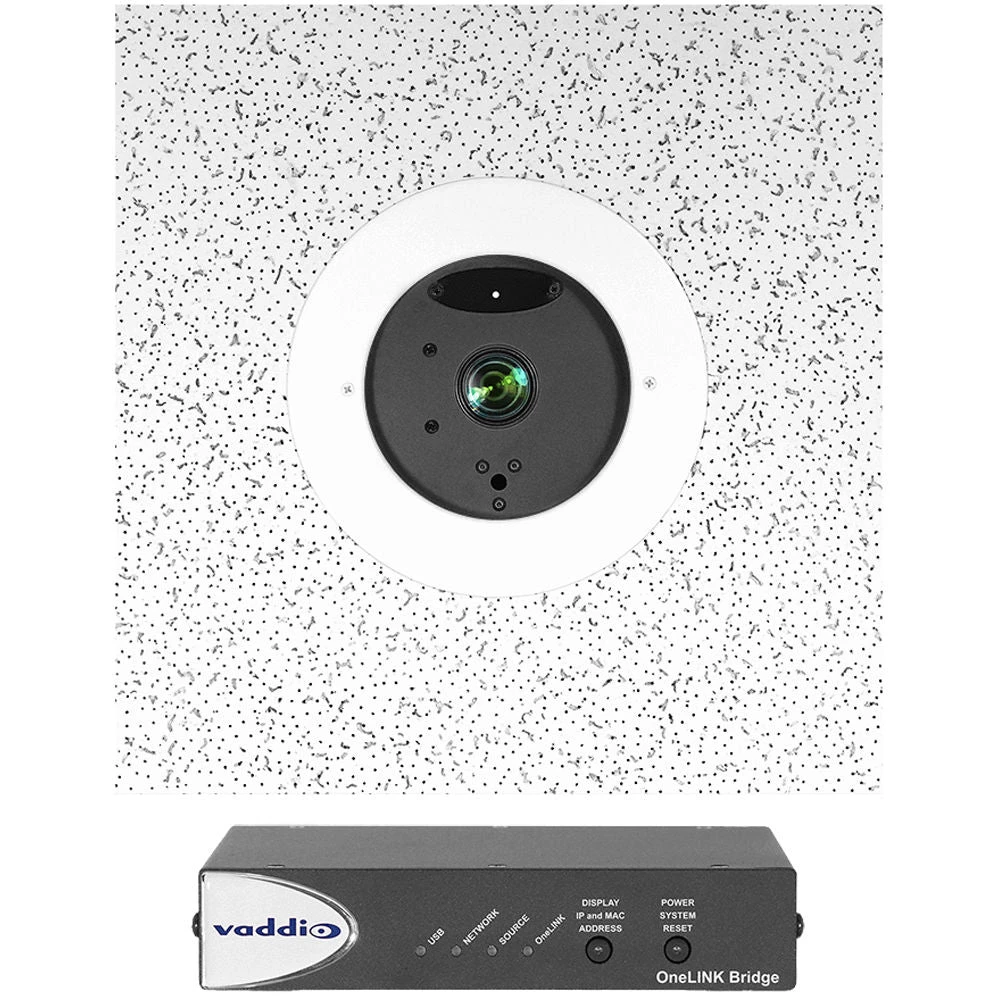

The DocCAM 20 HDBT OneLINK Bridge System from Vaddio combines the DocCAM 20 HDBT document camera and the OneLINK Bridge interface. It is suitable for use in distance learning and corporate environments. The system captures 1920 x 1080 video at 60p from a single 1/2.8″-type Exmor sensor and transmits it up to 328′ over CAT5e cable. The combination enables powering the camera, sending control signals, and transmitting video over a single Ethernet cable.

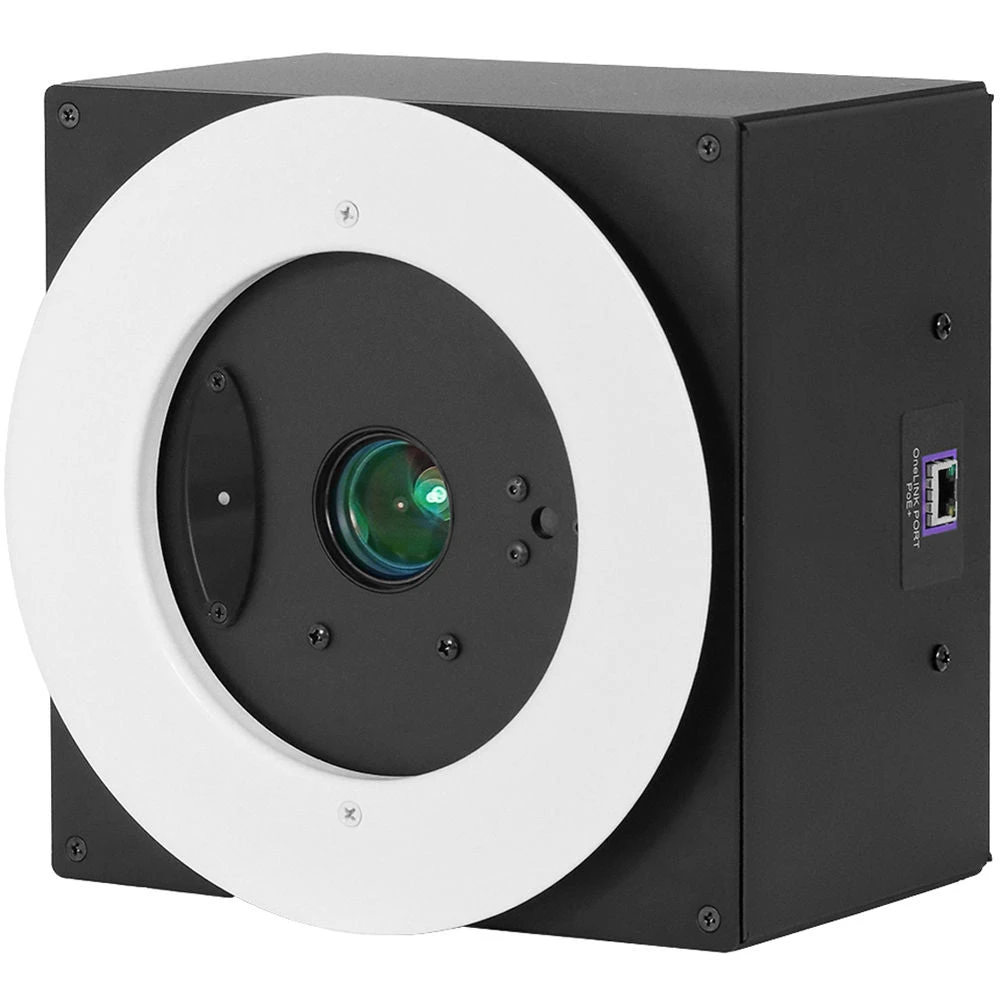

Vaddio DocCAM 20 HDBT Ceiling-Mounted Document Camera

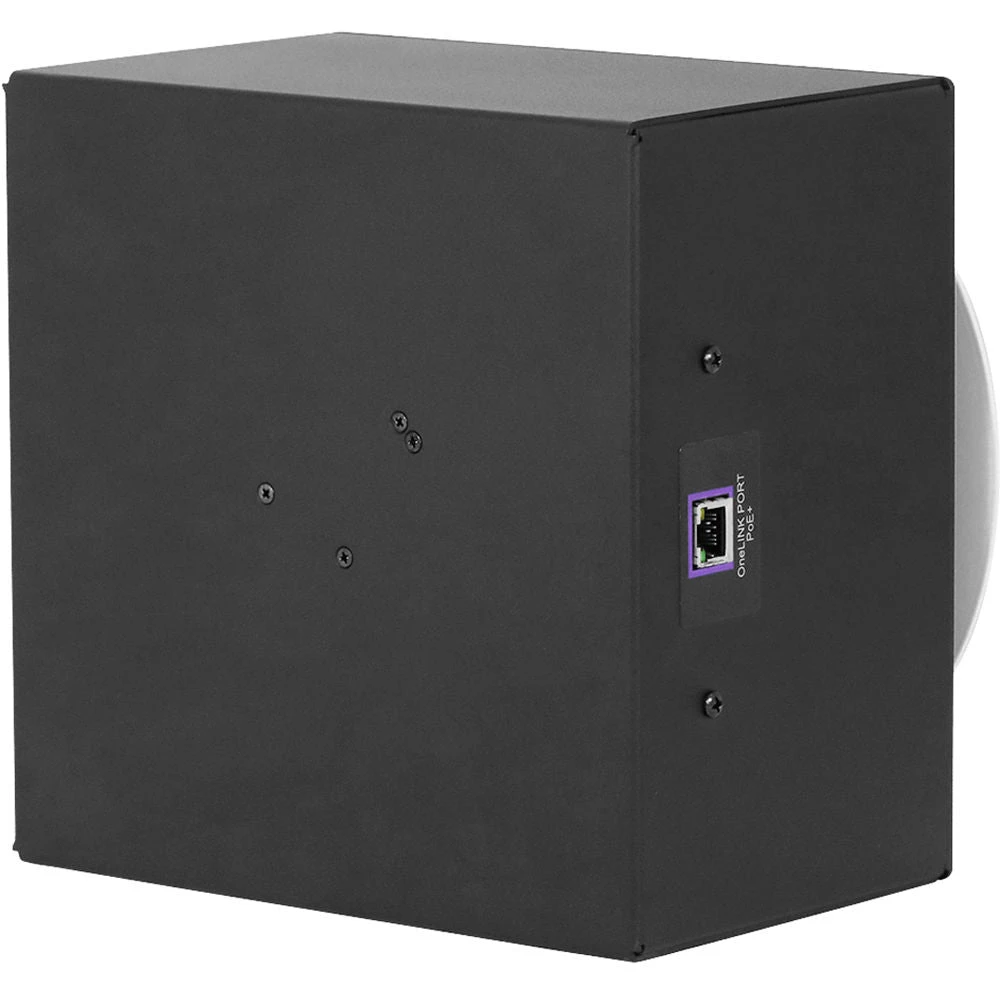

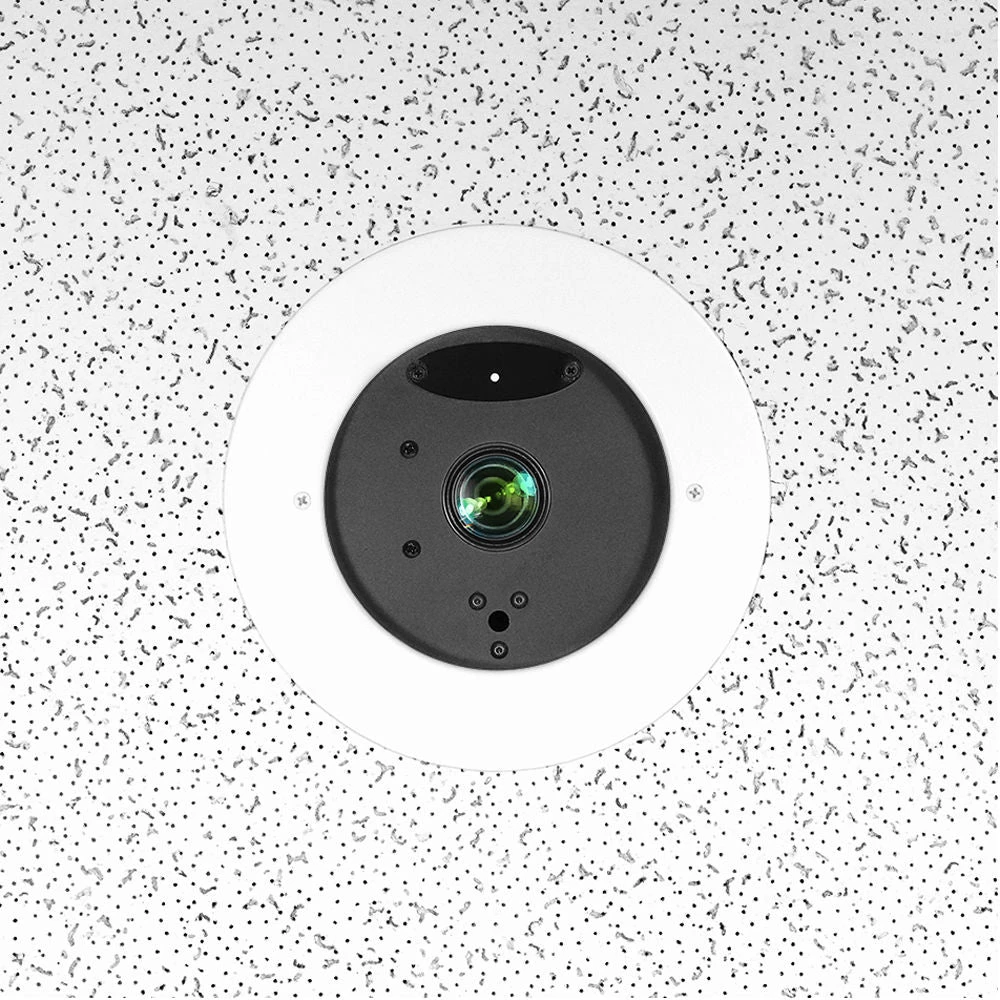

The DocCAM 20 HDBT Ceiling-Mounted Camera from Vaddio is a high-definition, recessed in-ceiling document camera with a 1/2.8″ Exmor CMOS sensor, a 20x optical zoom, full HD 1080p/60 fps resolution, and a 59.5° horizontal field of view. The DocCAM 20 HDBT features OneLINK/HDBaseT PoE+ connector. The camera can be controlled via the included IR remote control and has no physical switches. Hardware configuration is done via the web interface. The DocCAM is suitable for video conference calls, training sessions, and online learning courses. It can also be used with the OneLink Bridge AV interface (sold separately) to provide camera power, control and video from the camera to other devices, or it can be powered by any PoE+ third-party devices.

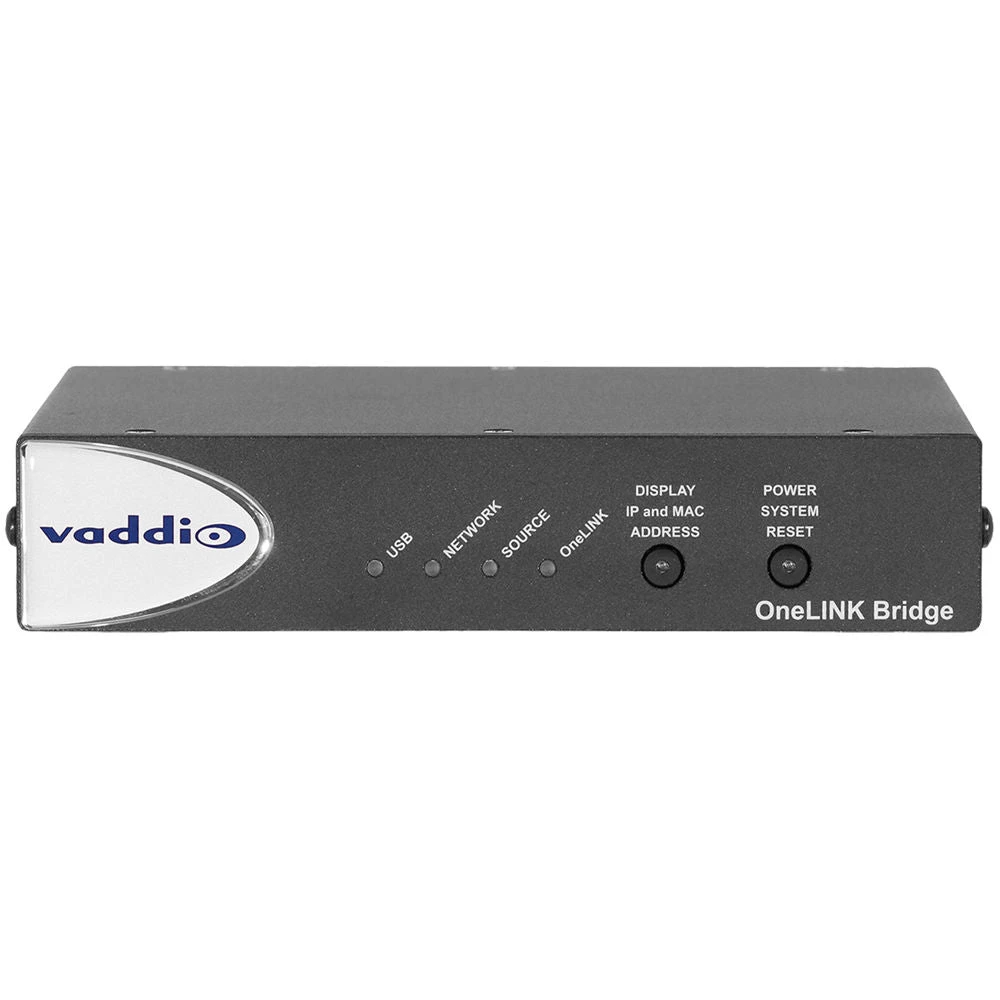

Vaddio OneLINK Bridge A/V Interface Receiver for HDBaseT Cameras (North America)
The OneLINK Bridge A/V Interface Receiver from Vaddio connects a non-USB camera and audio source, and bridges to a USB stream for easy connection to USB-based conferencing applications such as Skype for Business, Google Hangouts, and Zoom. This OneLINK Bridge kit simplifies installation by extending power, video, and control to your Vaddio HDBaseT camera over a single Cat5e cable up to 328′.
In the Box
- Vaddio DocCAM 20 HDBT Ceiling-Mounted Document Camera
- PoE+ Power Injector with AC Cord
- Mounting Hardware
- IR Remote
- Limited 2-Year Warranty
- Vaddio OneLINK Bridge A/V Interface Receiver for HDBaseT Cameras (North America)
- Power Supply
- 4 x 3-Position 3.5mm Phoenix Plug
- USB Cable (6′)
- RS-232 Adapter
- Limited 2-Year Warranty
Vaddio DocCAM 20 HDBT Ceiling-Mounted Document Camera Specs
| Sensor | 1/2.8″ CMOS |
| Sensor Resolution | 2 MP |
| Zoom | 20x (Optical) |
| Aperture | f/1.6 to 3.5 |
| Frame Rate | 60 fps |
| Output Resolution | 1920 x 1080 |
| Minimum Focus Distance | 0.4″ / 10.0 mm |
| I/O Connections | 1 x RJ45 |
| I/O Connections | 1 x RJ45 |
| Minimum Illumination | 0.4 Lux |
| Signal-to-Noise Ratio | 50 dBA |
| Focal Length | 4.7 to 94 mm |
| Focus Modes | Auto, Manual |
| White Balance | ATW, Auto, Indoors, Manual, One Push, Outdoors |
| Power Source | PoE+ |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 20 to 80% |
| Dimensions | 4.3 x 8.0 x 8.0″ / 10.8 x 20.3 x 20.3 cm |
| Weight | 5 lb / 2.3 kg |
| Package Weight | 10.25 lb |
| Box Dimensions (LxWxH) | 24 x 14.5 x 10.2″ |
Vaddio OneLINK Bridge A/V Interface Receiver for HDBaseT Cameras (North America) Specs
| Cable Run | Max: 328′ / 100 m |
| Resolution | Up to 1080p60 (Full HD) |

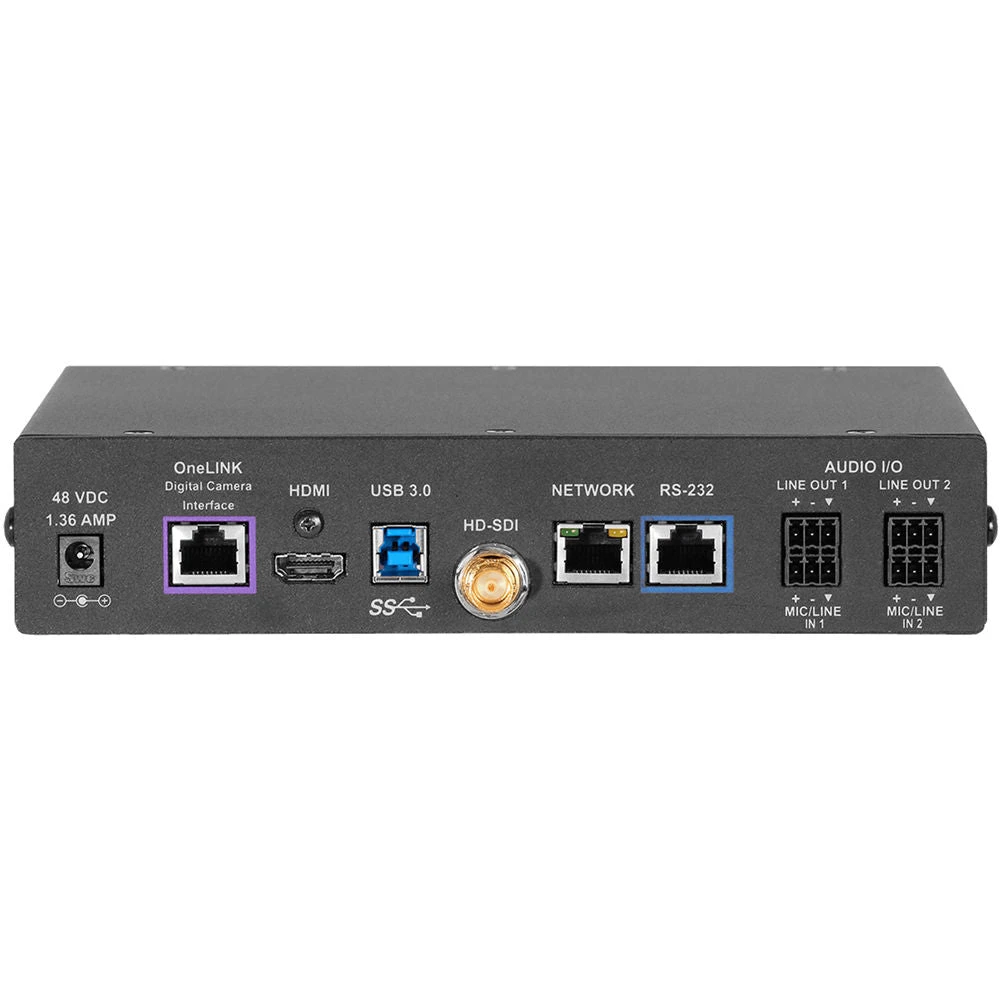

| Connectors | 1 x HD-SDI input 1 x HDMI input 2 x Mic/Line audio inputs 1 x USB 3.0, video output with PCM audio 2 x Line audio outputs 1 x OneLINK digital camera interface 1 x Network, IP streaming and control 1 x RS-232, control 1 x Power port |
| Control Features | Web interface for configuration via browser Telnet API for third-party external control USB Human Interface Device (HID) for room audio controls |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Power | 48 VDC, 1.36 A |
| Dimensions | 1.7 x 8.4 x 6.0″ / 4.4 x 21.3 x 15.2 cm |
| Weight | 1.7 lb / 0.8 kg |
| Package Weight | 3.43 lb |
| Box Dimensions (LxWxH) | 12.3 x 9.3 x 3.2″ |
