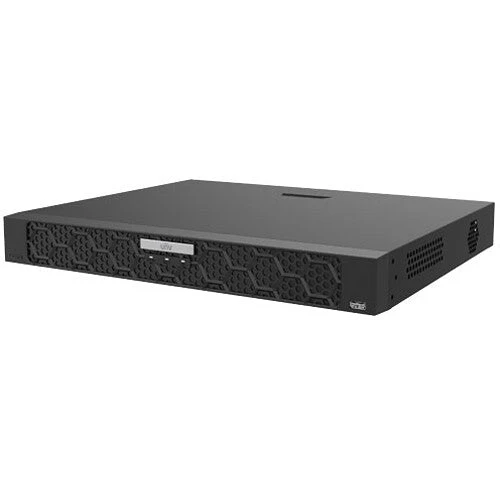

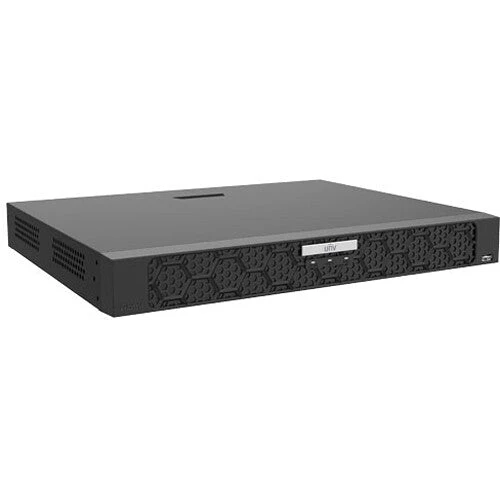

Uniview NVR502-B-P 16-Channel 16MP H.265 NVR (No HDD)(Uniview Nvr502 B P 16 Channel 16mp H 265 Nvr No Hdd)

Uniview NVR502-B-P 16-Channel 16MP H.265 NVR (No HDD)(Uniview Nvr502 B P 16 Channel 16mp H 265 Nvr No Hdd) - Image 2

Uniview NVR502-B-P 16-Channel 16MP H.265 NVR (No HDD)(Uniview Nvr502 B P 16 Channel 16mp H 265 Nvr No Hdd) - Image 3

Uniview NVR502-B-P 16-Channel 16MP H.265 NVR (No HDD)(Uniview Nvr502 B P 16 Channel 16mp H 265 Nvr No Hdd)

Original price was: $375.00.Current price is: $98.99.

SKU: DGFUB 7075843539029 Categories: Optics & Surveillance, Surveillance, Surviellance Tags: Network Video Recorders (NVRs), Surveillance, Uniview NVR502-16B-P16, Video Recorders & Hard Drives

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Uniview NVR502-16B-P16 Overview

Record from and manage up to 16 cameras with the NVR502-B-P 16-Channel 16MP H.265 NVR from Uniview at resolutions up to 16MP. This NVR is equipped with two SATA ports that each support an HDD up to 10TB, for a maximum capacity of 20TB (HDDs available separately). H.265 and H.264 video compressions keep file sizes manageable while maintaining the best quality possible.

This recorder supports up to 128 remote users and two-way audio. An HDMI and a VGA port enable video output to an external monitor (available separately) at up to 4K UHD resolution (HDMI only). ONVIF compliance for profiles G, S, and T offers interoperability with ONVIF IP cameras.

Features

Supports Ultra 265/H.265/H.264 video formats
16-channel input
Plug-and-play with 16 independent PoE network interfaces
Supports mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T ) and RTSP protocols
Support 1-ch HDMI, 1-ch VGA and HDMI up to 4K (3840 x 2160) resolution
HDMI and VGA independent output
Up to 16MP recording resolution
2 SATA HDD bays, up to 10TB per HDD
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade

Items Included

Uniview NVR502-B-P 16-Channel 16MP H.265 NVR (No HDD)
Limited 3-Year Manufacturer Warranty

Additional Resources

Guides & Manuals

Uniview NVR502-16B-P16 Specs

Key Specs

Number of Channels	16
Playback Resolution	HDMI: 3840 x 2160 (4K) at 30 fps 1920 x 1080 (1080p) at 60 fps 1920 x 1080 (1080p) at 50 fps 1600 x 1200 at 60 fps 1280 x 1024 at 60 fps 1280 x 720 at 60 fps 1024 x 768 at 60 fps VGA: 1920 x 1080 (1080p) at 60 fps 1920 x 1080 (1080p) at 50 fps 1280 x 1024 at 60 fps 1600 x 1200 at 60 fps 1280 x 720 at 60 fps 1024 x 768 at 60 fps
Recording Resolution	1080p, 720p, 960p, 2CIF, CIF, D1, 3 MP, 4 MP, 5 MP, 6 MP, 8 MP, 12 MP, 16 MP
PTZ Support	No
Throughput	320 Mb/s (Incoming) 160 Mb/s (Outgoing)
A/V I/O	1x RCA Input 1x RCA Output
Communication I/O	16x RJ45 10/100 Mb/s Ethernet (Rear) PoE 1x RJ45 Gigabit Ethernet (Rear) 1x RS-485 (Rear) 1x USB-A 3.0 / 3.1/3.2 Gen 1 (Rear) 1x USB-A 2.0 (Front)
Wi-Fi	No
Bluetooth	No
Installed Drive	No
Mobile App Compatible	No
PoE Power Budget	240 W

General

Number of Channels	16
Playback Resolution	HDMI: 3840 x 2160 (4K) at 30 fps 1920 x 1080 (1080p) at 60 fps 1920 x 1080 (1080p) at 50 fps 1600 x 1200 at 60 fps 1280 x 1024 at 60 fps 1280 x 720 at 60 fps 1024 x 768 at 60 fps VGA: 1920 x 1080 (1080p) at 60 fps 1920 x 1080 (1080p) at 50 fps 1280 x 1024 at 60 fps 1600 x 1200 at 60 fps 1280 x 720 at 60 fps 1024 x 768 at 60 fps
Recording Resolution	1080p, 720p, 960p, 2CIF, CIF, D1, 3 MP, 4 MP, 5 MP, 6 MP, 8 MP, 12 MP, 16 MP
PTZ Support	No
Throughput	320 Mb/s (Incoming) 160 Mb/s (Outgoing)
IP Camera Support	16
Decoding Resolution	2 Channels (H.265): 4800 x 2688 (16 MP) at 30 fps 12 MP at 30 fps 4 Channels (H.265): 4K at 30 fps 6 Channels (H.265): 5 MP at 30 fps 8 Channels (H.265): 4 MP at 30 fps 10 Channels (H.265): 3 MP at 30 fps 16 Channels (H.265): 1920 x 1080 (1080p) 2 Channels (H.264): 4800 x 2688 (16 MP) at 30 fps 12 MP at 30 fps 4K at 30 fps 4 Channels (H.264): at 30 fps 6 Channels (H.264): 4 MP at 30 fps 8 Channels: 3 MP at 30 fps 14 Channels (H.264): 1920 x 1080 (1080p) at 30 fps
2-Way Audio	Yes

Connectivity

A/V I/O	1x RCA Input 1x RCA Output
Communication I/O	16x RJ45 10/100 Mb/s Ethernet (Rear) PoE 1x RJ45 Gigabit Ethernet (Rear) 1x RS-485 (Rear) 1x USB-A 3.0 / 3.1/3.2 Gen 1 (Rear) 1x USB-A 2.0 (Front)
System Connection	2x SATA
Wi-Fi	No
Bluetooth	No
Maximum User Access	128
Network Protocols	DDNS, DHCP, DNS, HTTP, HTTPS, IPv6, NTP, P2P, PPPoE, RTSP, SMTP, SNMP, TCP/IP, UPnP

Compatibility

Supported Video Codecs	H.264, H.265
Supported Audio Codecs	G.711A, G.711U
Supported IEEE Standards	802.3af (PoE 15.4 W), 802.3at (PoE+ 30 W)

System

Installed Drive	No
Max Capacity Supported	20 TB (Total) 10 TB (Each Drive)
Number of Bays	2x 3.5″ Internal

Software System Requirements

OS Compatibility	Windows
OS Compatibility	Windows
Mobile App Compatible	No

Notifications

Alarm I/O	8x Input 2x Output
Event Trigger	Alarm, Defocus, Motion, Snapshot, Sound, Tampering, Tracking, Video Loss

System Functions

Dual Streaming	Yes
Fisheye Dewarping	No

Electrical

Power Consumption	20 W (Typical, Without HDD)
Power Supply Type	Internal
PoE Power Budget	240 W
PoE per Port	30 W
Input Power	100 to 240 VAC, 50 / 60 Hz

Physical

Built-In Display	No
Certifications	CE, FCC, UL, RoHS, WEEE, EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035, FCC Part 15 Subpart B
Cooling Method	Fan
Dimensions (W x D x H)	15.0 x 12.7 x 2.1″ / 380.0 x 322.0 x 53.0 mm
Weight	5.73 lb / 2.6 kg
