Ubiquiti Networks NanoSwitch Outdoor 4-Port PoE Passthrough Switch(Ubiquiti Networks Nanoswitch Outdoor 4 Port Poe Passthrough Switch)
Original price was: $73.96.$51.77Current price is: $51.77.
- Elevate Your Shopping Experience
- Product guarantee 100% satisfaction
- The quality solution for all your needs.
- Streamlined service, designed for your convenience.
- 4 x Gigabit Ethernet Ports
- 4 Gb/s Non-Blocking Line Rate
- Durable Weatherproof Form Factor
- Mounts to Pole or Wall

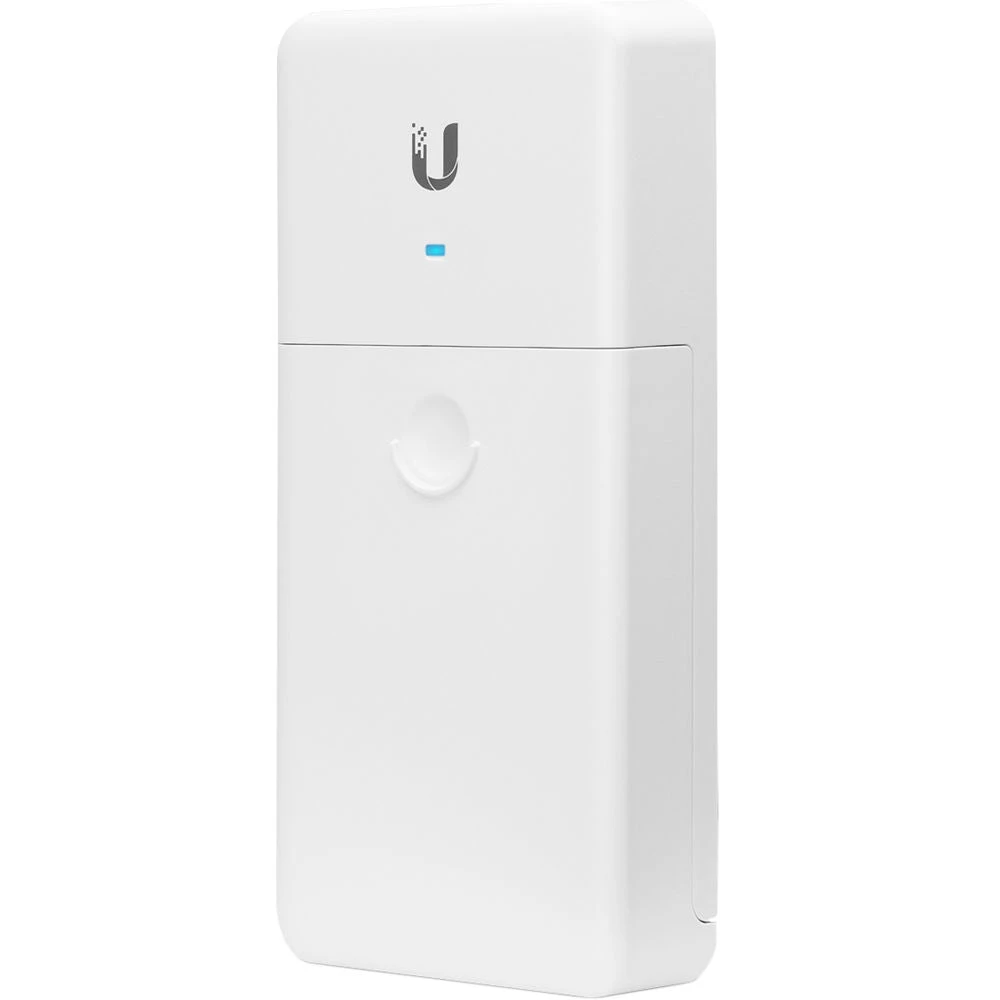

Power up to three PoE devices with the NanoSwitch Outdoor 4-Port PoE Passthrough Switch from Ubiquiti Networks . This passthrough switch features a single RJ45 PoE input and three RJ45 PoE outputs while supporting a total non-blocking line rate of 4 Gb/s. The NanoSwitch also comes equipped with a durable weatherproof enclosure and can be mounted to a pole or wall for easy installation in nearly any environment.

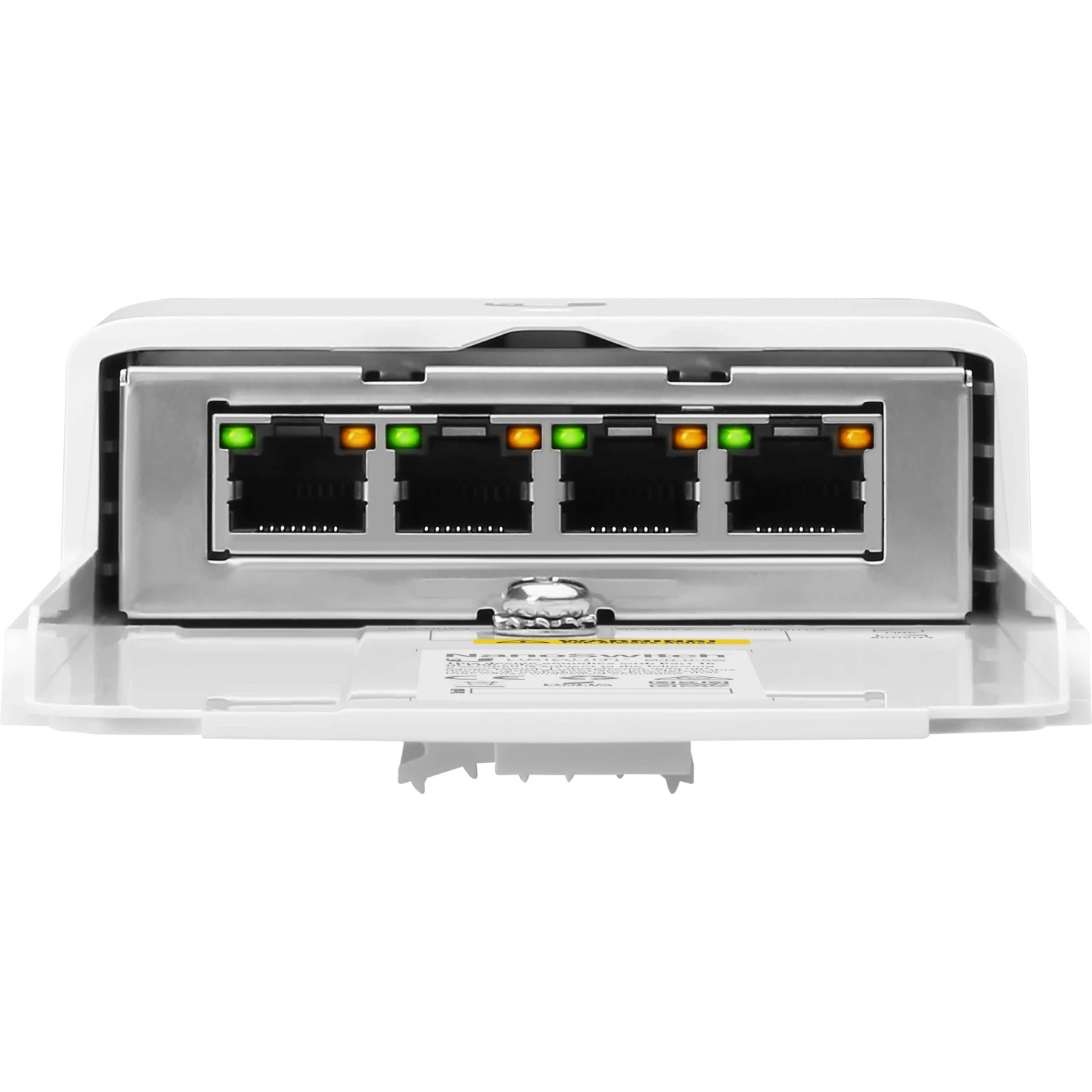

- 4 Gigabit Ethernet Ports
- The Ubiquiti Networks NanoSwitch is an unmanaged switch with four Gigabit Ethernet ports. It supports up to 4 Gb/s total non-blocking line rate.
- Hardware

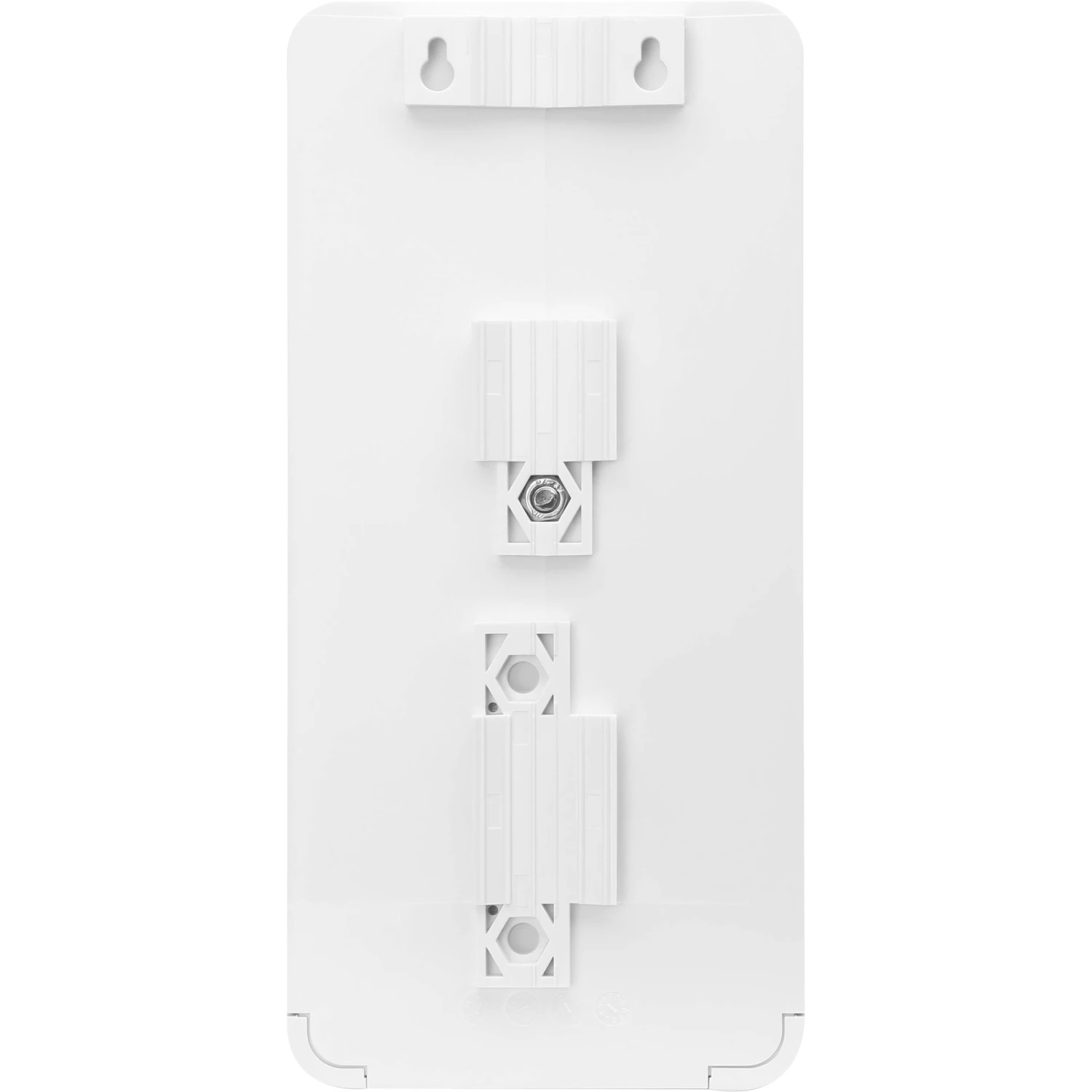

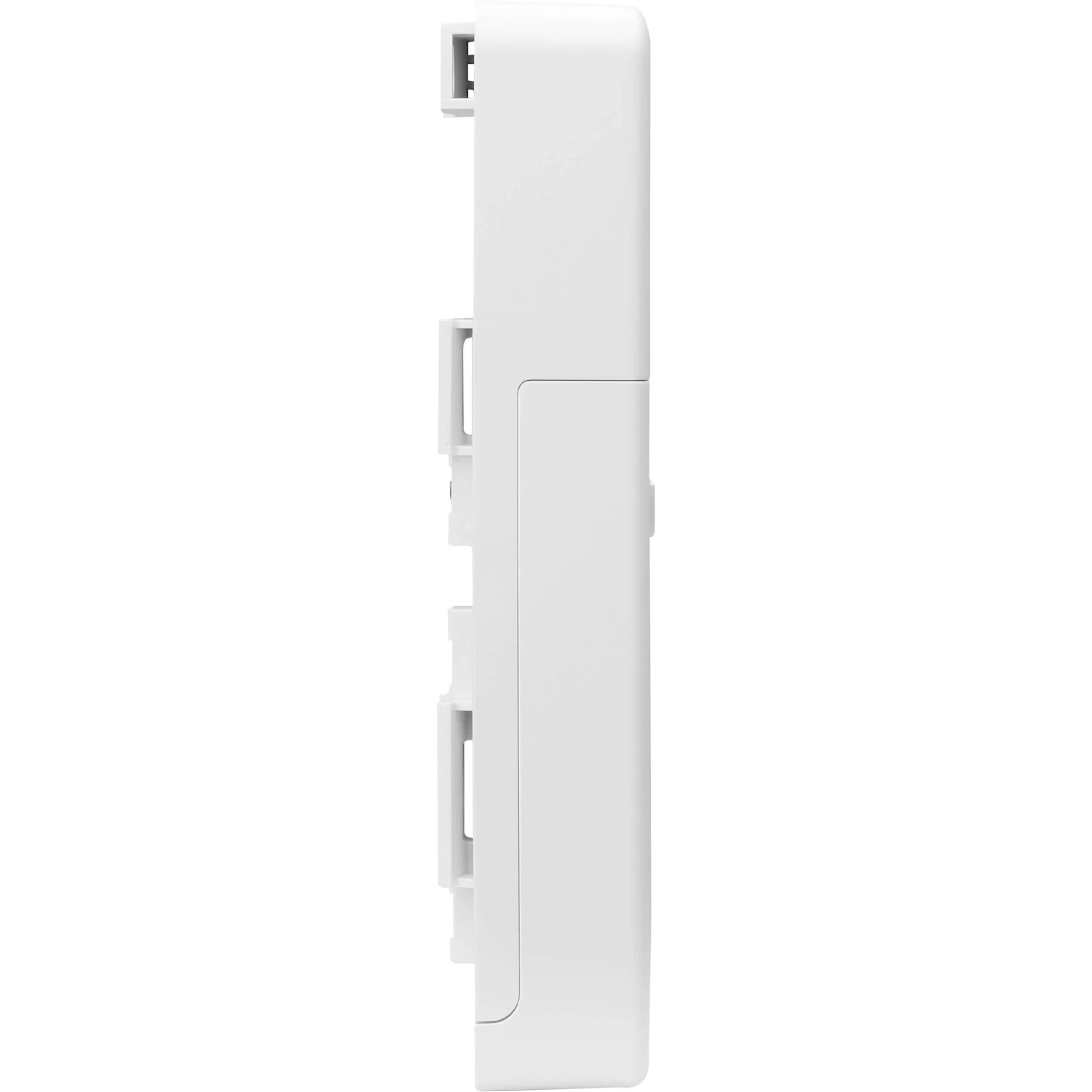

- Featuring a durable, weatherproof form factor, the NanoSwitch is ideal for outdoor deployment. For quick installation, the compact NanoSwitch can be easily mounted on a pole or wall.
Limited 1-Year Warranty
Ubiquiti Networks NanoSwitch specs
| Enclosure Characteristics | White polycarbonate |
| Total Non-Blocking Throughput | 4 Gb/s |
| Typical Power Consumption | 1.5 W |
| PoE | Passive PoE Max. Wattage per Port 24 V, 2-Pair, 1 A per port (24 W) Total Passive PoE Max. Wattage 24 V, 2-Pair, 1.5 A for 3 ports (36 W) Passive PoE Voltage Range 21.6 – 26.4 V |
| Power Method | Passive 24 V, 4-Pair PoE in |
| LEDs | Speed/Link/Activity (all ports) |
| Networking Interface | 4 x 10/100/1000 Mb/s RJ45 ports |
| PoE Interfaces | Passive 24 V PoE in |
| ESD/EMP Protection | Air: ±24 kV, Contact: ± 24 kV |
| Temperature & Humidity | Operating Temperature -22 to 158°F / -30 to 70°C Operating Humidity 5 to 95% non-condensing |
| Shock and Vibration | ETSI300-019-1.4 standard |
| Dimensions | 7.73 x 3.68 x 1.28″ / 19.64 x 9.35 x 3.24 cm |
| Weight | 9.6 oz / 271 g |
| Packaging Info | |
|---|---|
| Package Weight | 1.25 lb |
| Box Dimensions (LxWxH) | 9.5 x 5.0 x 2.6″ |
