- Programmable Design
- RJ45 & 1x Terminal Block
- Supports Up to 128 Commands & 32 Macros
- 2-Color LED-Backlit Buttons
- Plastic Front Panel

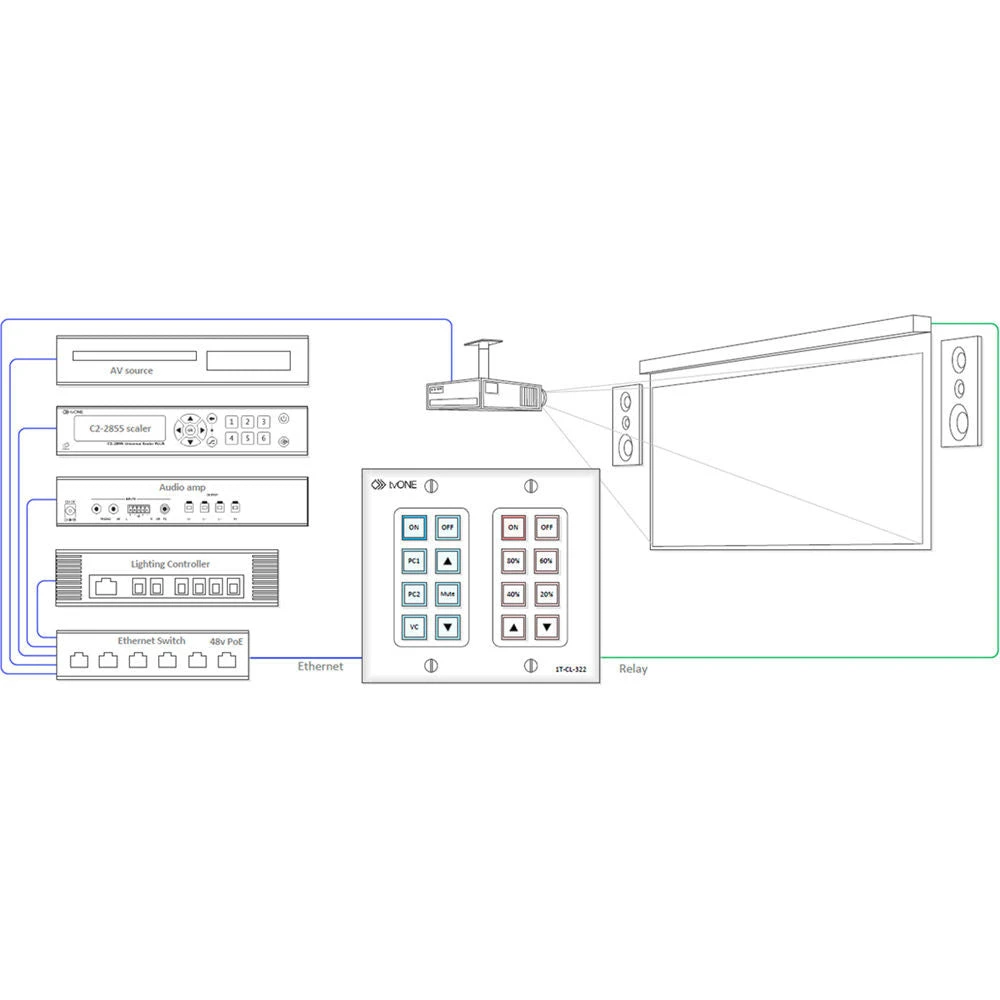

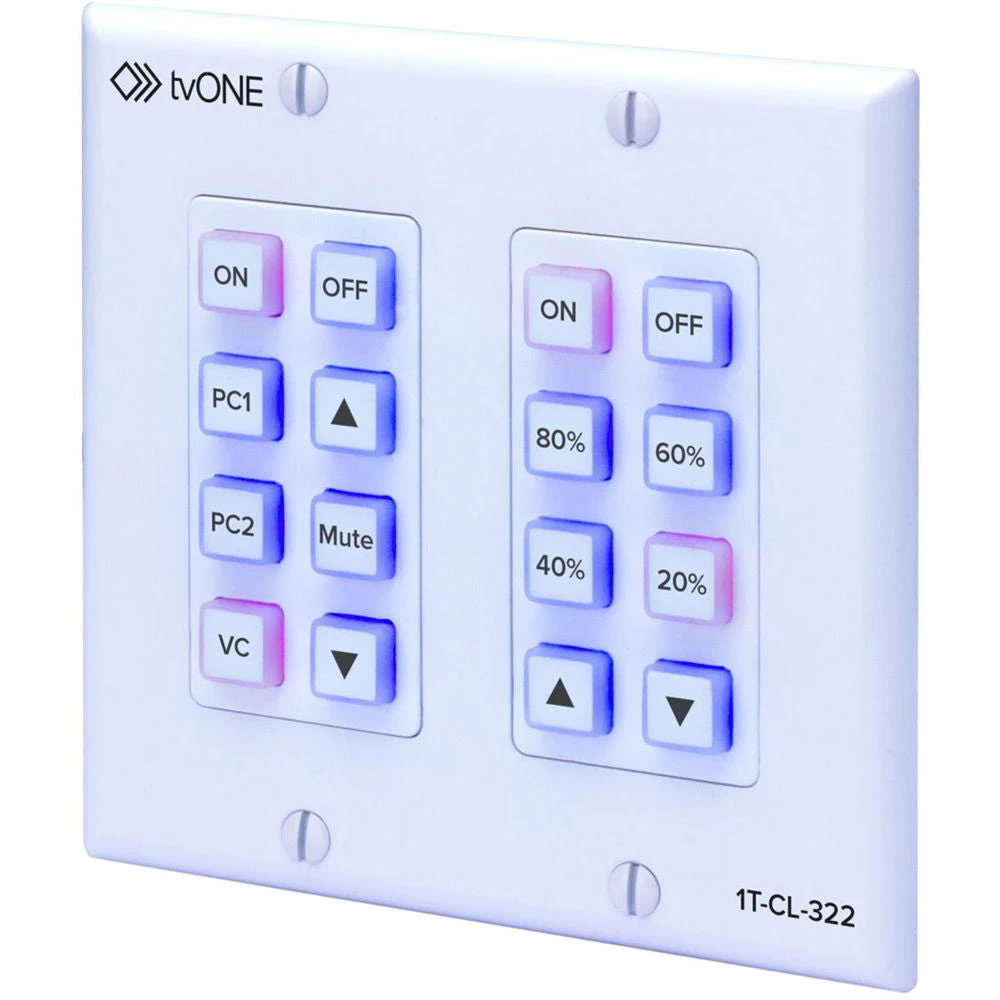

Control all of your home entertainment-related devices with the TV One North American 2-Gang Wall Plate Control Panel . It is fully programmable with up to 128 commands and supports up to 32 macros, with up to 16 commands per macro. It will control your lighting, display and source equipment including an electric projector screen, and more.
- 16 programmable summarys
- Ethernet port (TCP/IP)
- One programmable relay
- Supports PoE (power over Ethernet)
- WebUI interface for setup
- Supports up to 128 commands
- Up to 32 macros each maintaining up to 16 commands
- 2-color LED-backlit summarys, dimmable from 0 to 100%
- 1/8″ Terminal Block
- USB Type-A to Mini USB OTG Adapter
- Pre-Printed Button Label Stickers
- 5 VDC 2.6A Power Adapter
- Limited 3-Year Warranty
| Program | Web interface or Telnet |
| Input Ports | 16 x Buttons 1 x IP (RJ45) |
| Output Ports | Ethernet: 1 x RJ45 Relay: 1 x Terminal block (supports 0 to 24 VDC, 8 A) |
| Data Correction | 10/100 Mbps via RJ45 connector |
| Material of Construction | Front Panel: Plastic Chassis: Pressed aluminum Buttons: Silicon |
| Power Supply | 5 VDC, 2.6 A CE/FCC/RoHS/UL PoE: 48 V |
| Power Consumption | 6.1 W |
| ESD Protection | Human Body Model: ±8 kV air-gap discharge ±4 kV contact discharge |
| Buttons | 2 x Color LED backlit, 0 to 100% dimmable |
| MTBF | Approximately 295,000 |
| Compliance | FCC, CE, RoHS |
| Operating Conditions | Temperature: 32 to 104�F (0 to 40�C) Humidity: 20 to 90% |
| Storage Temperature | -4 to 140�F (-20 to 60�C) |

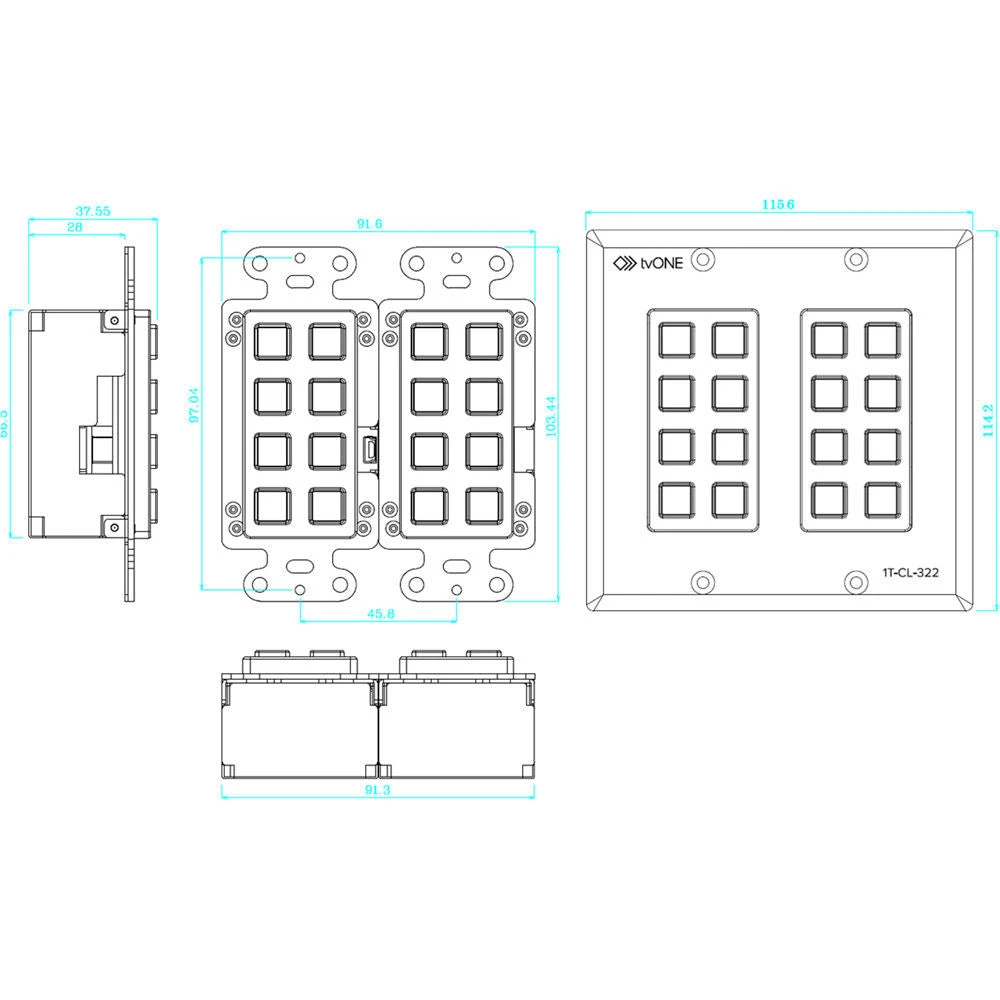

| Dimensions (W x H x D) | 4.5 x 4.6 x 1.9″ (114 x 116 x 47 mm) |
| Weight | 8.4 oz (238 g) |
