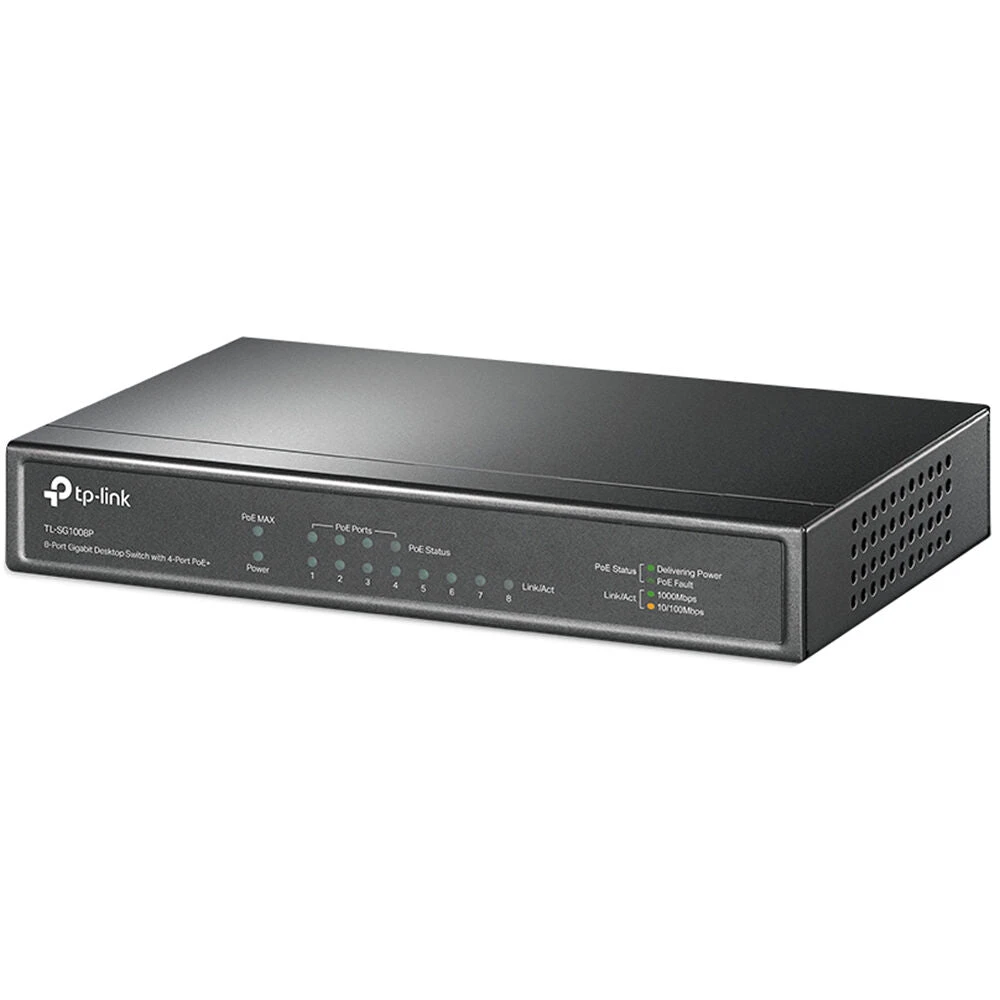

TP-Link TL-SG1008P Overview
- 1Description
- 2Intelligent Power Management
- 3High Performance Features
- 4Silent Operation

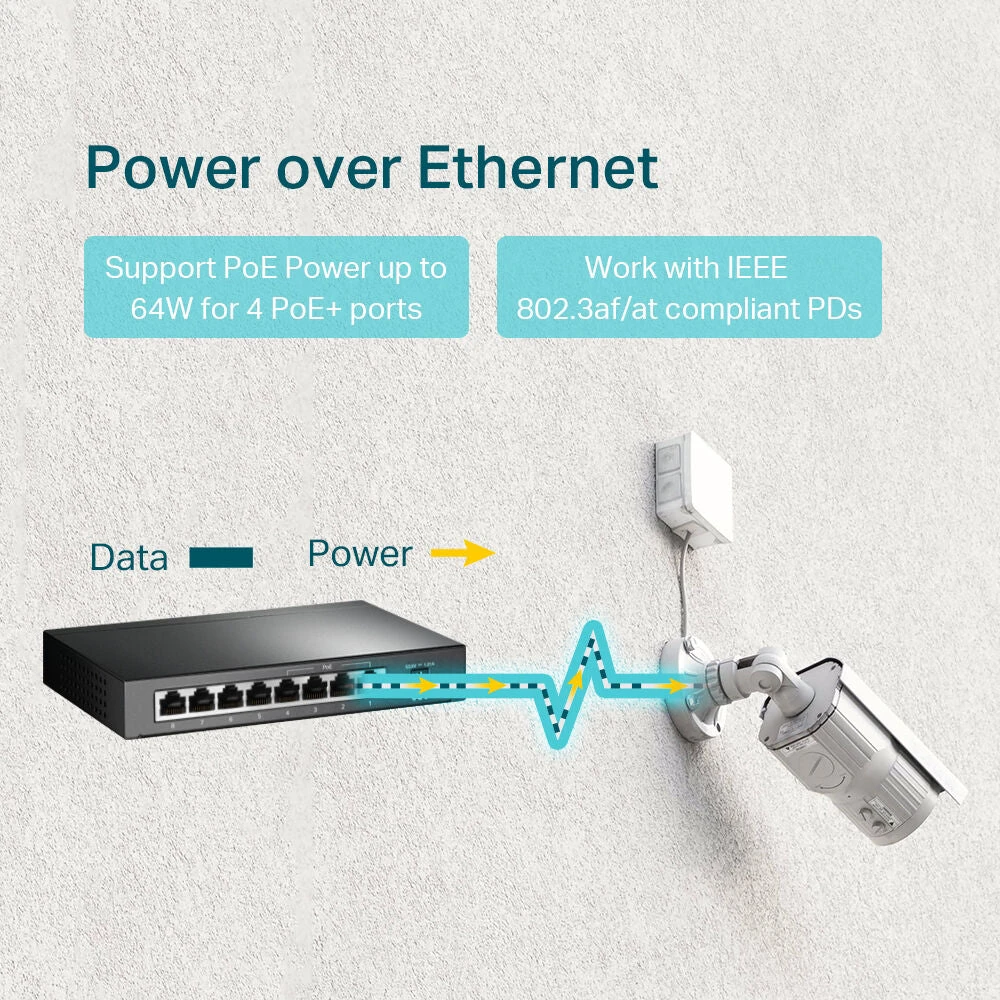

Quickly expand your small business network to support Power-over-Ethernet (PoE) devices, such as IP security cameras, VoIP phones, wireless access points, and more, with the TL-SG1008P V4 8-Port Gigabit PoE+ Compliant Unmanaged Switch from TP-Link. This unmanaged switch includes eight Gigabit Ethernet ports, four of which are PoE+ compliant and support up to 30W each with a total power budget of 64W. At the same time, its 16 Gb/s switching capacity and 11.9 Mpps forwarding rate help to ensure smooth and reliable data transfers between devices. With its plug-and-play design, the TL-SG1008P V4 8-port switch is designed to quickly integrate into your network without the need for a lengthy and complicated setup process.
Intelligent Power Management
High Performance Features
Silent Operation
In the Box
- TP-Link TL-SG1008P V4 8-Port Gigabit PoE+ Compliant Unmanaged Switch
- Power Adapter
- Limited Lifetime Warranty
- Description
- Intelligent Power Management
- High Performance Features
- Silent Operation
TP-Link TL-SG1008P Specs

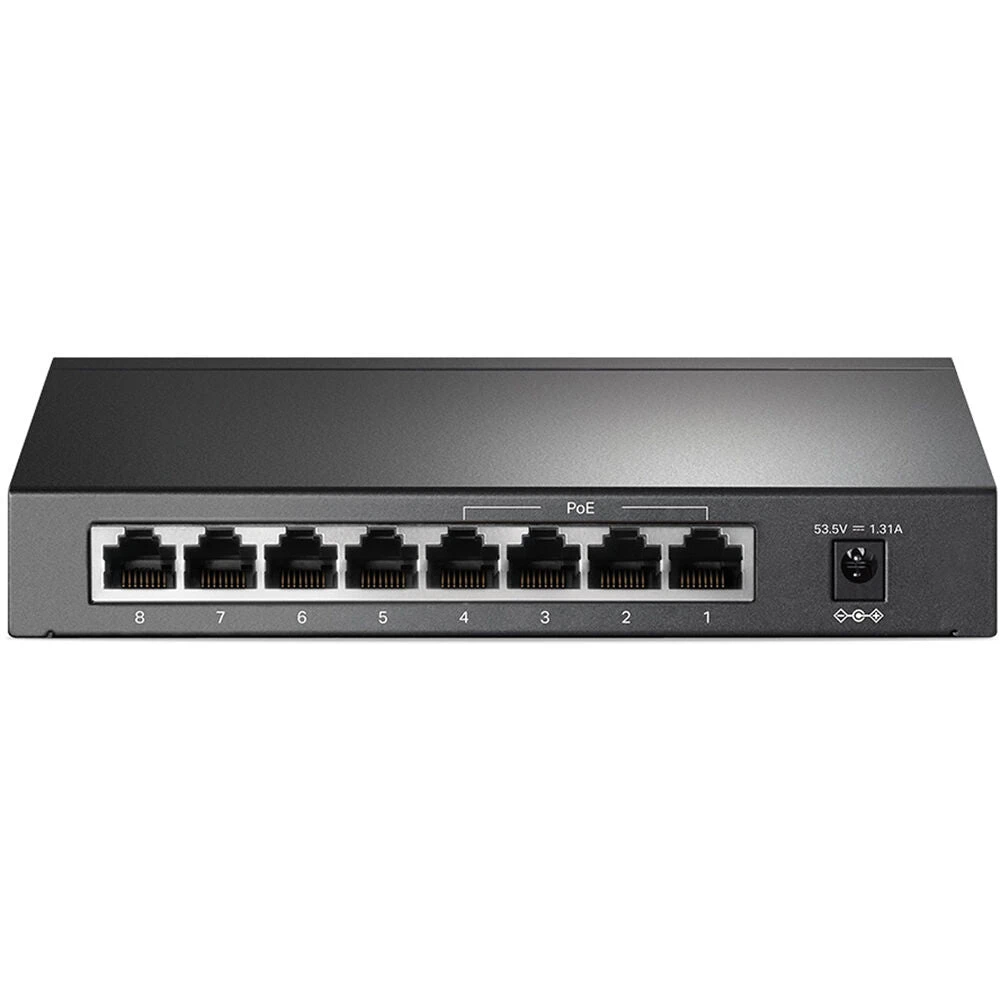

| Ports | 4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ 4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) |
| Supported Protocols | Auto-MDIX/MDI IGMP Snooping |
| Transmission Method | Store-and-Forward |
| Jumbo Frames Support | 16,000 Bytes |
| MAC Address Table Size | 4K |
| Supported IEEE Standards | 802.1p, 802.3ab, 802.3af, 802.3at, 802.3i, 802.3u, 802.3x |
| Forwarding Rate | 11.9 Mpps |
| Switching Bandwidth | 16 Gb/s |
| Power Draw | 75.00 W (Max) |
| DC Input Power | 54 VDC at 1.3 A |
| PoE Power Budget | 64 W |
| PoE per Port | 30 W |
| Power Supply Type | External |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 90% |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Storage Humidity | 5 to 95% |
| Cooling System | Passive |
| Material of Construction | Metal |
| Indicator Lights | Link/Activity/Speed, PoE, Power |
| Dimensions | 6.7 x 3.9 x 1.1″ / 171 x 98 x 27 mm |
| Package Weight | 2.08 lb |
| Box Dimensions (LxWxH) | 11 x 9.2 x 2.7″ |
