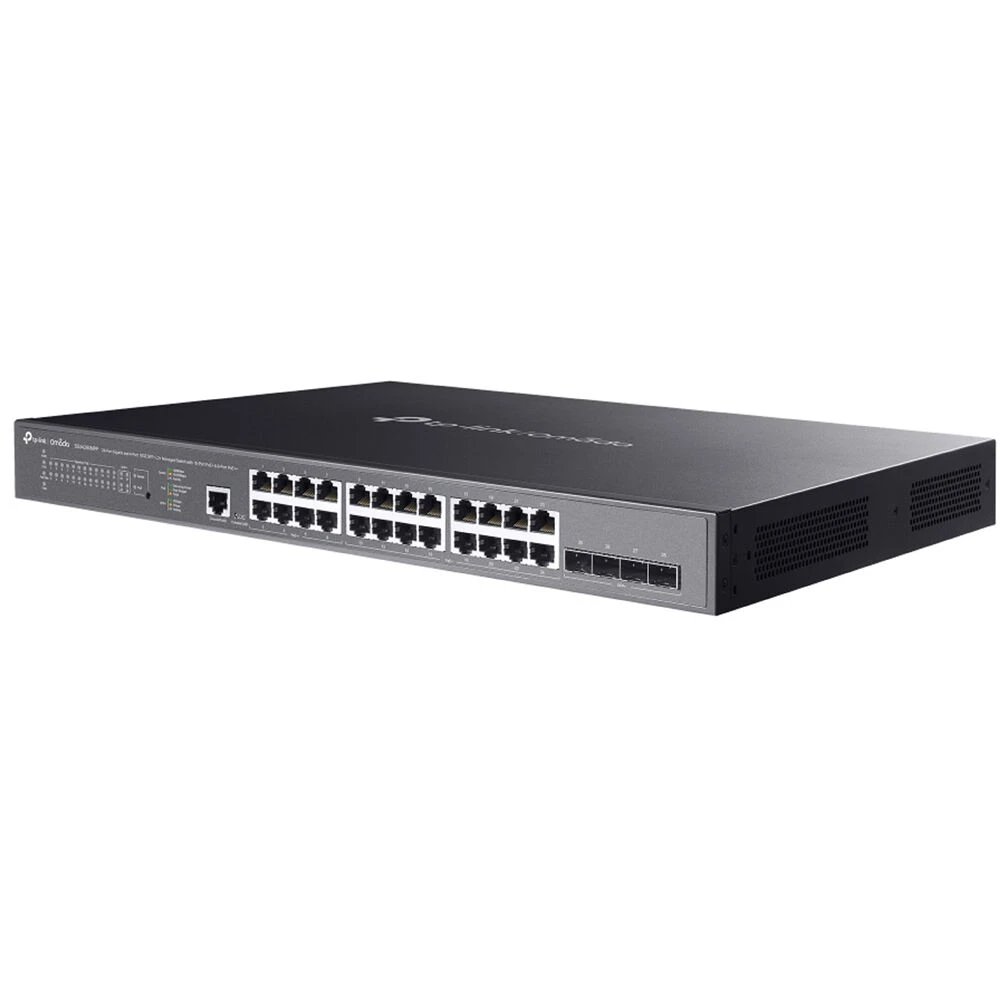

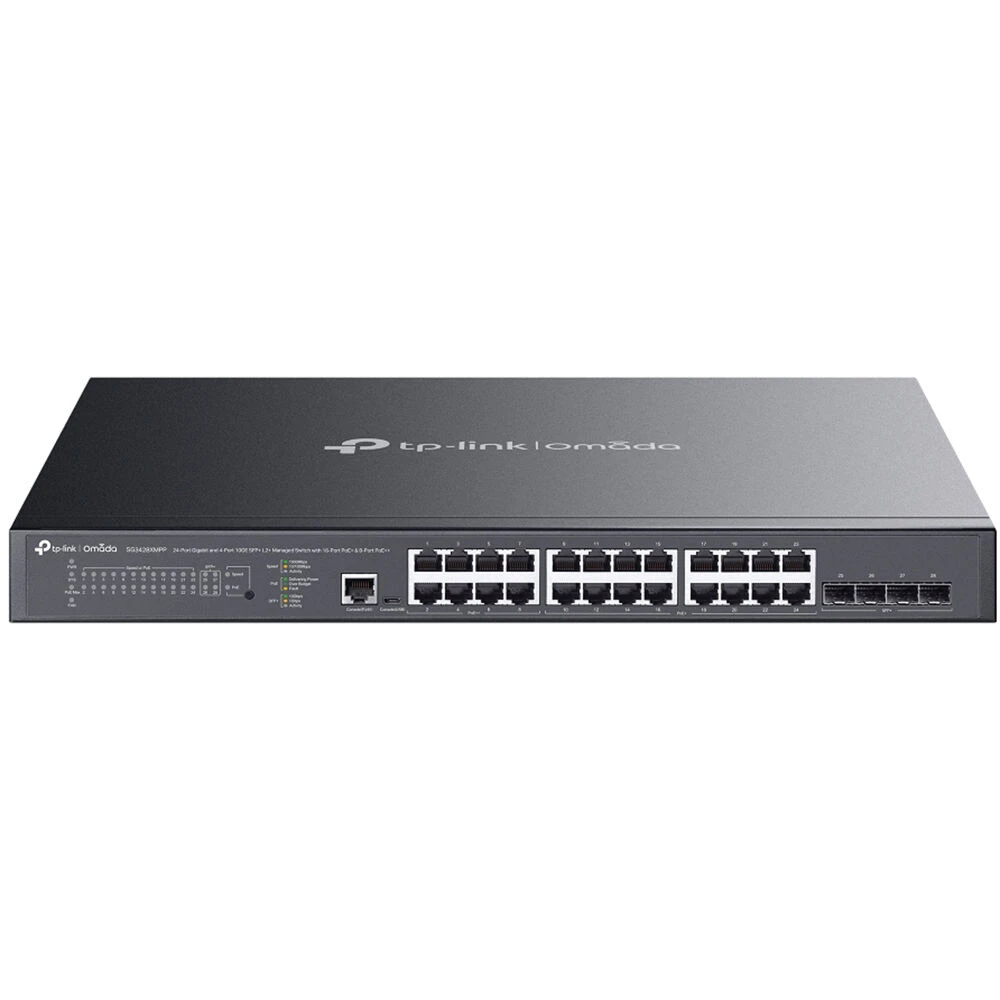

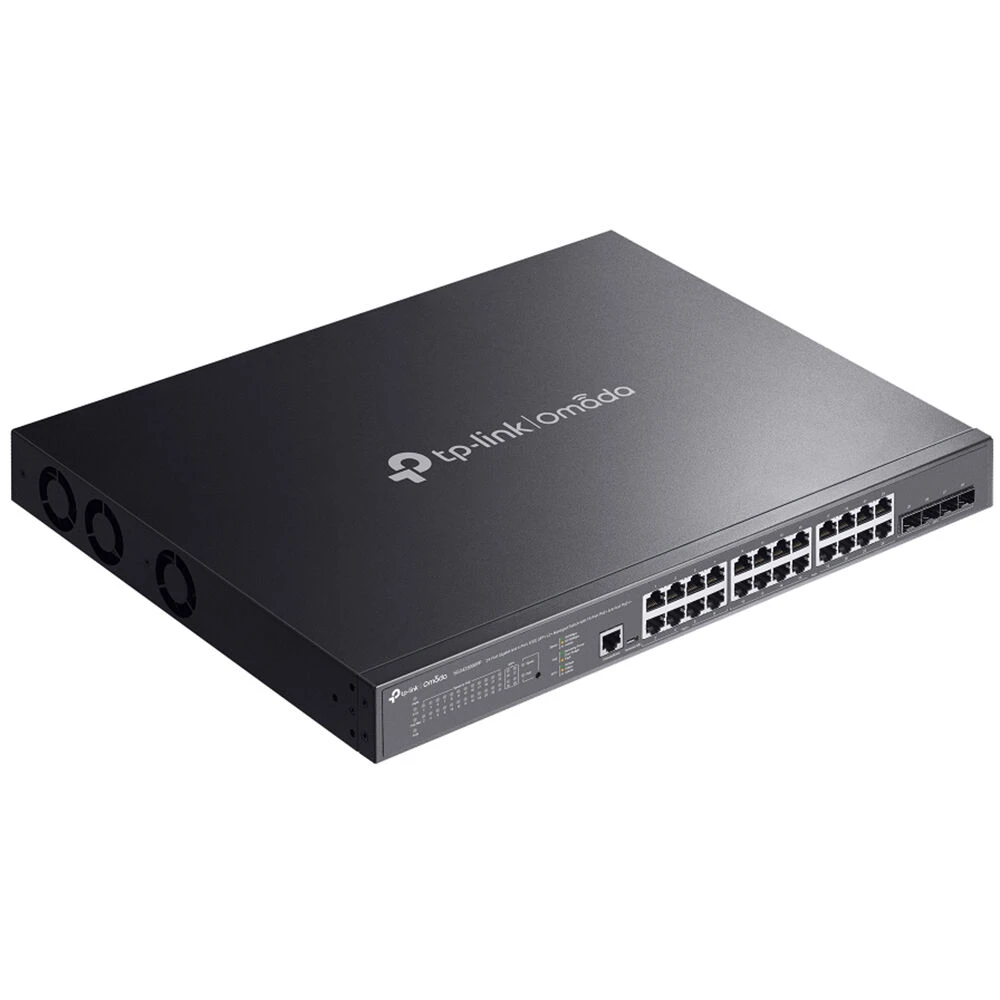

TP-Link SG3428XMPP Overview
Add advanced security cameras, high-speed access points, and other PoE compatible devices to your business with the Omada SG3428XMPP 24-Port Gigabit PoE++ Compliant Managed Network Switch from TP-Link. This managed switch features 24 Gigabit-speed RJ45 Ethernet ports with a 128 Gb/s switching capacity and 95.23 Mpps forwarding rate. The first eight ports provide up to 90W of power to PoE++ compatible devices while the remaining 16 ports each support up to 30W with a total power budget of 500W. Four SFP+ ports are available for 10 Gb/s fiber uplinks. Omada SDN platform integration allows you to use the Omada app for centralized, cloud-based access.

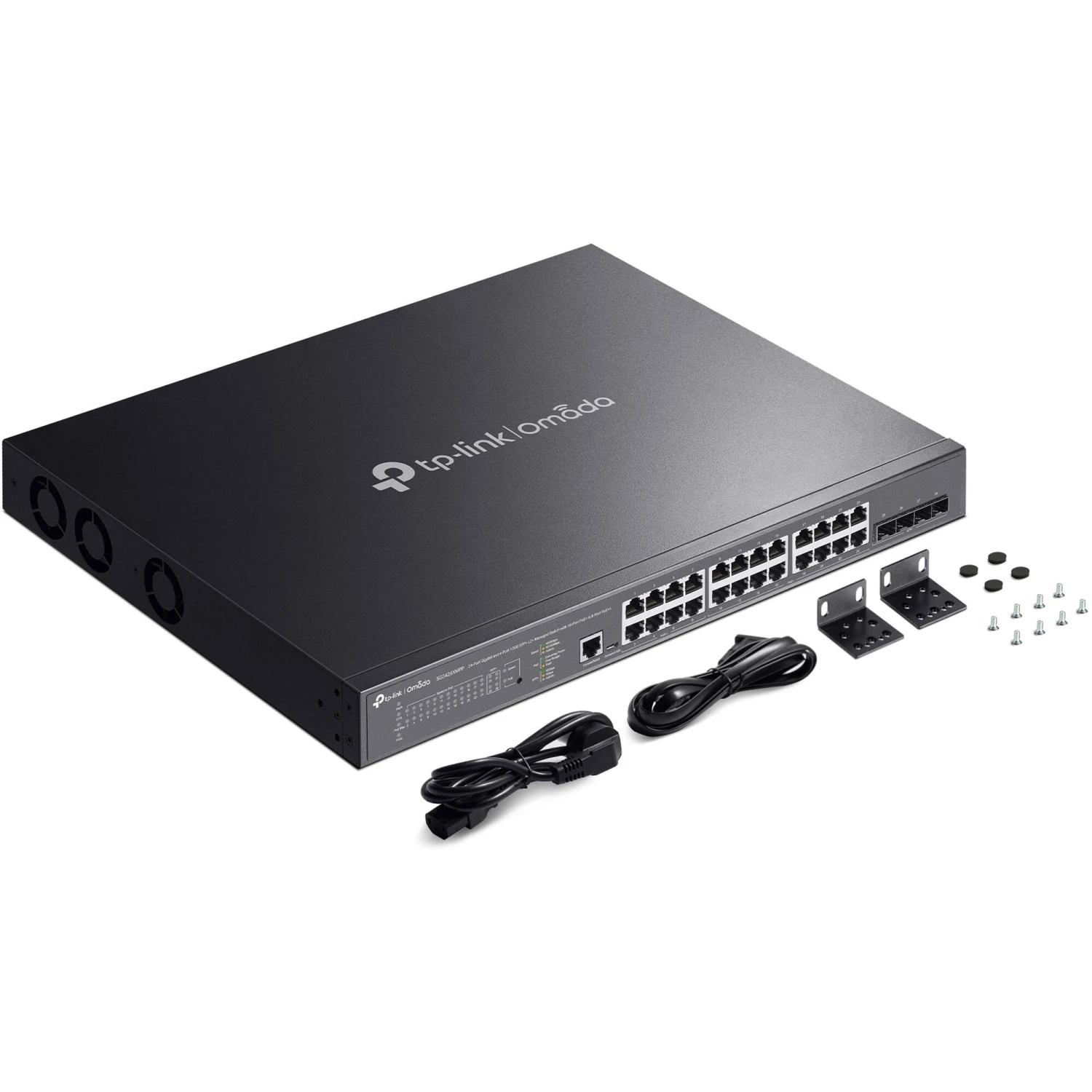

Items Included
- TP-Link Omada SG3428XMPP 24-Port Gigabit PoE++ Compliant Managed Network Switch
- Power Cable
- Rackmount Kit
- Rubber Feet
- Limited 5-Year Manufacturer Warranty
Additional Resources
User Manual
60.2 MB
TP-Link SG3428XMPP Specs
| Inputs/Outputs |
8x RJ45 Gigabit Ethernet PoE++ (60 W, 802.3bt Type 3) 16x RJ45 Gigabit Ethernet PoE+ (30 W, 802.3at) 4x SFP+ 10 GbE 1x RJ45 1x Micro-USB |
| Stackable |
No |
| Switching Bandwidth |
128 Gb/s |
| Stackable |
No |
| Layer Services Supported |
Layer 2 |
| Supported Protocols |
Port Mirroring Auto-MDIX/MDI IGMP Snooping |
| Queuing |
Weighted Round Robin (WRR) |
| Jumbo Frames Support |
9000 Bytes |
| MAC Address Table Size |
16K |
| Security Features |
DHCP Snooping |
| Forwarding Rate |
95.23 Mpps |
| Switching Bandwidth |
128 Gb/s |
| Packet Buffer |
4 Mb |
| Input Power |
100 to 240 VAC, 60 / 50 Hz |
| Power Supply Type |
Internal |
| Certifications |
CE, FCC, RoHS |
| Operating Conditions |
32 to 104°F / 0 to 40°C at 10 to 90% Humidity |
| Storage Conditions |
-40 to 158°F / -40 to 70°C at 5 to 90% Humidity |
| Cooling System |
Fan |
| Indicator Lights |
Yes |
| Rack Mountable |
Yes |
| Dimensions |
17.3 x 13 x 1.7″ / 439.4 x 330.2 x 43.2 mm |
| Package Weight |
13.545 lb |
| Box Dimensions (LxWxH) |
20.7 x 18.5 x 3.8″ |
