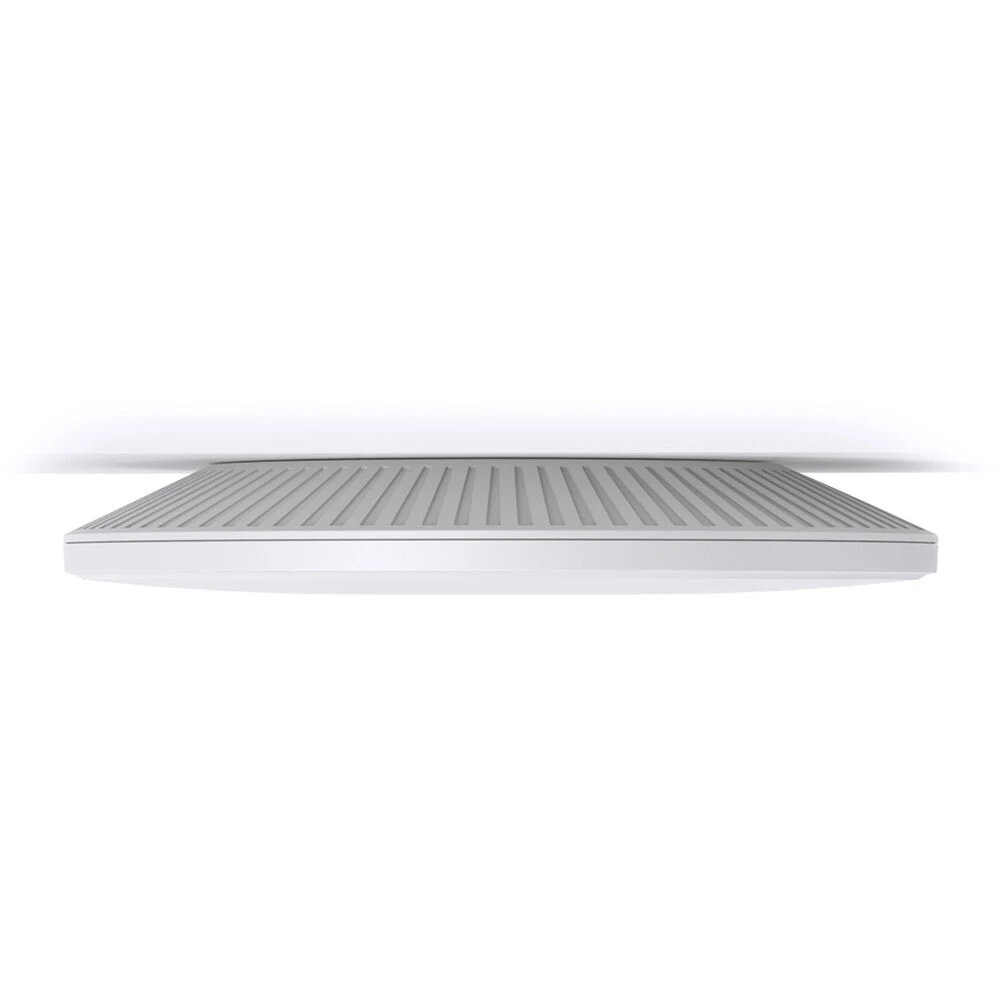

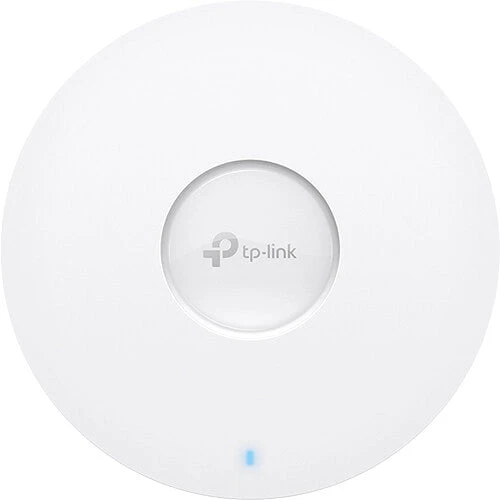

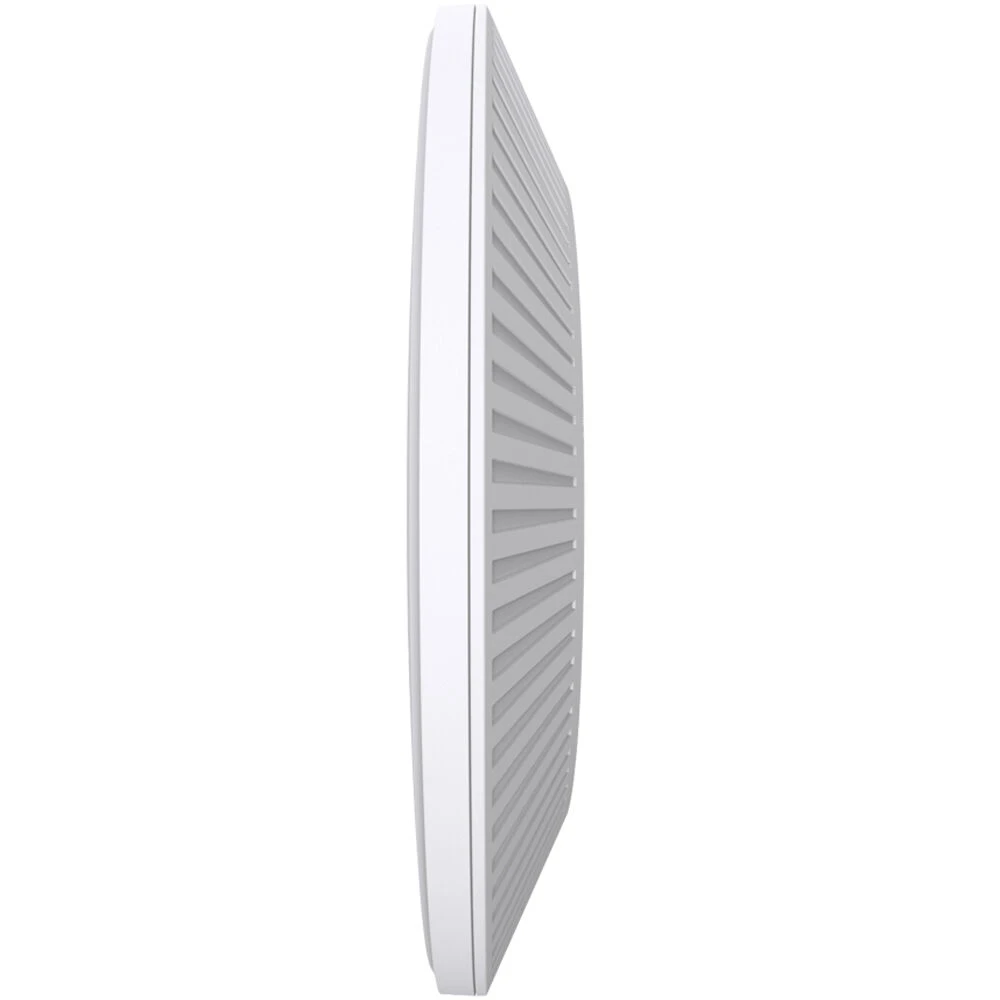

TP-Link EAP670 Overview
Designed for offices and other dense environments, the EAP670 V2 AX5400 Dual-Band Wi-Fi 6 Access Point from TP-Link blends in with most environments while delivering fast and reliable coverage. AI-powered technologies help to ensure optimal connections with devices.
Supporting over 250 concurrent clients, this access point features a total throughput of 5378 Mb/s across the 2.4 GHz and 5 GHz bands with compatible devices. Connecting the 2.5G Ethernet uplink port to a PoE+ compatible device allows you to transfer both power and data to the access point using a single cable. Or you can use the included power adapter. Your wireless network is protected with enterprise-class security and you can manage it from almost anywhere using the Omada cloud platform.
Items Included
- TP-Link EAP670 V2 AX5400 Dual-Band Wi-Fi 6 Access Point
- Power Adapter
- Ceiling / Wall Mounting Kits
- Limited 5-Year Manufacturer Warranty
Additional Resources
Installation Guide
11.6 MB
TP-Link EAP670 Specs
| Wi-Fi |
Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz) with MU-MIMO Support |
| Throughput |
5378 Mb/s Total 5 GHz: 4804 Mb/s 2.4 GHz: 574 Mb/s |
| Inputs/Outputs |
1x RJ45 2.5 GbE WAN PoE+ (30 W, 802.3at) |
| Wi-Fi |
Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz) with MU-MIMO Support |
| Antenna Gain |
4 to 5 dBi |
| Transmit Power |
20 to 30 dBm |
| Supported Protocols |
Auto-MDIX/MDI |
| Antenna Placement |
Internal |
| Bluetooth |
No |
| Throughput |
5378 Mb/s Total 5 GHz: 4804 Mb/s 2.4 GHz: 574 Mb/s |
| Inputs/Outputs |
1x RJ45 2.5 GbE WAN PoE+ (30 W, 802.3at) |
| USB Sharing Support |
No |
| Guest Network Support |
Yes |
| Wireless Security |
WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3, WPA3-Enterprise |
| Lock Slot |
No |
| Operation Modes |
Access Point |
| Supported Clients |
250 |
| Max SSIDs Supported |
16 |
| Mobile App Compatible |
Yes: Android & iOS App Name: Omada |
| Supported IEEE Standards |
802.11a, 802.11ac, 802.11ax, 802.11b, 802.11g, 802.11n, 802.1x, 802.3at (PoE+ 30 W) |
| Power Consumption |
19.8 W |
| Environmental Resistance |
No |
| Certifications |
CE, FCC, RoHS |
| Operating Conditions |
32 to 104°F / 0 to 40°C at 10 to 90% Humidity |
| Storage Conditions |
-40 to 158°F / -40 to 70°C at 5 to 90% Humidity |
| Mount Options |
Wall, Ceiling |
| Dimensions |
9.6 x 9.6 x 2.5″ / 243 x 243 x 64 mm |
| Package Weight |
3.24 lb |
| Box Dimensions (LxWxH) |
12.5 x 10.2 x 3.5″ |
