Thinkware TWA-MB100 Overview

Implement multichannel vehicle surveillance with the TWA-MB100 Multiplexer Box from Thinkware. This modular device enables you to install additional cameras in your car for a combo of side, interior/exterior, and rear views on top of your main front-facing dash cam’s, ensuring complete video coverage of your vehicle from all angles.

Suitable for fleets and rideshare/cab drivers

Modular design supports up to five video channels by adding a combination of additional cameras (2 x side view, rear view or exterior, and interior) to the main front-facing dash cam

Compatible with Thinkware F200 PRO, F790, X800, and X700 dash cams

Recordings from the additional cameras are merged together and saved into one video file for convenience

UPC: 888622016261

In the Box

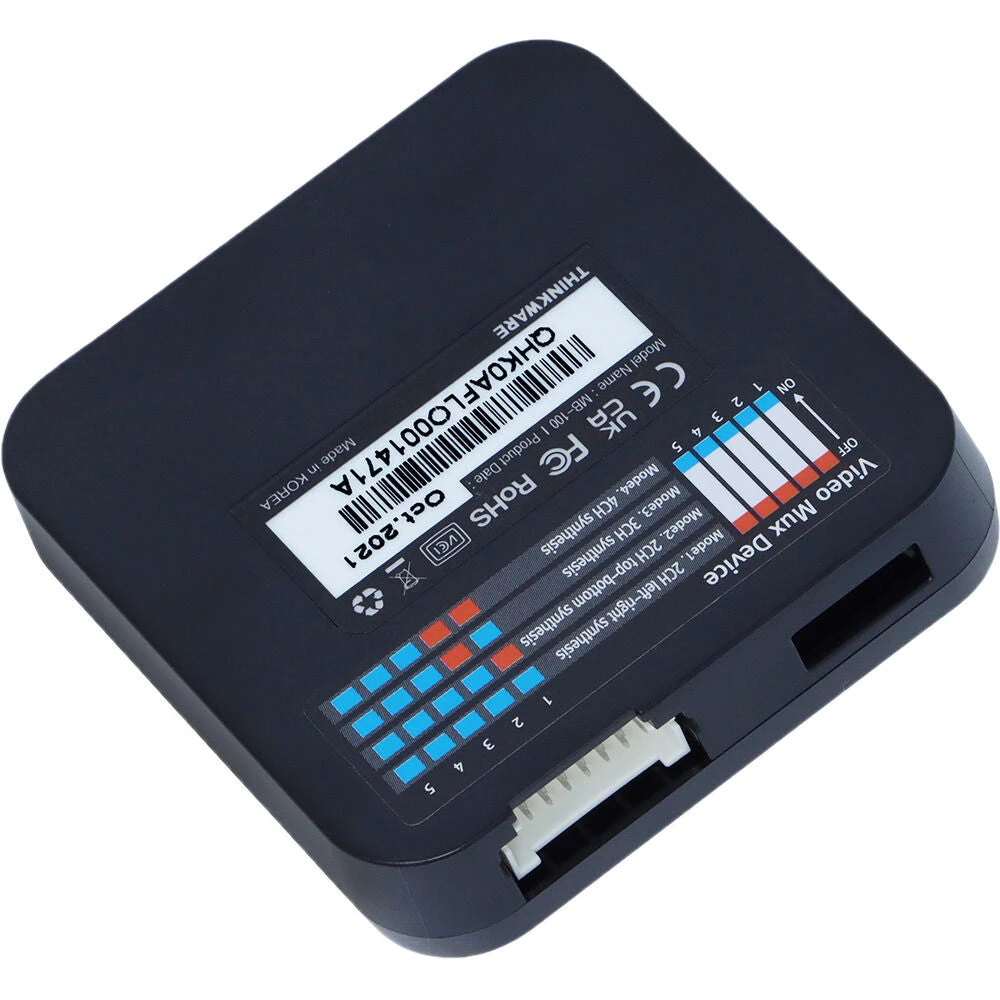

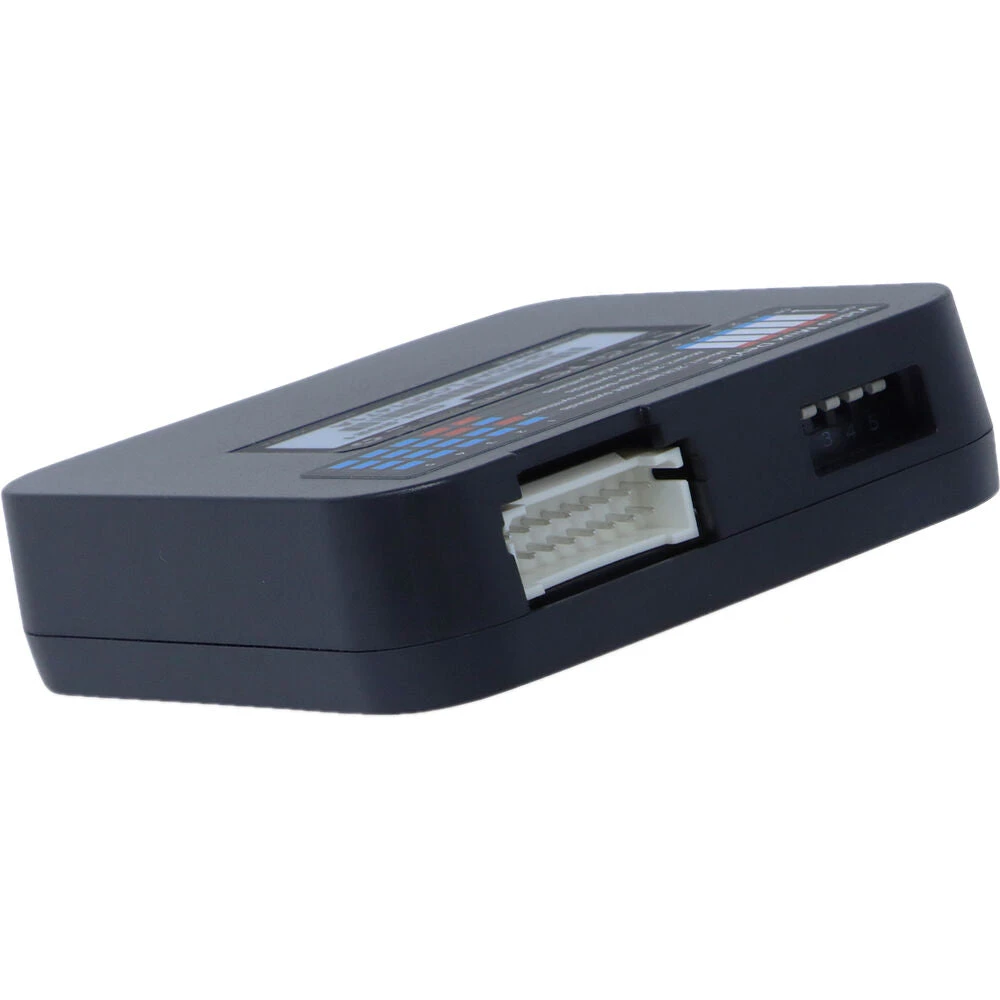

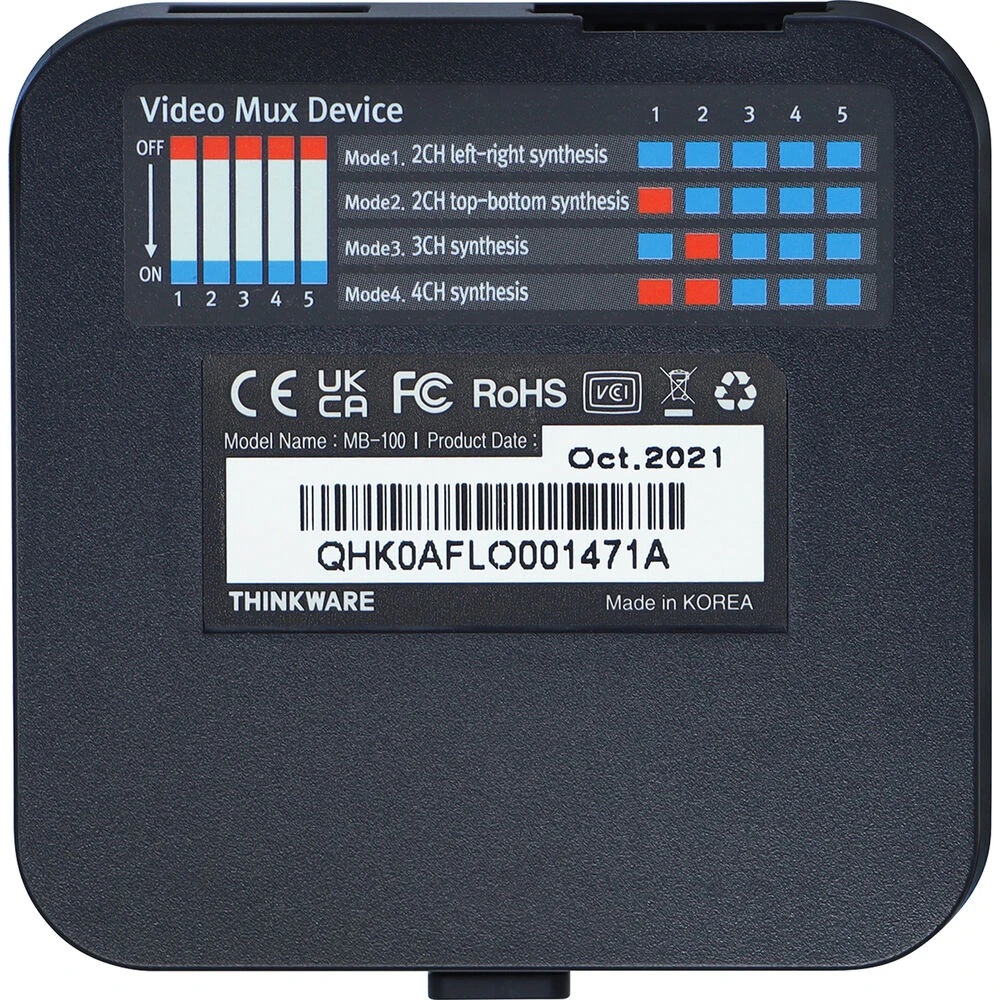

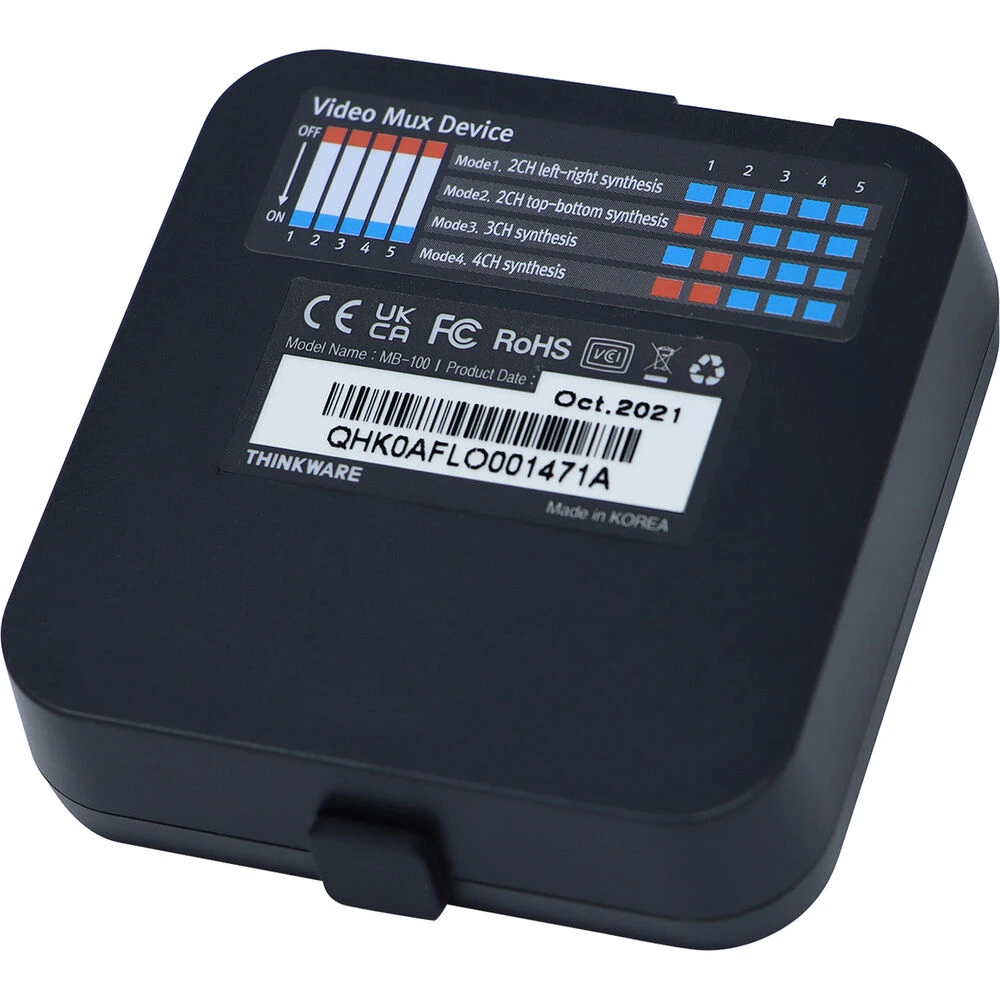

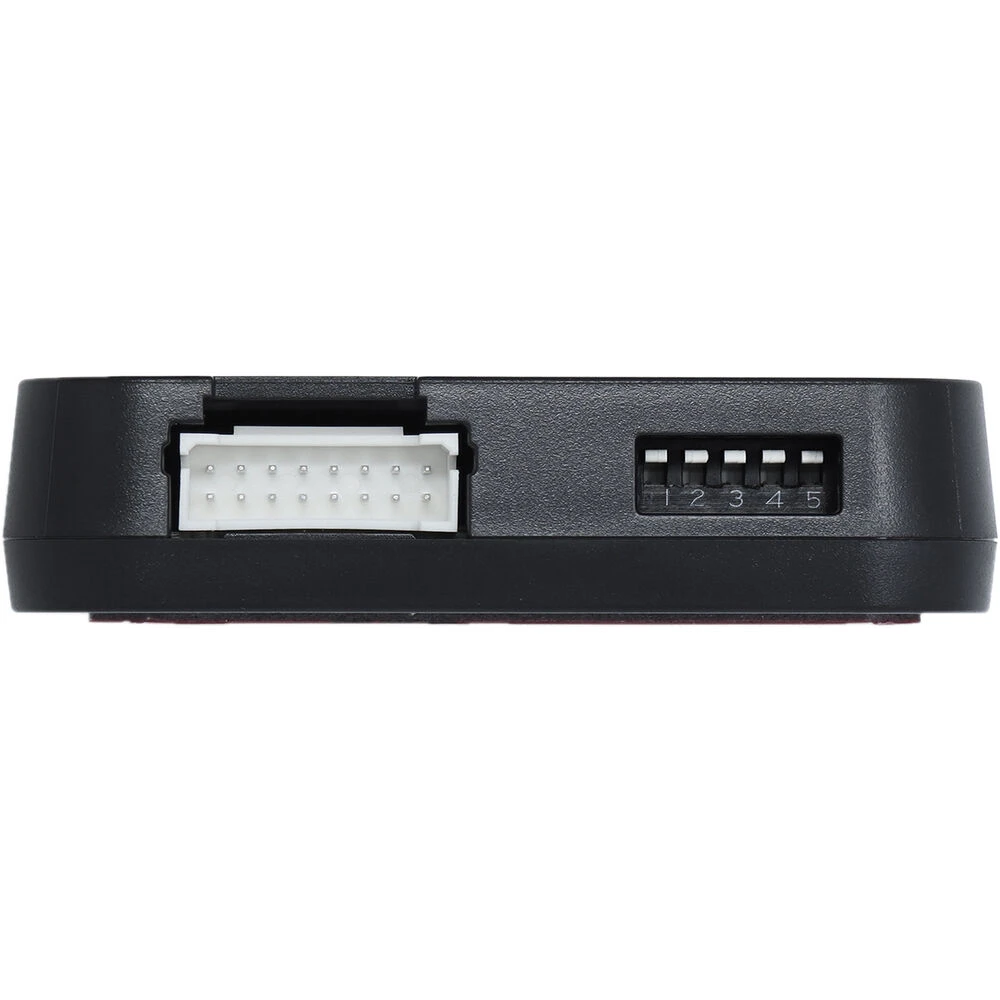

Thinkware TWA-MB100 Multiplexer Box

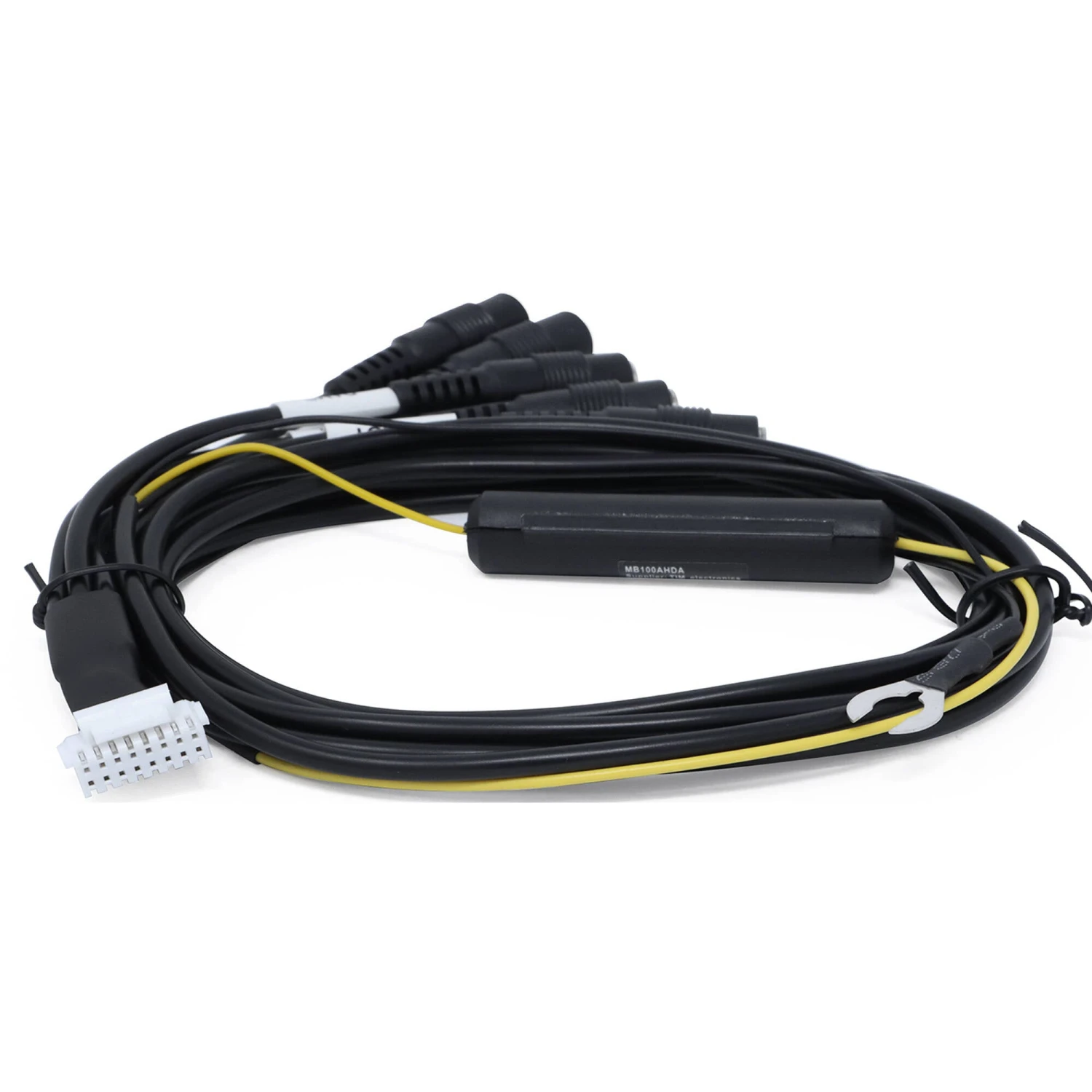

Multiplexer Box Cable with Power Cable
V-Out Cable

Thinkware TWA-MB100 Specs

General

Compatibility

Thinkware Dash Cams (F200 PRO, F790, X800, X700), Exterior/Interior Cams

Inputs / Outputs

Video I/O

4 x 2.5 mm Input
1 x 2.5 mm Output

Power

Power Source	AC Input
DC Input Power	12 to 24 VDC

Environmental

Certifications	CE, FCC, RoHS *as per Manufacturer
Operating Temperature	14 to 140°F / -10 to 60°C
Storage Temperature	-4 to 158°F / -20 to 70°C

Physical

Color	Black
Cable Length	9.8′ / 3 m
Dimensions	2.6 x 2.6 x 0.7″ / 65 x 65 x 17.5 mm
Weight	1.4 oz / 40 g

Packaging Info

Package Weight	0.455 lb
Box Dimensions (LxWxH)	6.8 x 4.3 x 2″
