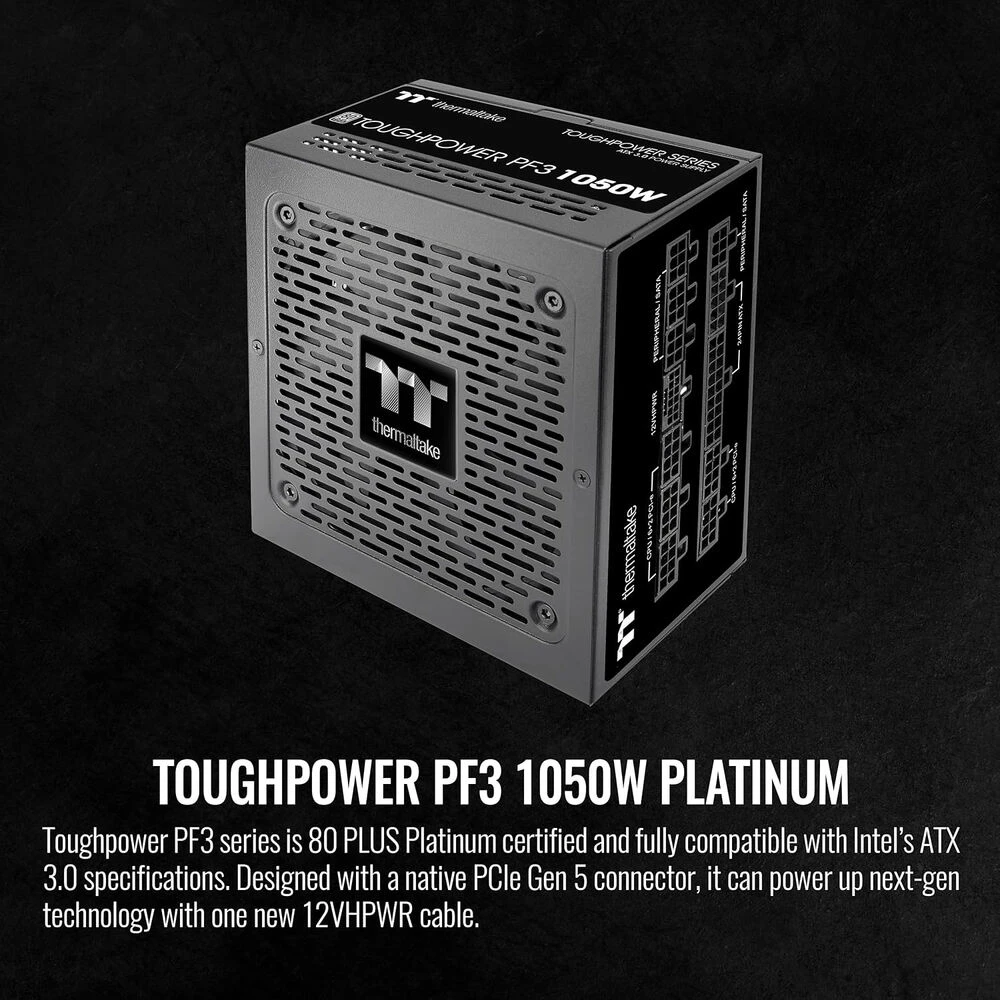

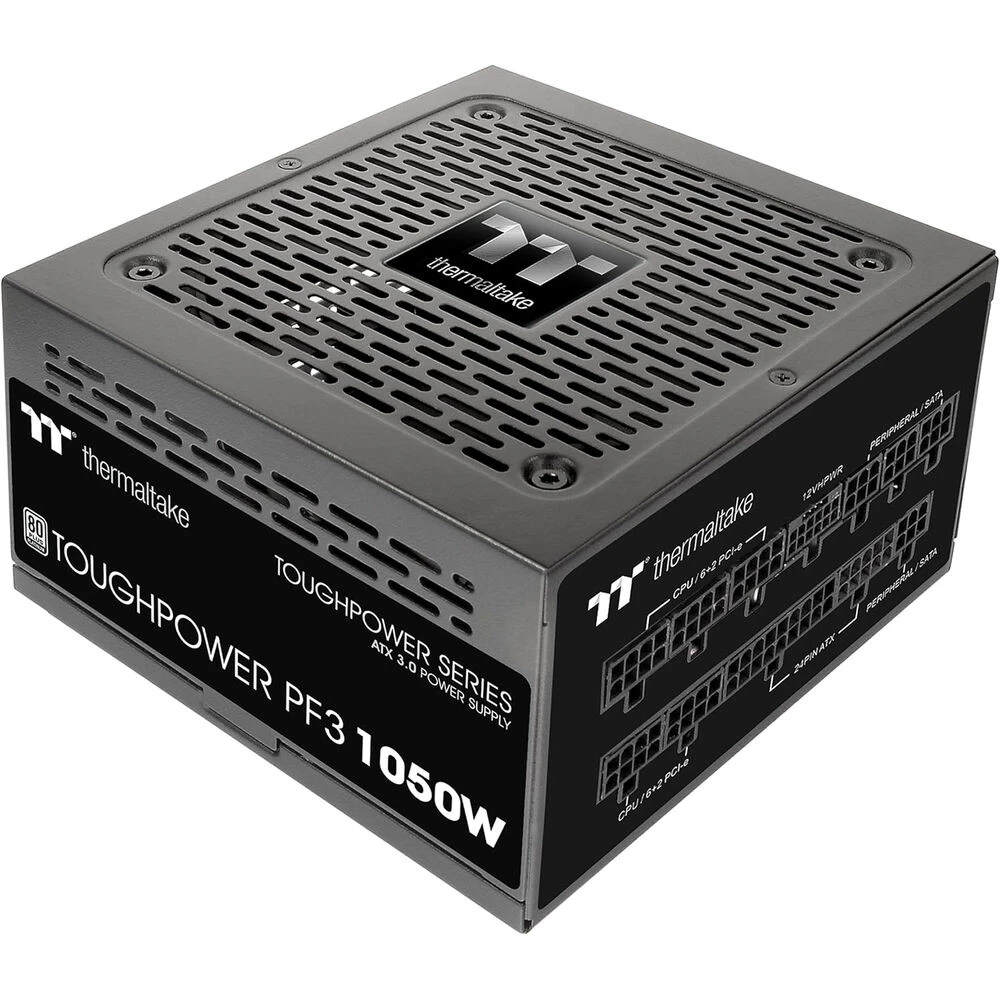

Thermaltake Toughpower PF3 1050W 80 PLUS Platinum Power Supply(Thermaltake Toughpower Pf3 1050w 80 Plus Platinum Power Supply)

Keep your rig up and running with the
Toughpower PF3 1050W 80 PLUS Platinum Power Supply from
Thermaltake. Featuring a standard ATX form factor and Intel ATX Version 3.0 compliance, this 1050W PSU utilizes a single +12V rail and 120mm cooling fan. Furthermore, it boasts an 80 PLUS efficiency rating and delivers 60% low-load efficiency. The Thermaltake Toughpower PF3 1050W 80 PLUS Platinum Power Supply has a mean time between failures (MTBF) of 100,000 hours, minimum.

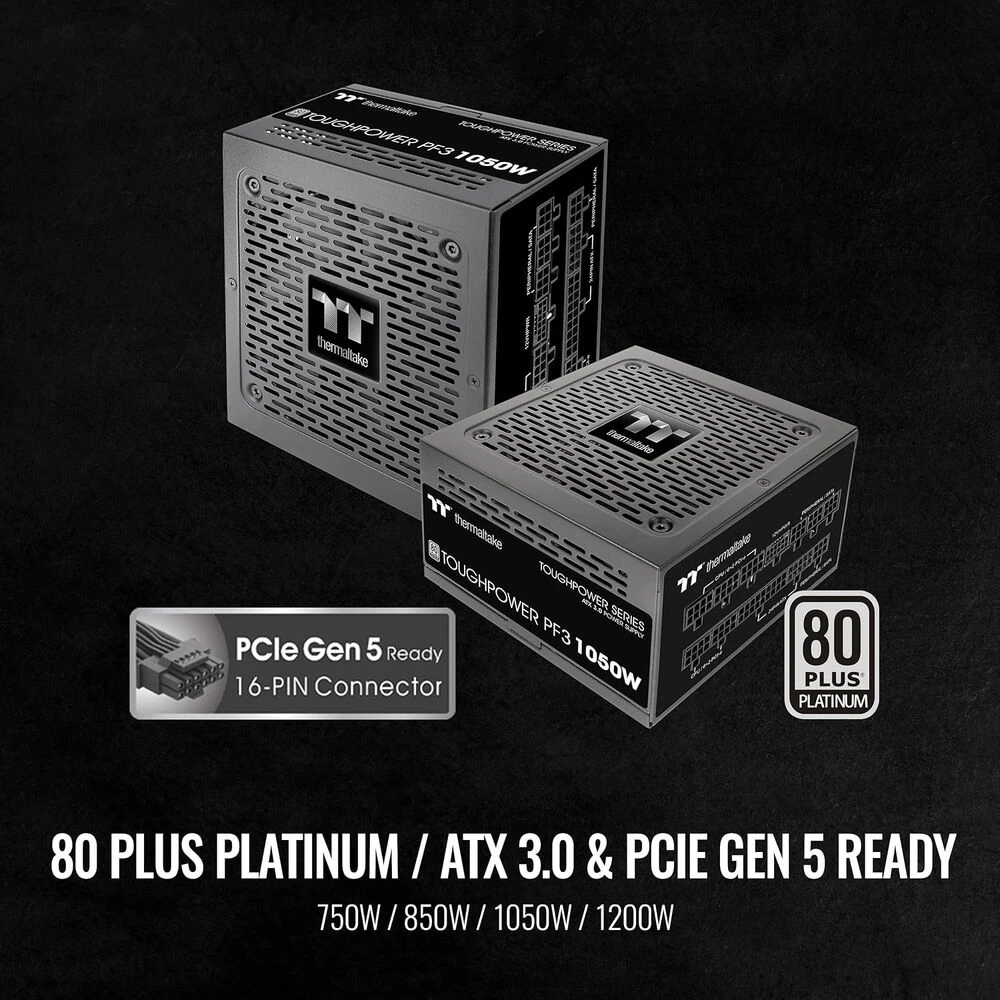

The Toughpower PF3 1050W 80 PLUS Platinum Power Supply is designed to meet ATX 3.0 standards, and it also comes with one PCIe Gen 5.0 (12VHPWR) connector to support modern graphics cards.

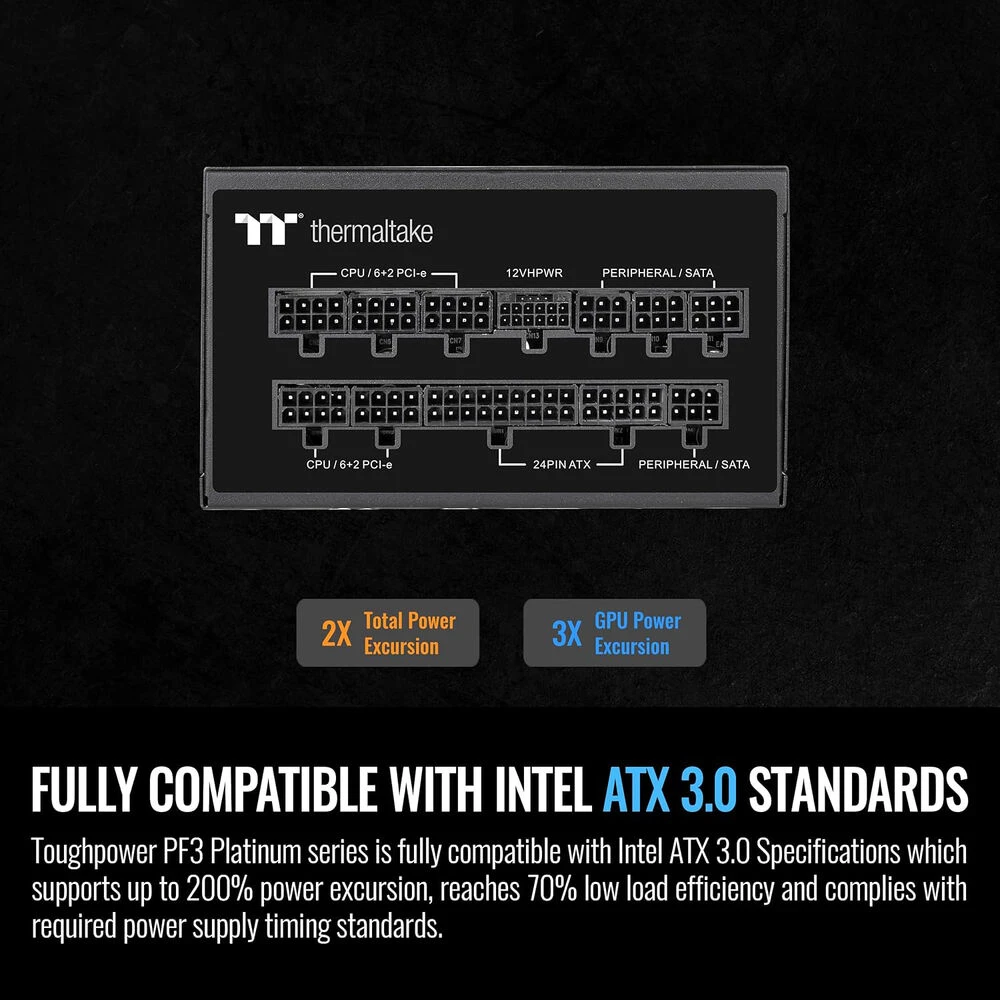

The Smart PF3 is fully compatible with Intel ATX 3.0 specifications and it supports up to 200% power excursion, reaches 70% low load efficiency, and complies with required power supply timing standards.

The PSU comes with a 16-pin connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.

The wattage marked on the 12VHPWR’s connector is the recommended Intel wattage. The native 16-pin (12VHPWR) PCIe connector of the PF3 1050W can deliver up to 600W for PCIe 5.0 graphics cards.

As the power consumption of graphics cards increase, so has their demand for power. The PF3 Platinum series is designed to support NVIDIA and AMD graphics cards with different connection types.

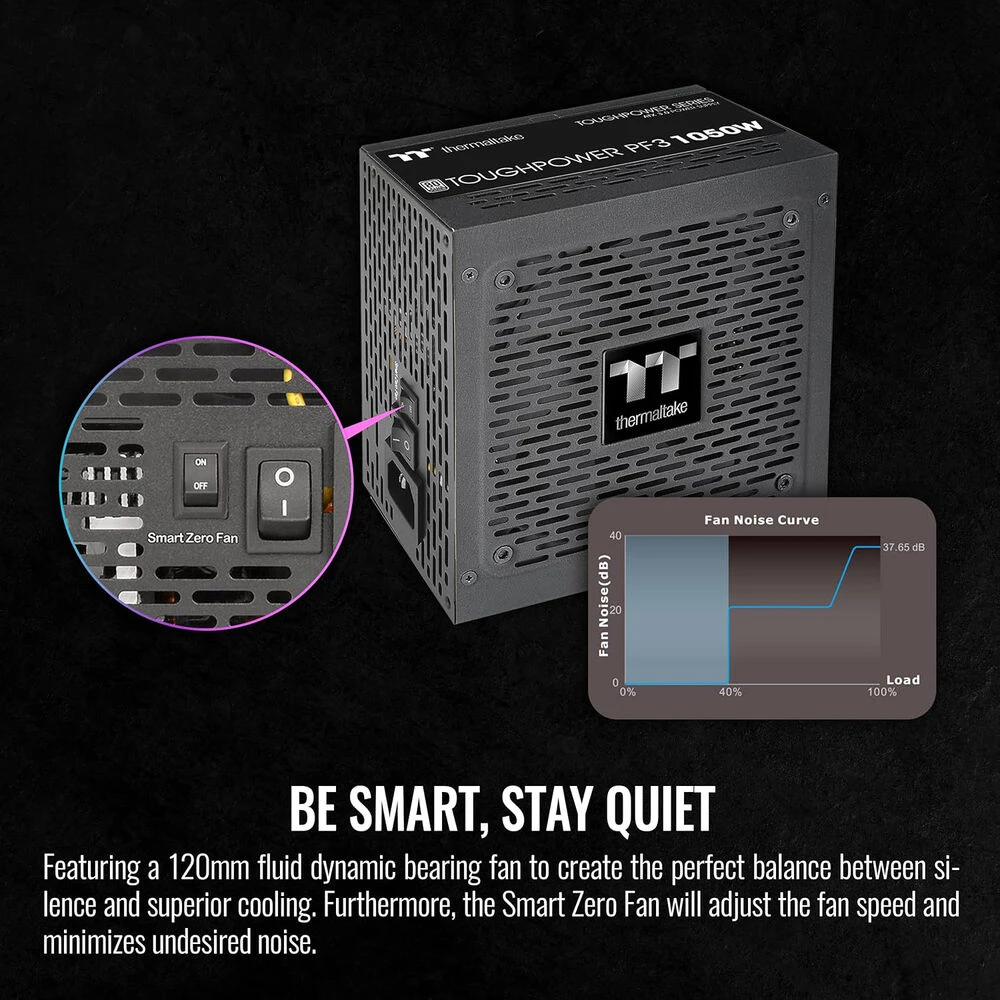

Featuring a 120mm fluid dynamic bearing fan to create the perfect balance between silence and superior cooling, and its Smart Zero fan will adjust the fan speed and minimizes undesired noise.

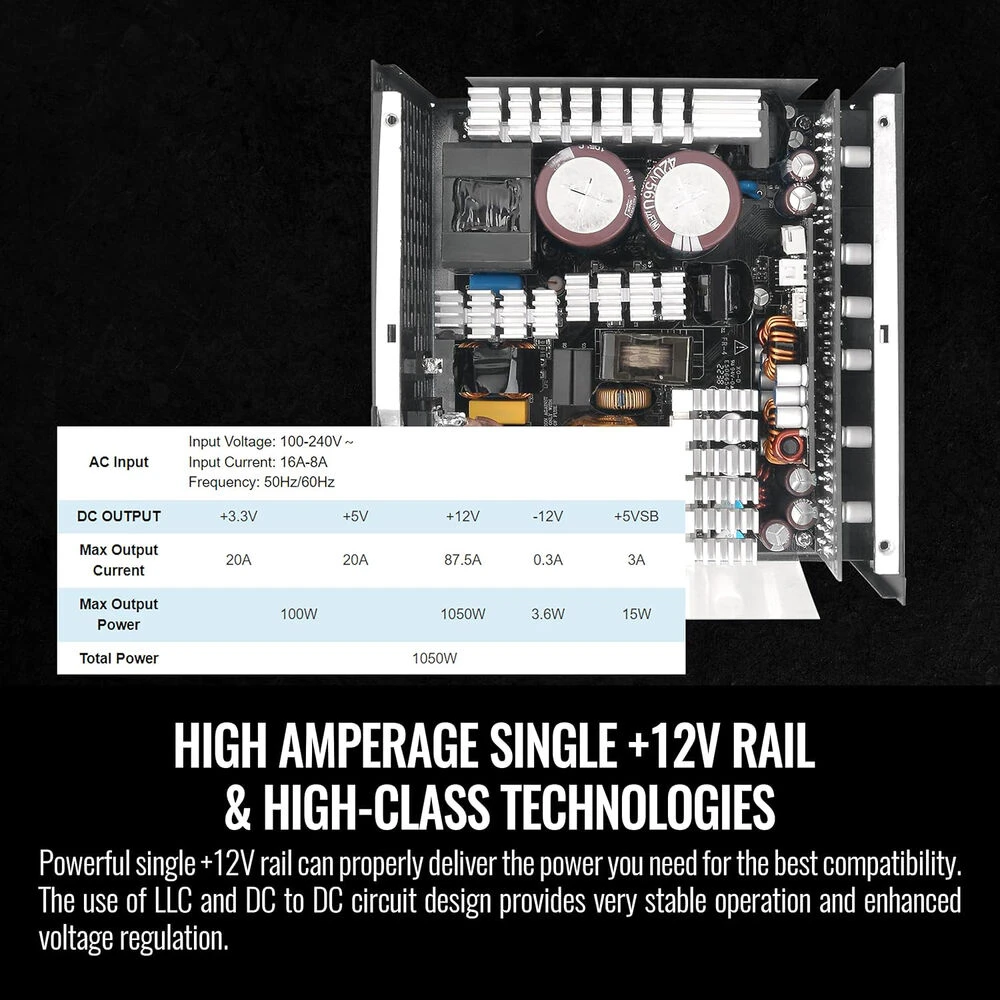

The powerful single +12V rail can properly deliver the power you need for the best compatibility.

The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.

To protect the hardware, the Smart BM3 is built with industry grade protections:

• OCP (Over Current Protection)
• OVP (Over Voltage Protection)
• UVP (Under Voltage Protection)
• OPP (Over Power Protection)
• SCP (Short Circuit Protection)
• OTP (Over Temperature Protection)

Soft low-profile black cables make installation easy while powering the system at optimal voltages. It features the following connections:

• A main 24-pin connector
• Two 4+4-pin ATX 12V connectors
• Four 6+2-pin connectors
• One PCIe 12+4-pin 600W connector
• 12 SATA 5-pin connectors
• Four 4-pin peripheral connectors
• One FDD adapter

The build quality features low ripple noise that is lower than 30mV on +12V, +5V, or +3.3V from 0% to 100% load to ensure a stable operation and allow your performance-critical components to function reliably for longer.

The PSU voltage regulation is tighter than Intel’s standard +5%,-7% for major rails and ±10% for -12V, and is set to no more than ±2% for major rails, providing steady clean power through exceptional voltage stability.

During a power interruption, your computer might shut down or reboot, so the PF3 series is designed to deliver at least 17ms at 100% workload, without system reboot or resetting.

Its 80 Plus Platinum certification means the Toughpower PF3 converts power efficiently, resulting in lower power loss and heat buildup inside the power supply.

80 Plus Platinum certification means the Toughpower PF3 converts power efficiently, resulting in lower power loss and heat buildup inside the power supply.

Thermaltake Toughpower PF3 Specs

Total Connectors	1x 24-Pin ATX Motherboard 2x 4+4-Pin EPS CPU 5x 6+2-Pin PCIe 1x 16-Pin PCIe (12VHPWR) 12x 15-Pin SATA 4x 4-Pin Peripheral / Molex
Cable Design	Modular
Total Wattage	1050 W
Number of +12 V Rails	1
Efficiency Rating	80 PLUS Platinum
Form Factor	ATX

Total Connectors	1x 24-Pin ATX Motherboard 2x 4+4-Pin EPS CPU 5x 6+2-Pin PCIe 1x 16-Pin PCIe (12VHPWR) 12x 15-Pin SATA 4x 4-Pin Peripheral / Molex
Cable Design	Modular
PCIe Connector Distances	23.6″ / 600 mm
SATA Connector Distances	19.7″ / 500 mm 25.6″ / 650 mm 31.5″ / 800 mm 37.4″ / 950 mm
Peripheral Connector Distances	19.7″ / 500 mm 25.6″ / 650 mm 31.5″ / 800 mm 37.4″ / 950 mm
ATX Connector Distance	25.6″ / 650 mm
EPS Connector Distances	23.6″ / 600 mm

Total Wattage	1050 W
Number of +12 V Rails	1
Combined Power for +12 V	1050 W
Max Load for +12 V	87.5 A
Combined Power for +3.3/+5 V	100 W
Max Load for +3.3 V	20 A
Max Load for +5 V	20 A
Max Power for +5 Vsb	15 W
Max Load for +5 Vsb	3 A
Max Power for -12 V	3.6 W
Max Load for -12 V	0.3 A
Input Power	100 to 240 VAC, 50 / 60 Hz

Efficiency Rating	80 PLUS Platinum
Active Power Factor Correction	Yes

Fan Size	120 mm
Bearing Type	Fluid Dynamic Bearings (FDB)

Form Factor	ATX
Compliance	ATX 12 V v3.0
Certifications	CB, FCC, ICES, cTUVus
Operating Conditions	41 to 104°F / 5 to 40°C at 20 to 85% Humidity
Mean Time Between Failures (MTBF)	100,000 Hours
Dimensions	5.9 x 5.5 x 3.4″ / 150 x 140 x 86 mm
