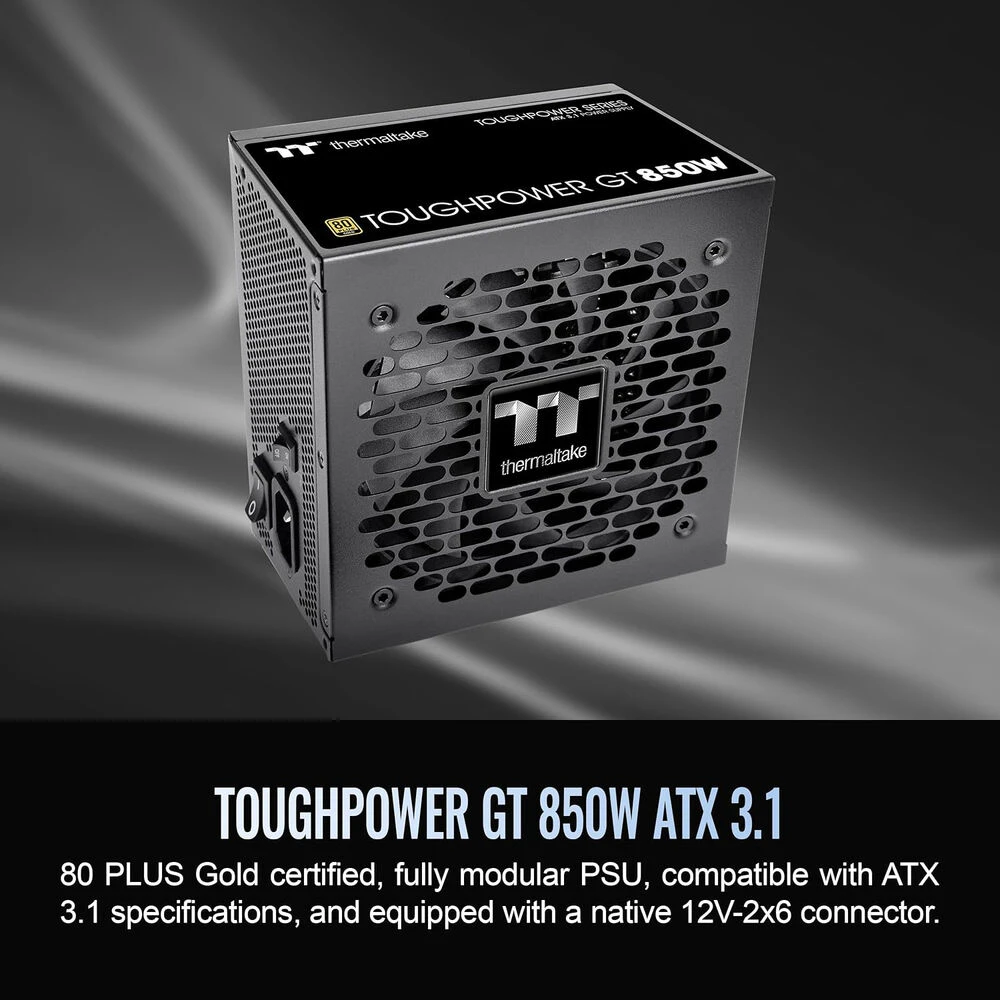

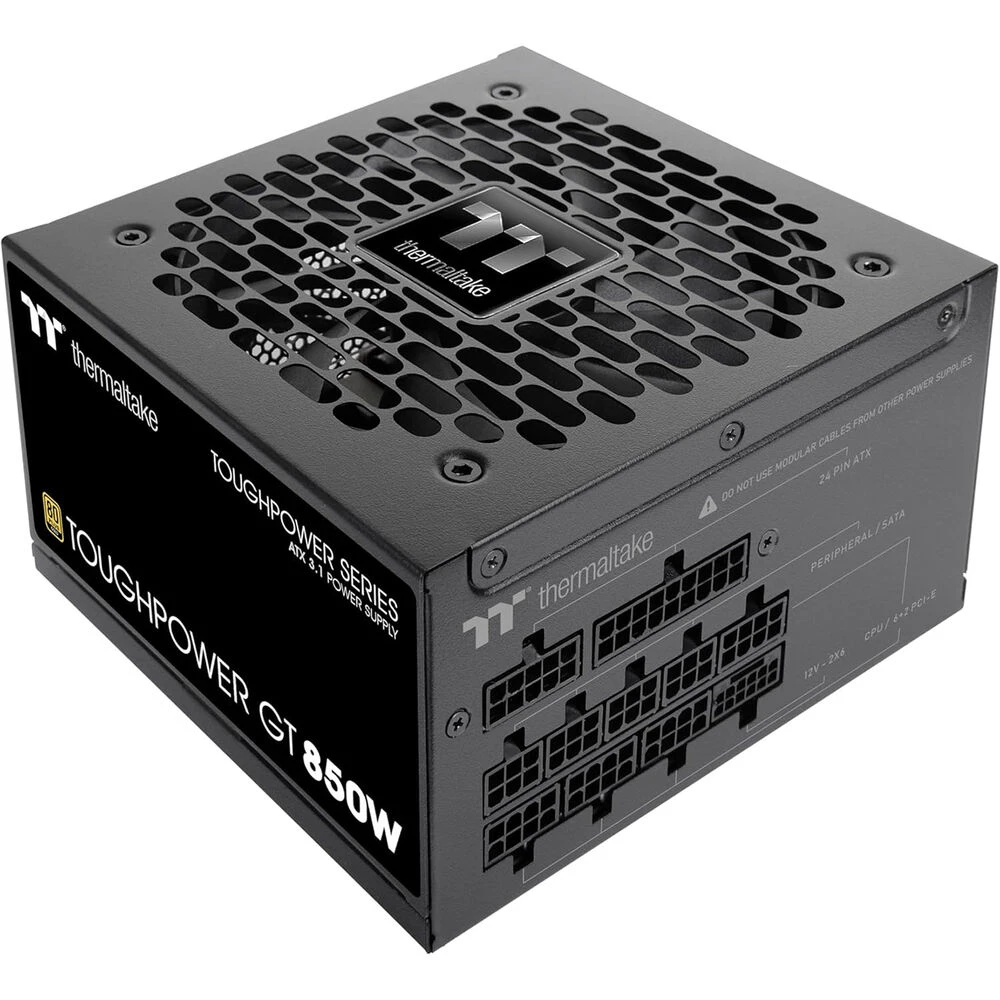

Thermaltake Toughpower GT 850W 80 PLUS Gold Power Supply (Black)(Thermaltake Toughpower Gt 850w 80 Plus Gold Power Supply Black)

Keep your rig up and running with the
Toughpower GT 850W 80 PLUS Gold Power Supply from
Thermaltake. Featuring a standard ATX form factor and Intel ATX Version 3.1 compliance, this 850W PSU utilizes a single +12V rail and 120mm cooling fan. Furthermore, it boasts an 80 PLUS Gold efficiency rating and delivers 60% low load efficiency. The Thermaltake Toughpower GT 850W 80 PLUS Gold Power Supply has an mean time between failures (MTBF) of 100,000 hours, minimum.

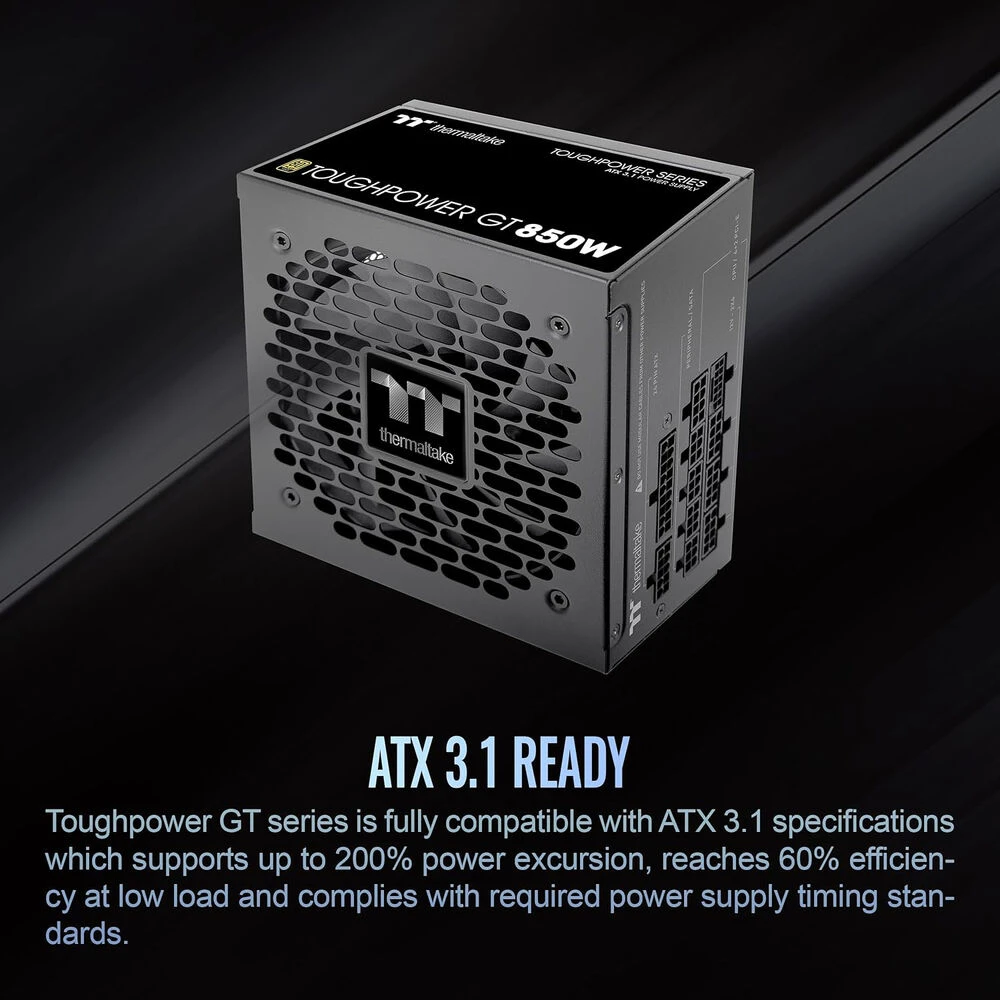

The Toughpower GT is fully compatible with Intel ATX 3.1 specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.

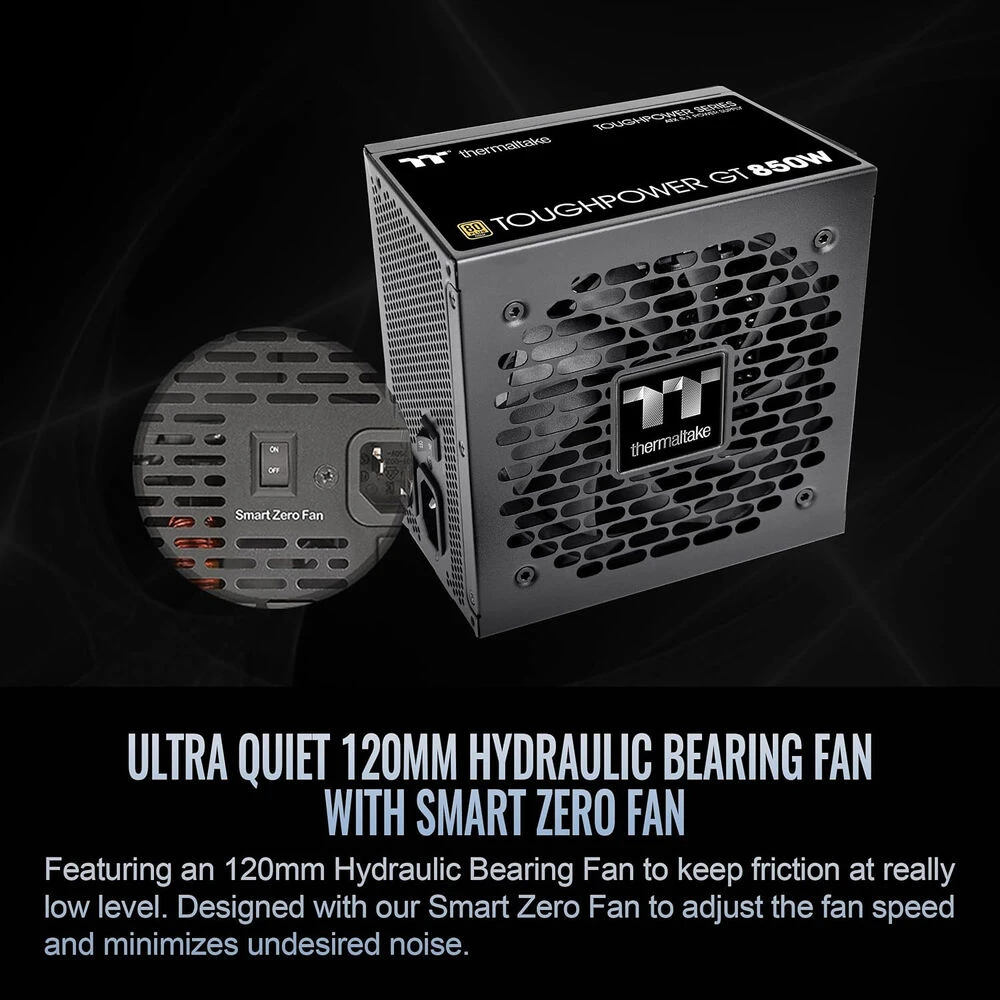

Featuring a Smart Zero 120mm hydraulic bearing fan optimized for quiet airflow, the PSU is designed to provide low noise levels.

The Toughpower GT series comes with a PCIe 12V-2×6 connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs. The bundled PCIe Gen 5.1 (12+4pin) cable connector of the Toughpower GT 850W can deliver up to 450W for PCIe 12+4pin graphics cards.

Powerful single +12V rail can properly deliver the power you need for the best compatibility.

The use of LLC and DC to DC circuit design provides stable operation and enhanced voltage regulation.

To protect the hardware, the Toughpower GT is built with industry-grade protections:

• OCP (Over Current Protection)
• OVP (Over Voltage Protection)
• UVP (Under Voltage Protection)
• OPP (Over Power Protection)
• SCP (Short Circuit Protection)
• OTP (Over Temperature Protection)

The Toughpower GT series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS Gold. It has been optimized to work with all generations of Intel’s processors for maximum energy savings.

Low-profile cables reduce clutter and come make installation easy while powering the system with optimal airflow. Its connections include:

• One main 24-pin connector
• Two 4+4-pin ATX 12V connectors
• Four 6+2-pin PCIe connectors
• One 12+4-pin 450W PCIe connector
• Six SATA 5-pin connectors
• Four 4-pin peripheral connectors

Thermaltake Toughpower GT Specs

Total Connectors	1x 24-Pin ATX Motherboard 2x 4+4-Pin EPS CPU 4x 6+2-Pin PCIe 1x 16-Pin PCIe (12VHPWR) 6x 15-Pin SATA 4x 4-Pin Peripheral / Molex
Cable Design	Modular
Total Wattage	850 W
Number of +12 V Rails	1
Efficiency Rating	80 PLUS Gold
Form Factor	ATX

Total Connectors	1x 24-Pin ATX Motherboard 2x 4+4-Pin EPS CPU 4x 6+2-Pin PCIe 1x 16-Pin PCIe (12VHPWR) 6x 15-Pin SATA 4x 4-Pin Peripheral / Molex
Cable Design	Modular
PCIe Connector Distances	23.6″ / 600 mm
SATA Connector Distances	17.7″ / 450 mm 23.6″ / 600 mm 29.5″ / 750 mm
Peripheral Connector Distances	15.7″ / 400 mm 21.7″ / 550 mm 27.6″ / 700 mm 33.5″ / 850 mm
ATX Connector Distance	27.6″ / 700 mm
EPS Connector Distances	21.7″ / 550 mm

Total Wattage	850 W
Number of +12 V Rails	1
Combined Power for +12 V	849.6 W
Max Load for +12 V	70.8 A
Combined Power for +3.3/+5 V	100 W
Max Load for +3.3 V	20 A
Max Load for +5 V	20 A
Max Power for +5 Vsb	15 W
Max Load for +5 Vsb	3 A
Max Power for -12 V	3.6 W
Max Load for -12 V	0.3 A
Input Power	100 to 240 VAC, 50 / 60 Hz at 10 A

Efficiency Rating	80 PLUS Gold
Active Power Factor Correction	Yes

Fan Size	120 mm
Bearing Type	Hydraulic

Form Factor	ATX
Compliance	ATX v3.1
Protection	Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection
Certifications	BIS, BSMI, CB, CCC, CE, FCC, ICES, RCM, TUV, UKCA, cTUVus
Operating Conditions	-40 to 158°F / -40 to 70°C at 5 to 95% Humidity
Dimensions	5.9 x 5.5 x 3.4″ / 150 x 140 x 86 mm

Package Weight	5.335 lb
Box Dimensions (LxWxH)	11.6 x 8.7 x 4.7″
