Tamron 1/3″ 2.8-12mm F/1.4 Vari-Focal Lens With Connector(Tamron 1 3 2 8 12mm F 1 4 Vari Focal Lens With Connector)

Original price was: $128.54.Current price is: $89.98.

SKU: DGFUB 8140990544 Categories: Optics & Surveillance, Surviellance Tags: Camera Accessories, Lenses, Surveillance, Tamron 13VG2812ASII-SQ

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

1/3″ Image Format
CS Mount
4.3x Zoom
DC Auto Iris
Iris Range f/1.4 to Close
Manual Zoom and Focus
Locking Mechanism on Each Control Ring
Multi-Layer Coatings
Slip-Mount Mechanism
Min. Focusing Distance: 11.8″

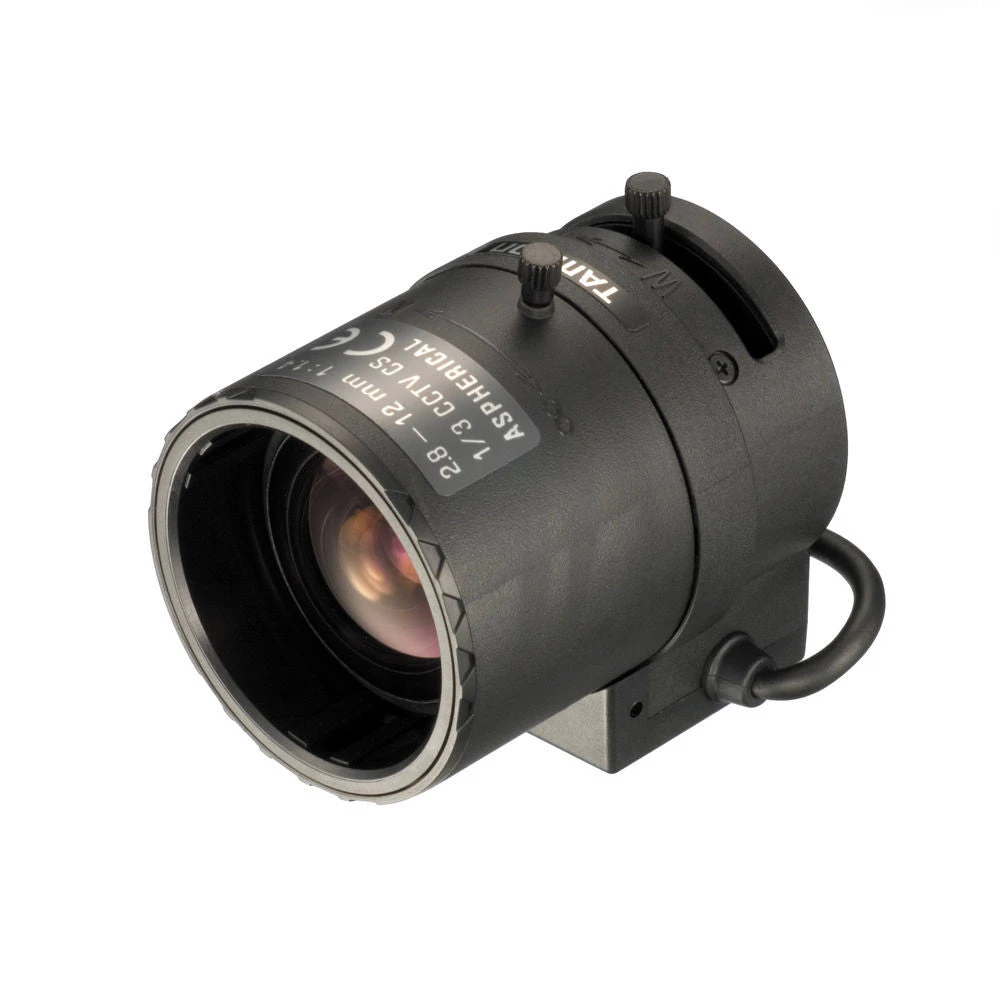

The Tamron 1/3″ 2.8-12mm f/1.4 Vari-Focal Lens with Connector is a high-resolution CCTV lens with a CS mount suitable for use with 1/3″ image sensors with a resolution up to 720p. It features a 4.3x zoom range for short to medium-range surveillance applications, and a wide maximum aperture of f/1.4 for clearer images in low light conditions. Multi-layer coatings on the lens surface lessens ghosting and flare to produce sharper images with more contrast.

The lens is equipped with a slip-mount mechanism that allows rotational adjustment of the lens after it is mounted on the camera. This allows optimal positioning of the auto-iris actuator and cable during installation. With an independent lock for each control ring (zoom, focus, and manual iris), you can avoid setting changes after installation.

CS mount; ideal for mini domes
Suitable for cameras having an image size of 1/3″
Focal length: 2.8 to 12mm
Aperture range: f/1.4 to 360 (closed)
Manual zoom and focus with lock
DC auto iris
Back focus adjustment
11.8″ minimum focusing distance
Multi-layer coatings for less ghosting and flare
Lock for each control ring (zoom, manual and iris-control) to avoid setting displacement after installation
Slip-mount mechanism for fine-tuning the position after mounting the camera to set the auto-iris meter to a proper position around the lens

UPC: 725211931812

Imager Size	1/3″
Mount Type	CS
Focal Length	2.8 to 12 mm
Aperture Range	f/1.4 to 360 (closed)
Angle of View	1/3″ Wide: 97.4° x 72.5° 1/3″ Tele: 24.1° x 18.1° 1/4″ Wide: 72.5° x 54.1° 1/4″ Tele: 18.1° x 13.6°
Focusing Range	11.8″ (30 cm) to infinity
Operation	Focus: Manual with Lock Zoom: Manual with Lock Iris: Auto-Iris (DC)
Back Focus (in air)	Wide 8.61 to 19.90 mm
Operating Voltage	Open 4.0 VDC Close 0.7 VDC
Operating Temperature	-4 to 140°F (-20 to 60°C)
Dimensions (Diam. x L)	1.6 x 2.5″ (41.0 x 63.5 mm)
Weight	2.5 oz (71 g)

Packaging Info
Package Weight	0.25 lb
Box Dimensions (LxWxH)	3.05 x 3.0 x 2.0″

In the Box

Tamron 1/3″ 2.8-12mm f/1.4 Vari-Focal Lens with Connector

Limited 6-Year Warranty
