SWIT S-3602D Dual Charger/Adapter For Panasonic VW-VBD58/CGA D54S & D28S Batteries(Swit S 3602d Dual Charger Adapter For Panasonic Vw Vbd58 Cga D54s D28s Batteries)
Original price was: $276.40.$98.99Current price is: $98.99.
- Elevate Your Shopping Experience
- Product guarantee 100% satisfaction
- The quality solution for all your needs.
- Streamlined service, designed for your convenience.

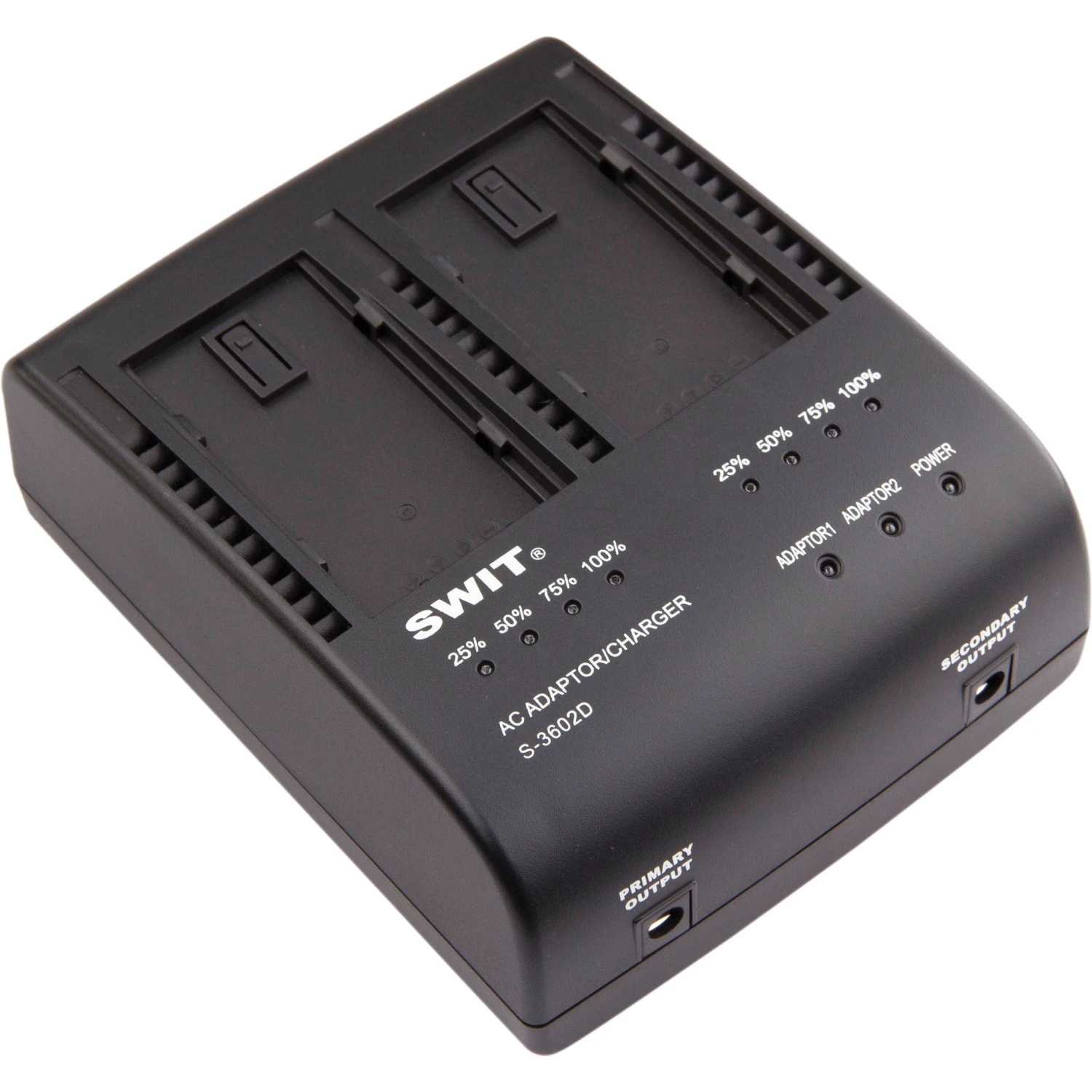

The SWIT S-3602D Dual Charger/Adapter has two charging channels with 7-8.4 VDC, 2A output each for simultaneously charging two batteries. It is compatible with the SWIT S-8D58/S-8D62 and Panasonic VW-VBD58 and CGA series D54 and D28 DV batteries. Four-level LED charging indicators for each channel indicate the percentage of charge remaining.

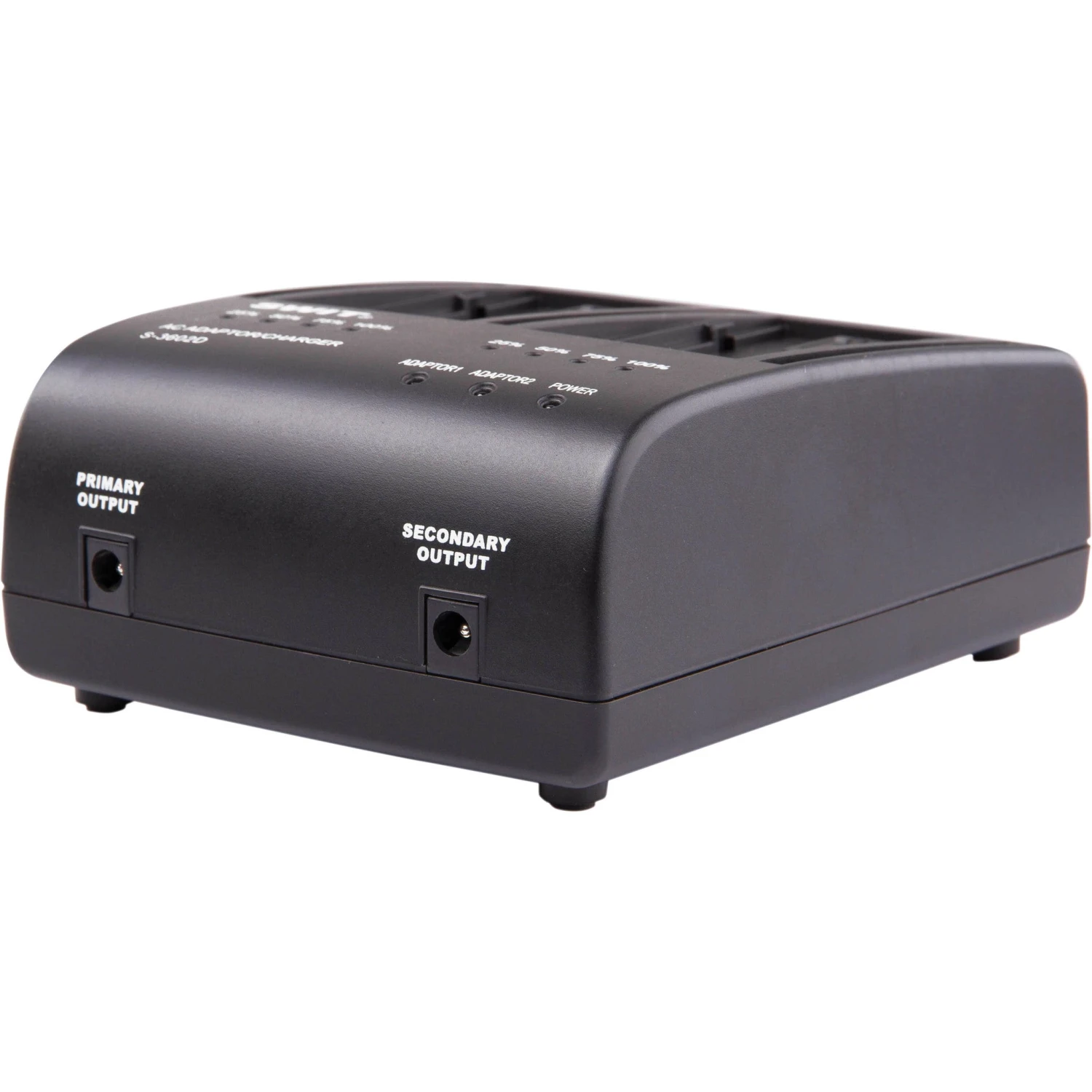

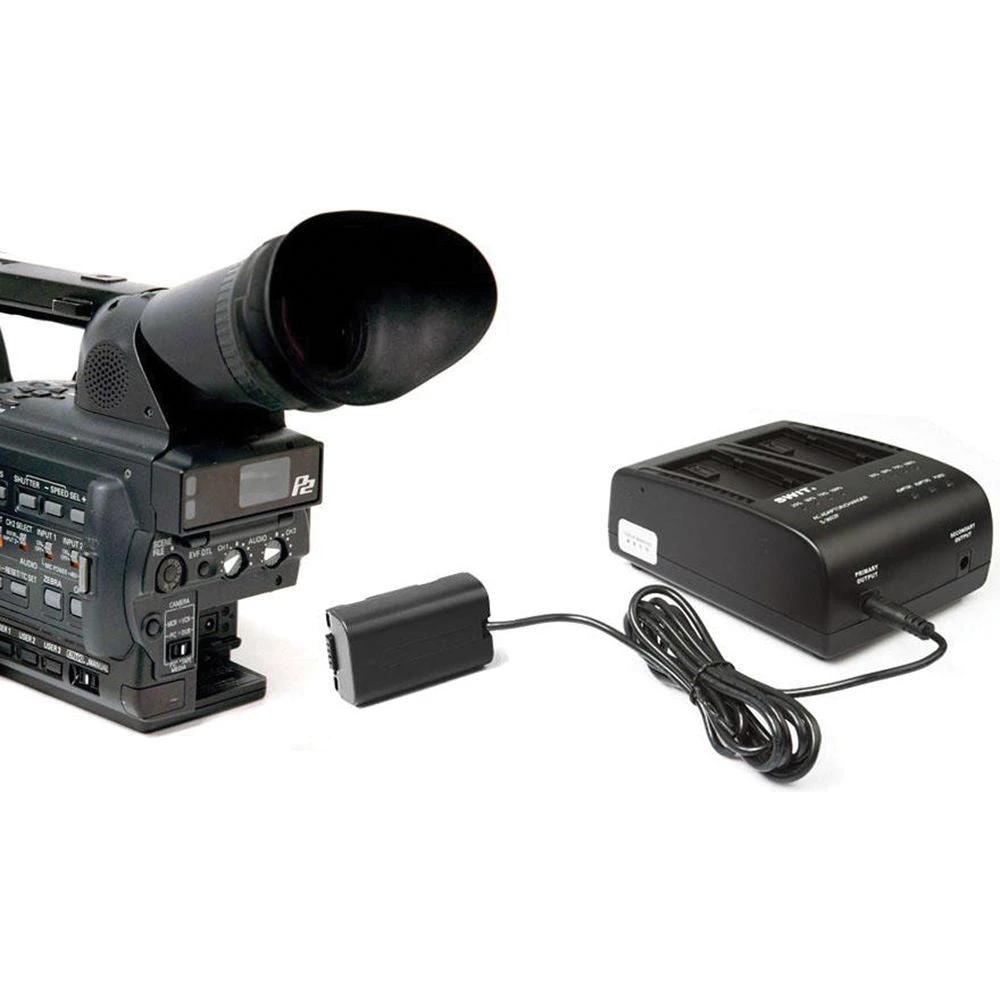

The dual charger also has two 5.5/2.1mm DC pole sockets to provide 8.4V, 3.5A (total) DC adapting output. The S-7500P dummy adapter is included for adapting Panasonic DV cameras or equipment with the corresponding battery mounts. Both channels can simultaneously provide DC output to the connected cameras/accessories or one channel can be used to charge a battery by dropping it in, while the other can be used to adapt to a camera/accessory.
Note: One dummy adapter is included to adapt one of the dual DC pole sockets to a compatible camera. To use both adapting outputs simultaneously, an additional dummy adapter must be purchased.

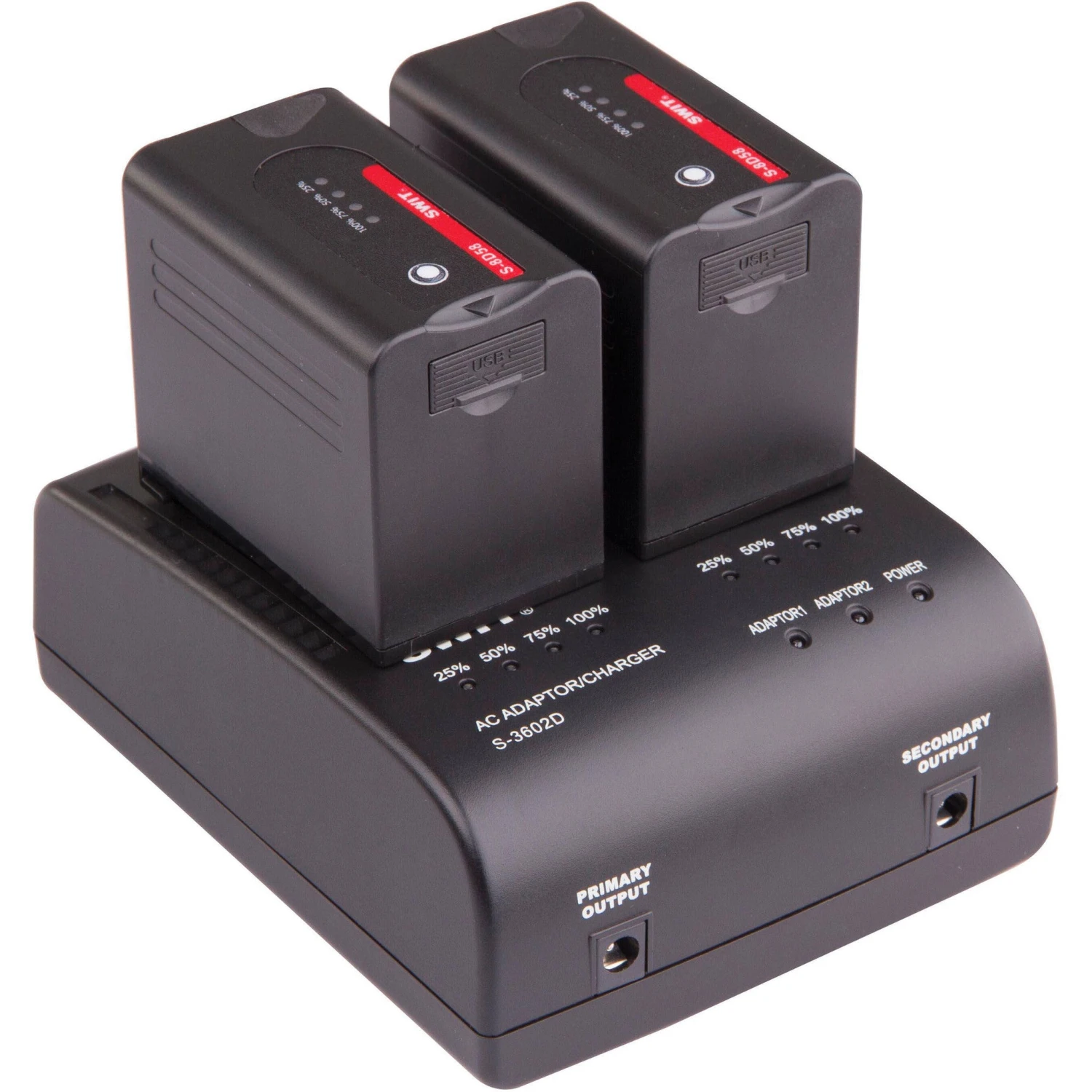

- Two-channel simultaneous charging
- Two 8.4V, 3.5A (total) DC adapting output sockets
- Compatible with SWIT S-8D58/S-8D62 and Panasonic VW-VBD58 and CGA series D54 and D28 DV batteries
- Includes the S-7500P dummy adapter to adapt to Panasonic DV and corresponding accessories
- Four-level LED charging indicators
| Input | 100 to 240 VAC, 50/60 Hz |
| Output | Charger: 7 to 8.4 VDC, 2 x 1.8 A Adapter: 8.4 VDC, 3.5 A (total) |
| Maximum Power Consumption | 50 W |
| Compatibility | Batteries: SWIT S-8D58/S-8D62 Panasonic VW-VBD58, CGA D54S/D28S Cameras: Panasonic DV cameras that use VW-VBD58 or CGA-D54/D28 series batteries |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Dimensions | 5.4 x 4.3 x 1.9″ (136 x 110 x 47 mm) |
| Weight | 12.7 oz (360 g) |
| Packaging Info | |
|---|---|
| Package Weight | 1.75 lb |
| Box Dimensions (LxWxH) | 9.1 x 7.7 x 2.5″ |
- S-7500P Dummy Battery Adapter
- Power Supply
- Limited 2-Year Warranty
