Sale!

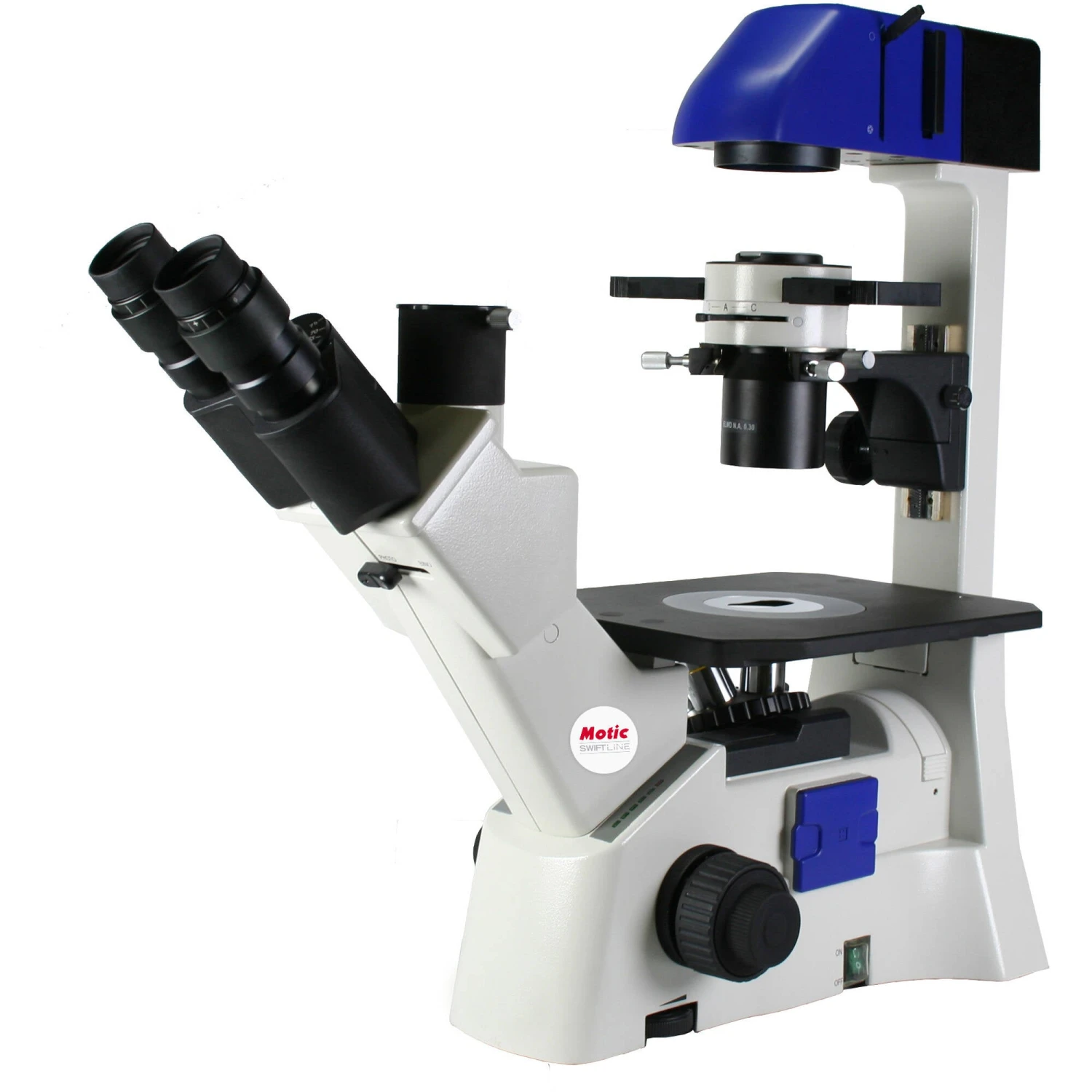

Swift MAE31-R Trinocular Inverted Microscope(Swift Mae31 R Trinocular Inverted Microscope)

Original price was: $318.00.Current price is: $98.99.

SKU: DGFUB 7075348643925 Categories: Microscopes, Optics, Optics & Surveillance Tags: Compound Microscopes, Microscopes, Optics, Swift MAE-31R

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Swift MAE-31R Overview

Ideal for advanced high school, biology, college, veterinarian, medical, or technical applications, the Swift MAE31-R Trinocular Inverted Microscope from Swift is ergonomically designed with a professional frame and low-position coaxial focusing that allows for one-handed operational use. A Siedentopf-style head is set at a comfortable 45° angle to the body for a natural and comfortable viewing position with a dioptric correction and wide interpupillary adjustment range-making it easy to achieve tack-sharp views and convenient for multiple people to share the eyepieces. It features a trinocular head, infinity corrected and phase contrast optics, plus halogen illumination.

Plain stage with glass and metal inserts

Trinocular, Siedentopf with light splitter

Ergonomic 45º observation angle

Side-facing quintuple nosepiece

Infinity corrected optics

Halogen illumination with intensity control

10x and 20x infinity and phase

ELWD N.A. 0.30 condenser

Items Included

Swift MAE31-R Trinocular Inverted Microscope
Dust Cover
Power Cord
Allen Key
Blue Interference and Ground Glass Filter
Green Interference and Ground Glass Filter
Phase Ring Ph1
Centering Telescope
Centering Keys
Limited 5-Year Manufacturer Warranty (MAE-31R Trinocular Inverted Microscope)

Additional Resources

User Manual

1.3 MB

Swift MAE-31R Specs

Key Specs

Microscope Type	Digital
Head	Trinocular
Nosepiece	4-Position Nosepiece
Optical Magnification	No
Objective	4 to 20x
Eyepiece	10x
Max Resolution	4 MP
Power Source	AC Adapter

Head	Trinocular
Diopter Correction	Yes
Nosepiece	4-Position Nosepiece

Imaging

Optical Magnification	No
Digital Magnification	40 to 200x
Objective	4 to 20x
Eyepiece	10x
Max Resolution	4 MP
Focusing	Coarse, Fine

Connectivity/System Requirements

Wired Connectivity	HDMI
Wireless	Wi-Fi *Built-In
Media/Memory Card Slot	No
OS Compatibility	macOS Windows

General

Power Source	AC Adapter
Input Power	100 to 240 VAC, 50 / 60 Hz
Display	No
Interpupillary Adjustment	55 to 75 mm / 2.2 to 3″
Dimensions	22 x 21 x 8″ / 55.9 x 53.3 x 20.3 cm
Weight	27 lb / 12.2 kg
