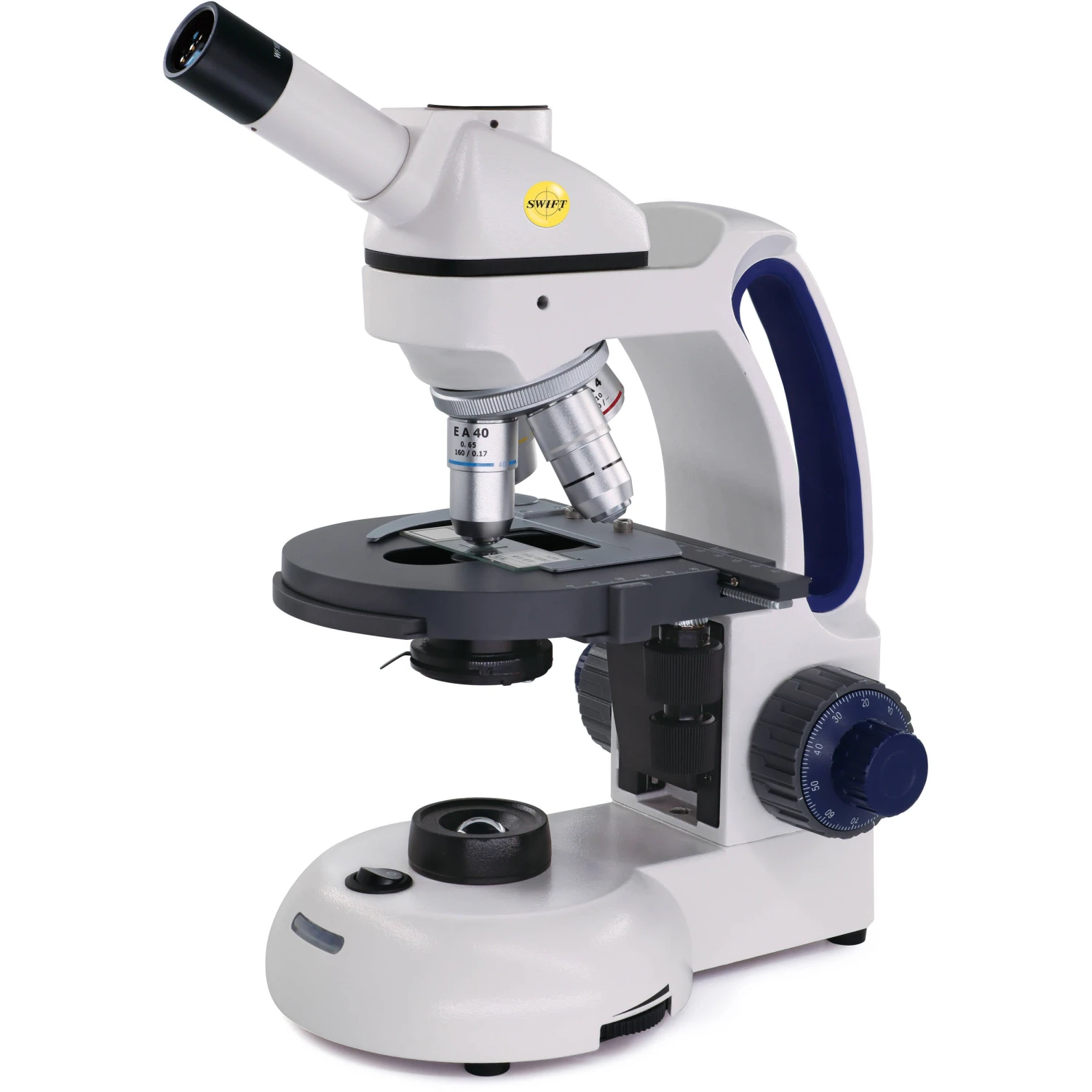

Swift M3604C-4 Cordless Monocular Microscope(Swift M3604c 4 Cordless Monocular Microscope)

Original price was: $311.00.Current price is: $96.99.

SKU: DGFUB 6751488311381 Categories: Microscopes, Optics, Optics & Surveillance Tags: Compound Microscopes, Microscopes, Optics, Swift M3604C

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Swift M3604C Overview

1Description
2Use and Handling
3Optical Performance
4Stage and Illumination

The M3600 series is their flagship student-proof offering, and the Swift Optical M3604C-4 Cordless Monocular Microscope is a step-up from the base models in the lineup, offering a larger 1.25 N.A. Abbe condenser instead of the smaller 0.65 N.A. built-in style. This version is powered by a rechargeable battery that allows you to take it into the field for hours of on-the-ground research, or you can leave the charging cable plugged in for extended runtimes in labs or classrooms. Designed to hold up to use and abuse, the eyepiece and objectives are fixed in place while the stage moves up and down to achieve focus�this keeps the delicate optical components safe from tampering or getting hit out of alignment.

Its monocular head is set at a comfortable 45° angle to the body for a natural and comfortable viewing position and is equipped with a 10x eyepiece that, when combined with the objectives, produces magnifications from 40x to 1000x. The objectives are all parfocal and parcentered, so that little or no focus adjustment will be required when changing magnifications and the center of the view will remain consistent between objectives.

Its dual-speed coaxial focuser features a tension adjustment on the coarse adjustment so there is no slippage when the knob is released. A large 5.75×4.75″ stage has integrated easy-to-use slide clips that can be used with one hand to make changing slides fast. The lower LED illuminator has a rheostat to control the intensity and is directed through a 1.25 N.A. Abbe condenser with a precision spiral diaphragm that gives you extreme control of the light coming through to the stage. The aperture of the condenser is larger than the highest-power objective, so you can be sure that the appropriate amount of light is transmitted to the specimen at all magnifications. Utilizing current LED technology delivers higher light efficiency than a conventional tungsten bulb with a cool operating temperature that prolongs specimen life when viewing live material and extends battery life when working in the field.

Use and Handling

Simple monocular head that is set at a 45° angle to place user’s head in a comfortable viewing position
Quad-objective turret is mounted in reverse position to facilitate ease in changing slides with ball bearings for smooth and precise positioning of objectives
Color-coded objectives provide fast identification of the selected magnification
Environmentally friendly lead-free objective glass
Integrated camera port on top of the head allows easy use of an optional Moticam camera
Curved body with integrated carry handle promotes proper and safe handling
Powered by an internal rechargeable battery for fieldwork, or use in a lab/classroom setting with the included 110 VAC charging cord connected for extended runtime

Optical Performance

18mm 10x Pointmaster eyepiece has an in-view pointer
Four magnification choices provide a wide range for a variety of applications: 40x, 100x, 400x, 1000x
DIN standard 4x (0.10 N.A.), 10x (0.25 N.A.), 40xR (0.65 N.A.), and 100xR (1.25 N.A.) objectives
Objectives are parfocal so little or no focus correction is required when switching between magnifications and parcentered so the center of the view will remain the same when changing objectives

Stage and Illumination

Dual-speed coarse and fine coaxial focusing mechanism produces tack-sharp views for all users
Tension adjustment on the focuser eliminates stage drift when the knob is released
Stage moves up and down to achieve focus�eyepiece and body remain fixed in position
Generous 5.75 x 4.75″ stage easily holds specimens other than slides
Large 1.25 N.A. Abbe condenser with spiral diaphragm allows the user to precisely control the amount of light transmitted to the specimen to improve their subject’s contrast for better views
The condenser aperture matches the highest power objective, ensuring complete light coverage of the specimen at the highest magnification
Variable-intensity lower LED illuminator provides transmitted specimen illumination

In the Box

Swift M3604C-4 Cordless Monocular Microscope
Vinyl Dust Cover
110 VAC Power Cord
Limited Lifetime Warranty

Table of Contents

Description
Use and Handling
Optical Performance
Stage and Illumination

Swift M3604C Specs

Microscope Type	Compound
Head	45° Inclined Monocular
Nosepiece	4-Position Nosepiece

Imaging

Optical Magnification	40 to 1000x
Objective	4 to 100x
Eyepiece	10x Wide Field
Focusing	Coarse

Illumination

Illumination Type	Bottom: 1 x LED
Condenser	1.25 Numerical Aperture (NA) Abbe
Dimmer	Yes

General

Power Source	Battery
Battery	1 x Rechargeable
AC Input Power	110 VAC, 50 Hz
Interpupillary Adjustment	None
Material	Aluminum
Dimensions	14.3 x 9.25 x 6″ / 36.32 x 23.5 x 15.24 cm
Weight	9.8 lb / 4.4 kg
