Sale!

Swift M3603C-WF3-X5 Cordless Monocular Microscope With Moticam X5 Camera(Swift M3603c Wf3 X5 Cordless Monocular Microscope With Moticam X5 Camera)

Original price was: $349.00.Current price is: $99.99.

SKU: DGFUB 6995905249365 Categories: Microscopes, Optics, Optics & Surveillance Tags: Compound Microscopes, Microscopes, Optics, Swift M3603C-WF3-X5

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Swift M3603C-WF3-X5 Overview

1Description
2Objective Lenses
3Eyepiece
4Total Magnification
5Specimen Stage
6Condenser
7Focusing
8Illumination
9Size & Weight

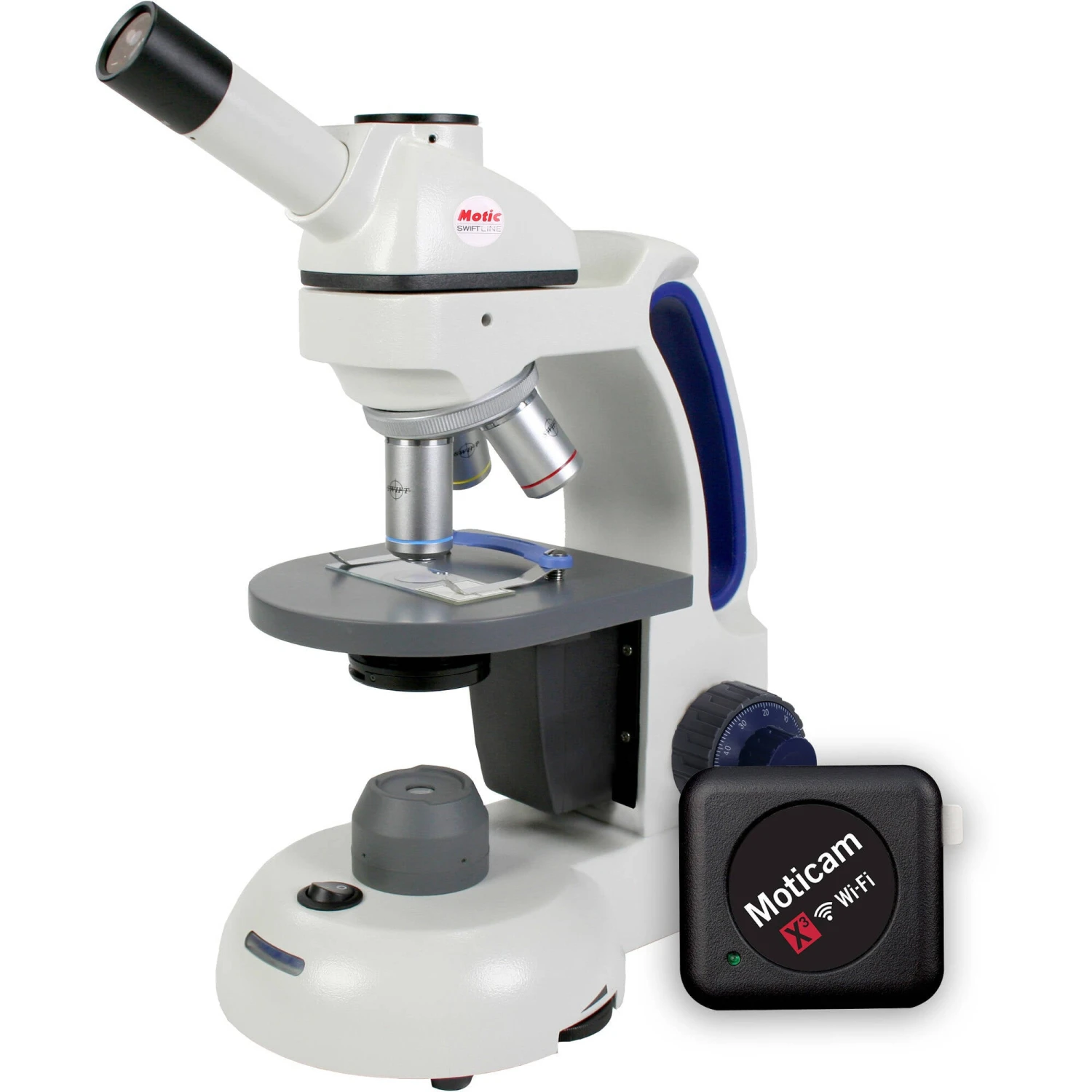

The Swift M3603C-WF3-X5 monocular cordless LED microscope with 4mp WiFi microscope camera. This is a rechargeable cordless microscope with a built-in carrying handle.

Objective Lenses

DIN standard 4x, 10x, 40xR achromat objective lenses are mounted in triple revolving nosepiece with click stops. All objectives are parfocalled, parcentered and color-coded. Mounted in reverse position to facilitate ease in changing slides.

Eyepiece

Widefield 10x/18mm eyepiece. 45° inclined eyepiece.

Total Magnification

40x, 100x, 400x.

Specimen Stage

Large 5.75 x 4.75″ (143 x 120mm) built-in low profile stage with one touch stage clips.

Condenser

Built-in 0.65 NA condenser has iris diaphragm (sealed).

Focusing

Low position coarse and fine focusing controls. Stage moves up or down while eyepiece and body remain fixed. Slip clutch prevents damage to focusing system. Tension adjustment eliminates stage drift. Safety rack stop prevents damage to slides and objective lenses.

Illumination

LED light rated to 50,000 hours of life. Batteries allow up to 500 recharges, for a total of 20,000 hours use from a single set of 3 AA rechargeable nickel hydride batteries. Battery charger included with microscope, automatically shuts off when batteries are fully charged. 110~220V.

Size & Weight

9.25″ x 6″ x 14.25″ high, 10 lbs.

In the Box

Swift M3603C-WF3-X5 Cordless Monocular Microscope with Moticam X5 Camera
Limited 5-Year Manufacturer Warranty

User Manual
