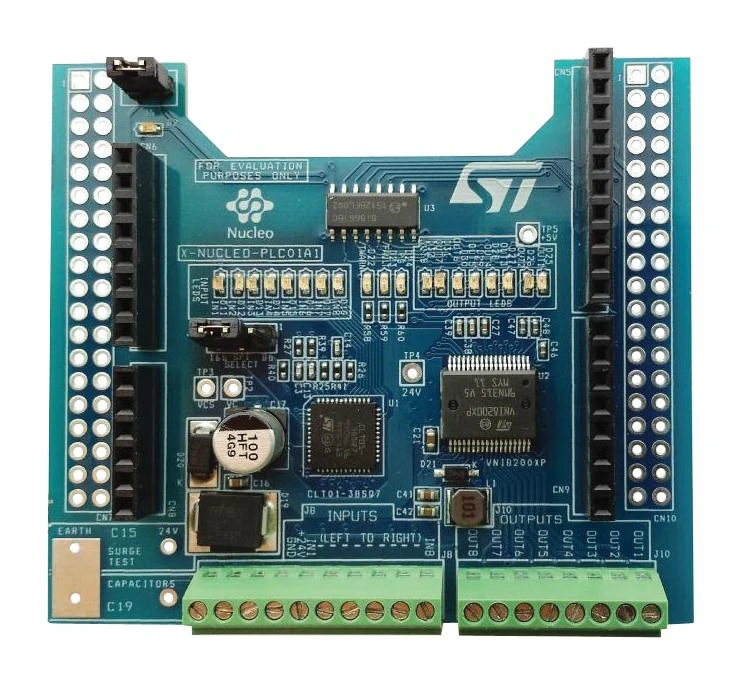

Stmicroelectronics X-NUCLEO-PLC01A1 X-NUCLEO-PLC01A1 Expansion Board Industrial I/O PLC For STM32 Nucelo Arduino Compatible(Stmicroelectronics X Nucleo Plc01a1 X Nucleo Plc01a1 Expansion Board Industrial I O Plc For Stm32 Nucelo Arduino Compatible)

Original price was: $15.41.Current price is: $10.79.

SKU: DGFUB 6959173468245 Categories: Arduino Compatible Kits & DIY Kits, Electronics & Tools, Electronics, DIY Kit & Hobbies Tags: ARM, Education & Maker Boards, Embedded Computers

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Industrial input/output expansion board based on VNI8200XP and CLT01-38SQ7 for STM32 Nucleo. Board interfaces with the STM32 MCU via the SPI peripheral. Moreover, it is equipped with a set of diagnostic and activity LEDs to facilitate application debugging. It can accept other STM32 plug-on expansion boards to further extend the STM32 Nucleo board functionality. It allows the rapid evaluation of the ICs on board performing a basic set of PLC operations in conjunction with the X-CUBE-PLC1 software package.

Enables a PLC (Programmable Logic Controller) function subset on STM32 Nucleo
8x input with CLT01-38SQ7 high-speed protected digital termination array
8x output with VNI8200XP high-side solid state relay
Fault, thermal, power status LEDs
IO (input/output) activity LEDs 24V power supply
Free comprehensive development firmware library and example compatible with STM32Cube firmware
Compatible with STM32 Nucleo boards
Compatible with Arduino UNO R3 connector

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Product details

Silicon Manufacturer	STMicroelectronics
Core Architecture	–
Core Sub-Architecture	–
Silicon Core Number	VNI8200XP, CLT01-38SQ7
Silicon Family Name	–
For Use With	STM32 Nucleo boards
Kit Contents	Industrial Input/Output Expansion Boards VNI8200XP & CLT01-38SQ7
Product Range	–

Other details

Brand	STMICROELECTRONICS
Part Number	X-NUCLEO-PLC01A1
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
