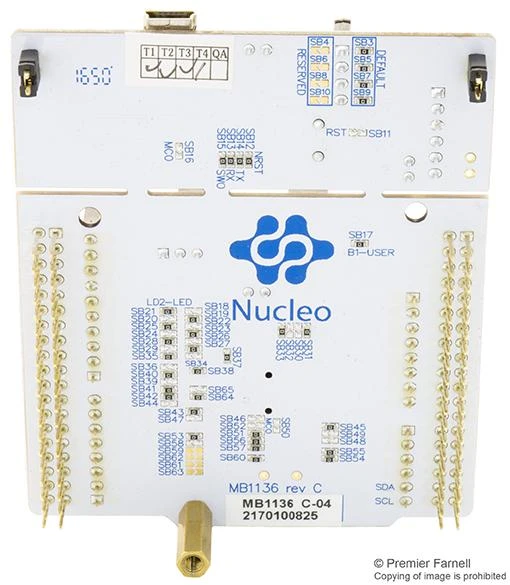

Stmicroelectronics NUCLEO-L476RG Development Board STM32L476RG MCU On-Board STLINK/V2-1 Arduino & ST Morpho Connectivity(Stmicroelectronics Nucleo L476rg Development Board Stm32l476rg Mcu On Board Stlink V2 1 Arduino Amp St Morpho Connectivity)

The NUCLEO-L476RG is a STM32 Nucleo-64 Development Board with STM32F410RB microcontroller. The board provides a flexible way for users to try out new ideas and build prototypes with any STM32 microcontroller line, choosing from the various combinations of performance, power consumption and features. The Arduino� connectivity support and ST Morpho headers make it easy to expand the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields. The board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger and programmer. The board comes with the STM32 comprehensive software HAL library together with various packaged software examples, as well as direct access to mbed online resources.

• USB VBUS or external source (3.3V, 5V, 7 to 12V) and power management access point
• USB communication (LD1), user LED (LD2), power LED (LD3)
• Two push summarys – USER and RESET
• USB re-enumeration capability – virtual com port, mass storage, debug port
• Supported by wide choice of IDEs including IARâ�¢, Keil®, GCC-based IDEs

Applications

Test & Measurement, Industrial

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Product details

Silicon Manufacturer	STMicroelectronics
No. of Bits	32bit
Silicon Family Name	STM32L4
Core Architecture	ARM
Core Sub-Architecture	Cortex-M4
Silicon Core Number	STM32L476RG
Kit Contents	Dev Board STM32L476RG
Product Range	–

Other details

Brand	STMICROELECTRONICS
Part Number	NUCLEO-L476RG
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
Operating Instructions EN
