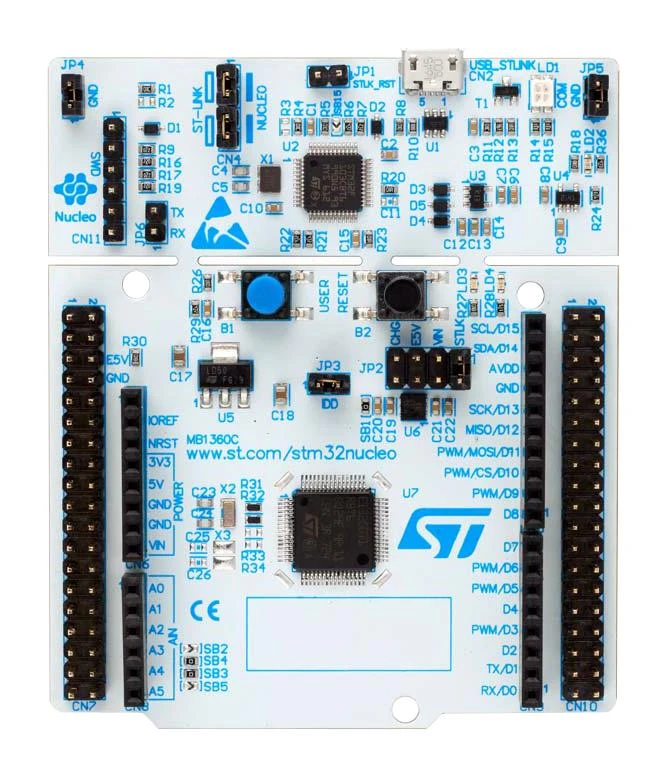

Stmicroelectronics NUCLEO-G070RB Development Board STM32 Nucleo-64 Arduino Uno Compatible ST-Link Debugger(Stmicroelectronics Nucleo G070rb Development Board Stm32 Nucleo 64 Arduino Uno Compatible St Link Debugger)

STM32 Nucleo-64 development board with STM32G070RB MCU, supports Arduino and ST morpho connectivity. The STM32 Nucleo-64 boards provide an affordable and flexible way for users to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features, provided by the STM32 microcontroller. For the compatible boards, the external SMPS significantly reduces power consumption in Run mode.

• 1 user LED shared with Arduinoâ�¢
• 1 user and 1 reset push-summarys
• 32.768KHz crystal oscillator
• Arduinoâ�¢ Uno V3 expansion connector
• ST morpho extension pin headers for full access to all STM32 I/Os
• Flexible power-supply options: ST-LINK, USB VBUS or external sources
• On-board ST-LINK debugger/programmer with USB re-enumeration capability
• Comprehensive free software libraries and examples available with the STM32Cube MCU Package
• Support of a wide choice of IDEs including IARâ�¢, Keil®, and GCC-based IDE

Footnotes The STM32 Nucleo-64 board does not require any separate probe as it integrates the ST-LINK debugger/programmer. Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Product details

Silicon Manufacturer	STMicroelectronics
No. of Bits	32bit
Silicon Family Name	STM32G0
Core Architecture	ARM
Core Sub-Architecture	Cortex-M0+
Silicon Core Number	STM32G070RBT6
Kit Contents	Nucleo-64 Dev Board STM32G070RBT6
Product Range	–

Other details

Brand	STMICROELECTRONICS
Part Number	NUCLEO-G070RB
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
