STMICROELECTRONICS NUCLEO-F756ZG Development Board, STM32 Nucleo-144, STM32F756ZI MCU, Arduino Compatible, ST Zio, Morpho(Stmicroelectronics Nucleo F756zg Development Board Stm32 Nucleo 144 Stm32f756zi Mcu Arduino Compatible St Zio Morpho)

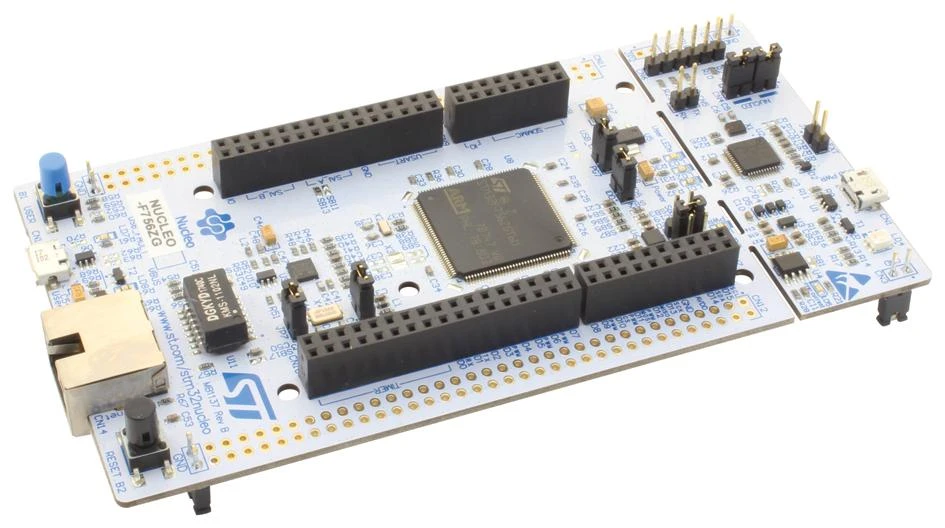

STM32 Nucleo-144 development board with STM32F756ZG MCU, supports Arduino, ST Zio and morpho connectivity. It provides an affordable and flexible way for users to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features, provided by the STM32 microcontroller. For the compatible boards the internal or external SMPS significantly reduces power consumption in Run mode. The ST Zio connector which extends the ARDUINO® Uno V3 connectivity and the ST morpho headers provide an easy means of expanding the functionality of the Nucleo open development platform with wide choice of specialized shields.

• 3 user LEDs
• 2 user and reset push-summarys
• 32.768KHz crystal oscillator
• Flexible power-supply options: ST-LINK, USB VBUS or external sources
• On-board ST-LINK debugger/programmer with USB re-enumeration capability
• Comprehensive free software libraries and examples available with the STM32Cube MCU Package
• Support of a wide choice of IDEs including IARâ�¢, Keil®, and GCC-based IDE
• Arm® Mbed Enabledâ�¢ compliant and Ethernet compliant with IEEE-802.3-2002
• USB OTG FS on Microâ��AB connector
• External or internal SMPS to generate Vcore logic supply

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
