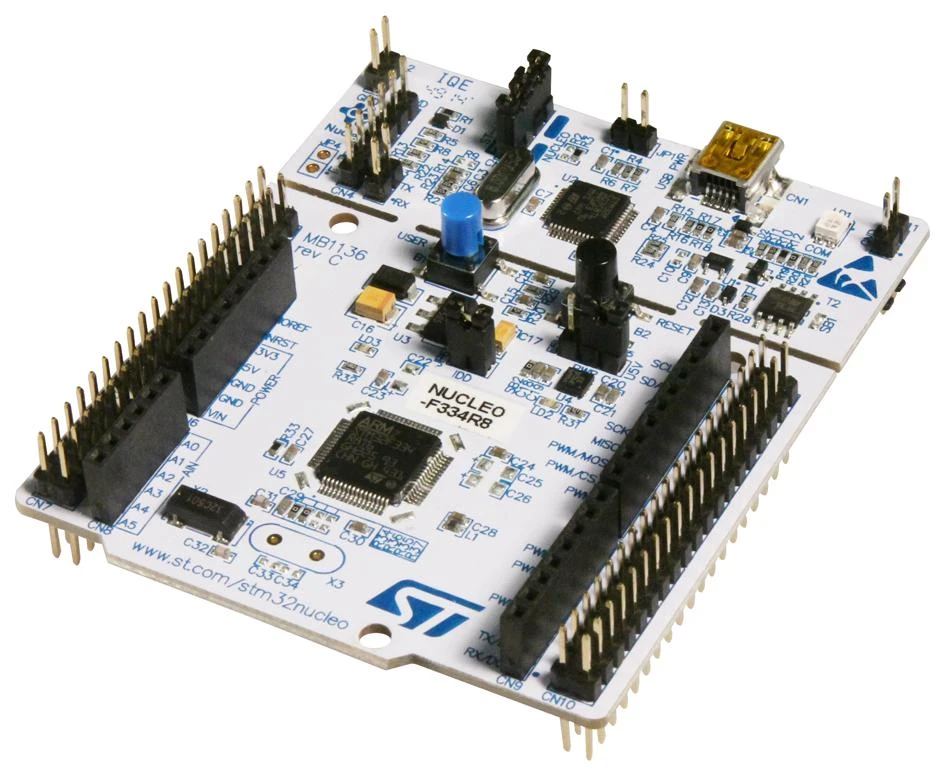

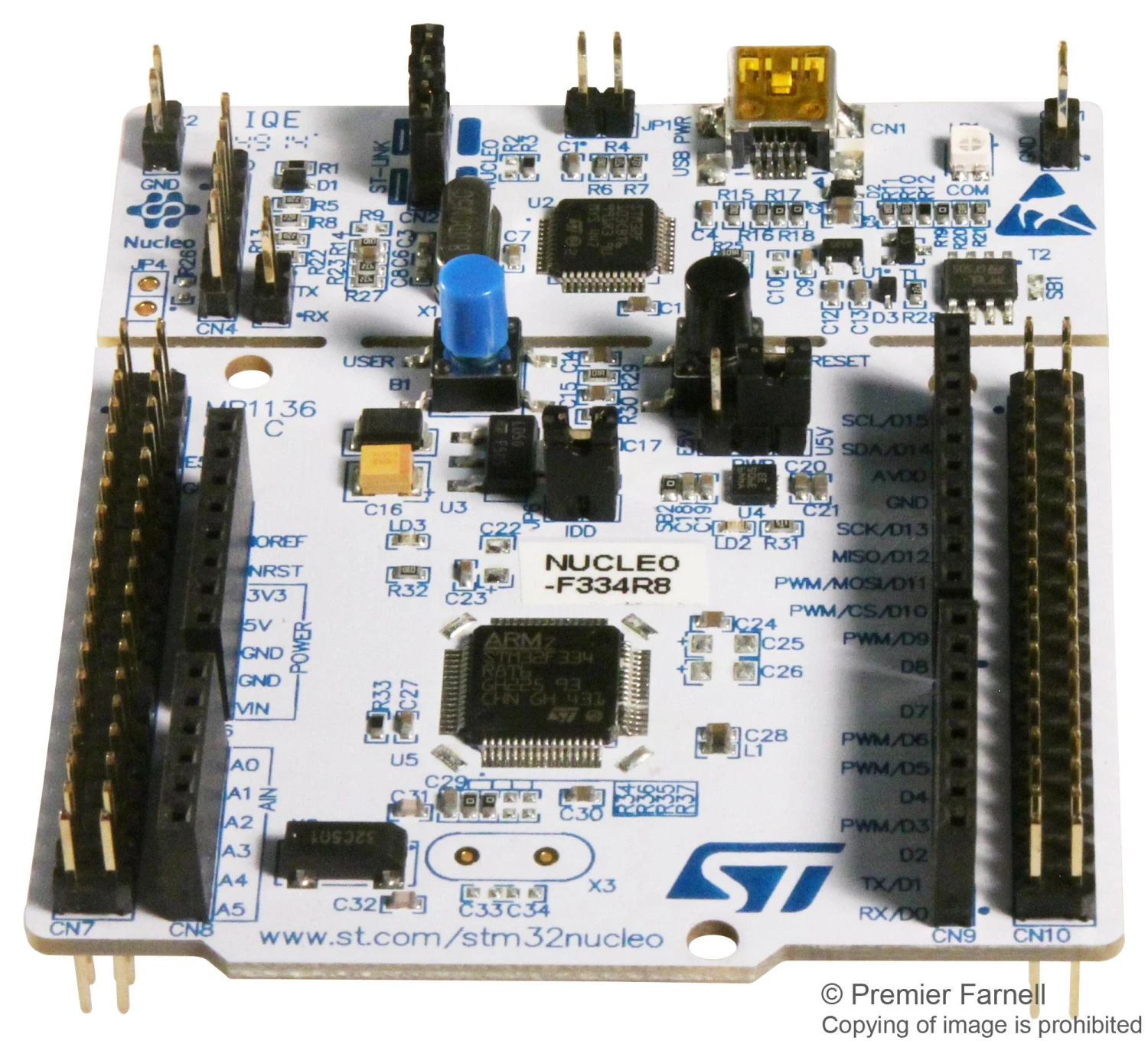

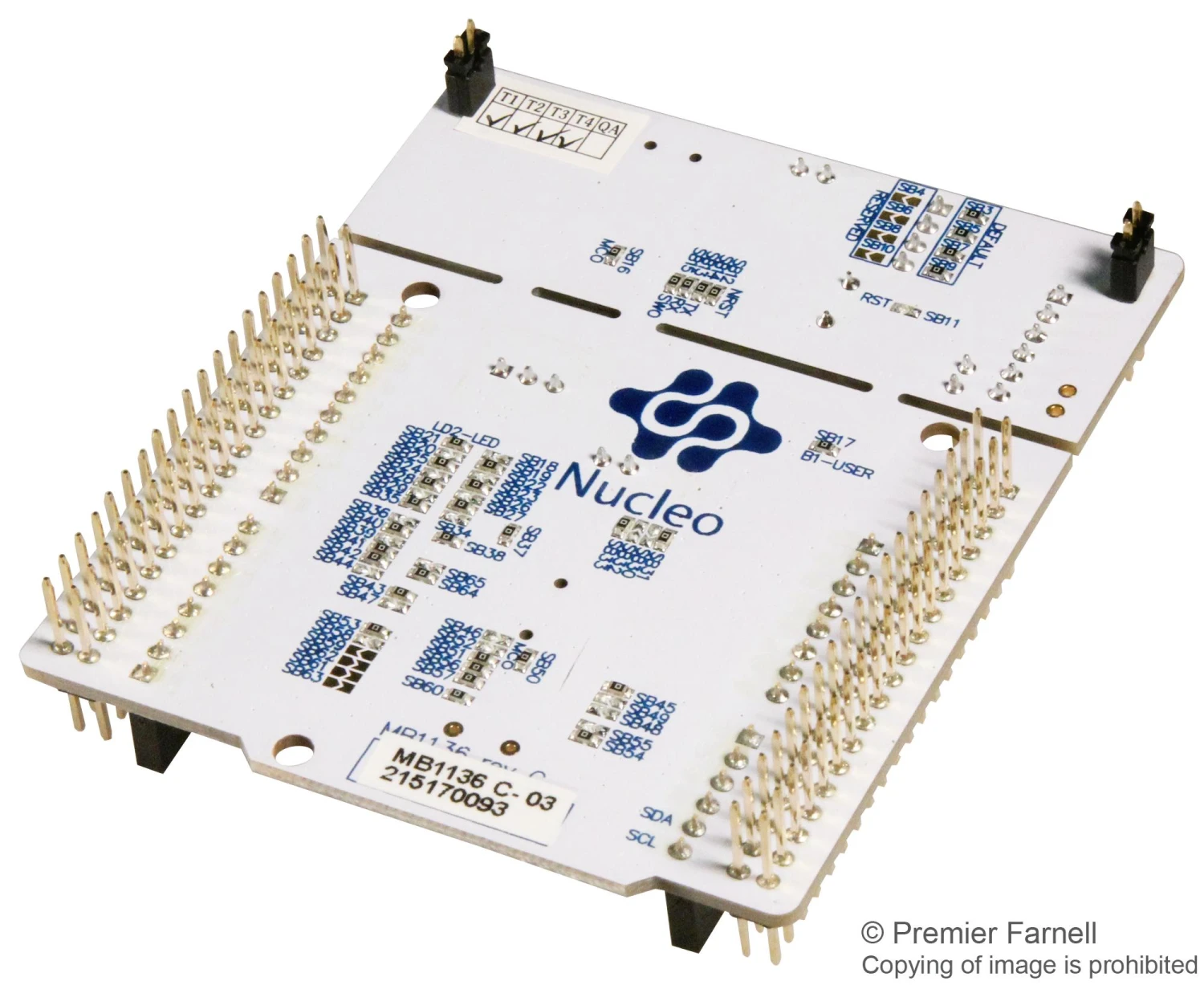

Stmicroelectronics NUCLEO-F334R8 Development Board STM32F334R8 MCU ST-LINK/V2-1 Debugger/Programmer Arduino/ST Morpho Compatible(Stmicroelectronics Nucleo F334r8 Development Board Stm32f334r8 Mcu St Link V2 1 Debugger Programmer Arduino St Morpho Compatible)

The NUCLEO-F334R8 is a STM32 Nucleo development board with STM32F334R8T6 MCU allows user to build their own prototypes for embedded applications. The Arduino connectivity support and ST Morpho headers make it easy to expand the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields. The STM32 Nucleo board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger/programmer. The STM32 Nucleo board series are based on ARM Cortex-M 32-bit RISC cores optimised for high performance and energy efficiency. ARM Cortex-M features a high density instruction set and a Nested Vectored Interrupt Controller (NVIC) providing excellent interrupt handling abilities.

• Onboard STM32F334R8T6 microcontroller
• Arduino Uno Revision 3 connectivity and STMicroelectronics Morpho extension resources supported
• Onboard ST-LINK/V2-1 debugger/programmer with SWD connector
• USB VBUS or external source power supplies (3.3V, 5V, 7-12V), Power management access point
• Three LED indications for USB communication, user LED, power LED
• Two push summarys for user and reset
• Three interfaces supported on USB. Virtual Com port, Mass storage and Debug port
• STM32 comprehensive software HAL library
• Supported by Integrated Development Environments (IDEs) including IAR, Keil, GCC based IDEs

Applications

Consumer Electronics, Embedded Design & Development, Portable Devices, Hobby & Education

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Product details

Silicon Manufacturer	STMicroelectronics
No. of Bits	32bit
Silicon Family Name	STM32F3
Core Architecture	ARM
Core Sub-Architecture	Cortex-M4
Silicon Core Number	STM32F334R8
Kit Contents	Dev Board STM32F334R8
Product Range	–

Other details

Brand	STMICROELECTRONICS
Part Number	NUCLEO-F334R8
Quantity	Each
