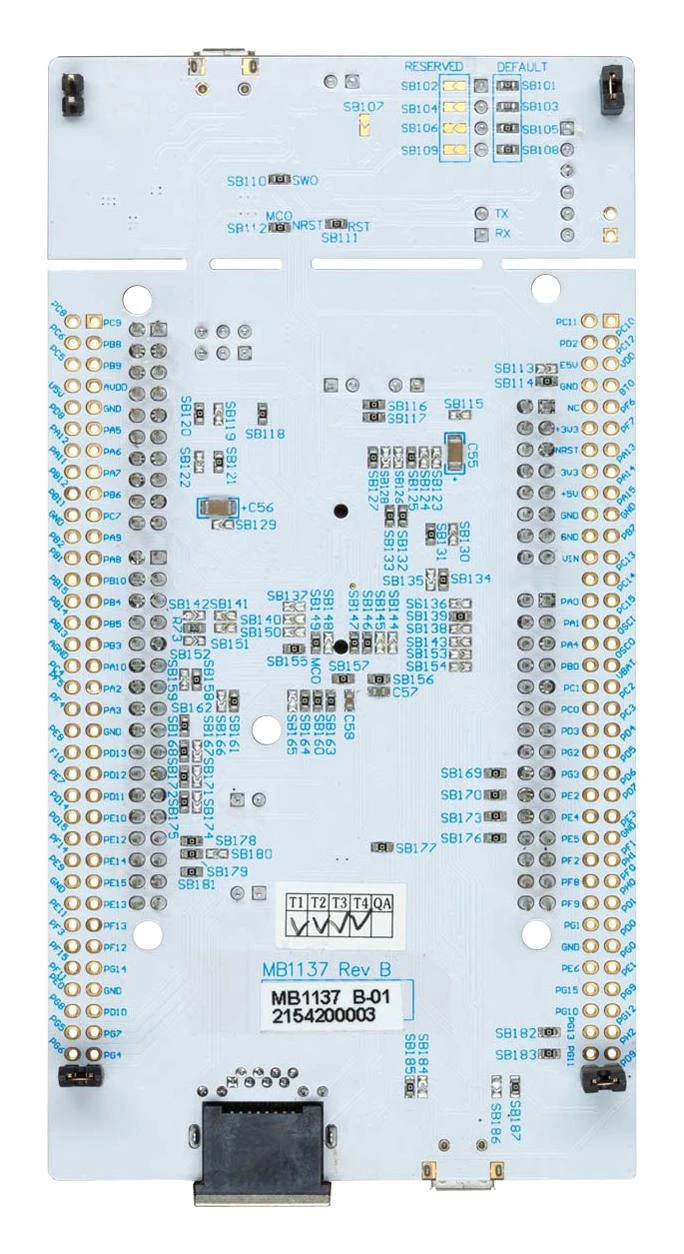

Stmicroelectronics NUCLEO-F207ZG NUCLEO-F207ZG Development Board STM32F207ZG MCU On Debugger Arduino Uno Compatible(Stmicroelectronics Nucleo F207zg Nucleo F207zg Development Board Stm32f207zg Mcu On Debugger Arduino Uno Compatible)

STM32 Nucleo-144 board provides an affordable and flexible way for users to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features, provided by the STM32 microcontroller.

• Flexible power-supply options: ST-LINK, USB VBUS or external sources
• On-board ST-LINK debugger/programmer with USB re-enumeration capability
• Support of a wide choice of IDEs including IARâ�¢, Keil® and STM32CubeIDE
• External or internal SMPS to generate Vcore logic supply
• Ethernet compliant with IEEE-802.3-2002
• Arm® Mbed Enabledâ�¢, Ethernet, USB OTG FS on Microâ��AB connector and ST-LINK/V2-1
• STM32 microcontroller in LQFP144 package
• 3 user LEDs, 2 user, reset push-summarys, 32.768KHz crystal oscillator

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Product details

Silicon Manufacturer	STMicroelectronics
No. of Bits	32bit
Silicon Family Name	STM32F2
Core Architecture	ARM
Core Sub-Architecture	Cortex-M3
Silicon Core Number	STM32F207ZG
Kit Contents	Dev Board STM32F207ZG
Product Range	–

Other details

Brand	STMICROELECTRONICS
Part Number	NUCLEO-F207ZG
Quantity	Each
Technical Data Sheet EN
Operating Instructions EN
User Manual EN
Product Change Notice EN
