- Converts Ethernet to Optical Signals
- 1000Base-T/SX/LX Supported
- Supports Link Fault Pass (LFP)
- Auto Detects Half/Full Duplex Transfers
- Auto Negotiation of MDI/MDI-TX
- Range of up to 1804′ (550 m)
Extend your Gigabit Ethernet connection over long distances with the Gigabit Ethernet Fiber Media Converter from StarTech . This device converts Gigabit Ethernet signals to optical signals to extend a network connection over a fiber backbone. It’s equipped with a multi-mode transceiver and operates on an 850 nm wavelength for distances up to 1804′ (550 m). Enclosed in a metal housing, this device ensures reliable performance and scalability between distant locations. It also features auto MDIX, support for 9K jumbo frame, and Link Fault Pass (LFP). Installation is easy as it’s a plug-and-play device. Once it’s set up, you can mount it in a variety of options and monitor it using its LED indicators.
- Supports auto negotiation to bridge different network speeds and devices to a Gigabit fiber network
- Compact standalone design and wall mounting option for easy and convenient installation
- 850nm LC multimode Gigabit fiber connection using the included SFP transceiver
- 1804′ (550 m) range on fiber optic interface
- Link Fault Pass (LFP) supported
- Durable metal housing
- Auto MDIX
- 9K Jumbo Frame supported
| Hardware | |
|---|---|
| Industry Standards | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-SX IEEE 802.3z 1000BASE-LX |
| PoE | No |
| Performance | |
|---|---|
| Auto MDIX | Yes |
| Compatible Networks | 10/100/1000 Mbps |
| Operating Mode | Full-Duplex |
| Fiber Type | Multi-Mode |
| Max Transfer Distance | 1804′ (550 m) |
| Maximum Data Transfer Rate | 1 Gbps |
| MTBF (Approx.) | > 50,000 hours at 77°F (25°C) |
| Wavelength | 850 nm |
| Connectors | |
|---|---|
| Ports | 1 x RJ-45, Female 1 x Fiber Optic LC Duplex, Female |
| Indicators | |
|---|---|

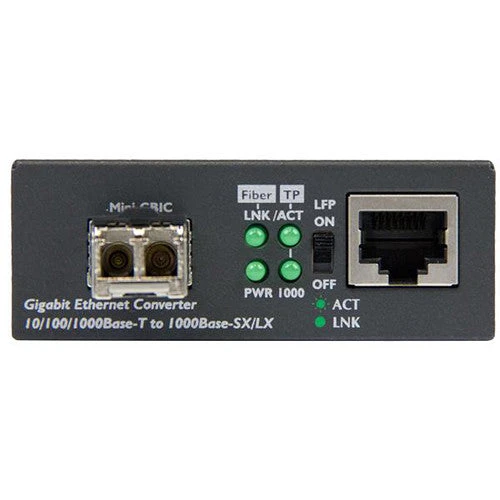

| LED Indicators | 1 x Power 1 x Fiber Port Link/Act 1 x Copper Port Link/Act 1 x 1000 Mbps |
| Power | |
|---|---|
| Center Tip Polarity | Positive |
| Input Current | 1 A |
| Input Voltage | 100 – 240 AC |
| Output Current | 2 A |
| Output Voltage | 5 DC |
| Plug Type | N |
| Power Consumption | 5 W Max |
| Power Source | AC Adapter Included |
| Environmental Specifications | |
|---|---|
| Operating Humidity | 5 – 95% RH (non-condensing) |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | 14 to 158°F (-10 to 70°C) |
| General | |
|---|---|
| Material | Steel |
| Dimensions (H x L x W) | 1 x 8.1 x 2.8″ (26 x 205 x 70 mm) |
| Weight | 7.1 oz (200 g) |
| Packaging Info | |
|---|---|
| Package Weight | 1.15 lb |
| Box Dimensions (LxWxH) | 11.0 x 5.6 x 2.8″ |

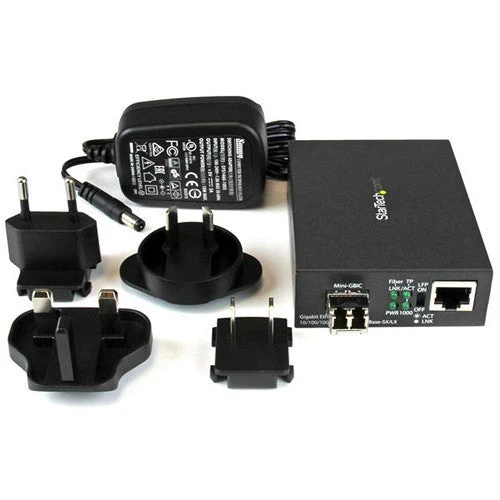

- Power Adapter
- Limited 2-Year Warranty
