Speco Technologies HTI70TM Overview

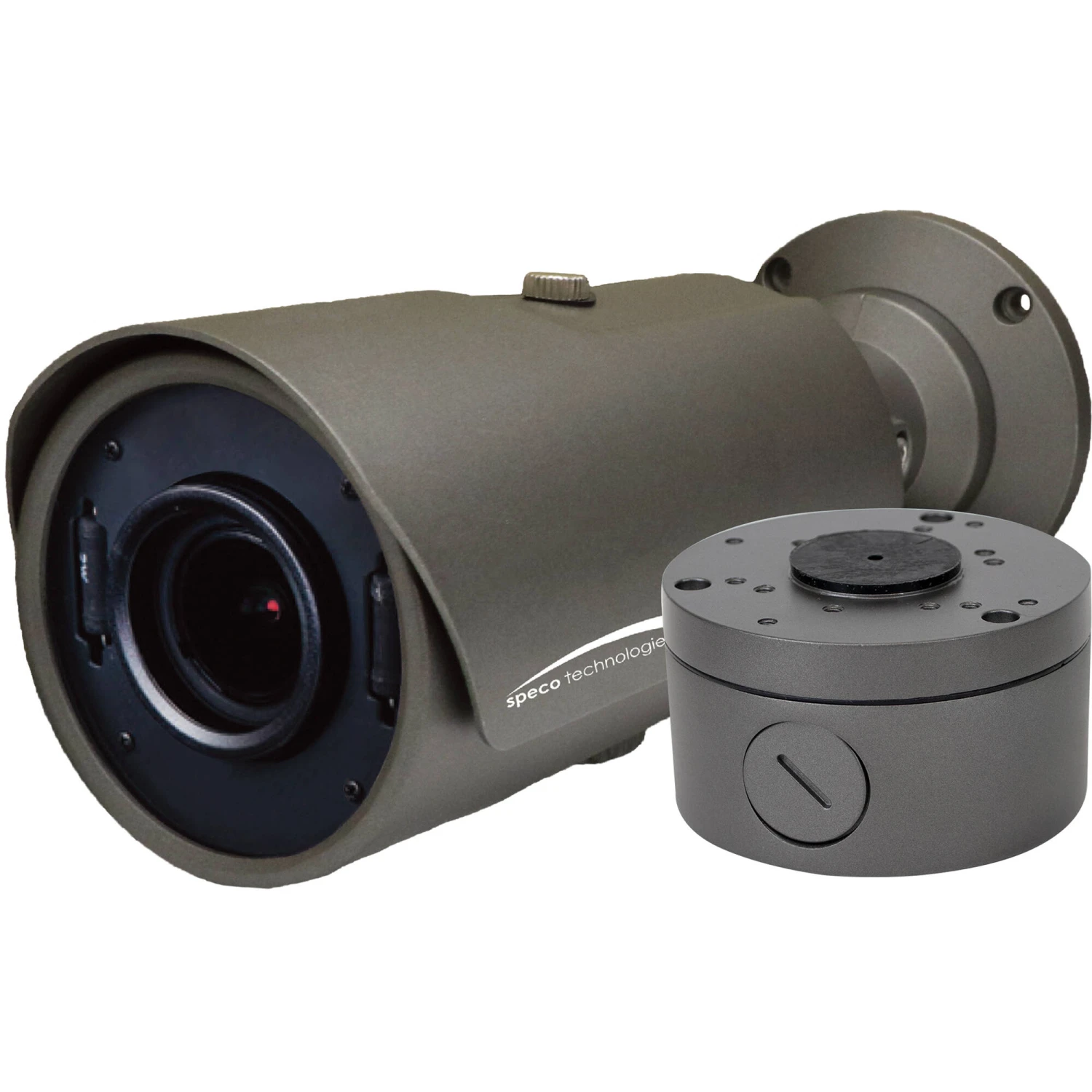

Monitor your surroundings with the dark gray Intensifier HTI70TM 2MP Outdoor HD-TVI Bullet Camera from Speco Technologies. This unit uses a 1/3″ progressive scan CMOS sensor to transmit 1080p resolution video at 30 fps. The HTI70TM features a 2.8-12mm motorized varifocal lens and supports HD-TVI and CVBS signal outputs. An Up-the-Coax (UTC) connection allows for control of the camera via OSD.
This NDAA-compliant camera is housed in an IP67-rated enclosure for safe outdoor use. An integrated heater ensures that the camera will be operational in temperatures as low as -40°F.
Items Included
- Speco Technologies Intensifier HTI70TM 2MP Outdoor HD-TVI Bullet Camera with 2.8-12mm Lens & Heater

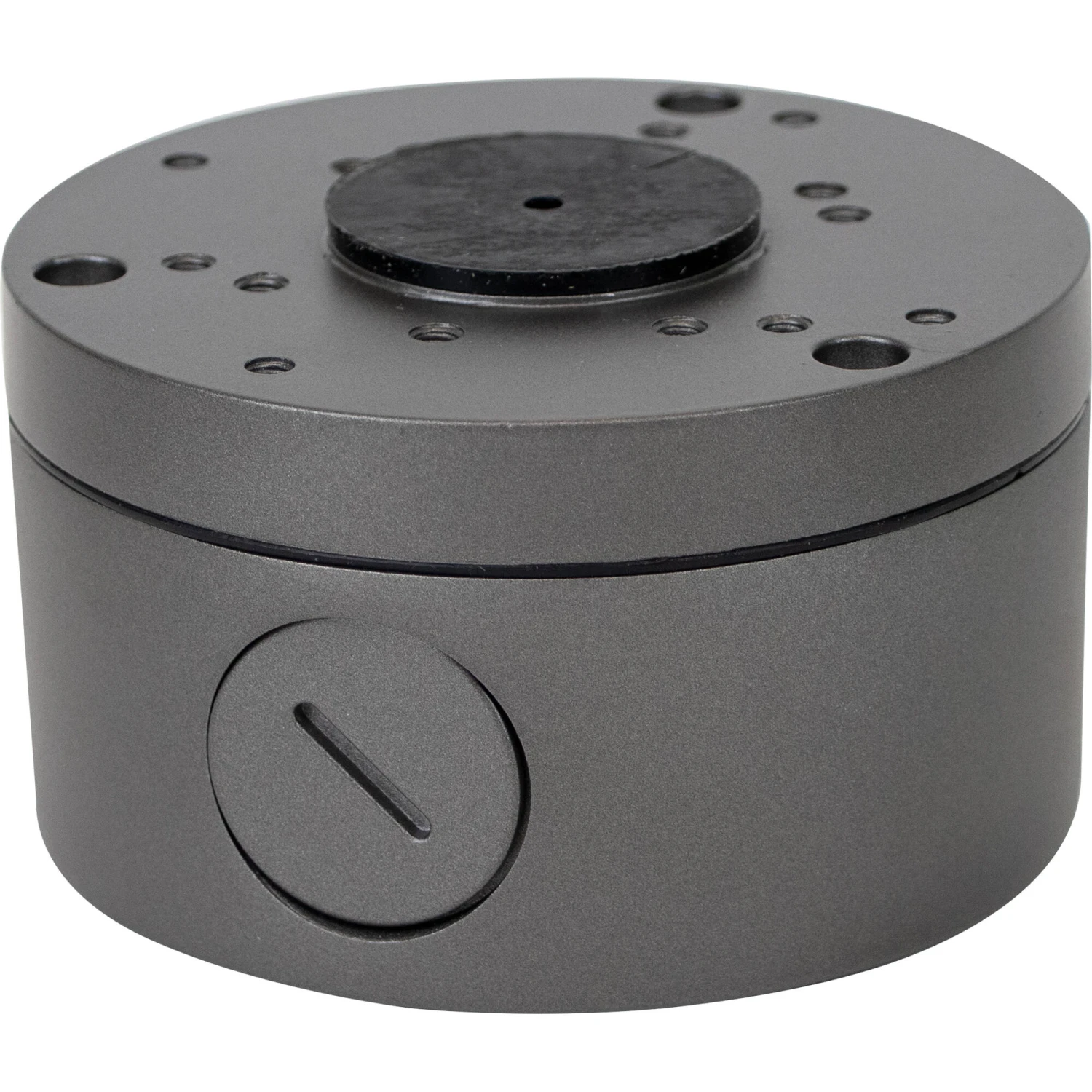

- Junction Box
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
Speco Technologies HTI70TM Specs
| Image Sensor |
1/3″-Type CMOS |
| Focal Length |
2.8 to 12mm |
| Output Formats |
HD-TVI: 1920 x 1080 at 30 fps Composite: 960 x 480 |
| Video I/O |
2x BNC (Composite) Output |
| Power I/O |
1x DC Input |
| Number of Lenses |
1 |
| Image Sensor |
1/3″-Type CMOS |
| Sensor Resolution |
Effective: 2 Megapixel |
| Day/Night |
Yes |
| Shutter Speed |
1/30000 to 1/30 Second |
| Minimum Illumination |
0.001 Lux |
| Focal Length |
2.8 to 12mm |
| Optical Zoom Ratio |
4.3x |
| Output Formats |
HD-TVI: 1920 x 1080 at 30 fps Composite: 960 x 480 |
| Up-the-Coax Communication |
Yes |
| Video I/O |
2x BNC (Composite) Output |
| Built-In Speaker |
No |
| Alarm I/O |
No |
| Power I/O |
1x DC Input |
| Power Consumption |
12 VDC at 600 mA with Heater 24 VAC at 450 mA with Heater |
| Operating Conditions |
-40 to 140°F / -40 to 60°C |
| Environmental Resistance |
Weather/Dust/Water-Resistant (IP67) |
| Certifications |
FCC, RoHS, NDAA |
| Dimensions (W x H x D) |
3.72 x 9.64″ / 94.49 x 244.86 mm |
| Weight |
2 lb / 907 g (Body Only) |
| Package Weight |
2.84 lb |
| Box Dimensions (LxWxH) |
13.6 x 5.8 x 5.3″ |
