Speco Technologies DD2 Overview

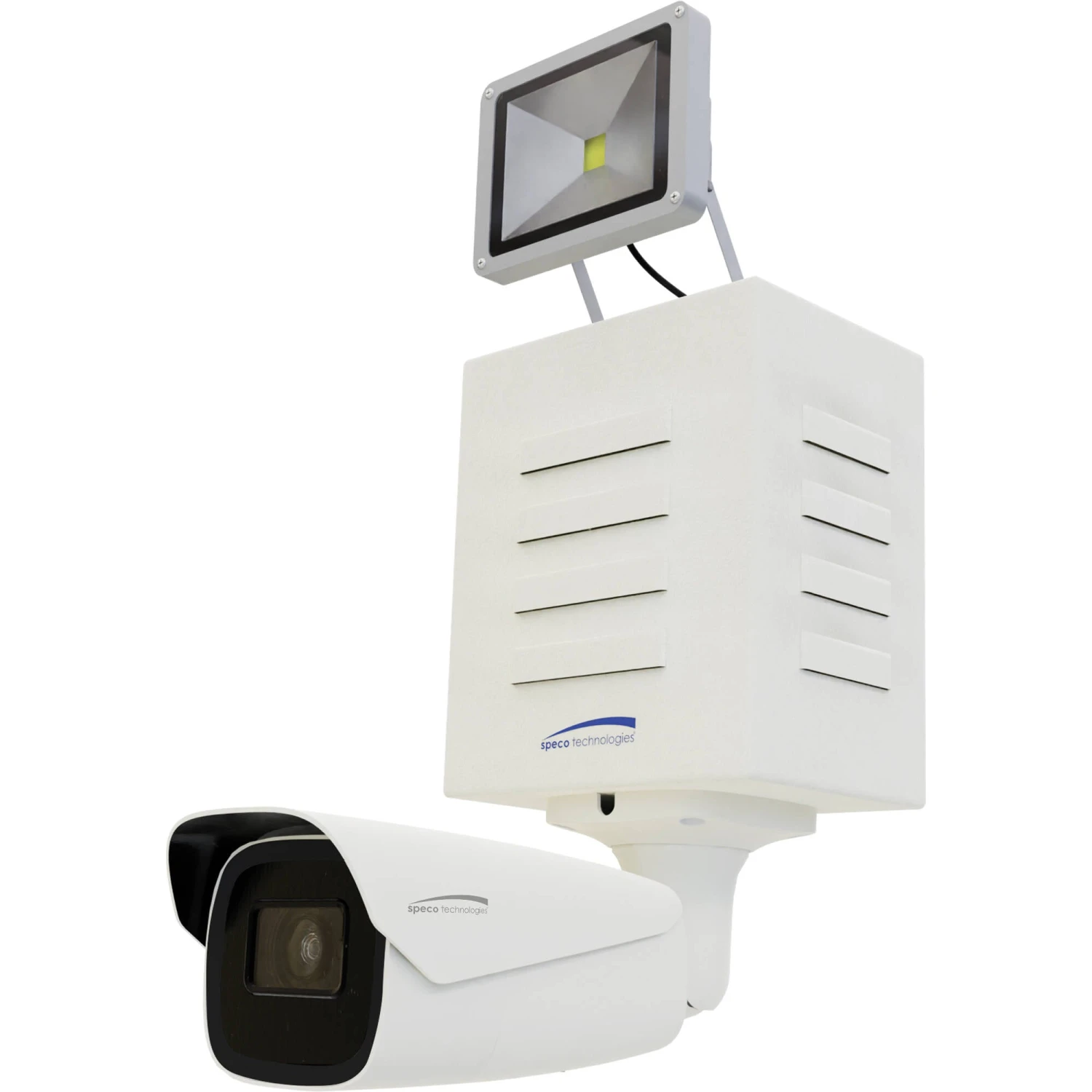

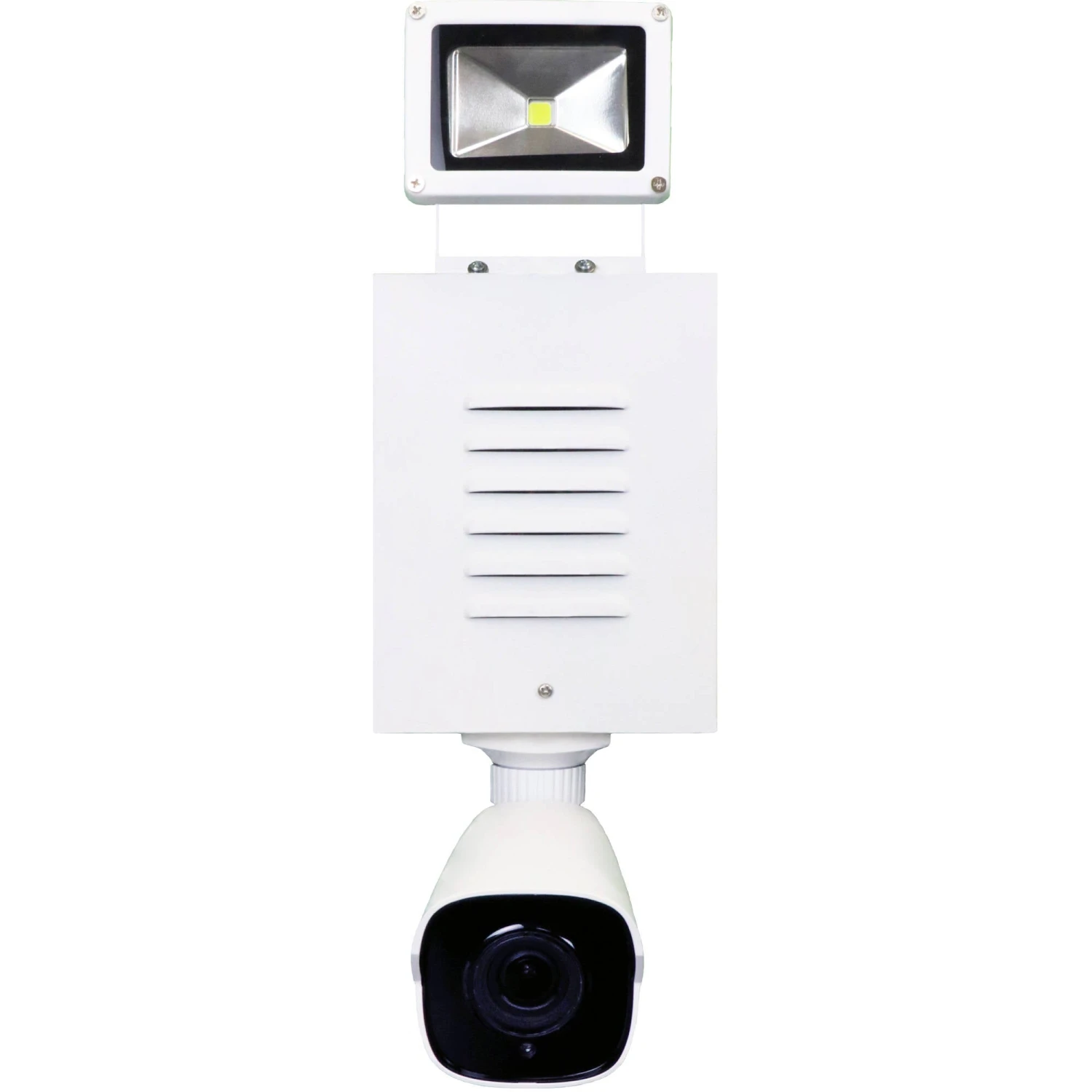

Monitor an indoor or outdoor area with the white DD2 Outdoor Digital Deterrent Alert Box with 4MP Network Bullet Camera, Floodlight & Siren from Speco Technologies. The camera uses a 1/3″ progressive scan CMOS sensor to capture 2592 x 1520 resolution video at 30 fps. IR LEDs provide up to 230′ of night vision. The camera features a 2.8-12mm motorized varifocal lens that delivers a 100 to 28.9° horizontal field of view. The floodlight, 120 dB warbling siren, and audio alarms keep intruders and unwanted activity at bay. Two-way audio is possible thanks to an audio input and output. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. A memory card slot supports microSD cards up to 256GB (available separately).
Compliance with ONVIF profiles G, S, and T enables interoperability with a wide range of surveillance devices. The DD2 is housed in a weather-resistant enclosure that is suitable for safe outdoor use.
In the Box
- Speco Technologies DD2 Outdoor Digital Deterrent Alert Box with 4MP Network Bullet Camera, Floodlight & Siren
- Limited 2-Year Manufacturer Warranty
Speco Technologies DD2 Specs
| Sensor |
4 MP 1/3″ CMOS |
| Focal Length |
2.8 to 12mm |
| Lens Field of View |
Horizontal: 100 to 28.9° Vertical: 54.5 to 16.7° Diagonal: 104.8 to 33.1° |
| Video Outputs |
1 x BNC (Composite) |
| Built-In Mic |
No |
| Power Source |
DC, PoE 802.3af (15 W) |
| Environmental Protection |
Advertised as Weather Resistant *Test Methodology Not Supplied |
| Illumination |
IR LEDs up to 230′ / 70.1 m |
| Sensor |
4 MP 1/3″ CMOS |
| Focal Length |
2.8 to 12mm |
| Maximum Aperture |
f/1.3 |
| Zoom |
Optical: 4.3x |
| Lens Field of View |
Horizontal: 100 to 28.9° Vertical: 54.5 to 16.7° Diagonal: 104.8 to 33.1° |
| IR Cut Filter |
Mechanical |
| Day/Night |
Yes |
| Minimum Illumination |
Color: 0.018 Lux B&W: 0 Lux |
| Shutter Speed |
1/100,000 to 1/30 Seconds |
| Streaming Resolution |
2592 x 1520 at 30 fps |
| Supported Video Compression |
H.264, H.265, MJPEG |
| Multi-View Streaming |
Yes, 3 Streams |
| Automatic Gain Control |
Yes |
| Video Outputs |
1 x BNC (Composite) |
| 1- or 2-Way Audio |
Two-Way |
| Audio Formats |
G.711 |
| Built-In Mic |
No |
| Built-In Speaker |
No |
| Audio I/O |
Input: 1 x 1/8″ / 3.5 mm Output: 1 x 1/8″ / 3.5 mm |
| Pan/Tilt |
No |
| Security |
Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, MAC Address Filtering, Password Protection, Watermark |
| Supported Protocols |
DDNS, DHCP, FTP, HTTP, IPv4/v6, NTP, PPPoE, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), UDP, UPnP |
| Application Programming Interface (API) |
ONVIF Profiles G, S & T |
| Analytics |
Motion, Exception, Line Crossing, Region Intrusion, Museum Search, Vehicle/People Detection, Face Detection, People & Vehicle Counting |
| OS Compatibility |
*As of March, 2023: Check with manufacturer for the most up-to-date compatibility |
| Event Trigger |
Yes |
| Event Action |
Recording, Notification, Alarm |
| Data Streaming |
Yes |
| Alarm I/O |
1 / 1 |
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum] |
| Internal Storage |
No |
| Power Source |
DC, PoE 802.3af (15 W) |
| Environmental Protection |
Advertised as Weather Resistant *Test Methodology Not Supplied |
| Inputs/Outputs |
1 x RJ45 1 x BNC 1 x Power |
| Illumination |
IR LEDs up to 230′ / 70.1 m |
| Video Management Software |
SecureGuard VMS & CMS for PC Applications, SecureGuard Client & Speco Blue for iOS & Android |
