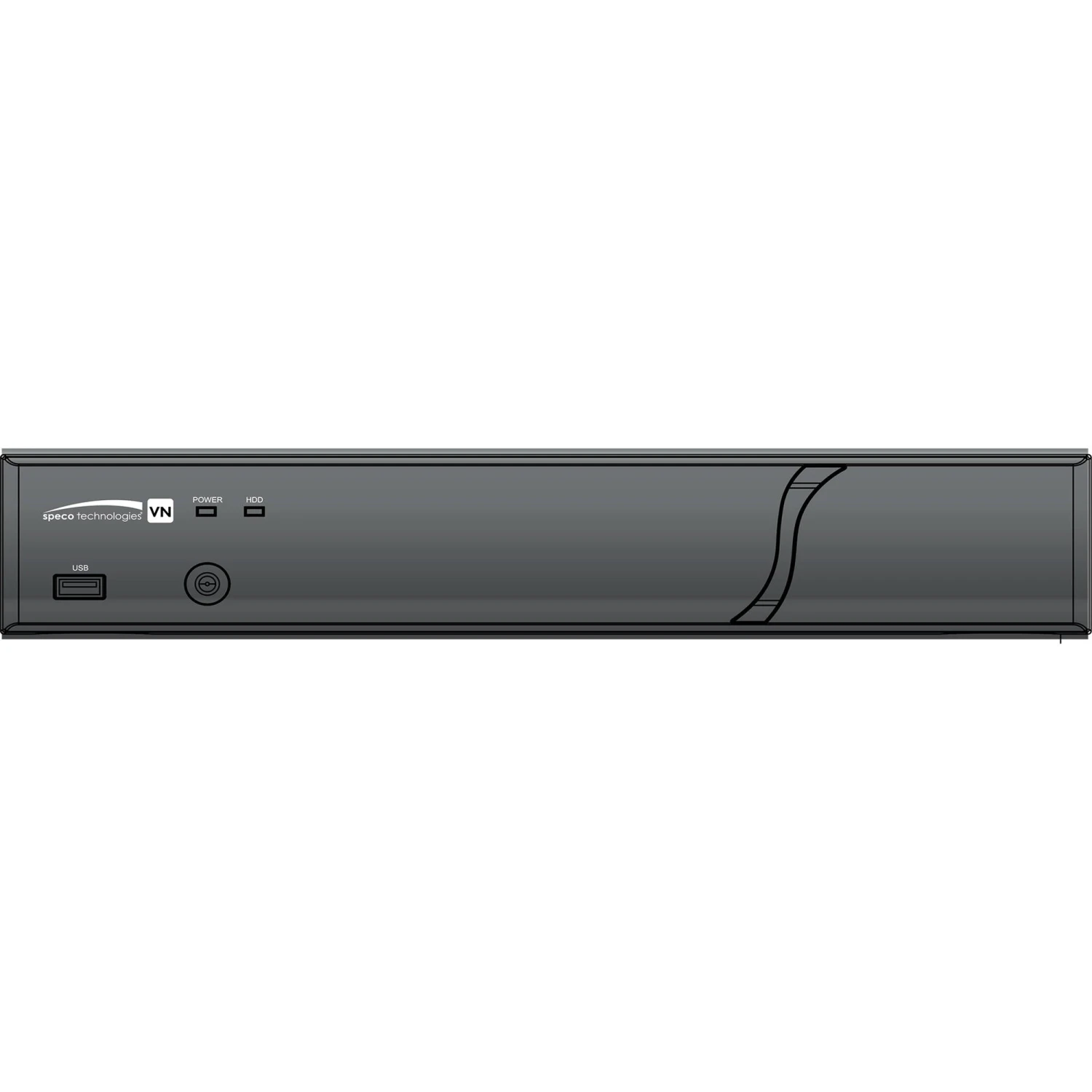

Speco Technologies D16VN Overview
Record from and manage up to 16 analog cameras at resolutions up to 4MP with the D16VN 16-Channel 4MP HD-TVI DVR with 2TB HDD from Speco Technologies. This DVR supports up HD-TVI signals. It is equipped with an HDD bay that has a storage capacity up to 10TB (2TB preinstalled). H.265 and H.264 video codecs keep file sizes manageable while maintaining the best quality possible.
This NDAA-compliant DVR supports two-way audio. An HDMI and a VGA port enable video output to an external monitor (available separately) at up to 4K UHD resolution.
In the Box
- Speco Technologies D16VN 16-Channel 4MP HD-TVI DVR with 2TB HDD
- Remote Control
- 2 x AAA Batteries
- Mouse
- Power Cable & Adapter
User Manual
18.0 MB
Speco Technologies D16VN Specs
| Signal | HD-TVI |
| Number of Channels | 16 |
| Playback Resolution | HDMI: 3840 x 2160 VGA: 1920 x 1080 |
| Recording Resolution | 4 MP at 30 fps 4 MP at 15 fps 3 MP at 18 fps 2 MP at 30 fps |
| PTZ Support | Yes |
| Playback Speeds | 0.25x, 0.5x, 2x, 4x, 8x, 16x, 32x, 64x |
| Dual Streaming | Yes |
| 2-Way Audio | Yes |
| A/V Inputs/Outputs | HD-TVI: 16 x BNC 1 x BNC Output 1 x HDMI 1 x VGA |
| Communication Inputs/Outputs | 1 x RJ45 Gigabit Ethernet 1 x RS-485 2 x USB-A |
| Audio Inputs/Outputs | 4 Inputs 1 Output |
| Wi-Fi | None |
| Maximum User Access | 12 |
| Simultaneous Connections | 12 |
| Network Protocols | DDNS, NTP |
| Transmission Distance | 1600′ / 487.7 m |
| Max Frame Rate | 30 fps (4 MP) |
| Supported Video Codecs | H.264, H.265 |
| Supported Audio Codecs | G.711 |
| Backup Formats | AVI, EXE, JPEG, Proprietary |
| Backup Method | External HDD, Network, USB Drive |
| Software Upgrade | USB, Network |
| Installed Drive | 2 TB Hard Drive |
| Max Capacity Supported | 10 TB (Total) |
| OS Compatibility | Android iOS Windows macOS *As of September, 2022: Check with manufacturer for the most up-to-date compatibility |
| Recording Intervals | 20 Minutes (Pre-Record) 60 Seconds (Post-Record) |
| Recording Modes | Continuous, Manual, Motion, Schedule, Sensor, Smart |
| Search Modes | Date/Time, EZ Search, Event, Log, Museum |
| Multi-Screen Configuration | 1, 4, 9, 16 |
| Alarm Inputs/Outputs | 4 Inputs 1 Output |
| Event Trigger | Motion |
| Power Consumption | 12 VDC at 3 A |
| Operating Temperature | 41 to 104°F / 5 to 40°C |
| Operating Humidity | 20 to 80% |
| Storage Temperature | 14 to 122°F / -10 to 50°C |
| Certifications | CE, FCC, NDAA, TAA *as per Manufacturer |
| Built-In Display | None |
| Dimensions (W x D x H) | 11.8 x 9.9 x 2.0″ / 30.0 x 25.1 x 5.1 cm |
| Weight | 4.35 lb / 1.97 kg |
| Package Weight | 5.69 lb |
| Box Dimensions (LxWxH) | 17.4 x 11.4 x 4″ |
