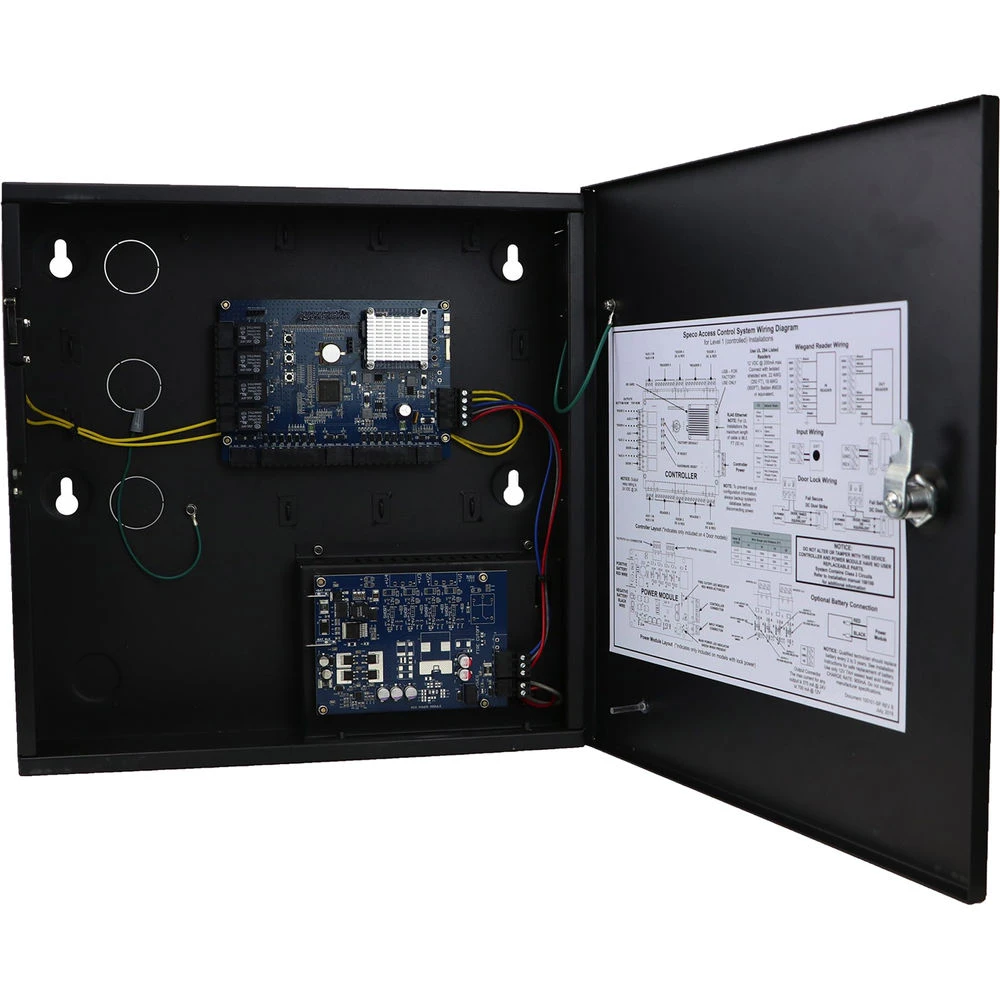

Speco Technologies A2E4 Two-Door Controller(Speco Technologies A2e4 Two Door Controller)

Speco Technologies A2E4 Two-Door Controller(Speco Technologies A2e4 Two Door Controller) - Image 2

Speco Technologies A2E4 Two-Door Controller(Speco Technologies A2e4 Two Door Controller)

Original price was: $393.00.Current price is: $95.99.

SKU: DGFUB 4537802129493 Category: Optics & Surveillance Tags: Access Control, Access Controllers, Surveillance

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Speco Technologies A2E4 Overview

The A2E4 from Speco Technologies provides access control for two doors when connected to a Wiegand reader interface. Control can be expanded to four doors when used with an A2M board.

Features

Access controller compatible with Wiegand readers to support two doors (expandable to four doors when used with an A2M board)

Internal power supply for controllers and readers

Browser-managed to be ready out of the box (works on all browsers)

Quad-core Cortex 1.5 GHz CPU

Embedded Linux OS

UL listed

UPC: 030519029964

In the Box

Speco Technologies A2E4 Two-Door Controller

Limited 5-Year Warranty

Speco Technologies A2E4 Specs

Processor	Quad-Core Cortex, 1.5 GHz
Memory	1 GB DDR3 & 8 GB eMMc
Operating System	Embedded Linux
Transactions	>45 per Second
Internal Power Supply	Controllers & Readers Only
Battery Backup	Controllers & Readers Only
Recommended Battery	Powersonic PS-1270-FI or Similar 12 V, 7 Ah, Sealed Lead Acid with 0.187″ / 4.75 mm Terminals
Readers	Readers (Wiegand): 4 Total, One In & One Out Reader for Each Door Reader Power: 300 mA at 12 V Maximum per Reader, 1000 mA at 12 V Maximum per System
Inputs and Outputs	2 x Request-to-Exit (REX) Inputs (One for Each Door) 2 x Door Position (Status) Inputs (One for Each Door) 2 x Auxiliary Inputs (General Purpose) 1 x Tamper Digital Input 1 x Power Fault Digital Input 2 x Door Lock Outputs (Form C Relay, 24 V at 2.0 A) 2 x Auxiliary Output (Form C Relay, 24 V at 2.0 A)
Power Requirements	System Power Requirements: 115 VAC at 1.5 A Standby: 400 mA at 12 V
Operating Temperature	50 to 95°F / 10 to 35°C
Certification	UL
Dimensions (W x H x D)	14.25 x 14.25 x 3.75″ / 362 x 362 x 95 mm
