SparkFun USB Logic Analyzer – 24MHz/8-Channel(Sparkfun Usb Logic Analyzer 24mhz 8 Channel)

Is your I²C bus not ACK’ing the way you expect? Do you need to discover a UART’s mysterious baud rate? Or do you want to reverse engineer an SPI protocol? These all sound like jobs for a logic analyzer! With the growing ubiquity of UART, I²C, and SPI sensors, logic analyzers are becoming a tool everyone needs in their toolbox or on their workbench. This 8-channel USB Logic Analyzer with support for sampling rates of up to 24MHz provides a good while economic option making it a great tool for quickly diagnosing most communication issues we encounter.

These analyzers will work with both 3.3V and 5V systems (up to 5.25V max and 2.0V minimum on a high logic-level) and is powered via an included mini-B USB cable. This logic analyzer works with PulseView — an open-source, cross-platform signal analysis software suite.

The analyzer ships with Female-To-Female jumper wires. If you’re using an Uno or board with female headers we recommend picking up a handful of Male-To-Male jumpers to connect the analyzer to the female headers.

Includes:

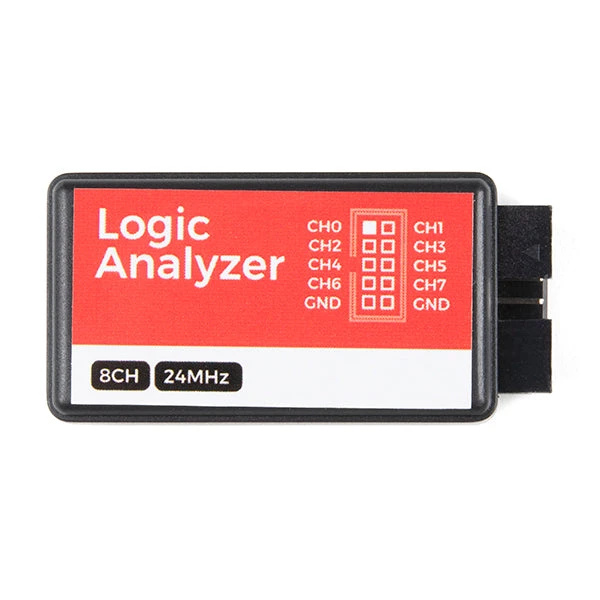

• 24MHz/8-Channel USB Logic Analyzer
• 10-conductor Female-to-Male Jumper Wires
• USB Type C Cable

Features:

• 8-channels
• Sampling rate up to 24MHz, configurable down to 20kHz
• 5.25V maximum voltage input
  • 2.0V minimum logic-high
  • 0.8V maximum logic-low
• Input impedance > 100kΩ, 5pF
• USB power supply
• USB Type C Connector
• Supports open-source sigrok logic analyzer software
• Cross-platform support: Windows, Mac OS X, Linux, Android, etc.
• Dimensions: 54.7 x 27.4 x 14.1 mm

With this latest revision of the USB Logic Analyzer, the USB Mini B connector was replaced with a more up-to-date USB Type C connector.

Documents:

• Using the 8Ch/24MHz Logic Analyzer with sigrok
