SparkFun UHF RFID Antenna (TNC)(Sparkfun Uhf Rfid Antenna Tnc)

Original price was: $65.14.Current price is: $45.60.

Elevate Your Shopping Experience

Product guarantee 100% satisfaction

The quality solution for all your needs.

Streamlined service, designed for your convenience.

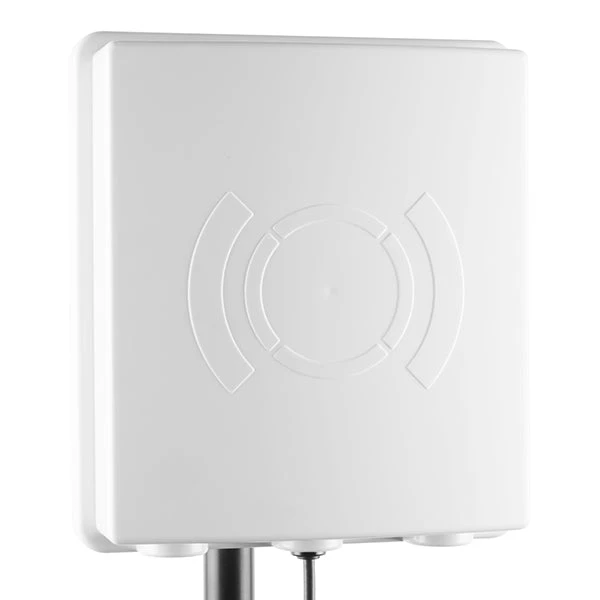

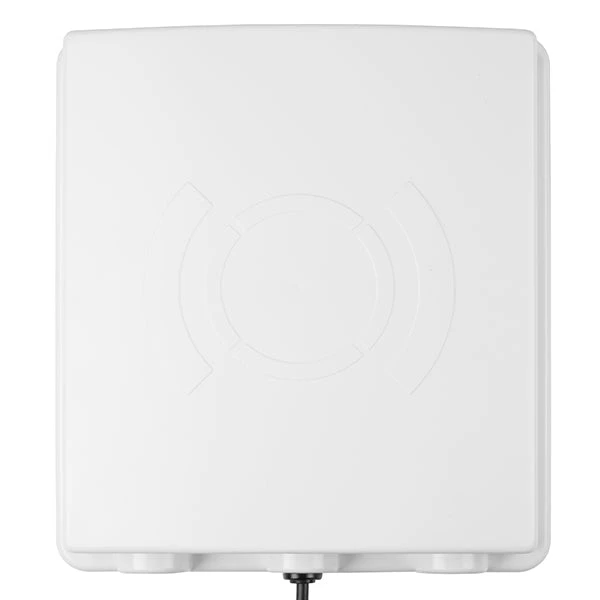

This is your solution when you absolutely, positively need to get the most out of an antenna for your next RFID project. This ultra high-frequency (UHF) RFID Antenna boasts a frequency range of 860-960 MHz with a gain of 6dBi. This is the same external antenna we use for our Simultaneous RFID Reader due to its high-quality features.

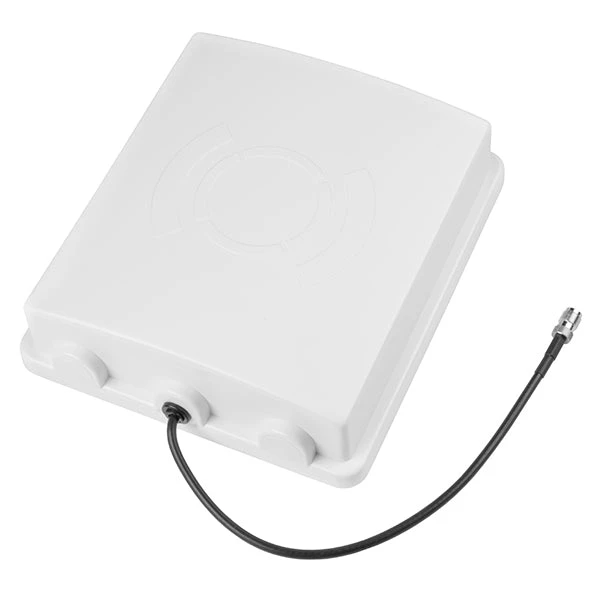

Each UHF RFID Antenna is terminated with a 30cm long TNC Female RP cable. If you need to extend the cable attached to the antenna, we offer additional cords to help you out!

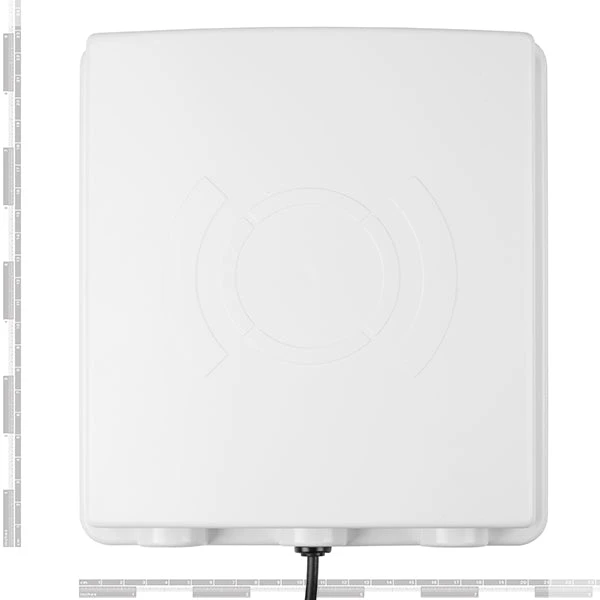

Dimensions: 223mm x 200mm x 60mm

Features:

Frequency Range: 860-960 MHz
Gain: 6 dBi
VSWR: < 1.6 : 1
Impedance: 50?
Polarization: Linear Vertical
Antenna Connector: TNC Female RP
Max Power: 100W

Documents:

Datasheet
RFID Basics
Simultaneous RFID Tag Reader Guide
