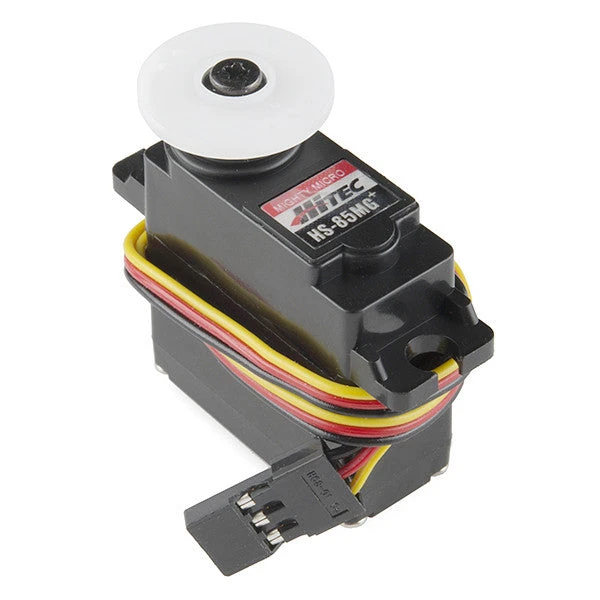

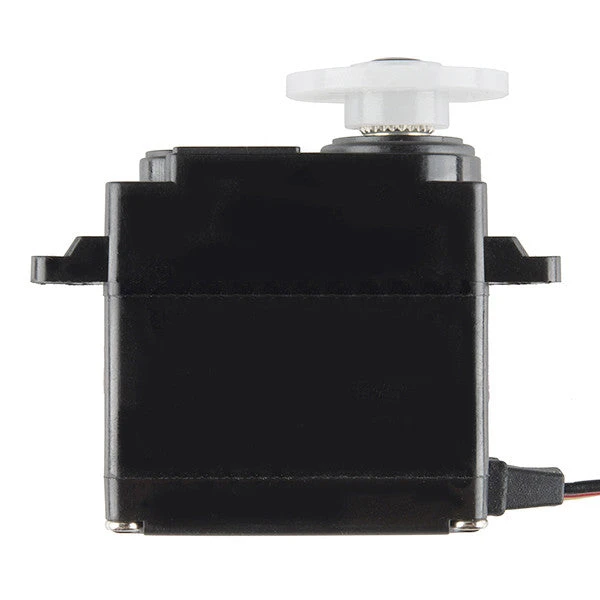

SparkFun Servo – Hitec HS-85MG (Micro Size)(Genuine Sparkfun Servo Hitec Hs 85mg Micro Size)

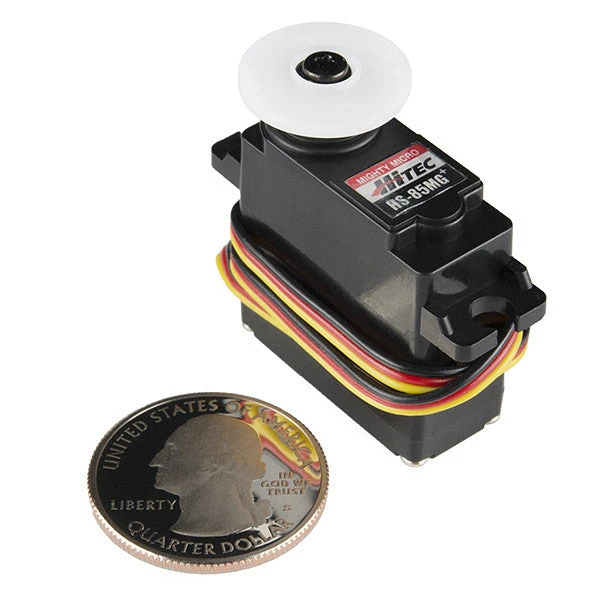

This is the epitome of the phrase “appearances can be deceiving,” and trust us, with the Hitec HS-85MG that couldn’t be more true. The HS-85MG is able to take in 6 volts and deliver 49 oz-in. of maximum torque at 0.14sec/60�, and this guy is only about the size of a bottle cap!

This high quality servo is perfect for your mechatronic needs and if you are looking to get into robotics, this is where to start. The HS-85MG servo comes standard with a 3-pin power and control cable and all hardware listed below.

Features:

• Voltage: 4.8-6.0 Volts
• Torque: 41.66/48.6 oz-in. (4.8/6.0V)
• Speed: 0.16/0.14 sec/60� (4.8/6.0V)
• Direction: Clockwise/ Pulse Traveling 1500-1900usec
• Rotation: 180�
• Single Ball Bearing
• 4 Metal Gears
• 3-Pole Ferrite Motor
• C1 Standard Spline

Includes:

• 1x HS-85MG Servo
• 1x Double Arm Micro Horn
• 1x Four Point Micro Horn
• 1x Circle Micro Horn

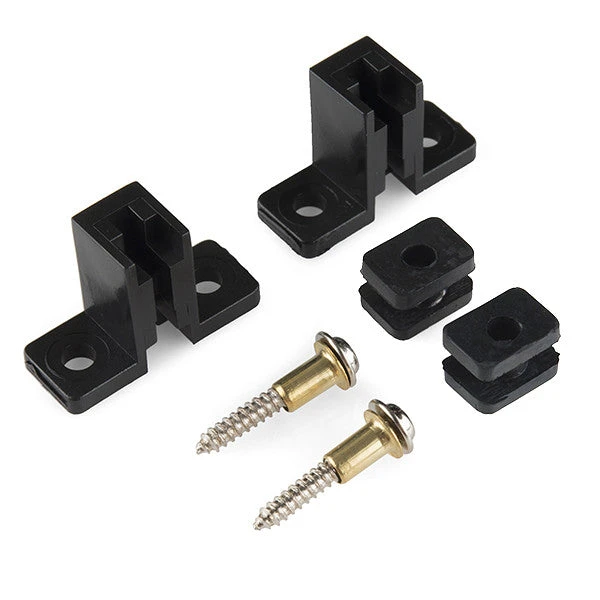

• 2x Rubber Grommets
• 2x 2x15mm Phillips Screw
• 2x Brass Eyelets
• 2x Servo Mount

Dimensions:

• 29 x 13 x 30mm
• Wire Length: 160mm
• Weight: 21.9g

Documents:

• Datasheet
• Product Video
