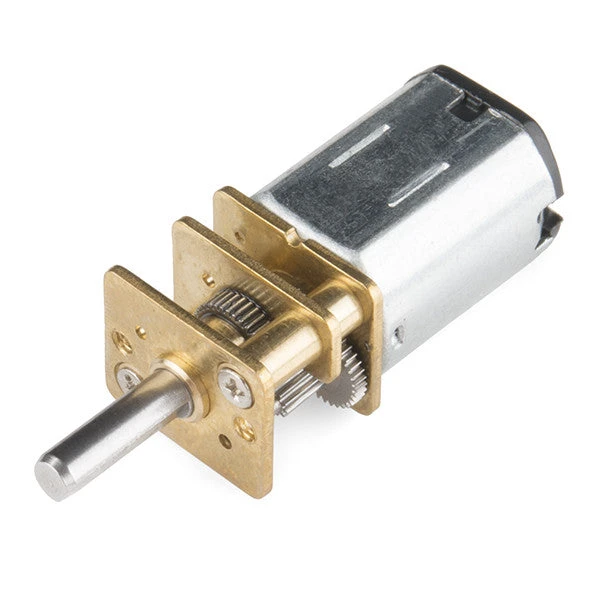

SparkFun Micro Gearmotor – 175 RPM (6-12V) DC/Gearmotor(Genuine Sparkfun Micro Gearmotor 175 Rpm 6 12v)

These micro gearmotors are incredibly tough and feature full metal gears. They have a gear ratio of 150:1 and operate up to 12 volts and have a stall torque of 45 oz-in. and a max speed of 175 RPM. Each micro gearmotor sports a 3mm D-shaft.

Note: The micro gearmotor enclosures are sold separately, you can find them here.

Features:

• Voltage: 6 – 12 Volts
• Gear Ratio: 150:1
• Stall Torque: 17/45 oz-in. (6/12V)
• Speed: 90/175 RPM (6/12V)
• No Load Current: 40/70 mA (6/12V)
• Stall Current: 360/1600 mA (6/12V)
• DC Reversible

Dimensions:

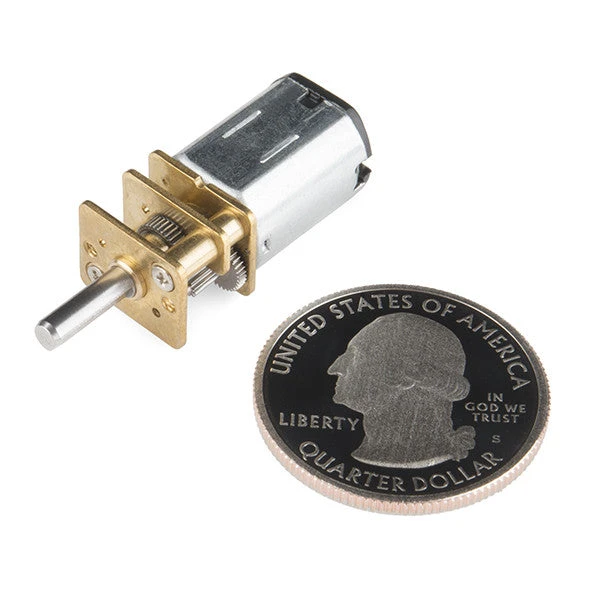

• Motor Size: 26 x 12 x 10mm
• Shaft Size: 3mm Diameter x 10mm Length
• Weight: 17g
