SparkFun Hobby Motor With Encoder – Metal Gear (DG01D-E)(Sparkfun Hobby Motor With Encoder Metal Gear Dg01d E)

Original price was: $17.80.Current price is: $12.46.

Elevate Your Shopping Experience

Product guarantee 100% satisfaction

The quality solution for all your needs.

Streamlined service, designed for your convenience.

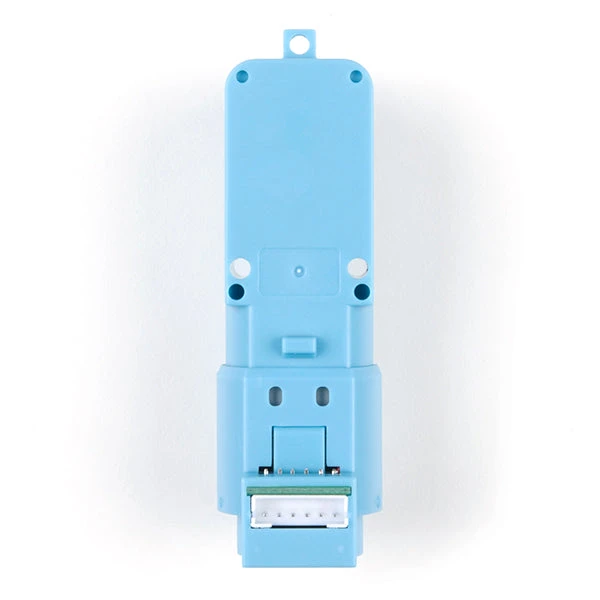

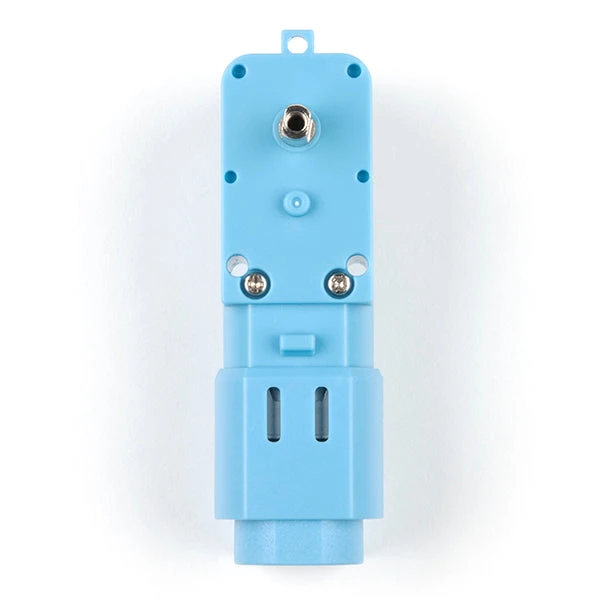

The DG01D-E is a single hobby motor with a hall speed encoder. This motor requires a voltage between 3-9V, has a gearbox ratio of 1:48 and a speed of 90RPM at 4.5V. The voltage between positive and negative is determined according to the power supply voltage of the single chip microcomputer used, generally 3.3V or 5V is used.

The hall sensor can sense the North and South poles of its magnetic plate. When the hall sensor senses the South of the magnetic plate, the hall output will result in a high level. Meanwhile the North is the inverse and, when sensed, the hall output will result a low level.

Note: Please be aware that this is a single Hobby Motor. To effectively drive a robotics project, at least two of these motors will be required. These motors are not sold in pairs!

Features:

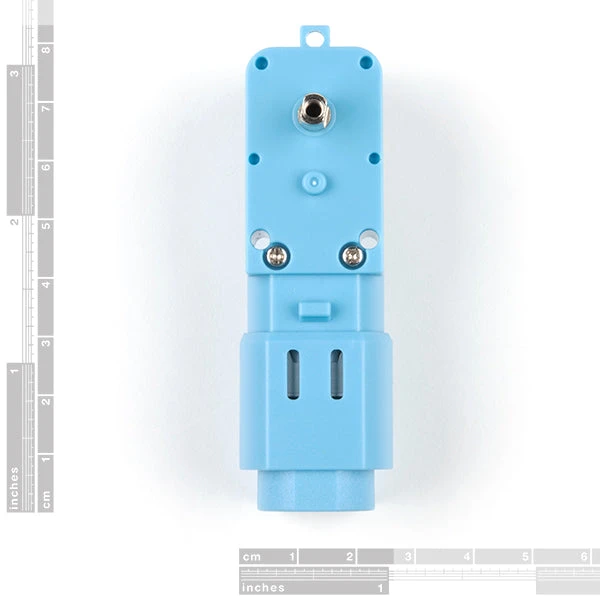

Dimension: 80×22.4×25.8mm
Voltage: 3V~9V
Gear ratio: 1:48
Speed: 90RPM (4.5V)
Color: Blue
Gear material: Metal

Documents:

Datasheet
